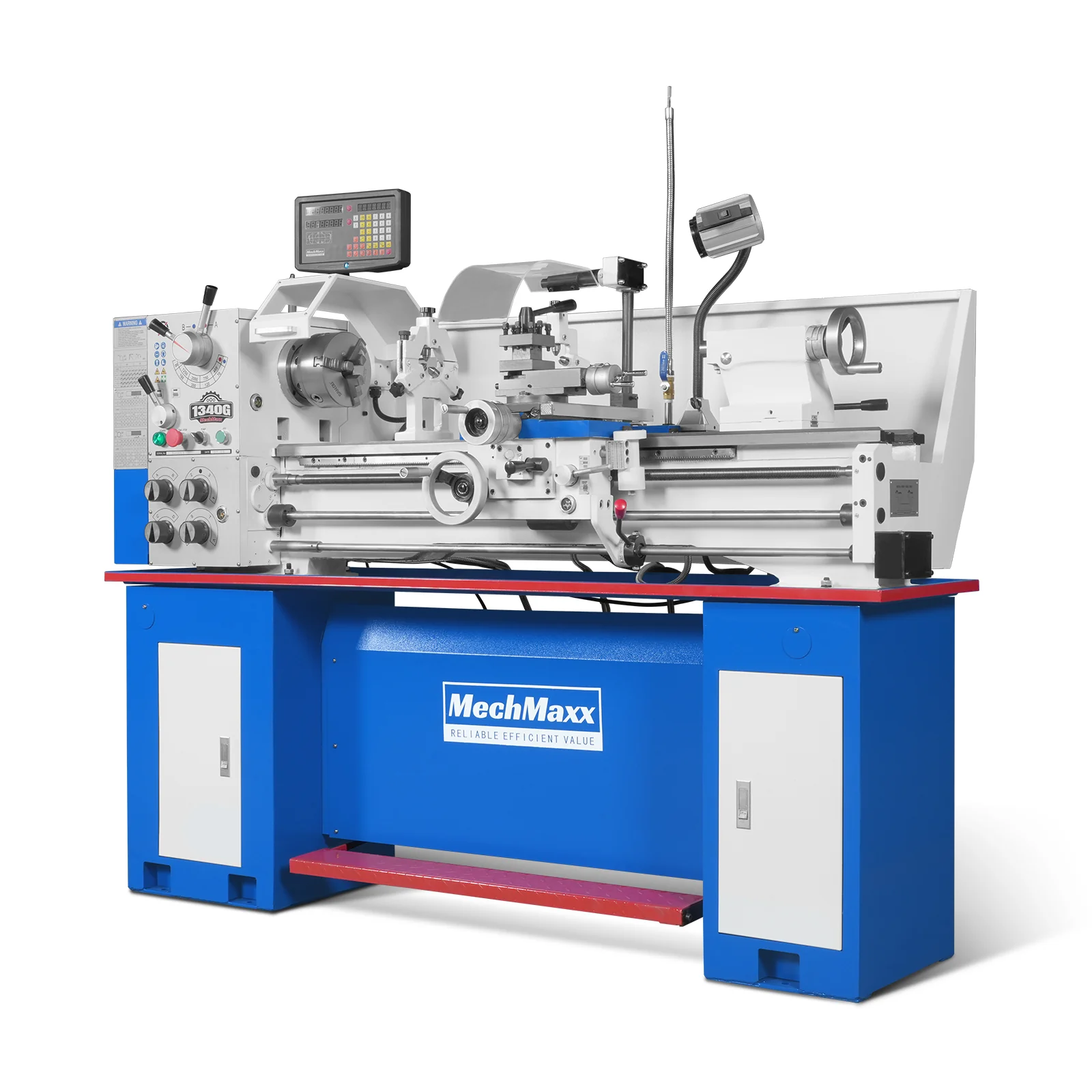

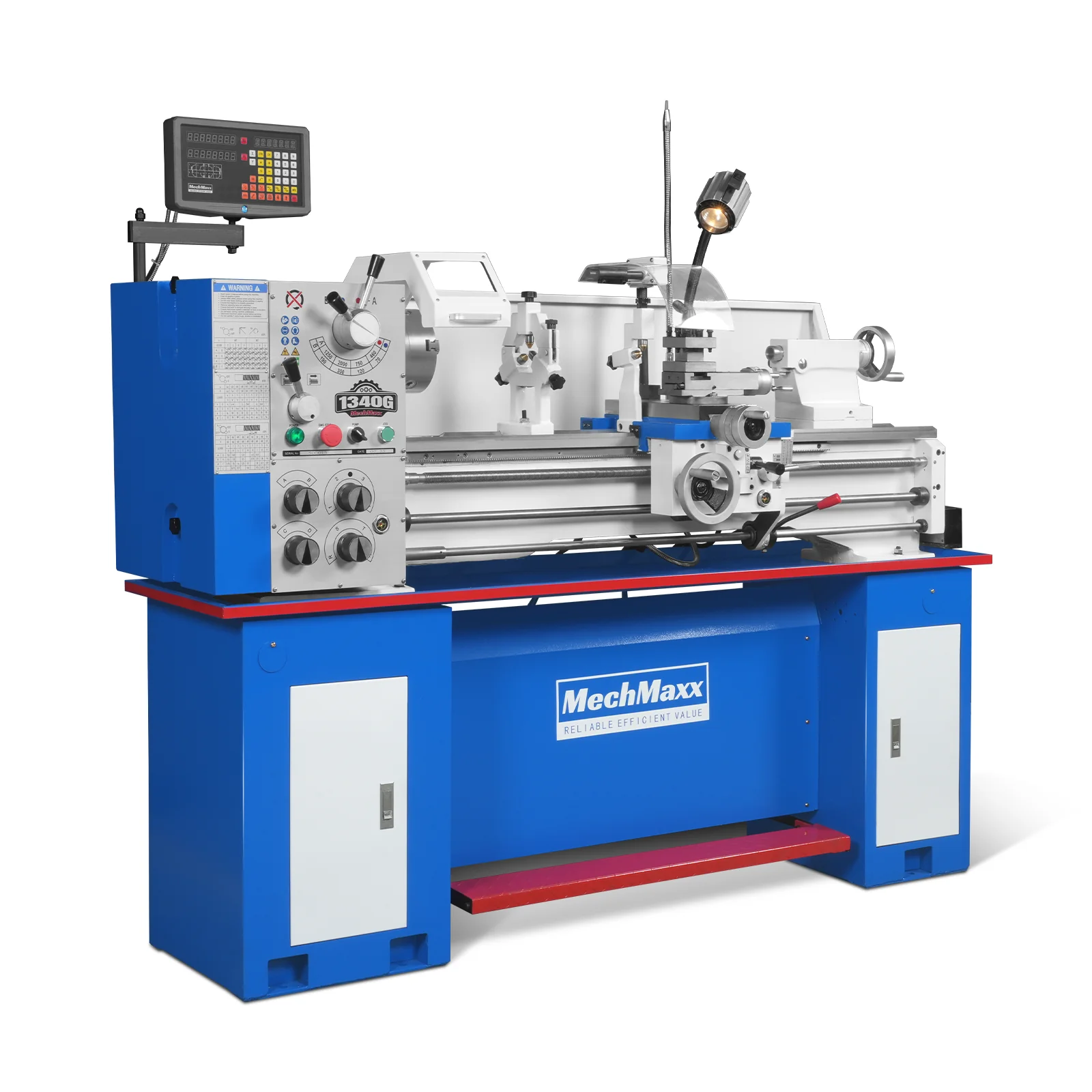

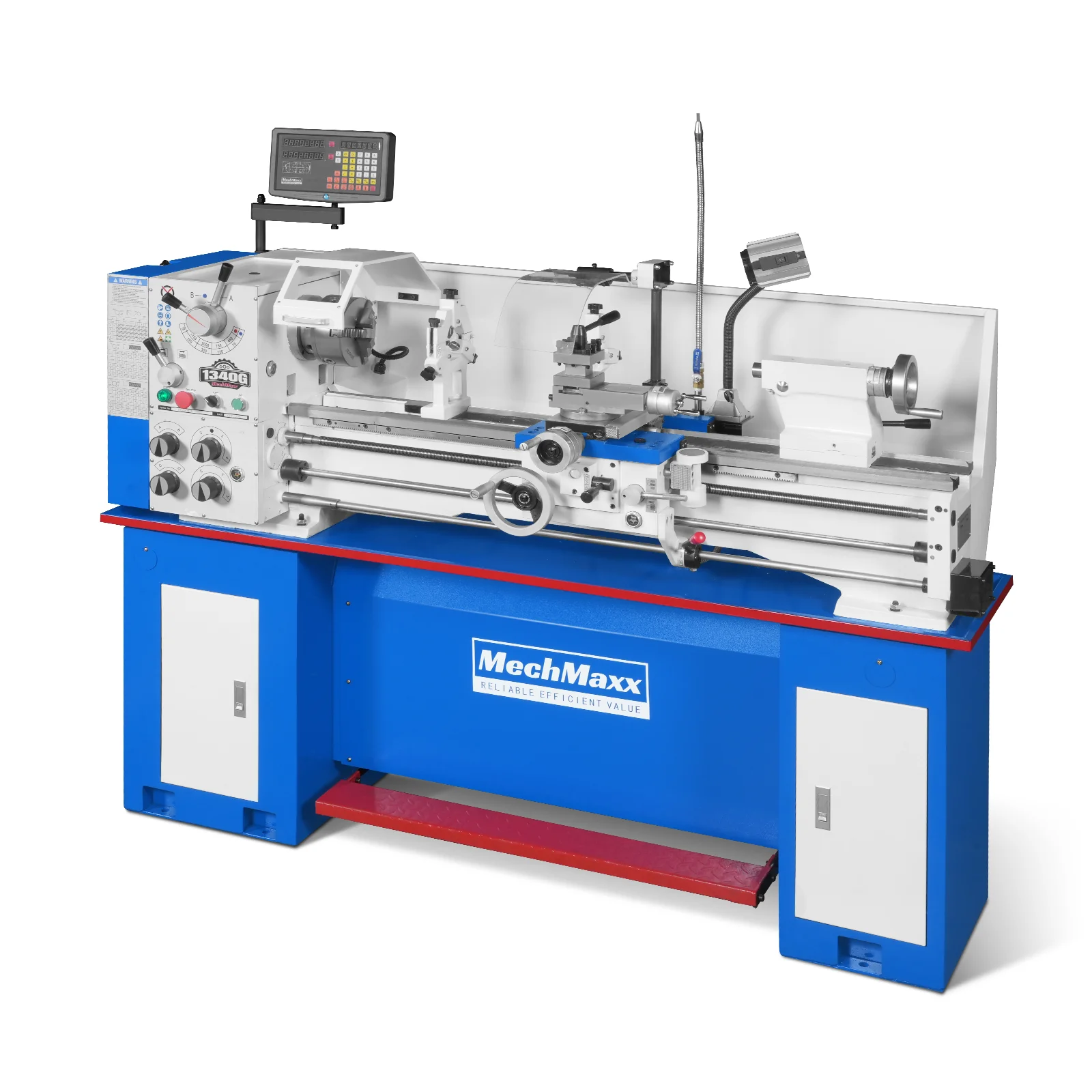

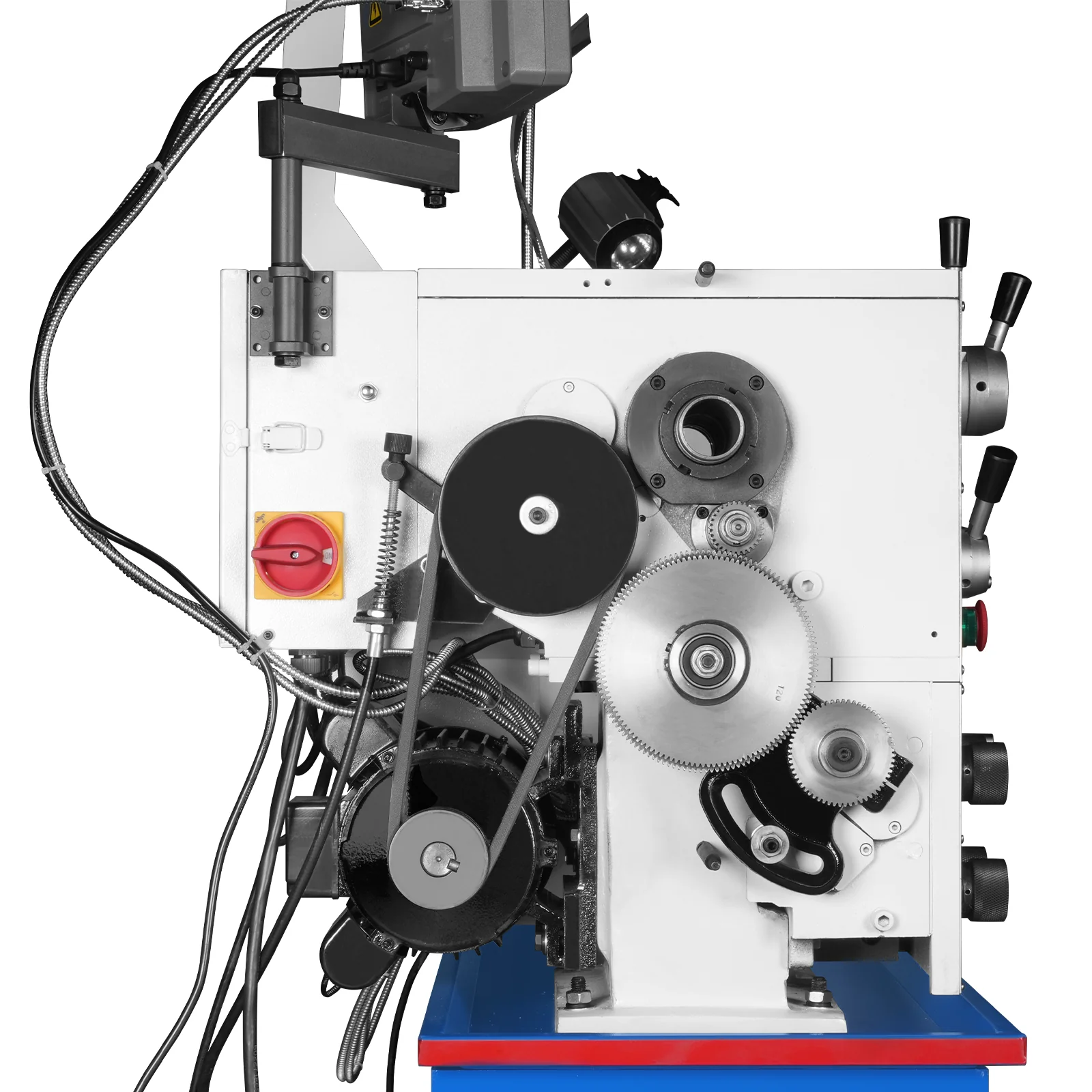

13" x 40" Industrial Heavy Duty Bench Metal Lathe 2HP/1500W Metal Working Lathe High Precision 70-2000 RPM Variable Speed with Four-axis sliding system 1340G
13" x 40" Industrial Heavy Duty Bench Metal Lathe 2HP/1500W Metal Working Lathe High Precision 70-2000 RPM Variable Speed with Four-axis sliding system 1340G
| Specification | 1340G |
| Motor | 2HP(1500W) 220V 60HZ 1PH |
| Swing Over Bed | 13 in/ 330mm |
| Swing Over Cross Slide | 7.67 in/ 195mm |
| Swing Over gap | 18.7 in/ 476mm |
| Distance Between Centers | 39.37 in/ 1000mm |
| Bed Width | 7.37 in/ 187mm |
| Spindle Bore | 1.57 in/ 40mm |
| Spindle Mount | Cam-Lock Mechanism |
| Spindle Type | D1-4 |
| Spindle Taper | MT5 |
| Tailstock Taper | MT3 |
| Tailstock Quill Travel | 3.74 in/ 95mm |
| Cross Slide Travel | 6.69 in/ 170mm |
| Compound Slide Travel | 2.91 in/ 74mm |
| Carriage Travel | 39.37 in/ 1000mm |
| Spindle Speeds | 70-2000RPM |
| Number of Speed Ranges | 8 |
| Longitudinal Feeds | 0.002''-0.0548'' |
| Transverse Feed Rate | 0.00055''-0.015'' |
| Leadscrew Size & Pitch | 22mm/ 7/8'' 8TPI |
| Threading Capacity - Inch | 4-56TPI(34 kinds) |
| Threading Capacity - Metric | 0.4-7mm(26 kinds) |
| Module thread | 0.35-5M.P(16 kinds) |
| Diametral thread | 6-104D.P(36 kinds) |
| Maximum Tool Bit Size | 0.63"(16mm) × 0.63"(16mm) |
| Coolant System | YES |
| Approximate Shipping Dimension Weight | 75.6x29.52x59in 1416.8lbs 1920x750x1500mm 644kgs |
$6,699.00
13" x 40" Industrial Heavy Duty Bench Metal Lathe 2HP/1500W Metal Working Lathe High Precision 70-2000 RPM Variable Speed with Four-axis sliding system 1340G—
$6,699.00
More Images
13" x 40" Industrial Heavy Duty Bench Metal Lathe 2HP/1500W Metal Working Lathe High Precision 70-2000 RPM Variable Speed with Four-axis sliding system 1340G
| Specification | 1340G |
| Motor | 2HP(1500W) 220V 60HZ 1PH |
| Swing Over Bed | 13 in/ 330mm |
| Swing Over Cross Slide | 7.67 in/ 195mm |
| Swing Over gap | 18.7 in/ 476mm |
| Distance Between Centers | 39.37 in/ 1000mm |
| Bed Width | 7.37 in/ 187mm |
| Spindle Bore | 1.57 in/ 40mm |
| Spindle Mount | Cam-Lock Mechanism |
| Spindle Type | D1-4 |
| Spindle Taper | MT5 |
| Tailstock Taper | MT3 |
| Tailstock Quill Travel | 3.74 in/ 95mm |
| Cross Slide Travel | 6.69 in/ 170mm |
| Compound Slide Travel | 2.91 in/ 74mm |
| Carriage Travel | 39.37 in/ 1000mm |
| Spindle Speeds | 70-2000RPM |
| Number of Speed Ranges | 8 |
| Longitudinal Feeds | 0.002''-0.0548'' |
| Transverse Feed Rate | 0.00055''-0.015'' |
| Leadscrew Size & Pitch | 22mm/ 7/8'' 8TPI |
| Threading Capacity - Inch | 4-56TPI(34 kinds) |
| Threading Capacity - Metric | 0.4-7mm(26 kinds) |
| Module thread | 0.35-5M.P(16 kinds) |
| Diametral thread | 6-104D.P(36 kinds) |
| Maximum Tool Bit Size | 0.63"(16mm) × 0.63"(16mm) |
| Coolant System | YES |
| Approximate Shipping Dimension Weight | 75.6x29.52x59in 1416.8lbs 1920x750x1500mm 644kgs |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Specification | 1340G |
| Motor | 2HP(1500W) 220V 60HZ 1PH |
| Swing Over Bed | 13 in/ 330mm |
| Swing Over Cross Slide | 7.67 in/ 195mm |
| Swing Over gap | 18.7 in/ 476mm |
| Distance Between Centers | 39.37 in/ 1000mm |
| Bed Width | 7.37 in/ 187mm |
| Spindle Bore | 1.57 in/ 40mm |
| Spindle Mount | Cam-Lock Mechanism |
| Spindle Type | D1-4 |
| Spindle Taper | MT5 |
| Tailstock Taper | MT3 |
| Tailstock Quill Travel | 3.74 in/ 95mm |
| Cross Slide Travel | 6.69 in/ 170mm |
| Compound Slide Travel | 2.91 in/ 74mm |
| Carriage Travel | 39.37 in/ 1000mm |
| Spindle Speeds | 70-2000RPM |
| Number of Speed Ranges | 8 |
| Longitudinal Feeds | 0.002''-0.0548'' |
| Transverse Feed Rate | 0.00055''-0.015'' |
| Leadscrew Size & Pitch | 22mm/ 7/8'' 8TPI |
| Threading Capacity - Inch | 4-56TPI(34 kinds) |
| Threading Capacity - Metric | 0.4-7mm(26 kinds) |
| Module thread | 0.35-5M.P(16 kinds) |
| Diametral thread | 6-104D.P(36 kinds) |
| Maximum Tool Bit Size | 0.63"(16mm) × 0.63"(16mm) |
| Coolant System | YES |
| Approximate Shipping Dimension Weight | 75.6x29.52x59in 1416.8lbs 1920x750x1500mm 644kgs |
