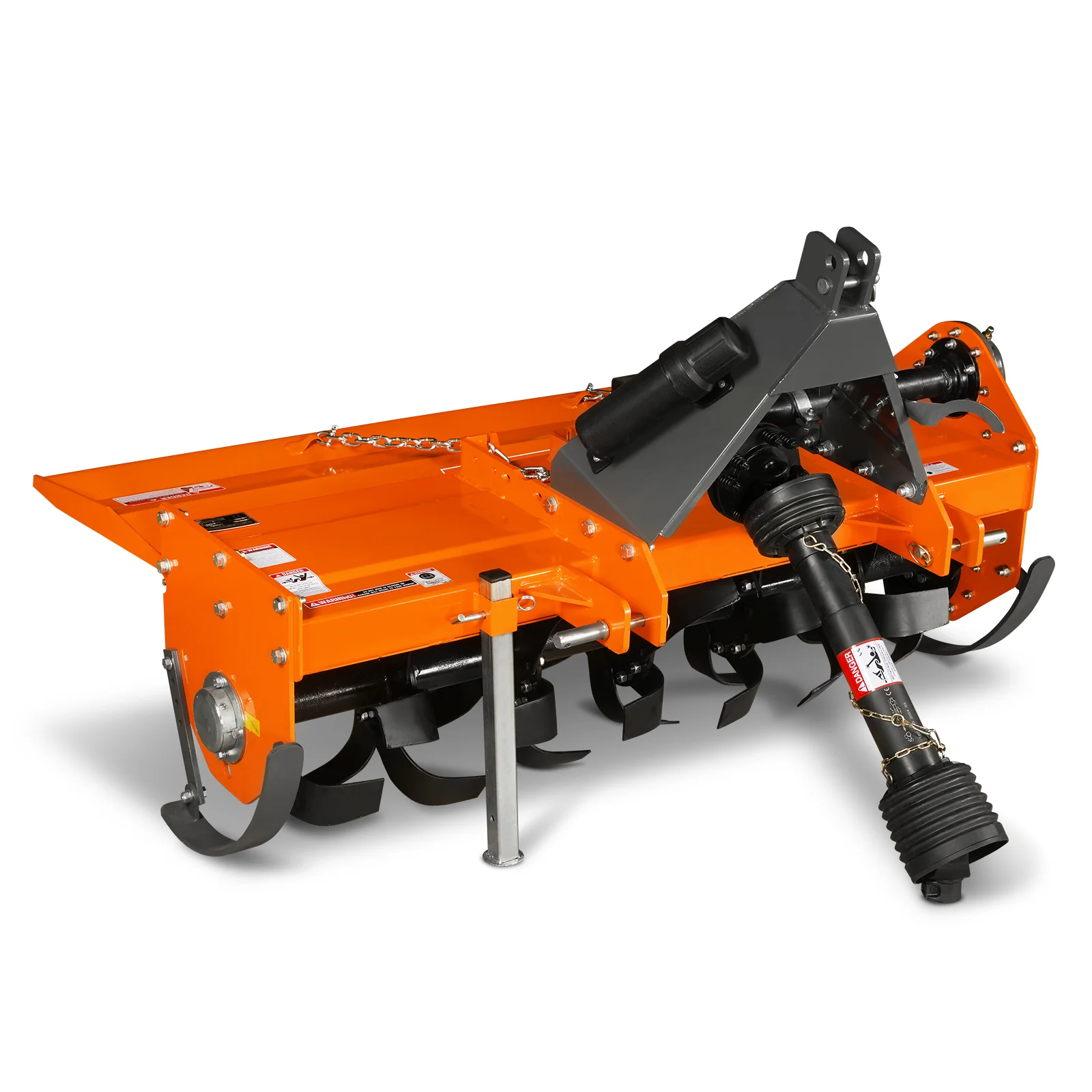

5FT 3-Point Gear Drive Rotary Tiller, 25-50HP Tractor, PTO Shaft Included (With Slip Clutch), Cat. 1 &2 Hookup , RT500
5FT 3-Point Gear Drive Rotary Tiller, 25-50HP Tractor, PTO Shaft Included (With Slip Clutch), Cat. 1 &2 Hookup , RT500
| Power Required | 25-50HP | Main Gearbox | ASAE 1- 3/8″ – 6 spline shaft, proven cast iron, oil bath gearbox; ratio is 1.69:1 |
| Working Width | 60in | Drive Gear Ratio | 1:52:1 |

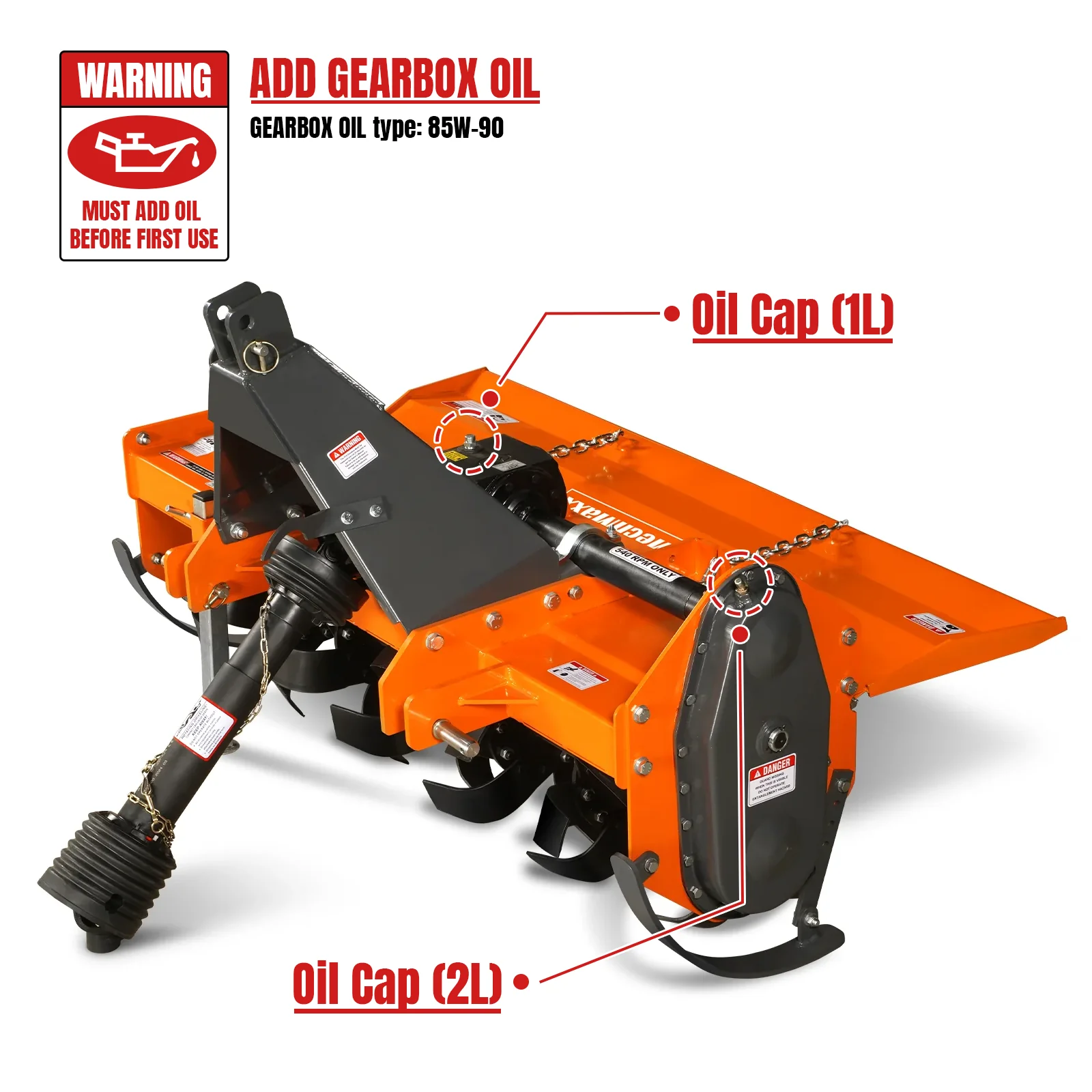

| Overall Width | 66in | Gearbox Oil Type | SAE 85W-90 |
| Working Depth | 1in,2.1in,3.1in,5.1in | Deck Thickness | 0.16in |
| Number Of Flanges | 7 | Side Plate Thickness | 0.31in |
| Number Of Blades | 36 | PTO Shaft RPM | 540 RPM |
| Blade Type | C type | PTO Shaft | T4-31in 8 Bolt non-removable slip clutch |
| Blade Material | 60SI2MN | Spline End | 1.375in X Z6 |
| Rotor bearing | NSK bearing | 3-Point Hitch | CAT 1/2 |
| Rotor Diameter | 3in | Deflector | Rear Hinged |
| Rotor Swing Diameter | 19.5in | Finish | Powder Coating |
| Rotor Thickness | 0.3in | Dimensions (L x W x H) | 66 X 31.5 X 30.7in |
| Rotor Shaft Speed | 215 RPM | Warranty | 1 year |
| Rotor Rotation | Forward | Net Weight | 690lbs |
| Drive Type | Gear Drive | Gross Weight | 793lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
