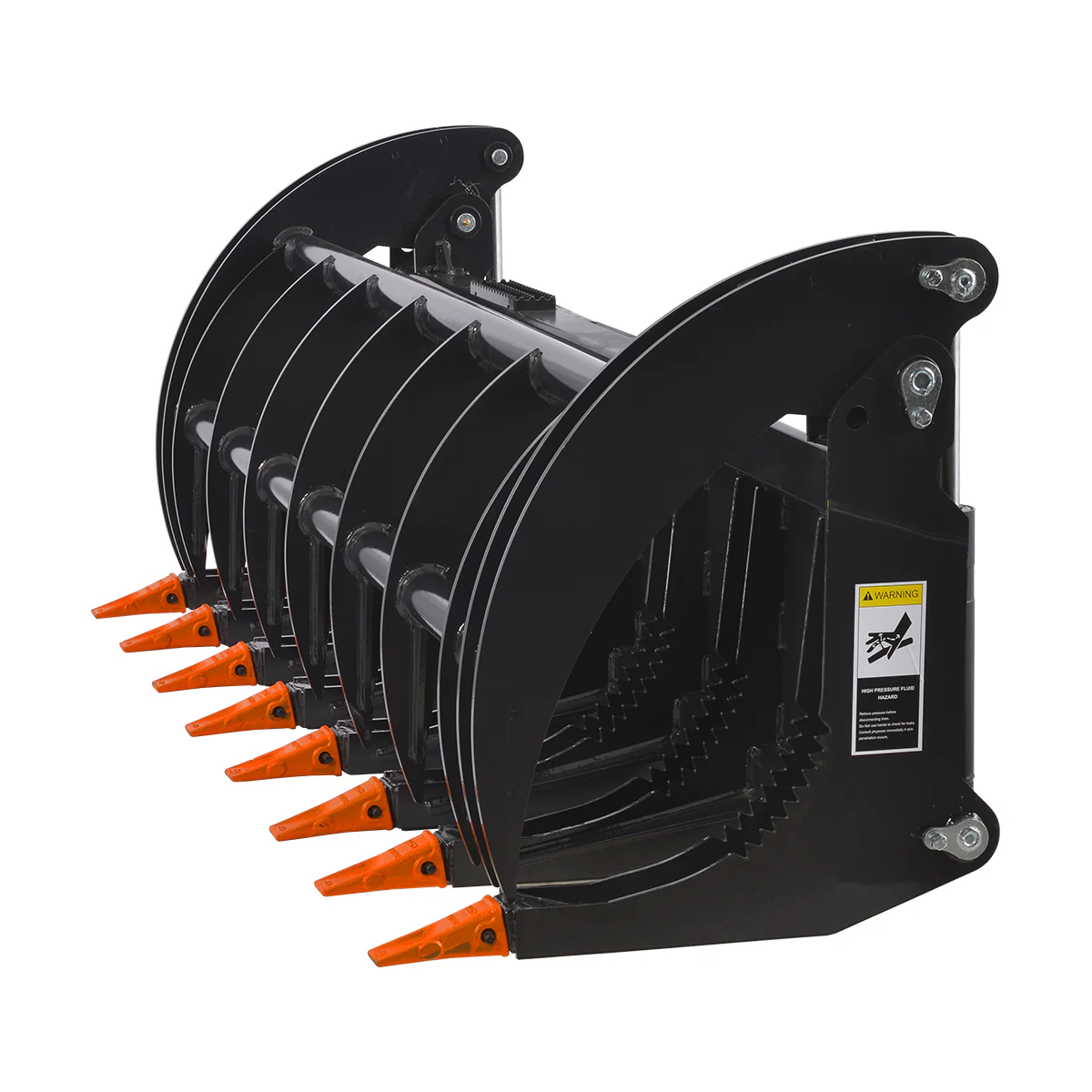

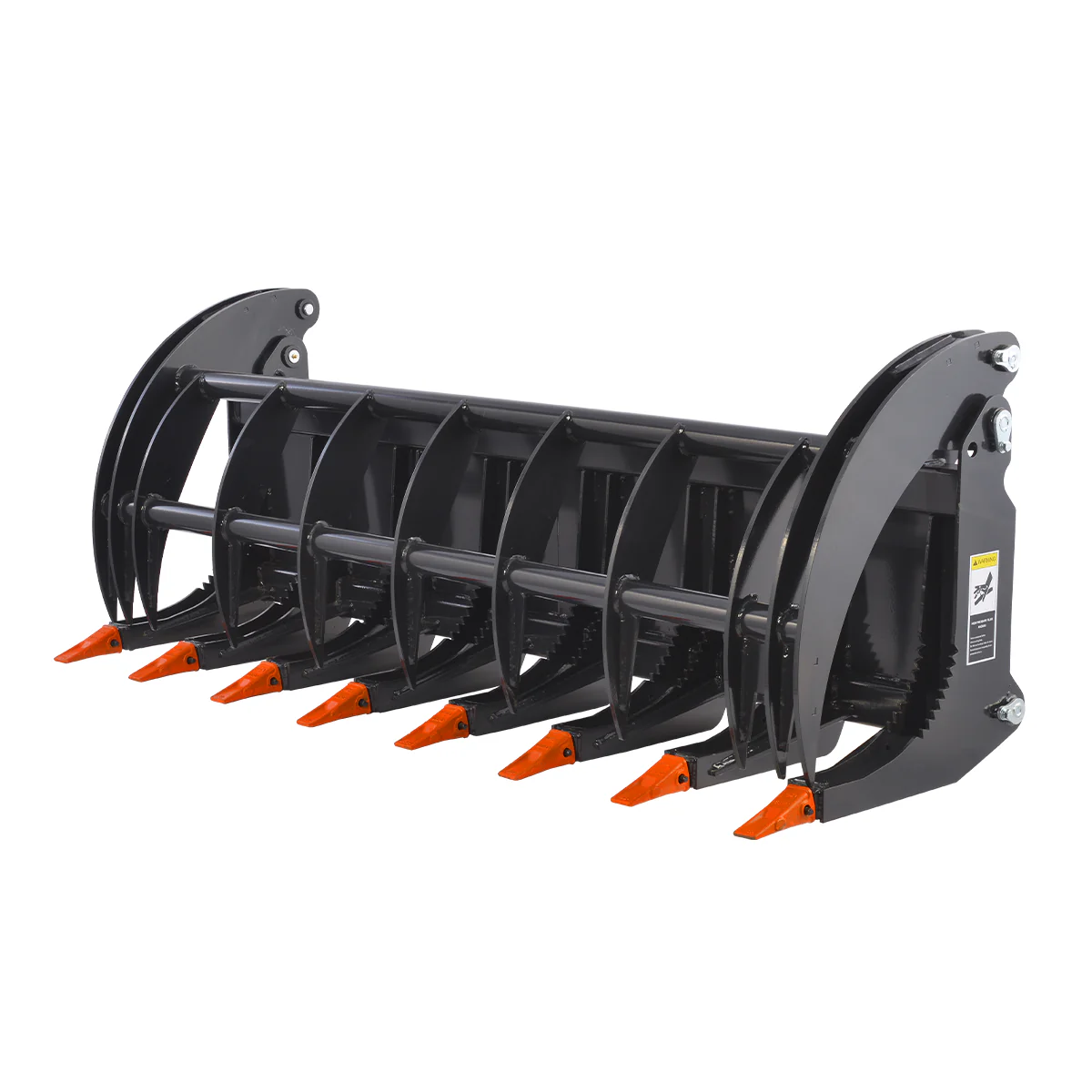

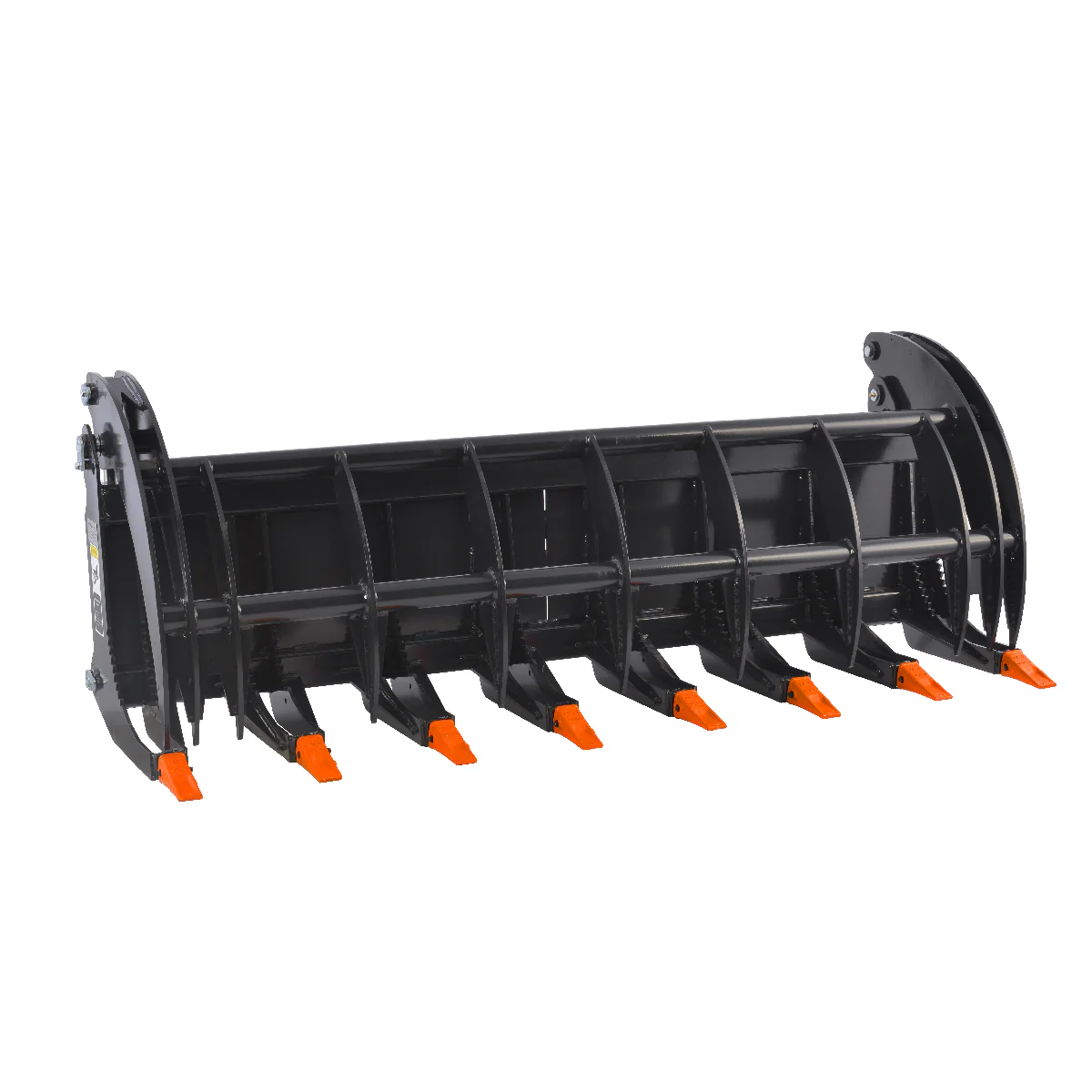

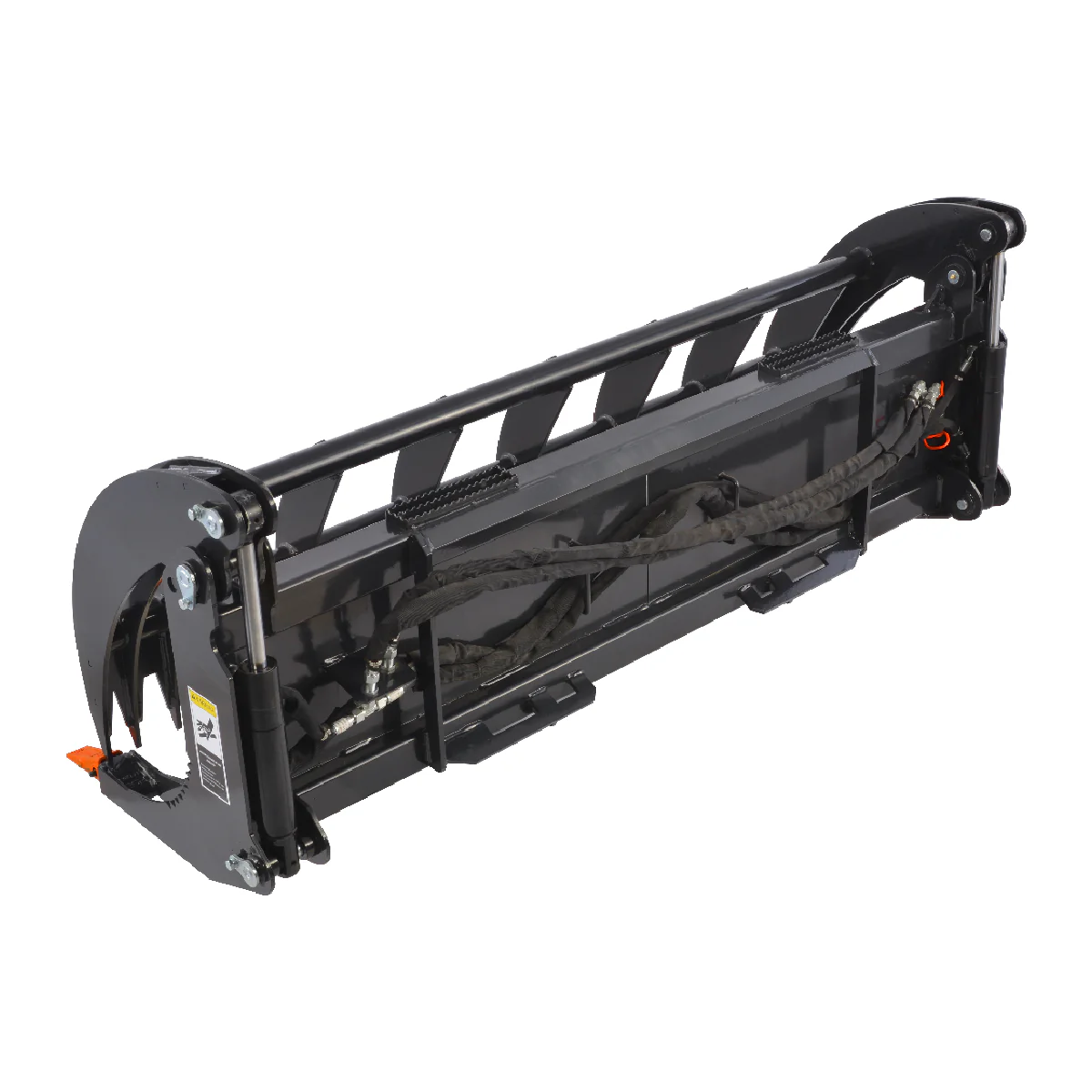

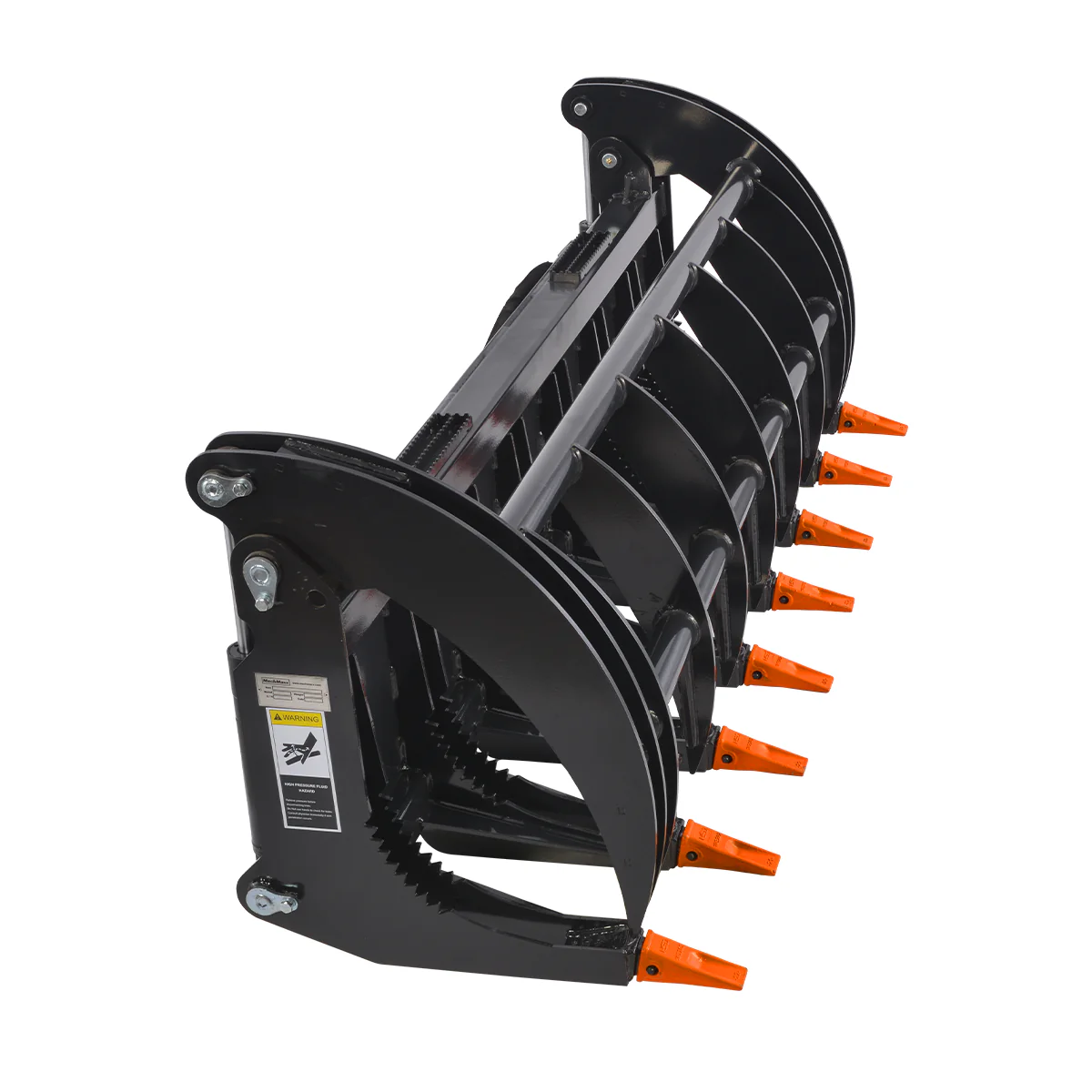

78” Skid Steer Heavy Root Rake Grapple Attachment,52in Jaw Opening , HGG-78
| Operating Pressure | 2320psi | Tine Spacing | 10.7in |
| Clamping Force | 706lbs | Number Of Teeth | 8 |
| Working Width | 78in | Material | Q345B Durable Steel |
| Opening Height | 52in | Finish | Durable Powder Coated Finish |
| Min Loader Rated Operating Capacity | 1860lbs | Product Size | 78 X 27 X 29in |
| Max Loader Rated Operating Capacity | 3500lbs | Package Method | Iron Frame With Film |
| Top Teeth Thickness | 0.4in | Packing Size | 84 X 30 X 31.5in |
| Bottom Teeth Thickness | 0.3in | Weight（N.W./G.W.) | 595/721lbs |
| Teeth Length | 5.5in | Warranty | 1Year |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
Original: $1,899.00
-65%$1,899.00
$664.65More Images
78” Skid Steer Heavy Root Rake Grapple Attachment,52in Jaw Opening , HGG-78
| Operating Pressure | 2320psi | Tine Spacing | 10.7in |
| Clamping Force | 706lbs | Number Of Teeth | 8 |
| Working Width | 78in | Material | Q345B Durable Steel |
| Opening Height | 52in | Finish | Durable Powder Coated Finish |
| Min Loader Rated Operating Capacity | 1860lbs | Product Size | 78 X 27 X 29in |
| Max Loader Rated Operating Capacity | 3500lbs | Package Method | Iron Frame With Film |
| Top Teeth Thickness | 0.4in | Packing Size | 84 X 30 X 31.5in |
| Bottom Teeth Thickness | 0.3in | Weight（N.W./G.W.) | 595/721lbs |
| Teeth Length | 5.5in | Warranty | 1Year |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Operating Pressure | 2320psi | Tine Spacing | 10.7in |
| Clamping Force | 706lbs | Number Of Teeth | 8 |
| Working Width | 78in | Material | Q345B Durable Steel |
| Opening Height | 52in | Finish | Durable Powder Coated Finish |
| Min Loader Rated Operating Capacity | 1860lbs | Product Size | 78 X 27 X 29in |
| Max Loader Rated Operating Capacity | 3500lbs | Package Method | Iron Frame With Film |
| Top Teeth Thickness | 0.4in | Packing Size | 84 X 30 X 31.5in |
| Bottom Teeth Thickness | 0.3in | Weight（N.W./G.W.) | 595/721lbs |
| Teeth Length | 5.5in | Warranty | 1Year |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
