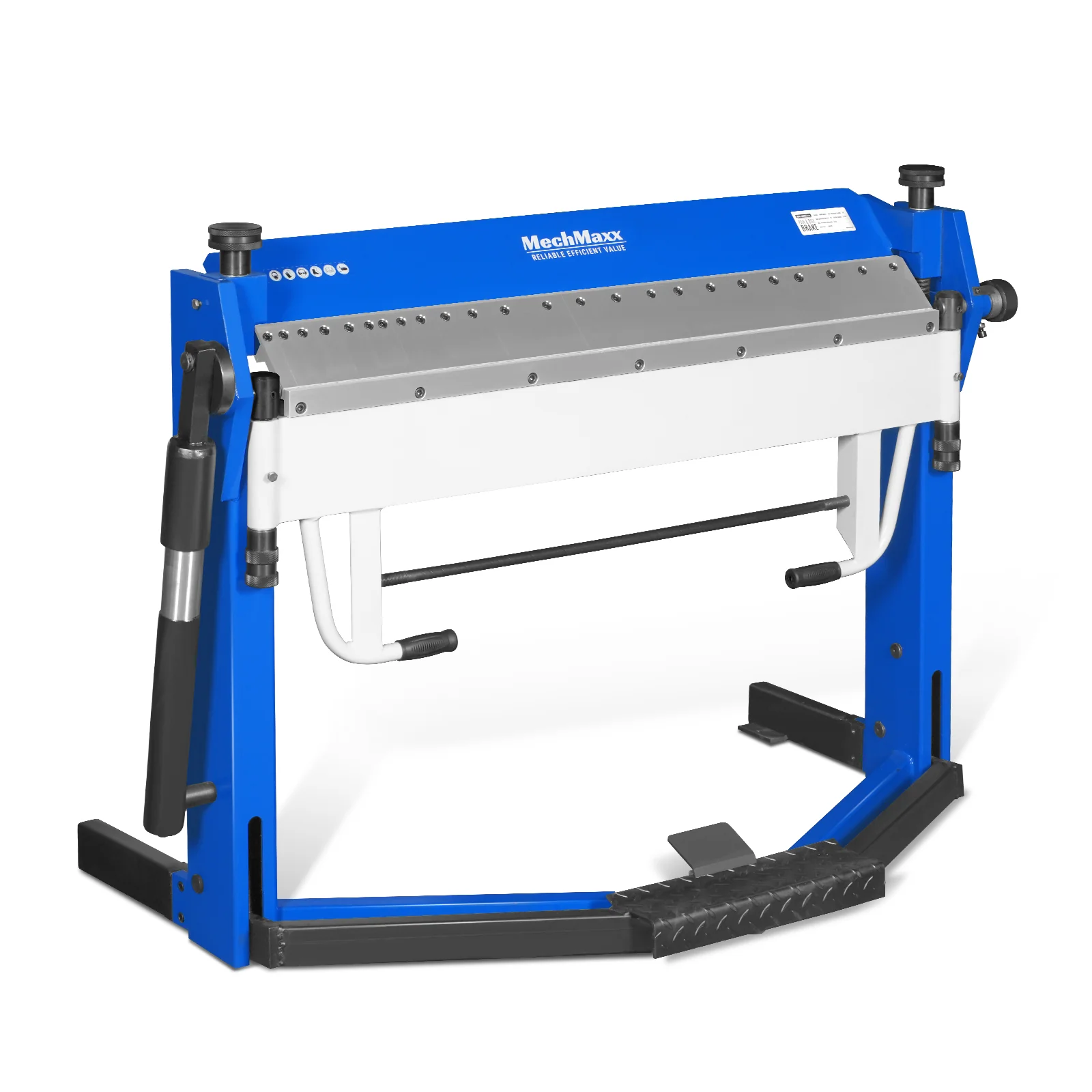

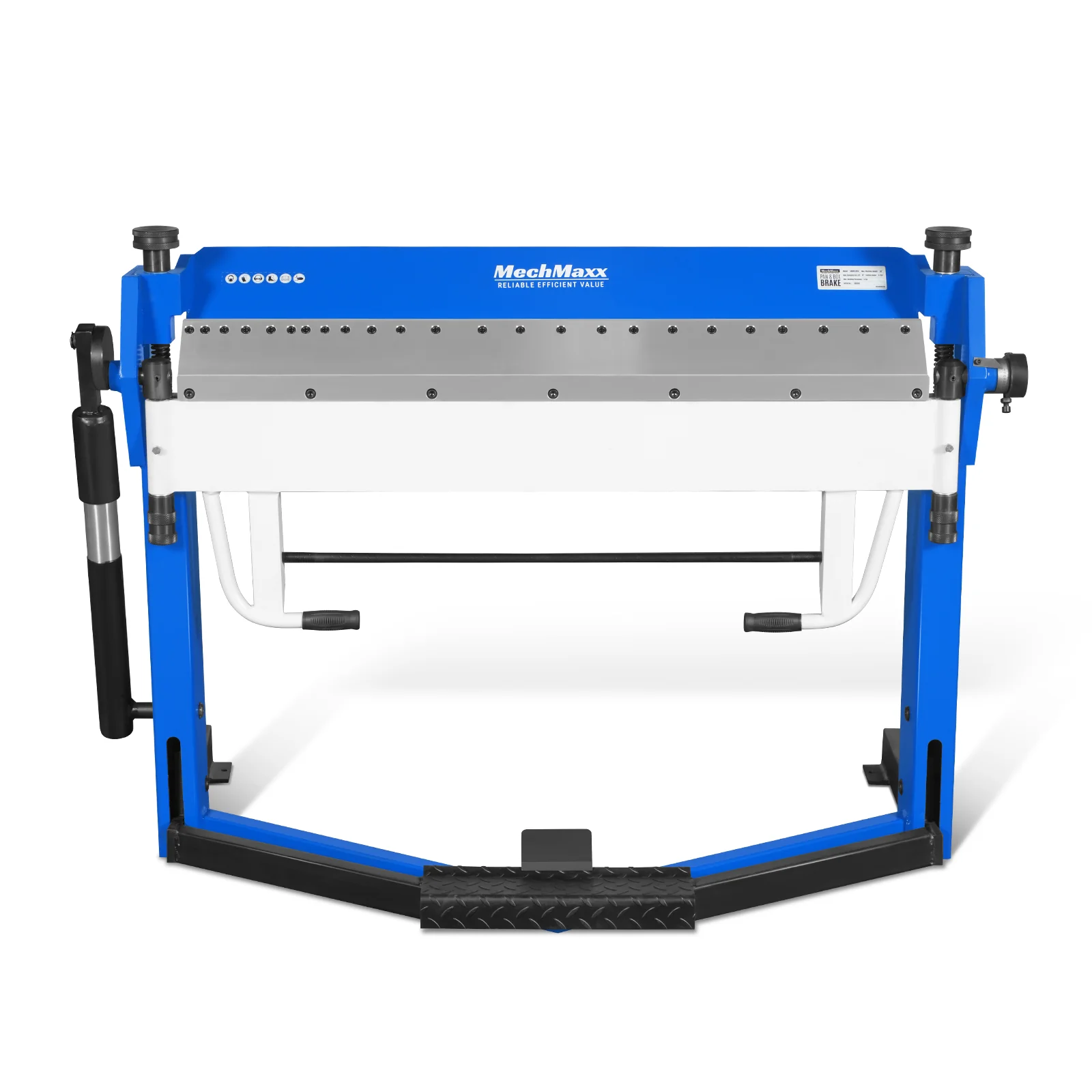

50-Inch Foot Clamp Pan and Box Brake, Light Duty Sheet Metal Folding Machine, 0–135° Bending Angle, 1.9" Clamping Lift, 2" Box Depth PBA5014

Maximum Working Length	50 in (1270 mm)
Maximum Sheet Thickness	14 Ga. mild steel (≈2.0 mm)
Maximum Clamping Bar Lift	1.9 in (48 mm)
Maximum Box Depth	2 in (50 mm)
Folding Angle Range	0° – 135°
Upper Blade	Removable segments for box & pan forming

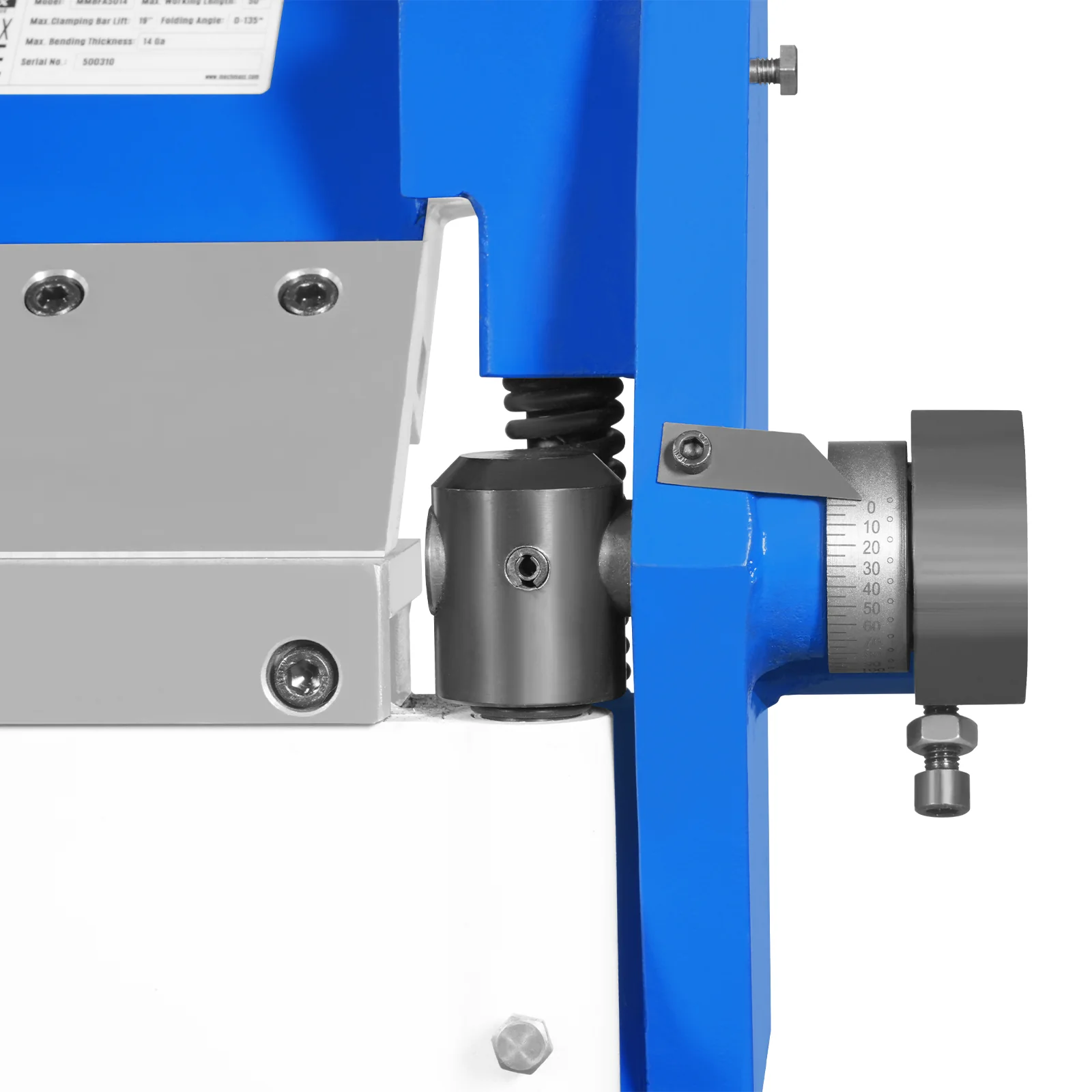

Adjustment	Quick-adjust blade gap knobs
Assist Mechanism	Spring-loaded cylinders for reduced operator effort
Control	Foot pedal clamp for hands-free operation
Frame Construction	Fully welded steel body, reinforced for stability
Back Gauge	Optional, with pre-drilled mounting points
Packing Size	66.9 × 28 × 50 in
Net / Gross Weight	794 / 924 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
