Hay Baler & Hay Rake Tedder & Disc Mower Combo, HB3120, HT100, DM6

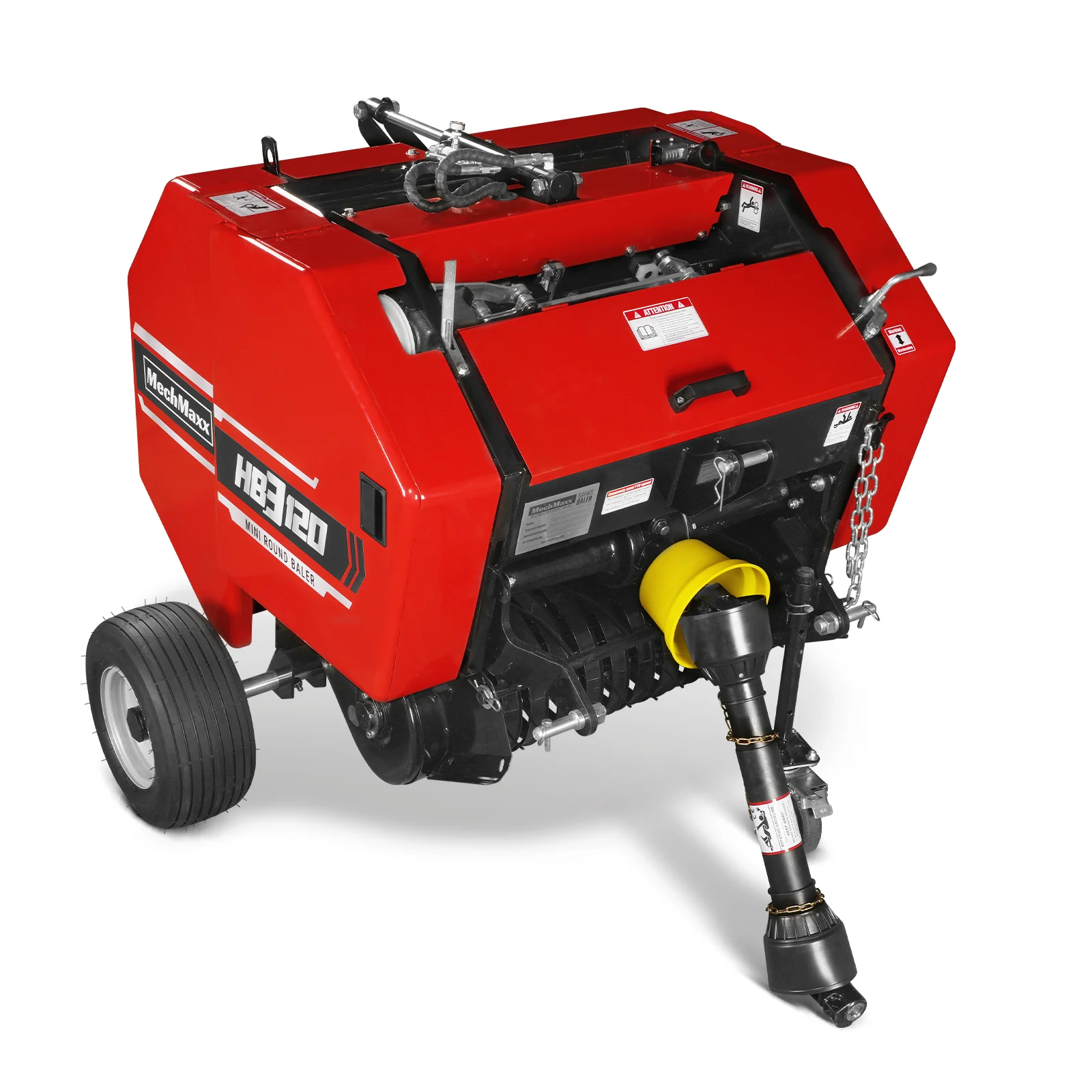

Hay Baler Ā HB3120Ā
| Power Required | 15-50 Hp | Ropes Needed For Per Bale | 62-95ft |
| Minimum Tractor Weight | 1500 lbs | Tire Size | 16 x 6.5 in |
| Bale SizeĀ ļ¼Diameter XĀ Ā Widthļ¼ | Ļ20 X 28 in | PTO Shaft Speed | 540 rpm |
| Bale Weight | 30 - 50 lbs | Driveline Shaft Length | T4-LF-27.5Ā |
| Overall (L x W x H) | 45 x 51 x 47 in | Spline End | 1.375in Z6 |
| Pickup Width | 31.5 in | 3-Point Hitch | CAT 1 |
| Efficiency | 1.24-3.11 mi/h | Gearbox Oil Type | 80W90 EP Gear Oil |
| Capacity | 80 - 100 Bales / Hour | Finish | Powder Coating |
| Bale Wrapping | Twine Wrap | Warranty | 1 Year |
| Hydraulics | Independent Hydraulic Power Unit, No Need Tractor Hydraulics | Shipping Box | 47 x 45 x 47 in |
| Electrical | Aviation Plug, Easy To Connect With Tractor | Weight (N.W./G.W.) | 970 /992 lbs |
Hay Tedder Combo HT100
| Power Required | 15-50 hp | Tire Size | 13x5.0-6 |
| Minimum Tractor Weight | 1500 lbs | PTO Shaft Speed | 540 rpm |
| Working Width | 100Ā in | Driveline Shaft Length | T4-23.2 in |
| Rake Diameter | 79 in | Spline End | 1.375inĀ Ā Z6 |
| Spreading With | 63 in | 3-Point Hitch | CAT 1 |
| Overall (L x W x H) | 83 x 98 x 37 in | FinishĀ | Powder Coating |
| Arms No. | 6 | Warranty | 1 Year |
| Spring Teeth No. | 12 | Shipping Box | 57 x 24 x 29 in |
| Working Speed | 2.5-5 mi/h | Weight (N.W./G.W.) | 357/405 lbs |
| Picking Up Objects | Various Types Of Straw, Pasture |
Ā
Disc Mower DM6
| Power Required | 35-80 hp | Tilt-Down Angle | 30Ā°-40Ā° |
| Working Width | 5.12 ft | Min. Tractor Weight | 2000 lbs |
| Working Speed | 2.5-6.2 mi/h | Gearbox Oil Type | 90SAE Oil |
| Stubble Height | 2 in | 3-Point Hitch | CAT 2 |
| Number Of Disk | 4 pcs | PTO Shaft Speed | 540 rpm |
| Disc Length | 15.4 in | Spline End | 1.375inĀ Ā Z6 |
| Disc Diameter Including Bladeļ¼ | 19.7 in | Safety Coth Material | PVC |
| Side Disc Height | 9.5 in | FinshĀ | Powder Coating |
| Number Of Blades | 8 pcs | Product Size (L*W*H) | 138 x 55 x 30 in |
| Blades Material | 65Mn | Package Size (L*W*H) | 71 x 29 x 67 in |
| Number Of BeltsĀ | 4 | Machine Warranty | 1 Year |
| Tilt-Up Angle | 80Ā° | Weight (N.W./G.W.) | 1001/1186 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) Ā for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
Original: $10,599.00
-65%$10,599.00
$3,709.65More Images
