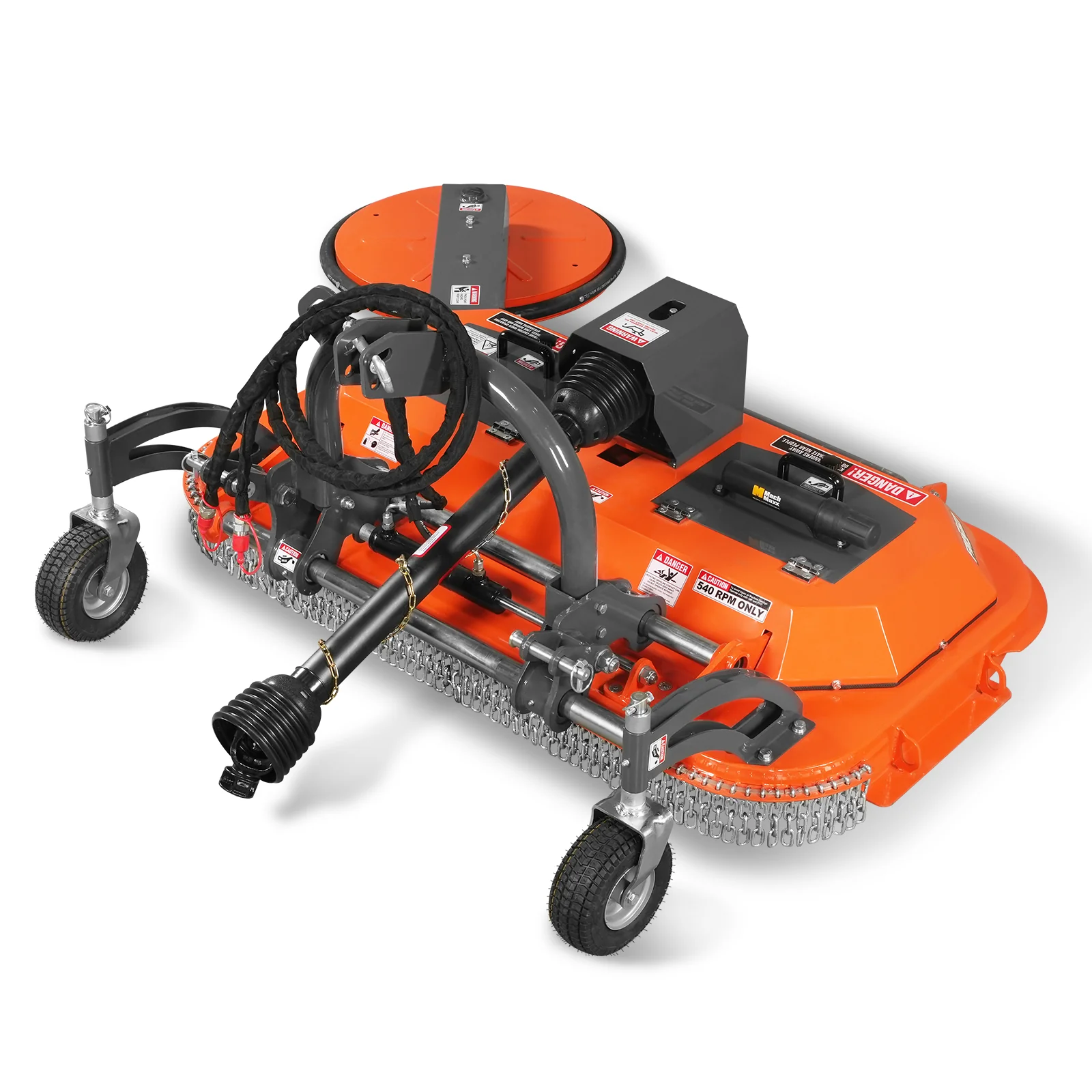

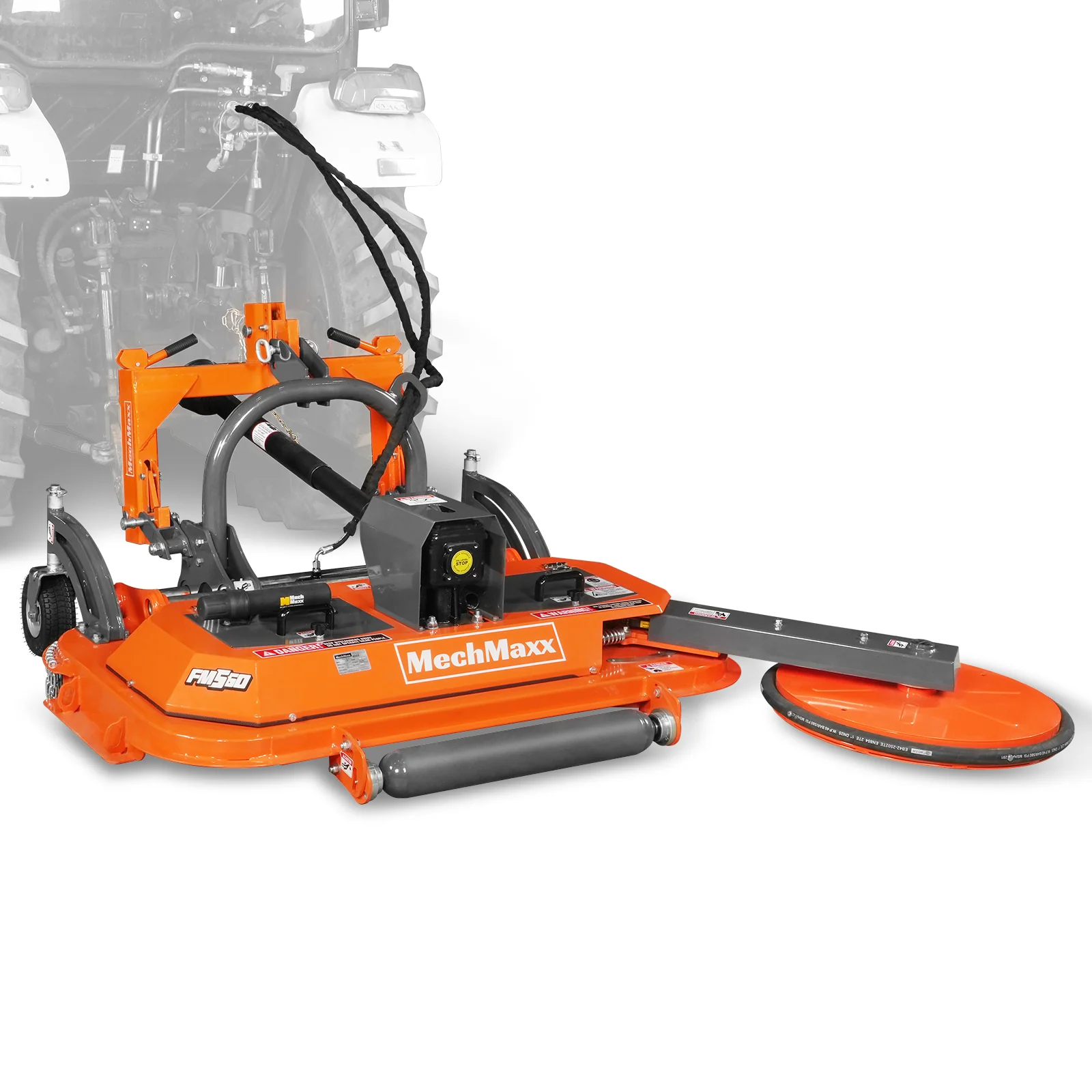

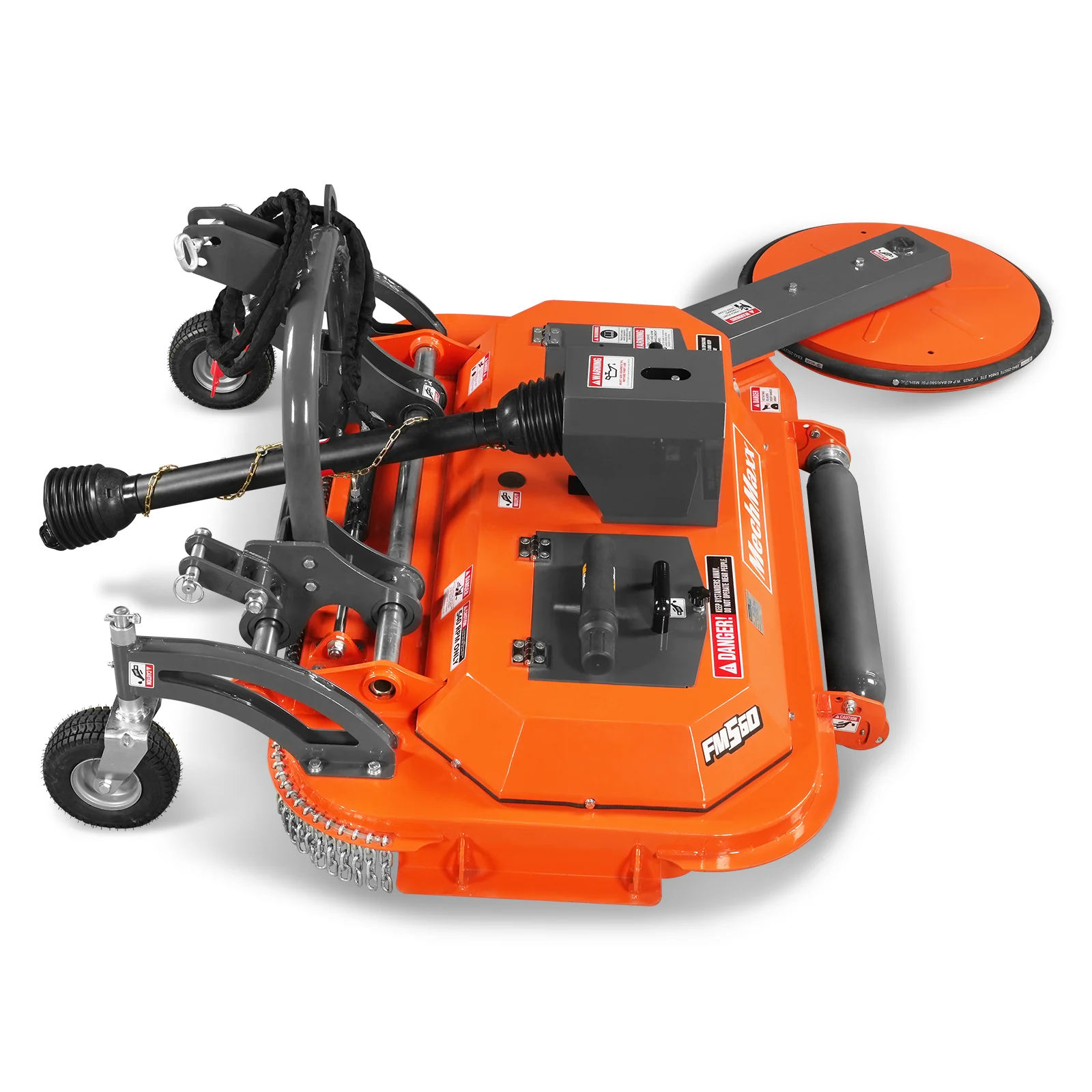

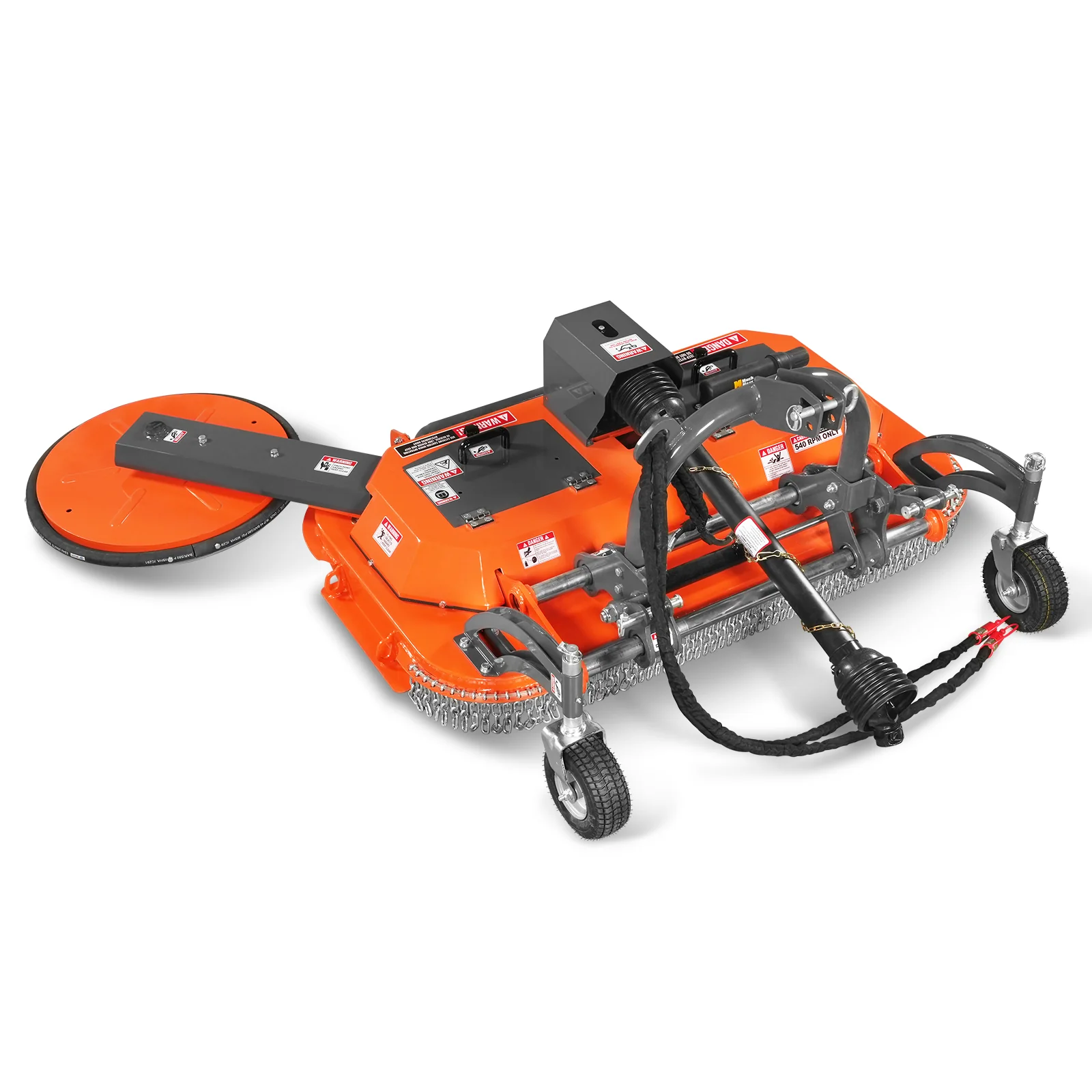

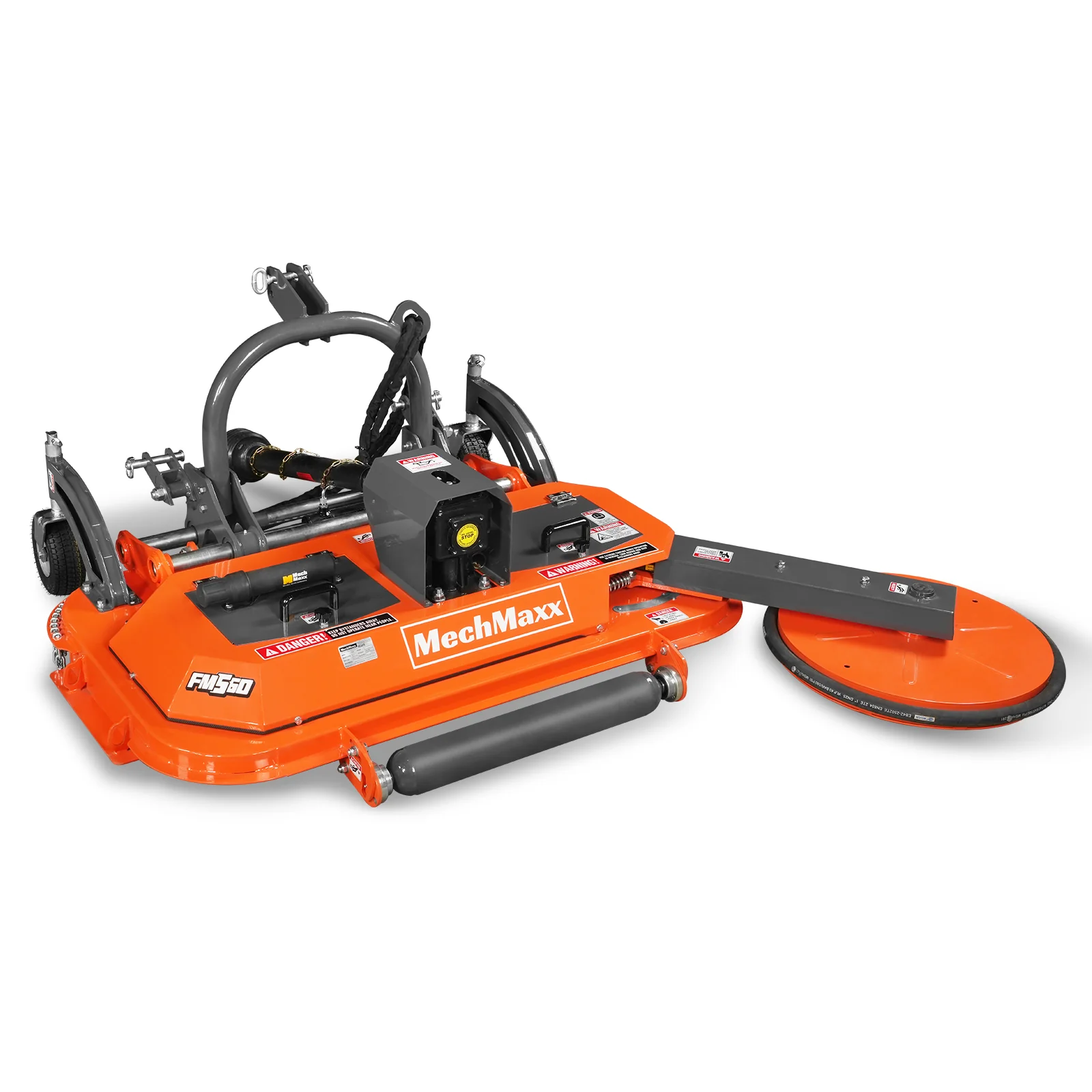

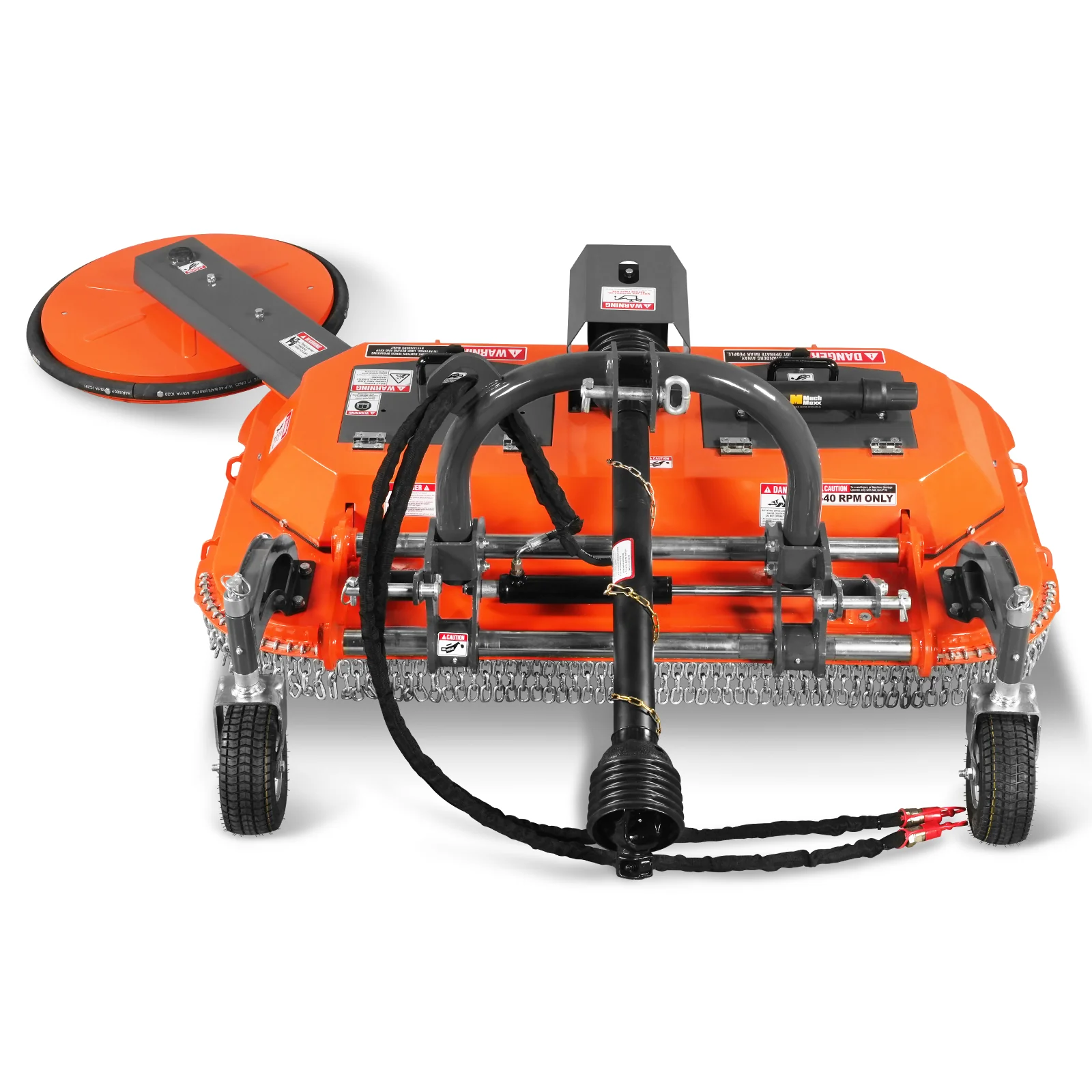

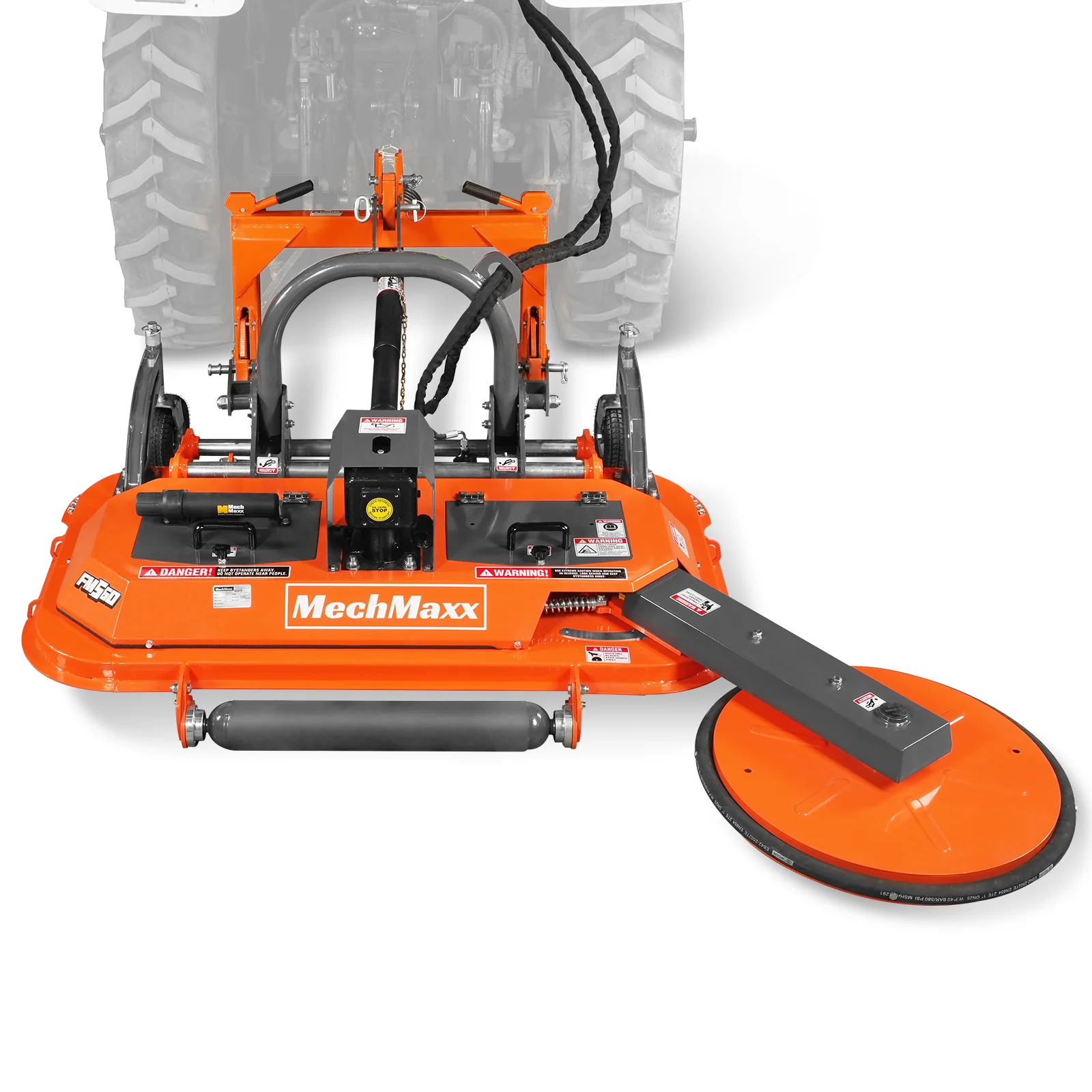

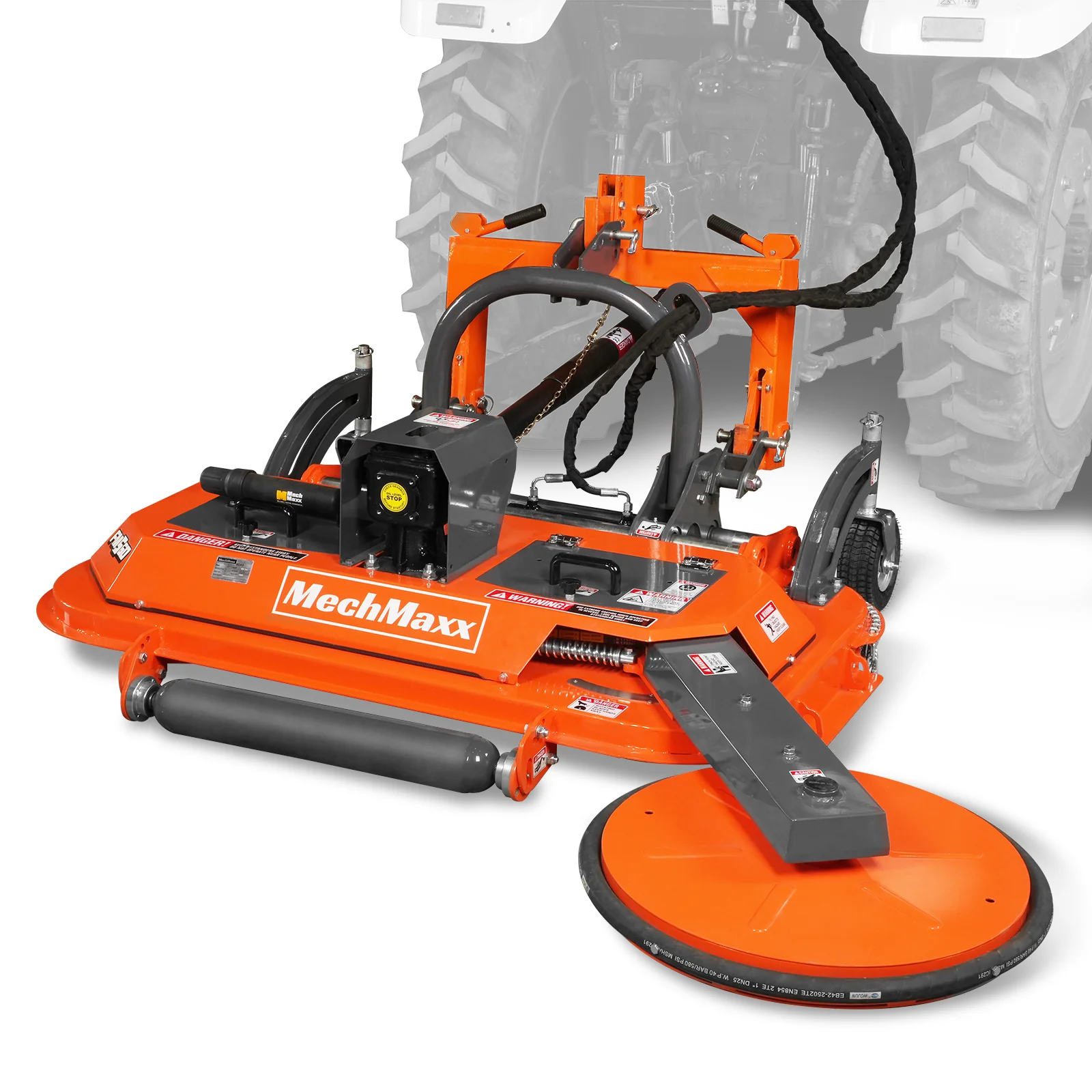

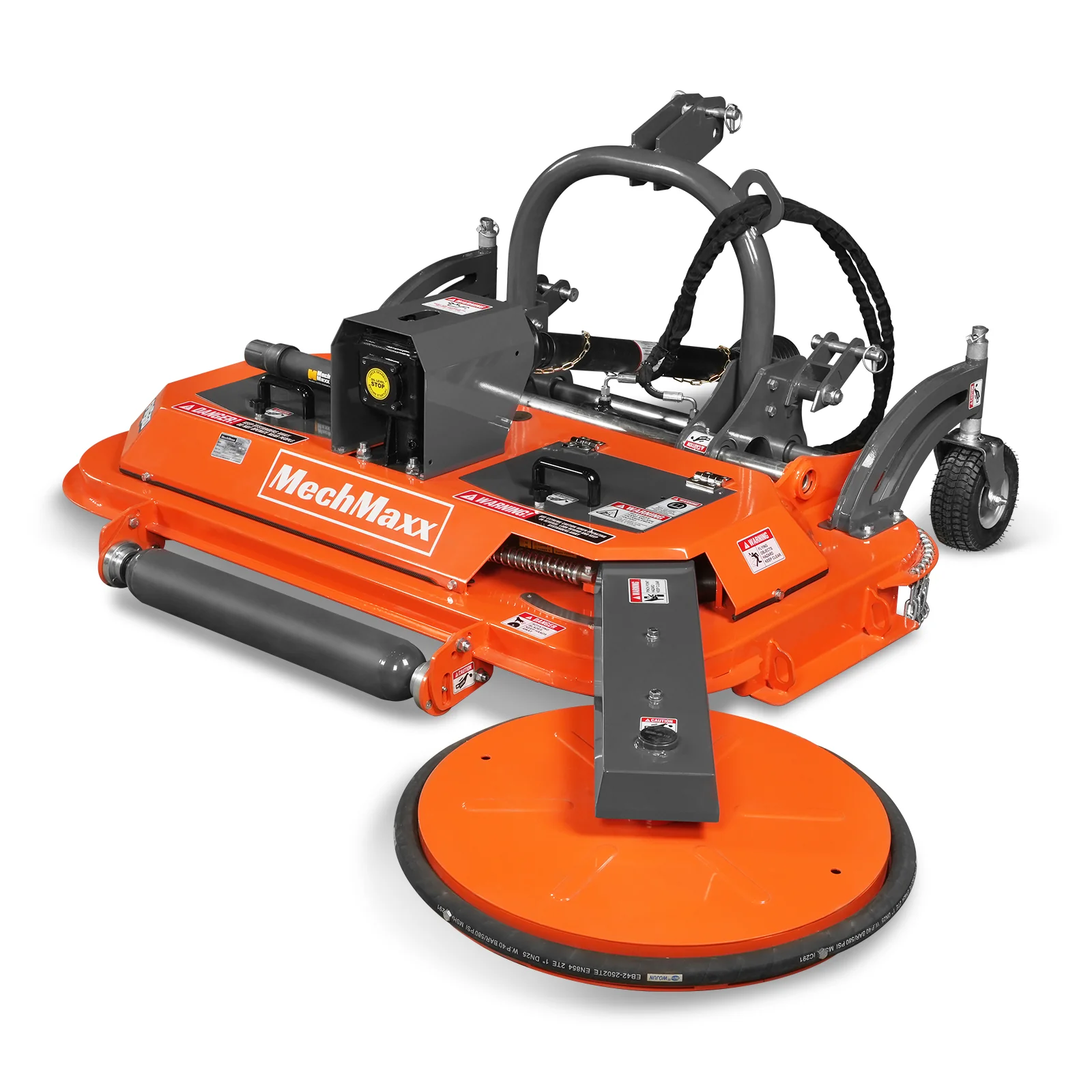

60 in Orchard Finish Mower, 3 Point Hitch Cat.1, Hydraulic Offset, PTO Shaft Included with Shear Bolt, 20-45 HP, FMS60

Working Width	60 in	Pulley Bearing	NSK Bearing

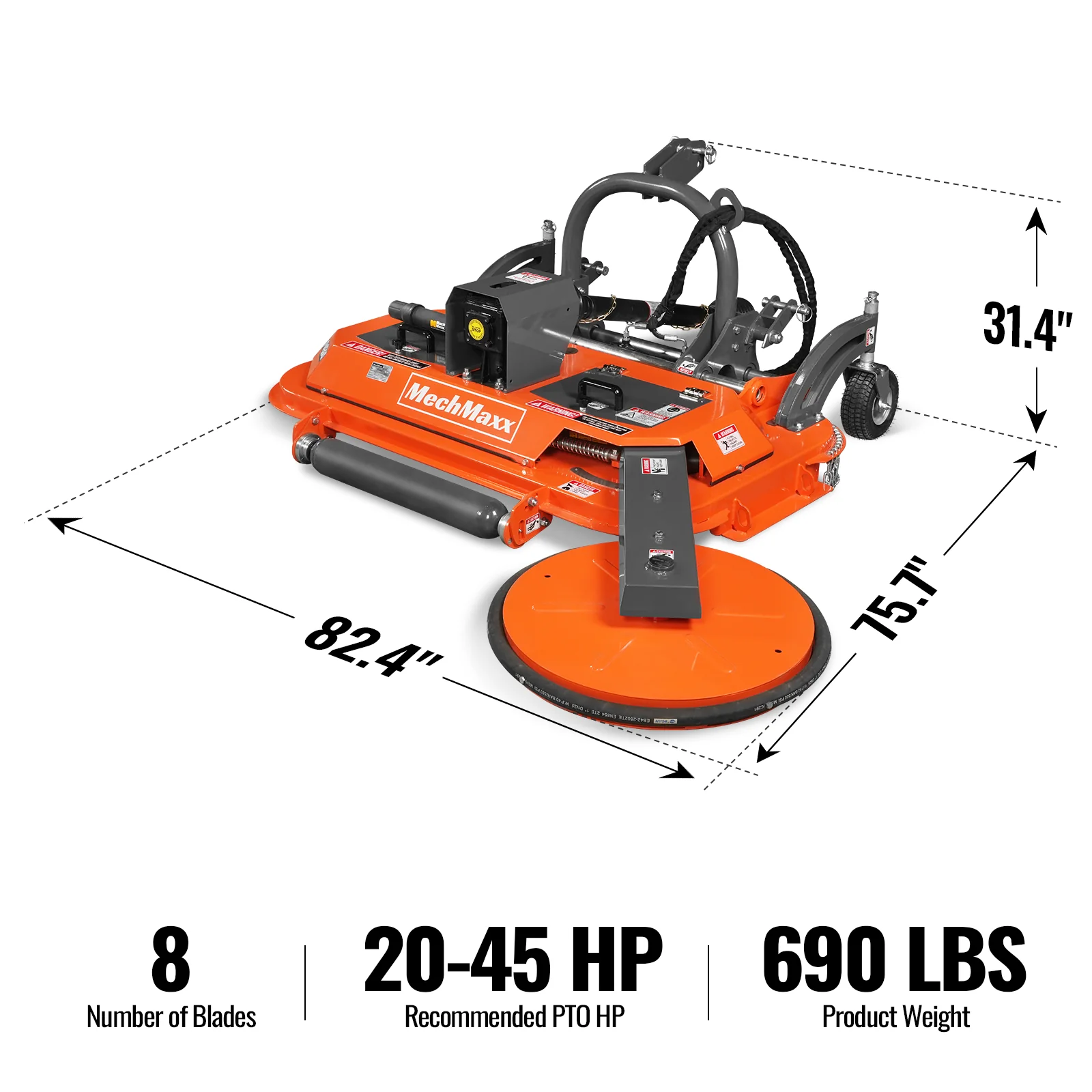

Overall Dimensions (L×W×H)	82.4 x 75.7 x 31.4 in	Drive Type	Belt Driven

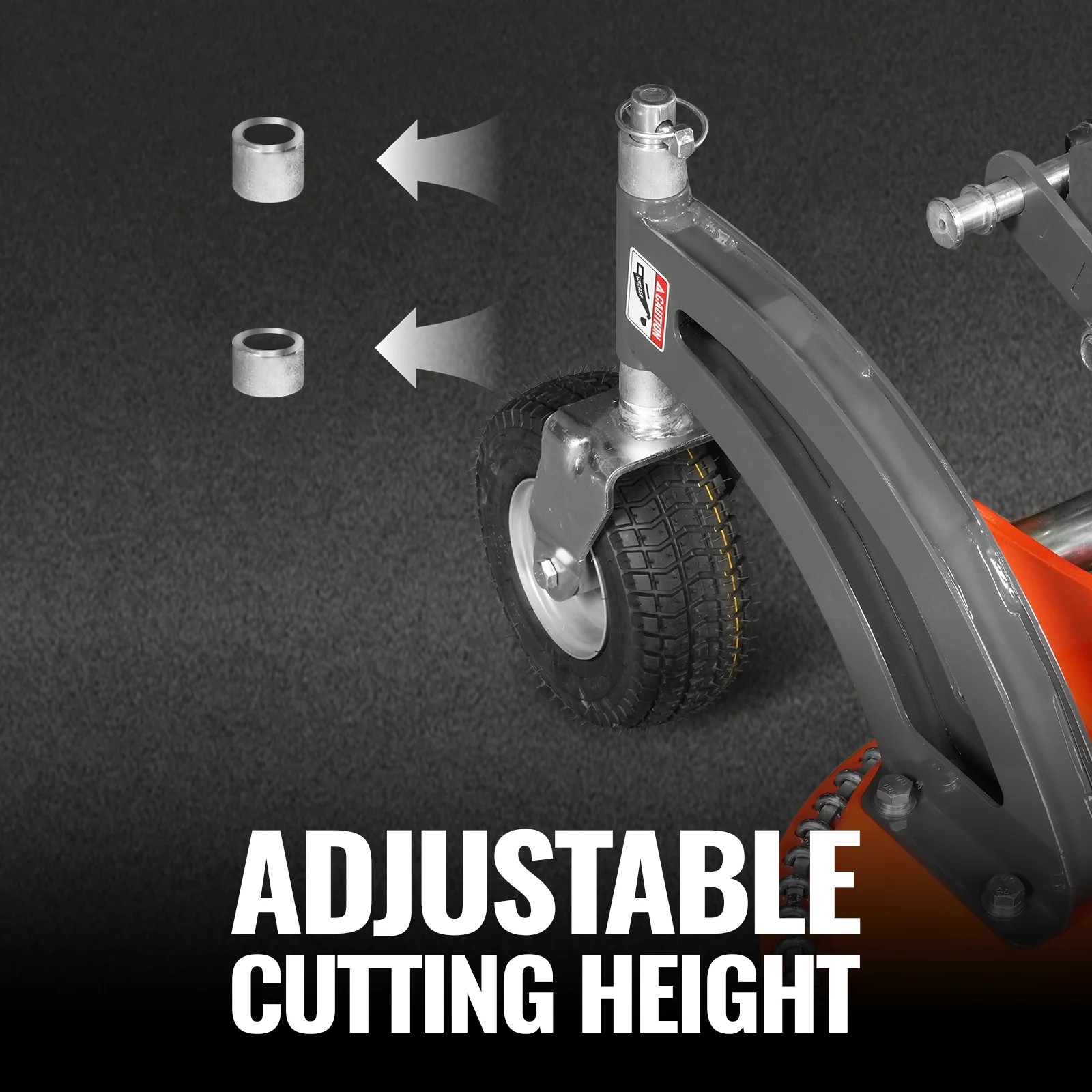

Cutting Height	0.4-3 in	Number Of Belts	3
Max. Cutting Diameter	Depends On The Type Of Grass	Wheel Type	Pneumatic Wheel, Tubeless, 4PR

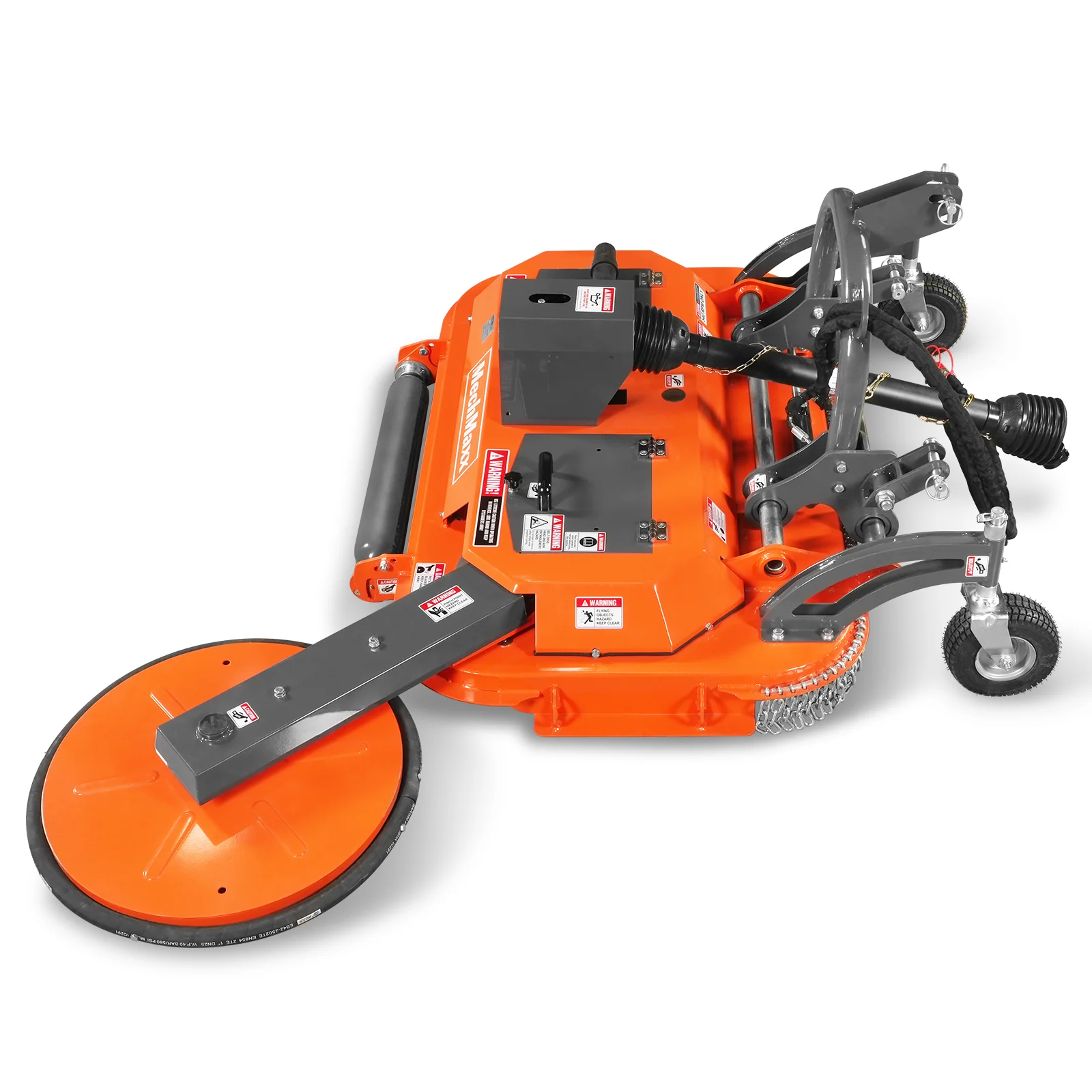

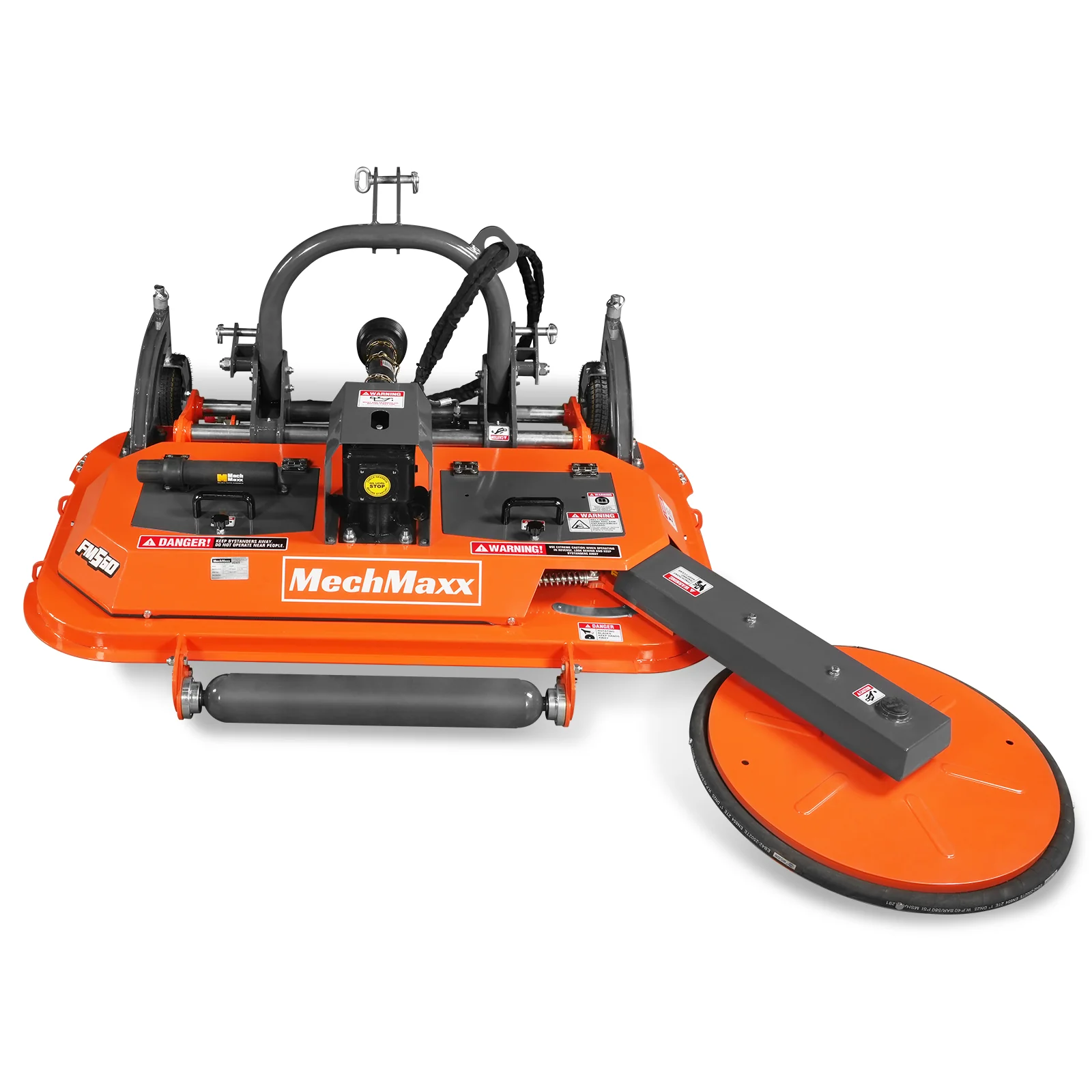

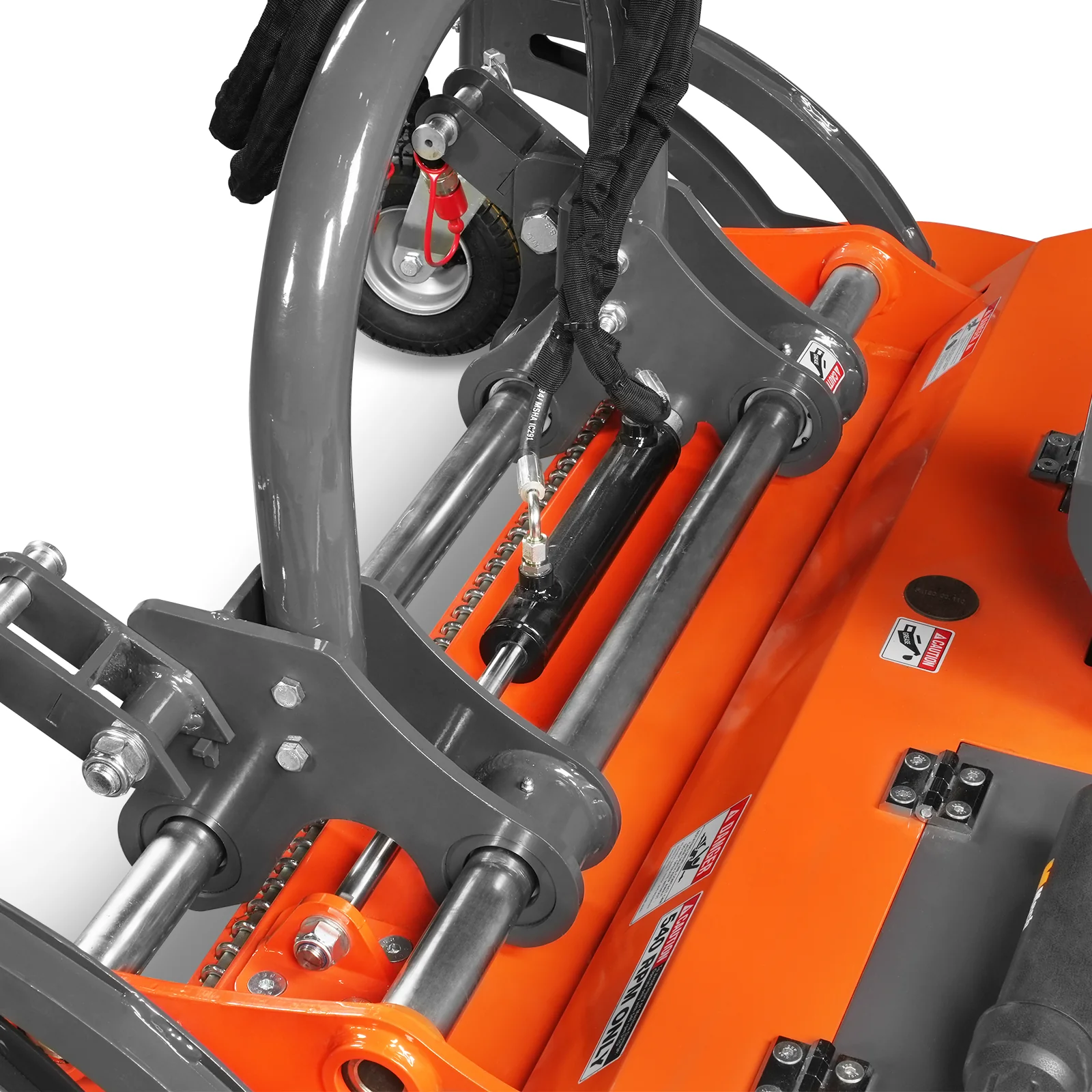

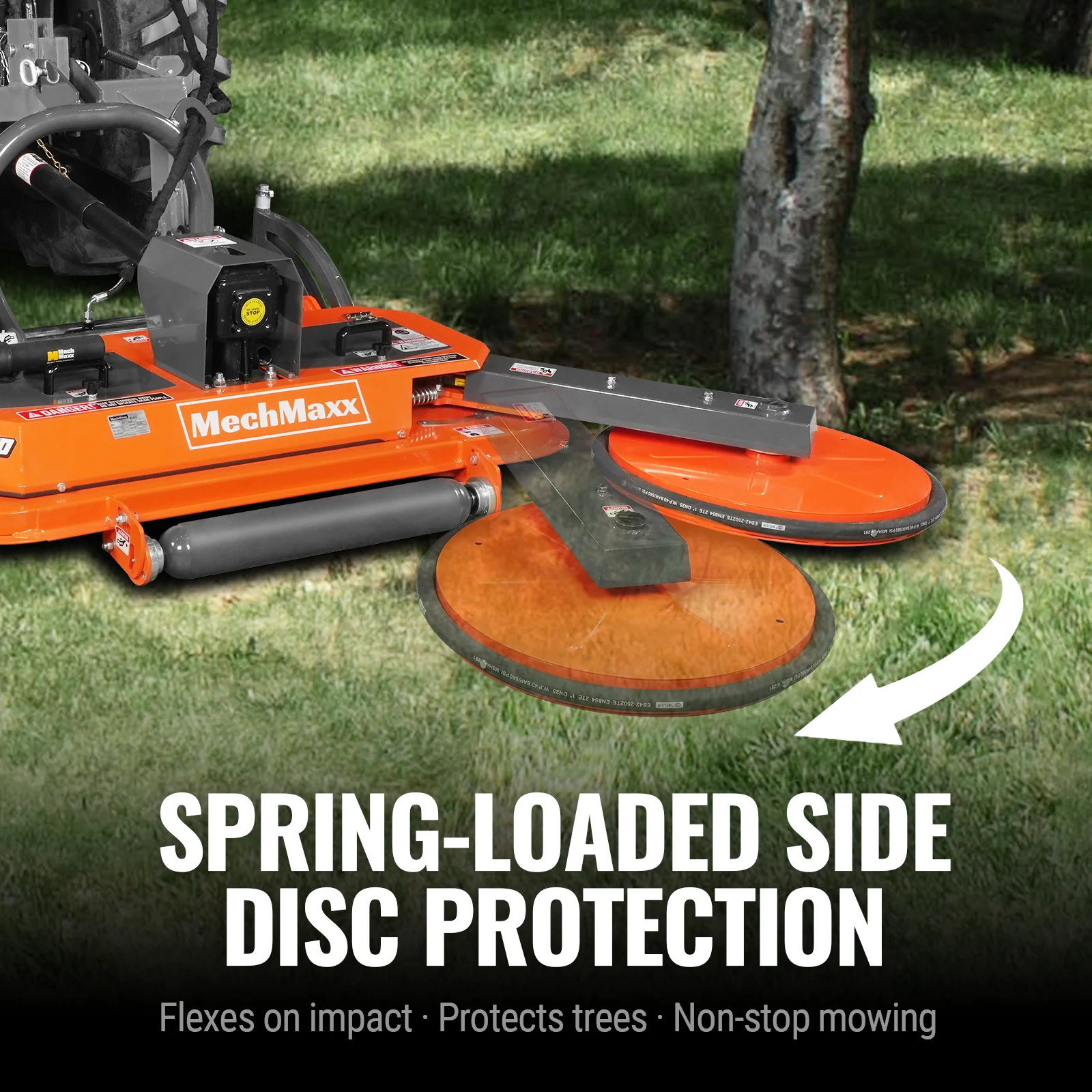

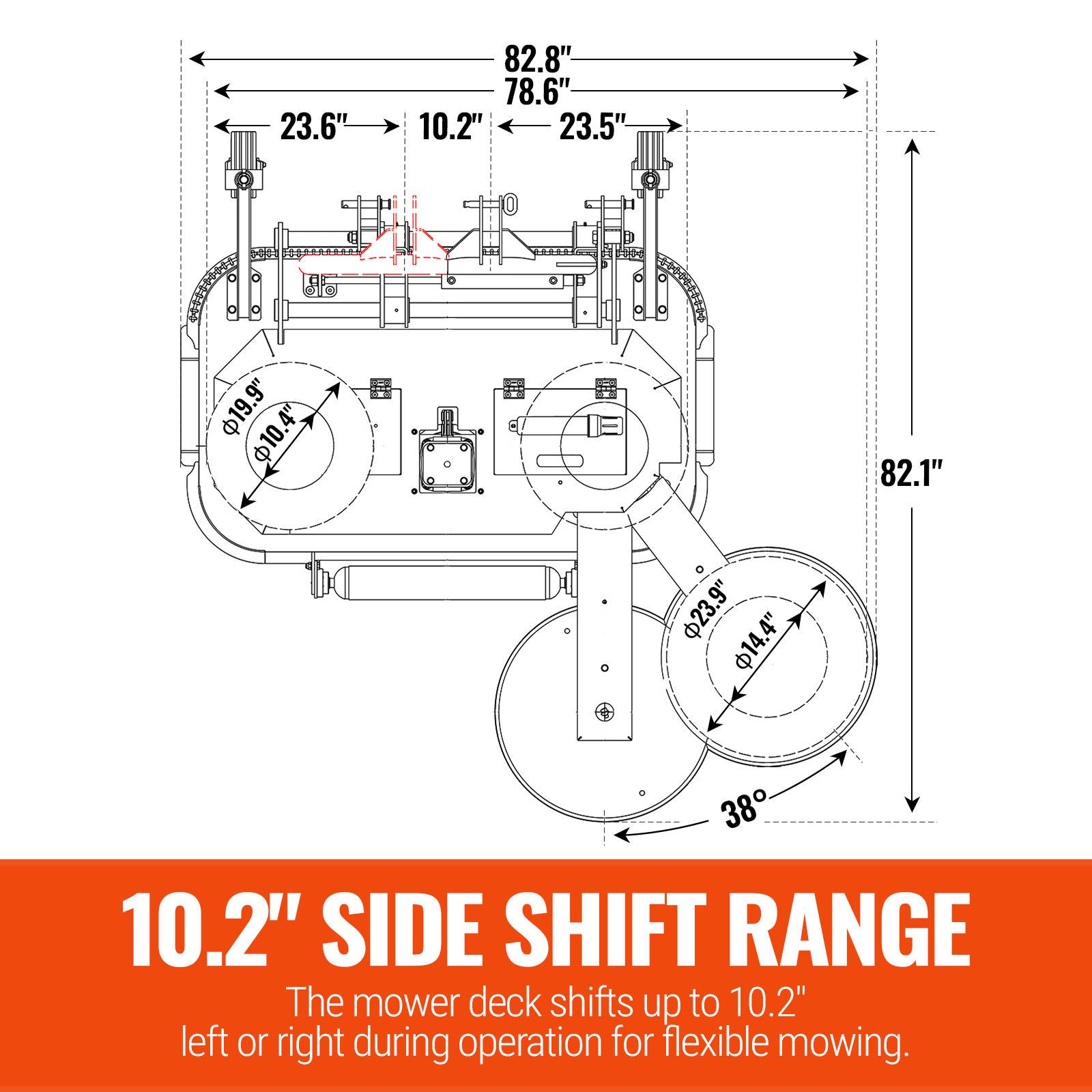

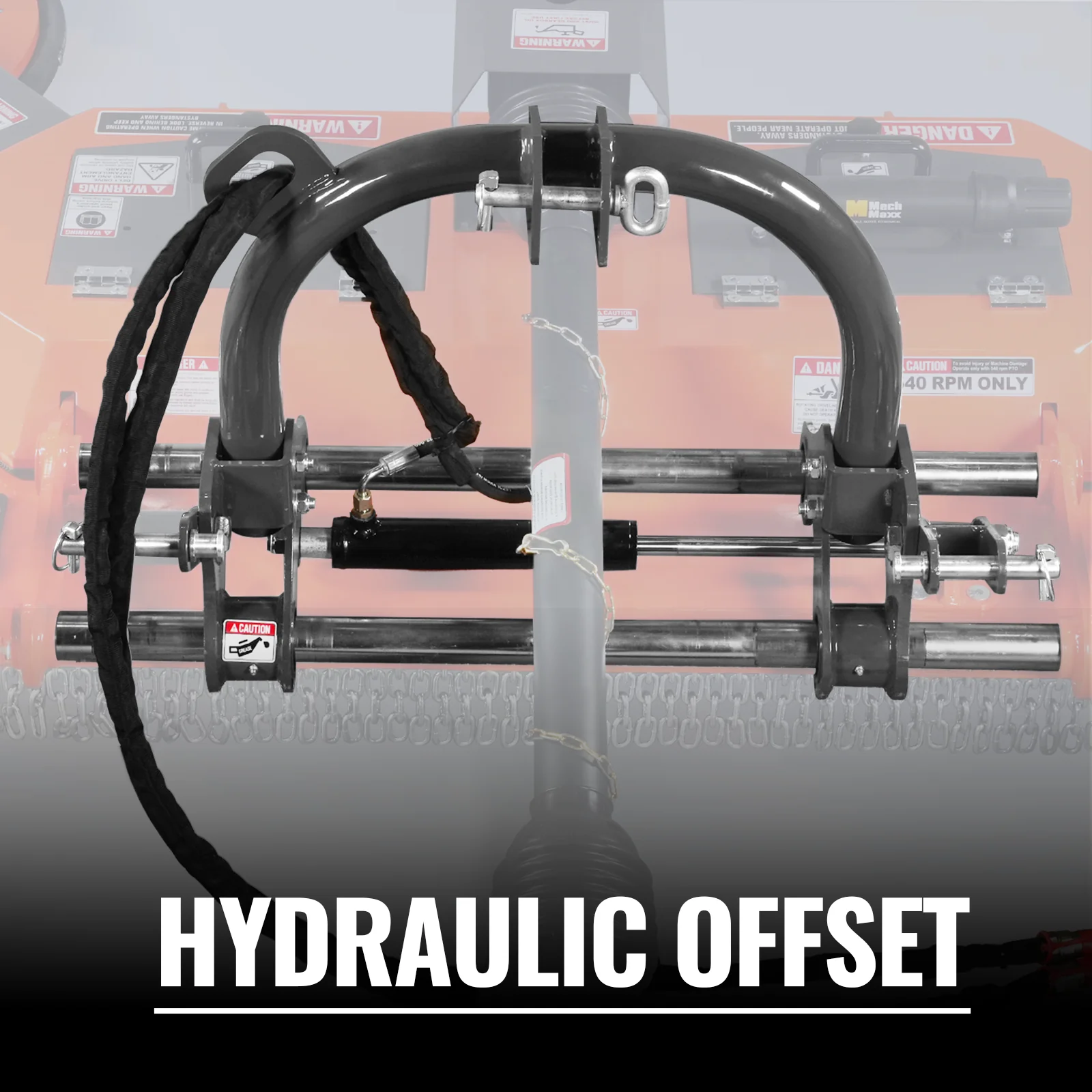

Offset Capability	Hydraulic Offset, 10.2 in Left / Right from Center	Side Disc Mower Diameter	25.2 in

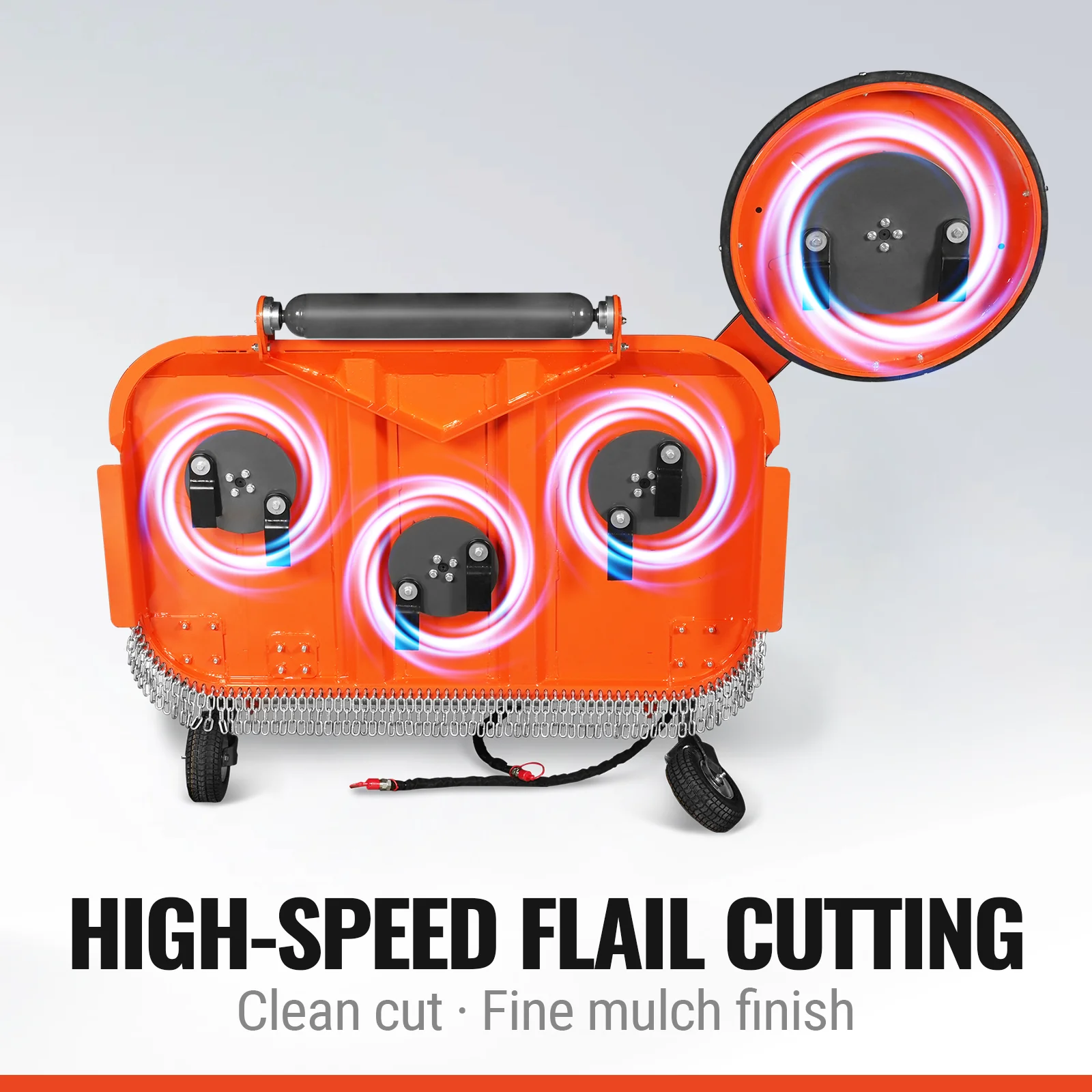

Number of Rotors	4	PTO Shaft Included	Yes
Number of Blades	8	PTO Shaft	Series 4 PTO Shaft with Shear Bolt, 1-3/8" × 6-Spline (Both Ends), Length: 43-50 in
Blade Arrangement	2 Blades per Rotor	Tractor PTO Speed	540 RPM
Blade Type	Heat-Treated 60Si2Mn Steel	Recommended PTO HP	20-45 HP
Blade Size	2.36 x 7.13 x 0.9 in	3 Point Hitch	Cat.1
Blade Speed @ 540 PTO RPM	2696 RPM	Quick Hitch Compatibility	Cat.1 Quick Hitch Compatible
Main Gearbox	Cast Iron Oil-Bath Gearbox, Gear Ratio 1:2.83	Packing Size (L×W×H)	64.96 x 47.24 x 25.59 in
Gearbox Lubrication	SAE 80W-90, Approx. 0.5L (0.53 qt) NOTE: SHIPPED WITHOUT OIL.	Weight (N.W/G.W.)	690.04/810.19 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
