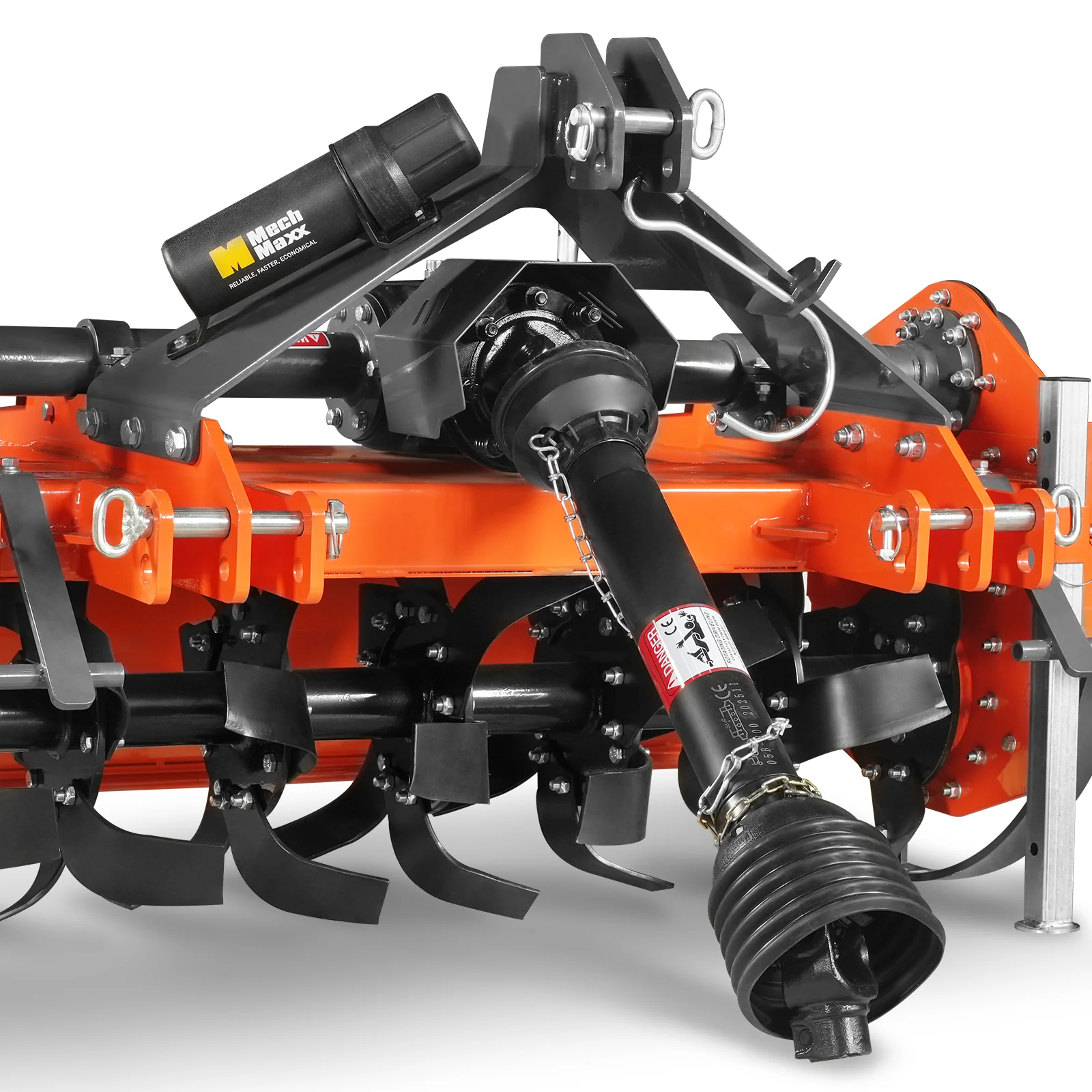

48 in Rotary Tiller, 3 Point Hitch Cat.1 & 2, Gear Drive, PTO Shaft Included with Slip Clutch, 25-50 HP, MRT48

Working Width	48 in	Number of Flanges	6
Overall Dimensions (L×W×H)	58 x 40.7 x 37.6 in	Number of Blades	30
Max Working Depth	7 in	Blade Arrangement	4 Center Flanges × 6 Blades 2 End Flanges × 3 Blades
Offset Capability	N/A	Blade Type	Heat-Treated 60Si2Mn Steel “C”-Shaped

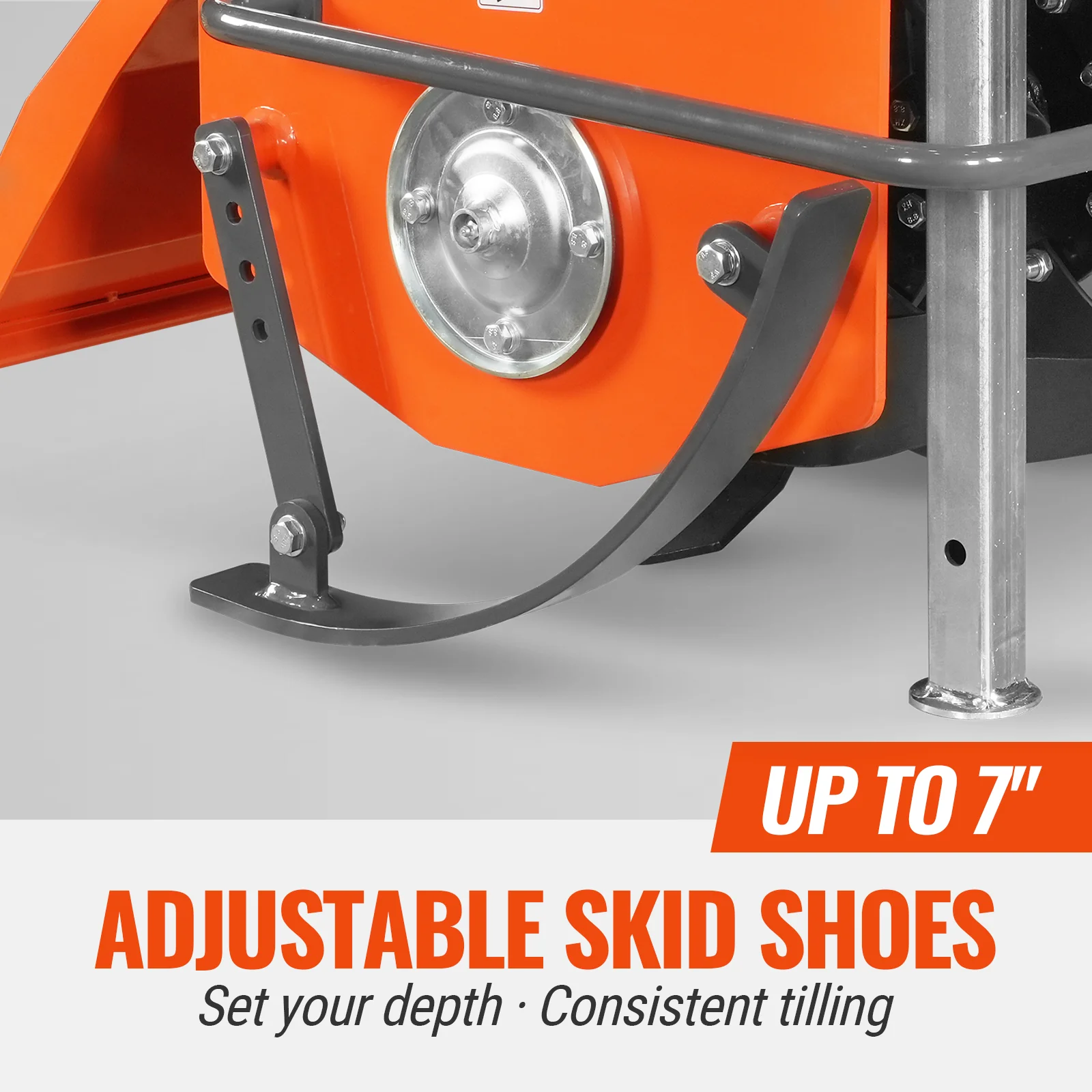

Skid Shoes	Adjustable Depth Control	PTO Shaft Included	Yes
Rotor Bearing	NSK Bearing	PTO Shaft	Series 5 PTO Shaft with Slip Clutch, 1-3/8" × 6-Spline (Both Ends), Length: 35-40 in
Rotor Rotation	Forward	Tractor PTO Speed	540 RPM
Rotor Speed @ 540 PTO RPM	205 RPM	Recommended PTO HP	25-50 HP
Rotor Diameter	3 in	3 Point Hitch	Cat.1 & 2
Rotor Swing Diameter	18.7 in	Quick Hitch Compatibility	Cat.1 & 2 Quick Hitch Compatible
Side Drive Type	Gear Driven	Rear Deflector	Double Spring
Side Box Lubrication	SAE 80W-90, Approx. 2 L (2.11 qt) NOTE: SHIPPED WITHOUT OIL.	Parking Stand Included	Yes

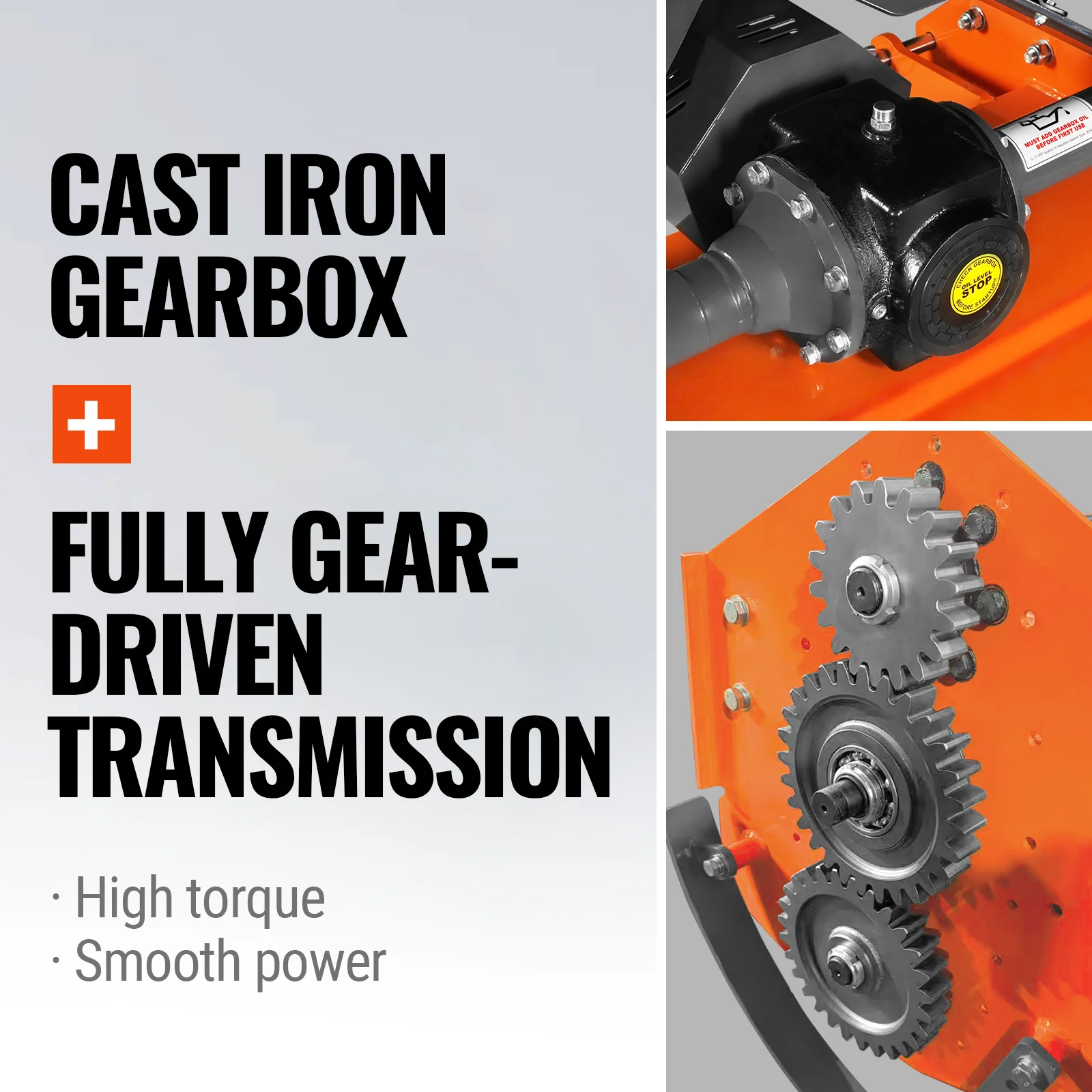

Main Gearbox	Cast Iron Oil-Bath Gearbox, Gear Ratio 1.69:1	Packing Size (L×W×H)	63.78 x 34.25 x 32.28 in
Gearbox Lubrication	SAE 80W-90, Approx. 1 L (1.06 qt) NOTE: SHIPPED WITHOUT OIL.	Weight (N.W/G.W.)	749.56/896.54 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
