36" MAX Portable Sawmill & 8" Wood Chipper Combo

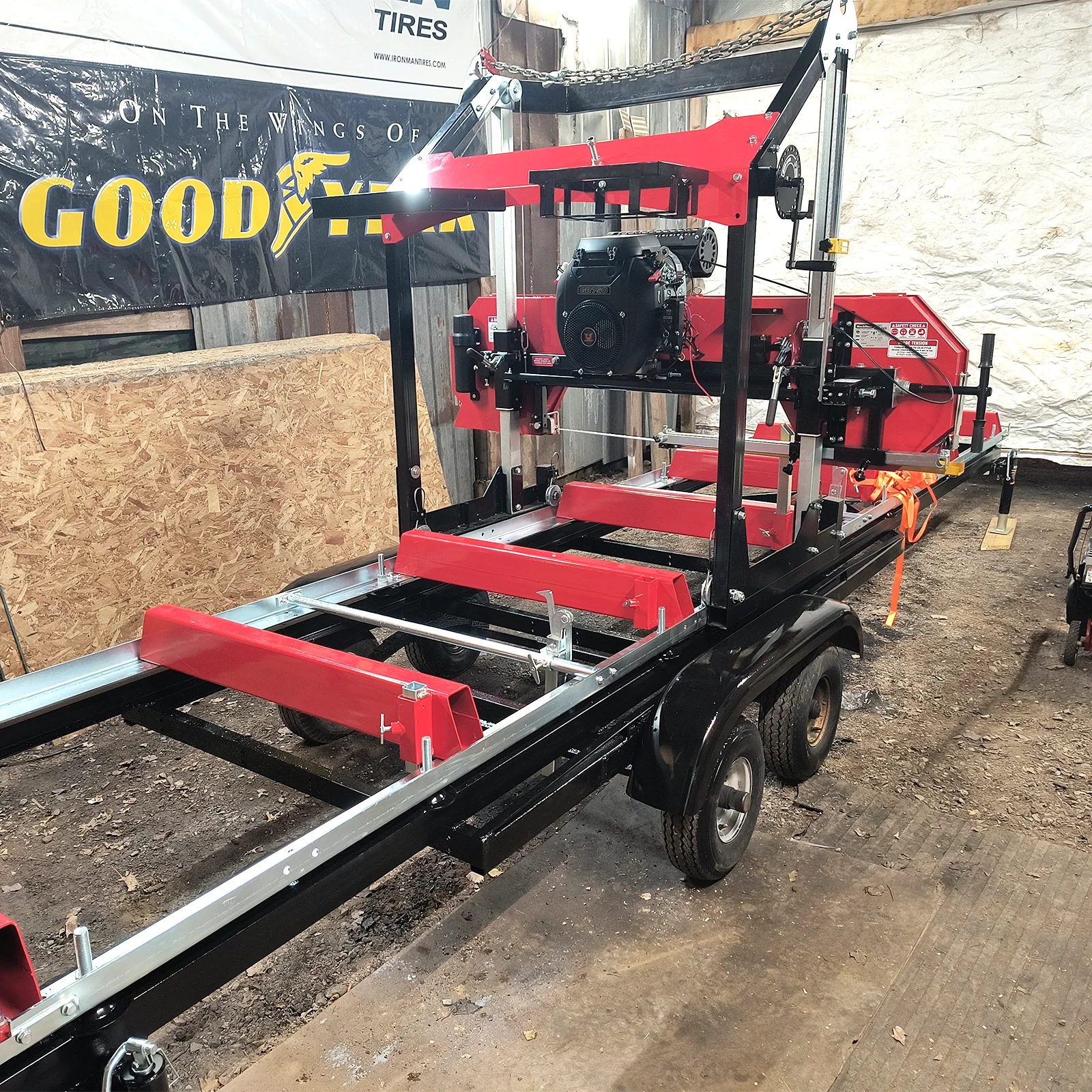

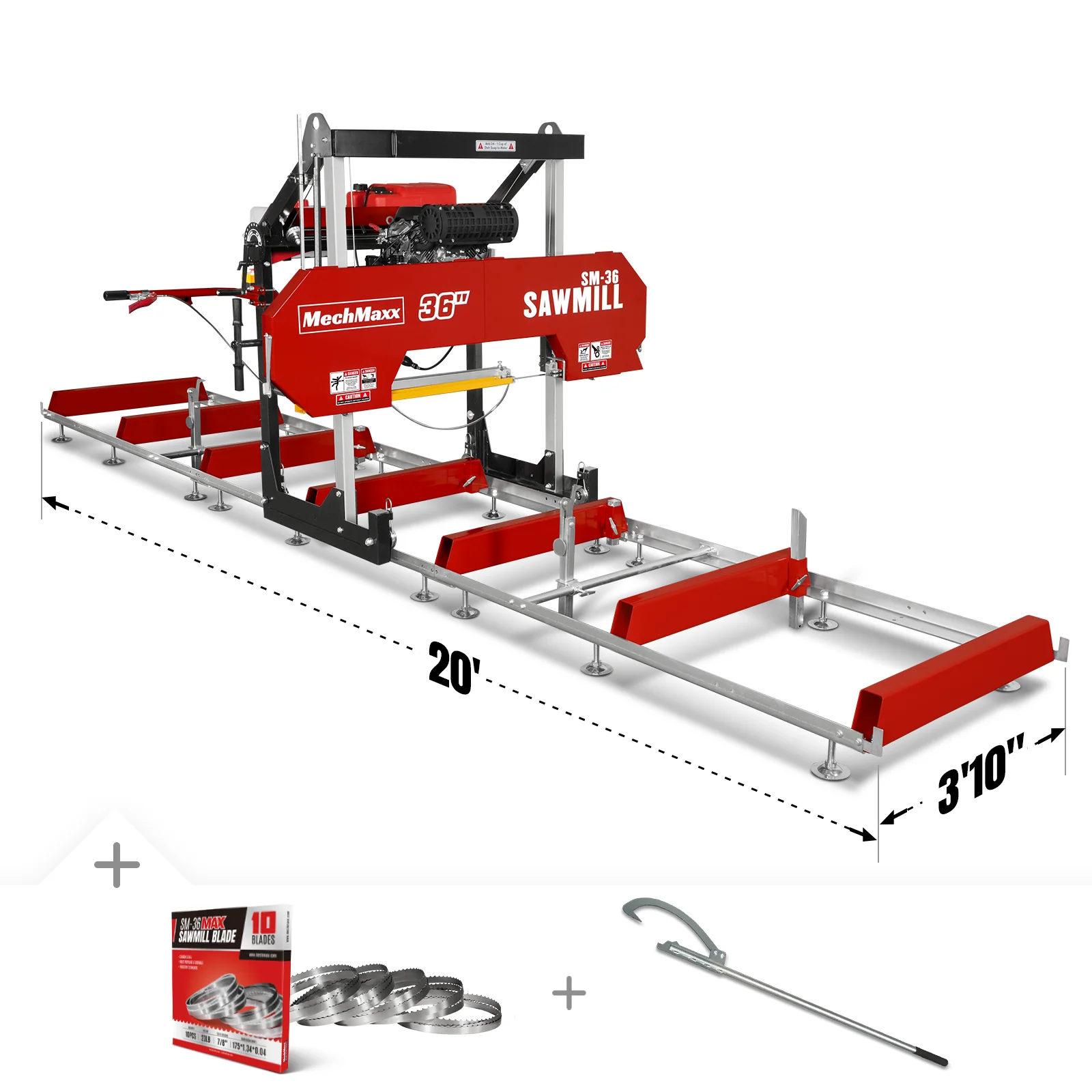

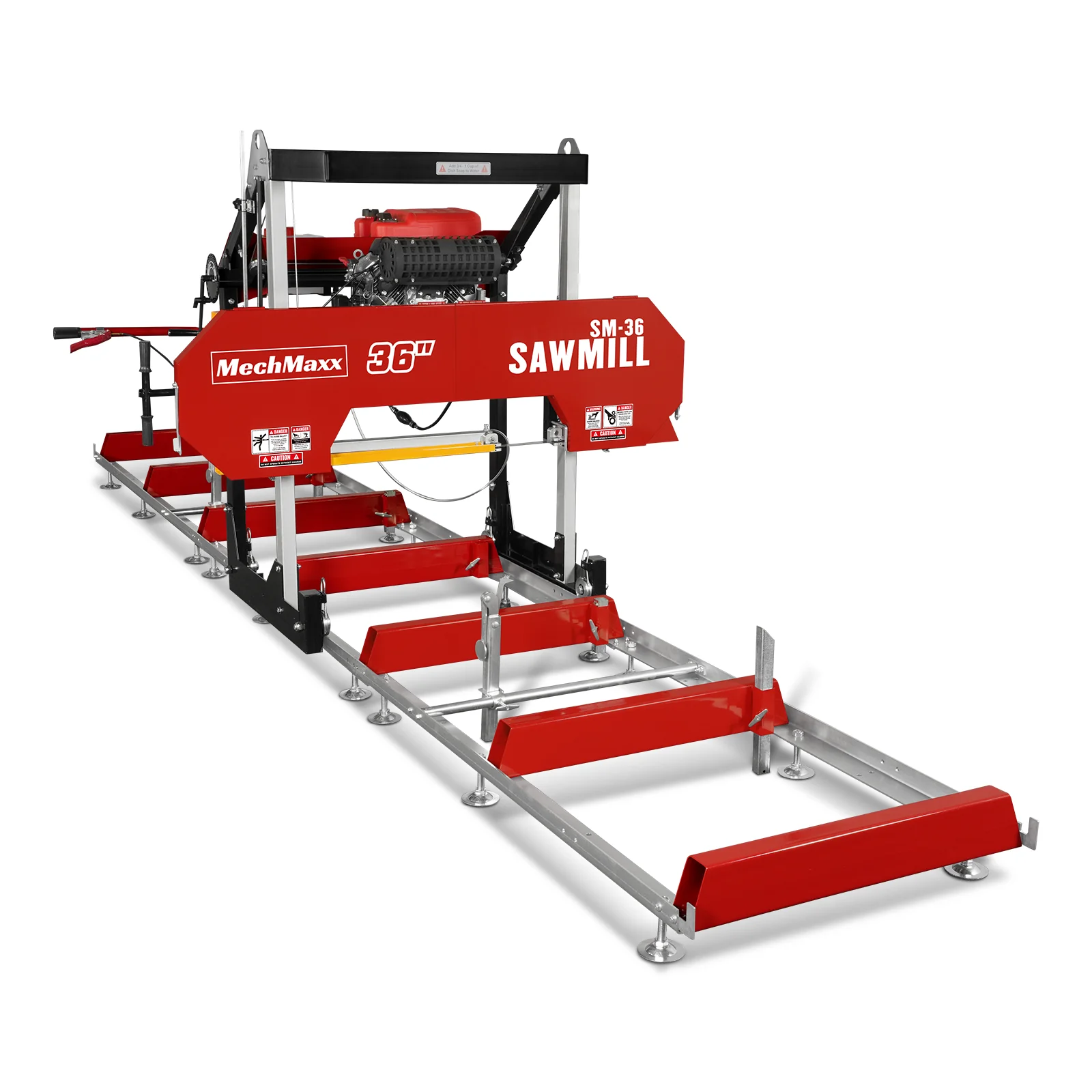

36" MAX Portable Sawmill

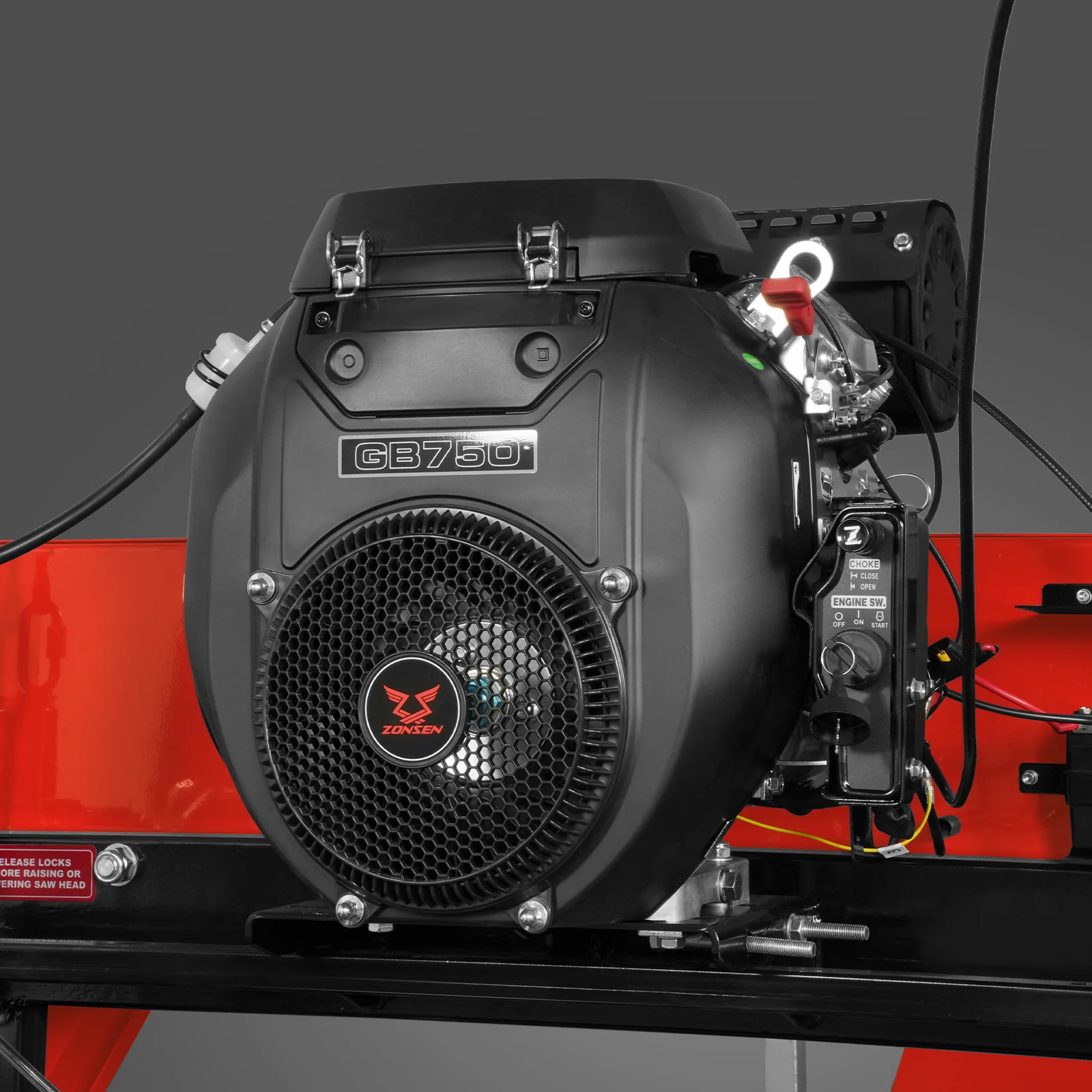

Engine	ZONSEN GB750	Lubricant Tank Size	4 gal
Engine Type	Dual Cylinder ( 90° V Type ), 4 Stroke, Forced Air Cooling	Fuel Tank Size	6.3 gal
Engine Displacement	750 cc	Track Width	3 ft 10 in
Horsepower	25 HP	Track Length	20 ft
Start	E-Start	Track Extension Length	6 ft 5 in
Log Diameter	36 in	Levelling Feet	18
Max Live Edge Width	36 in	Log Rests	2 Long and 2 Short Rests
Standard Cutting Length	16 ft 8 in	Log Clamps	2 x Quick Lock
Max Board Thickness	7 in	Track Bunks	3 X 6 in
Blade Engagement System	Centrifugal Clutch	4 Post Head Design	Yes
Cast Iron Bandwheel Diameter	19 in	Finish	Powder Coat Paint Galvanized Steel
Blade Wheel Engagement	Belt Drive	Sawmill Warranty	2 Years
Blade Guide	By Roller	Engine Warranty	2 Years
Blade Tension	By Adjustable Lever	Package Method	Wood
Blade Size	175 x 1.3 in	Packing Size	90 x 28.5 x 34 in
Blade Pitch	7/8 in	Weight(N.W./G.W.)	1115/1239 lbs
Blade Lubrication	Water Lube - Manual Valve



 8" Wood Chipper

Engine	ZONSEN GB750	Lubricant Tank Size	4 gal
Engine Type	Dual Cylinder ( 90° V Type ), 4 Stroke, Forced Air Cooling	Fuel Tank Size	6.3 gal
Engine Displacement	750 cc	Track Width	3 ft 10 in
Horsepower	25 HP	Track Length	20 ft
Start	E-Start	Track Extension Length	6 ft 6 in
Log Diameter	36 in	Levelling Feet	18
Max Live Edge Width	36 in	Log Rests	2 Long and 2 Short Rests
Standard Cutting Length	16 ft 2 in	Log Clamps	2 x Quick Lock
Max Board Thickness	7 in	Track Bunks	3 X 6 in
Blade Engagement System	Centrifugal Clutch	4 Post Head Design	Yes
Cast Iron Bandwheel Diameter	19 in	Finish	Powder Coat Paint Galvanized Steel
Blade Wheel Engagement	Belt Drive	Sawmill Warranty	2 Years
Blade Guide	By Roller	Engine Warranty	2 Years
Blade Tension	By Adjustable Lever	Package Method	Wood
Blade Size	175 x 1.3 in	Packing Size	90 x 28.5 x 34 in
Blade Pitch	7/8 in	Weight(N.W./G.W.)	1115/1239 lbs
Blade Lubrication	Water Lube - Manual Valve





WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
