3-Point PTO Stump Grinder & Wood Chipper Combo

PTO Stump Grinder

Flywheel Diameter	24 in	Mounting	3 Point Hitch Cat. 1 (Quick Attach Compatible)
Flywheel Thickness	3/4 in	PTO Input	540 RPM
Carbid Tip	34 PCS	Max. Torque	1200 N·m
Carbid Tip Material	YG11C	PTO Shaft Weight	44 LBS
Tip Holder Material	42CrMo	Dimensions	29 × 37 × 38 in
PTO HP Required	15–45 HP	Packing	Iron Frame + Carton
PTO Shaft (Included Shipping)	1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch	Weight (N.W/G.W.)	450/563 LBS
Friction Torque Limiter (Slip Clutch)	Included

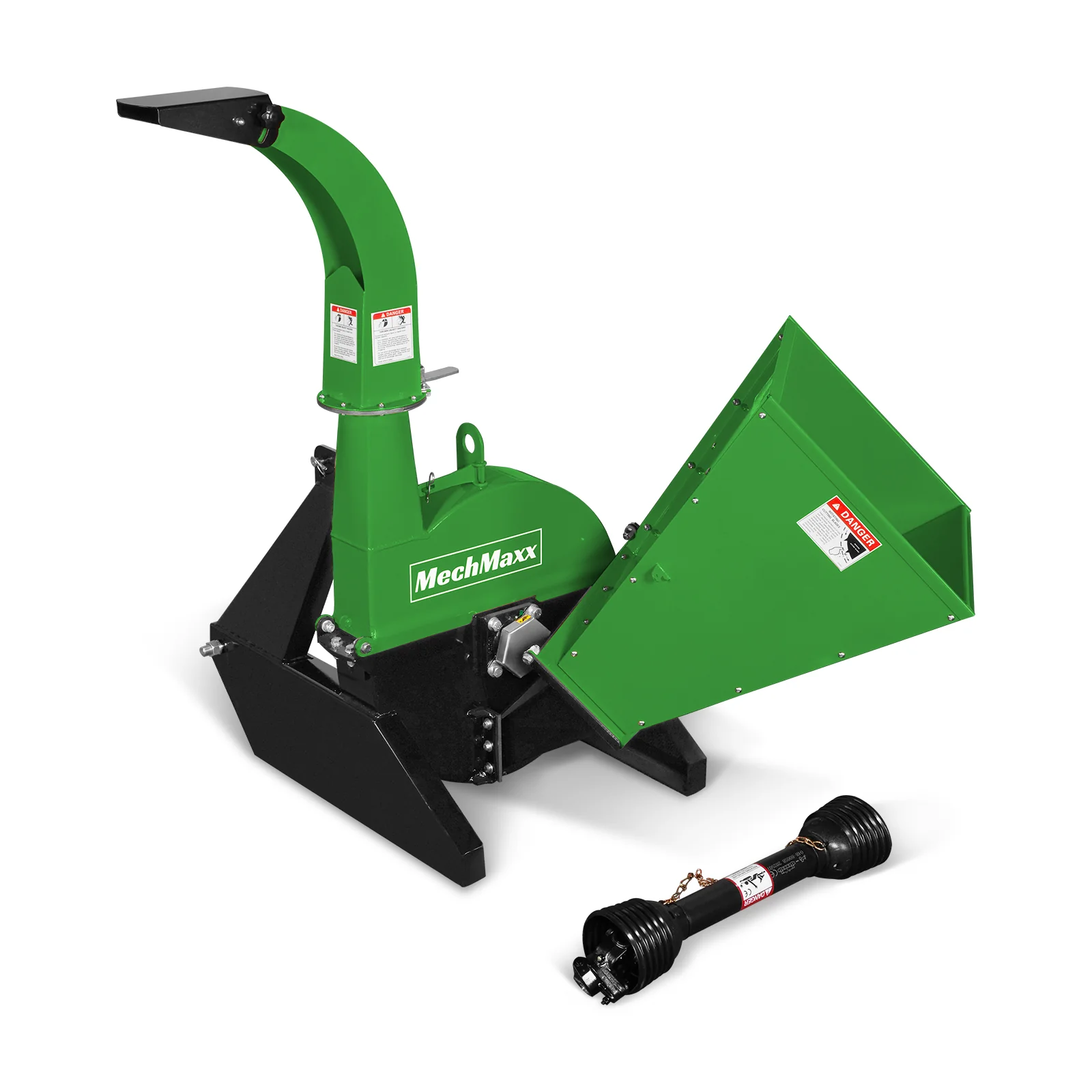

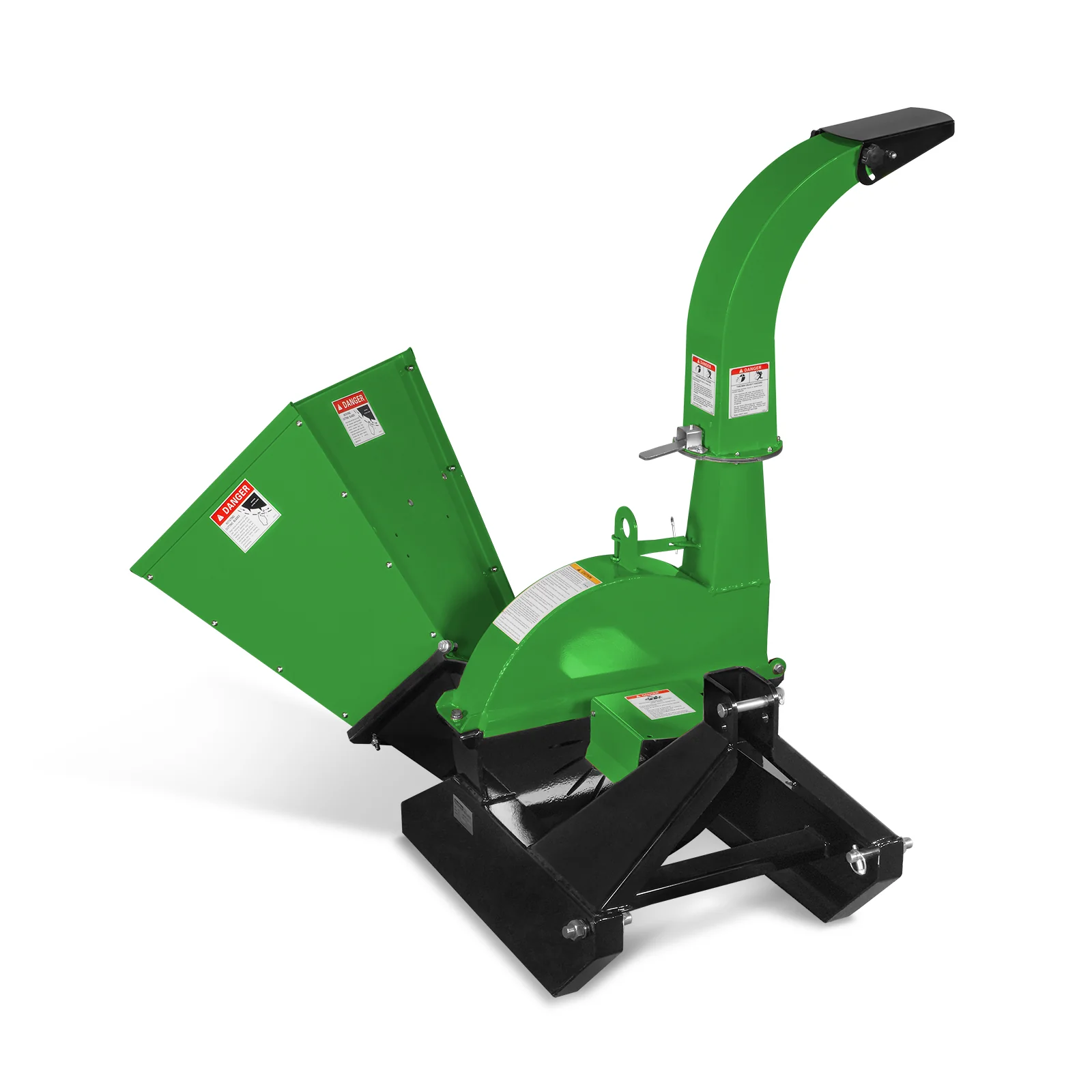

PTO Wood Chipper

Tractor Power	18-45HP	Blade (Tines) Material	4CrW2Si
Max. Throughput Capacity	4 in	PTO Shaft RPM	540 RPM
Infeed Opening	4*10 in	Flywheel Speed	540 RPM
lnfeed Chute Opening	20*20 in	Drive Type	PTO
Feeding Opening	Gravity Feed	Driveline Shaft Length	T5-LF-31 in with shear bolt, 31.5-43 in
Discharge Chute Rotation	360 Degrees	3-Point Hitch	CAT 1
Rotor Diameter	25 in	Dimensions (L x Wx H)	38x 33x 43 in
Rotor Thickness	0.5 in	Finsh	Powder Coat Paint Galvanized Steel
Rotor Weight	82 lbs	Warranty	1 year
Number Of Blades	4+1	Net Weight	397 lbs
Blade Weight	0.9 lbs	Gross Weight	441 lbs
