3-Point PTO Stump Grinder & 60'' PTO Flail Mower Combo, SG24&EFS60
3-Point PTO Stump Grinder
| Flywheel Diameter | 24 in | Mounting | 3 Point Hitch Cat. 1 (Quick Attach Compatible) |
| Flywheel Thickness | 3/4 in | PTO Input | 540 RPM |
| Carbid Tip | 34 PCS | Max. Torque | 1200 N·m |
| Carbid Tip Material | YG11C | PTO Shaft Weight | 44 LBS |
| Tip Holder Material | 42CrMo | Dimensions | 29 × 37 × 38 in |
| PTO HP Required | 15–45 HP | Packing | Iron Frame + Carton |
| PTO Shaft (Included Shipping) | 1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch | Weight (N.W/G.W.) | 450/563 LBS |
| Friction Torque Limiter (Slip Clutch) | Included |

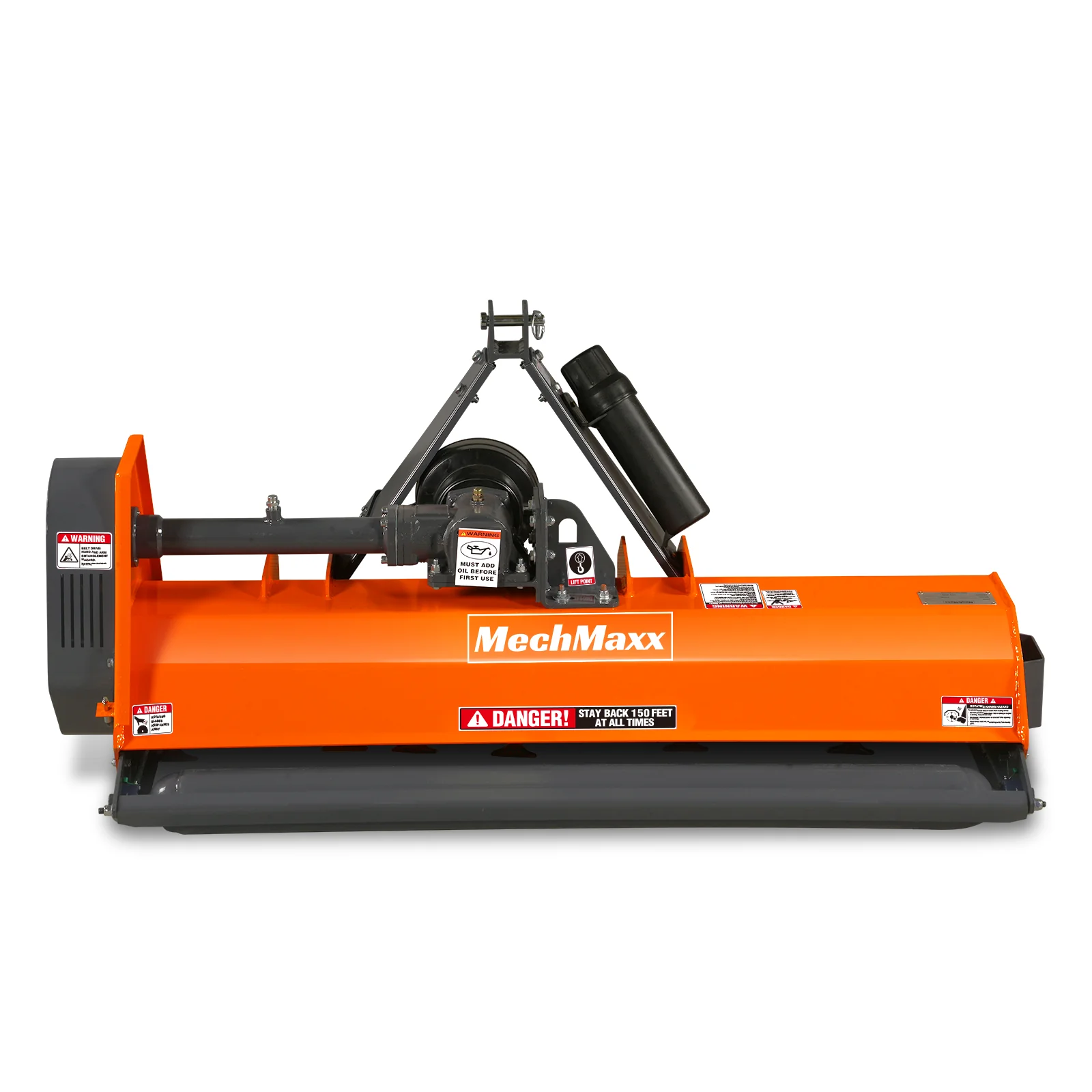

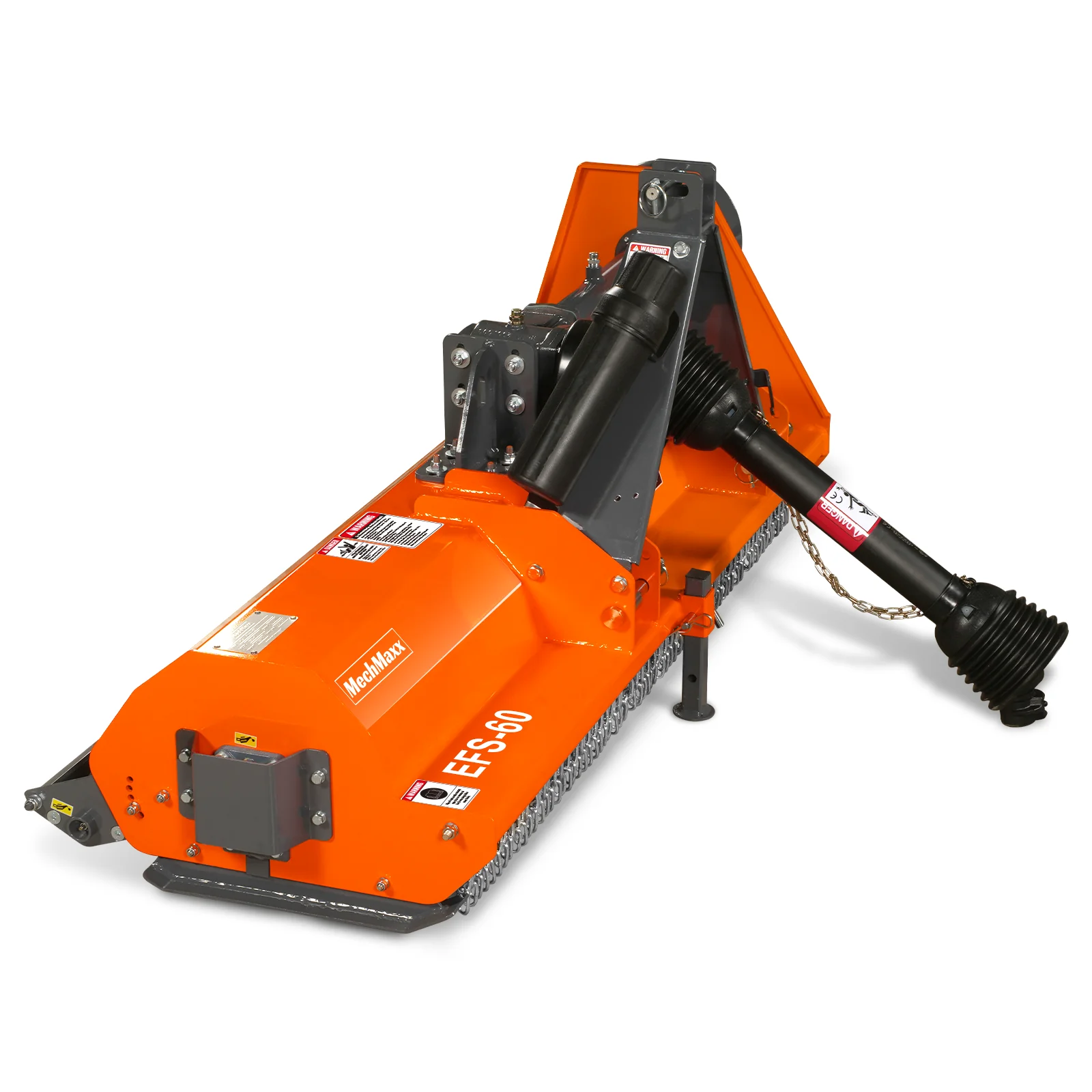

60'' PTO Flail Mower
| Engine Power Required | 15-35HP | Drive Type | Belt drive |
| Working Width | 60in | Number of Belts | 3 |
| Overall Width | 65in | Belt Size | V Belt 13 X 1041 |
| Blade Ground Clearance | 0.6in-1.8in | Drive Belt Tensioner | Yes |
| Max. Cutting Diameter | Depends On The Type Of Grass | Deck Thickness | 0.16in |
| Number Of Blades | 24 | Side Plate Thickness | 0.24in |
| Blade Type | Hammer | PTO Shaft RPM | 540 RPM |
| Size Of Blades | 3.5 x 3 x 1.6in | Driveline Shaft Length | T5-LF-31 with shear bolt; 31- 43in |
| Blade Weight | 0.8lbs | Spline End | 1.375in z6 |
| Blade （Tines）Material | Cast Steel | Tractor Mount | Reversible |
| Rotor Bearing | SKF bearing | Gearbox Oil Type | 85W-90 |
| Rotor Diameter | 3in | Dimensions (L x W x H) | 65 x 30 x 28in |
| Rotor Swing Diameter | 11in | Finish | Powder Coat Paint Galvanized Steel |
| Rotor Thickness | 0.3in | Warranty | 1 year |
| Rotor Shaft Speed | 2958 rpm | Weight (N.W./G.W.) | 406/503 lbs |
| Blade Speed | 142 ft/s |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
