3-Point PTO Stump Grinder & 22" Portable Sawmill Combo, SG24&SM22

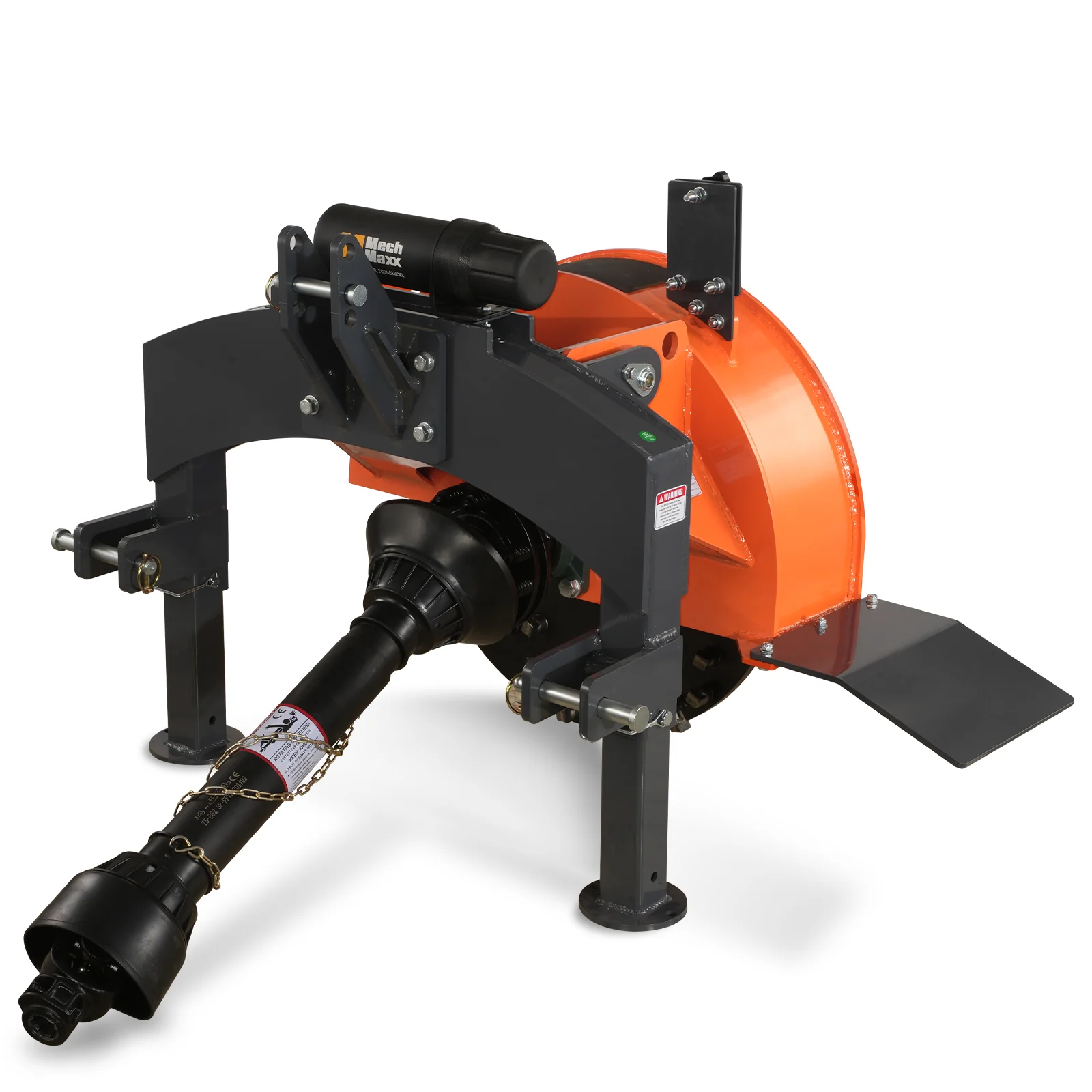

3-Point PTO Stump Grinder
| Flywheel Diameter | 24 in | Mounting | 3 Point Hitch Cat. 1 (Quick Attach Compatible) |
| Flywheel Thickness | 3/4 in | PTO Input | 540 RPM |
| Carbid Tip | 34 PCS | Max. Torque | 1200 N·m |
| Carbid Tip Material | YG11C | PTO Shaft Weight | 44 LBS |
| Tip Holder Material | 42CrMo | Dimensions | 29 × 37 × 38 in |
| PTO HP Required | 15–45 HP | Packing | Iron Frame + Carton |
| PTO Shaft (Included Shipping) | 1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch | Weight (N.W/G.W.) | 450/563 LBS |

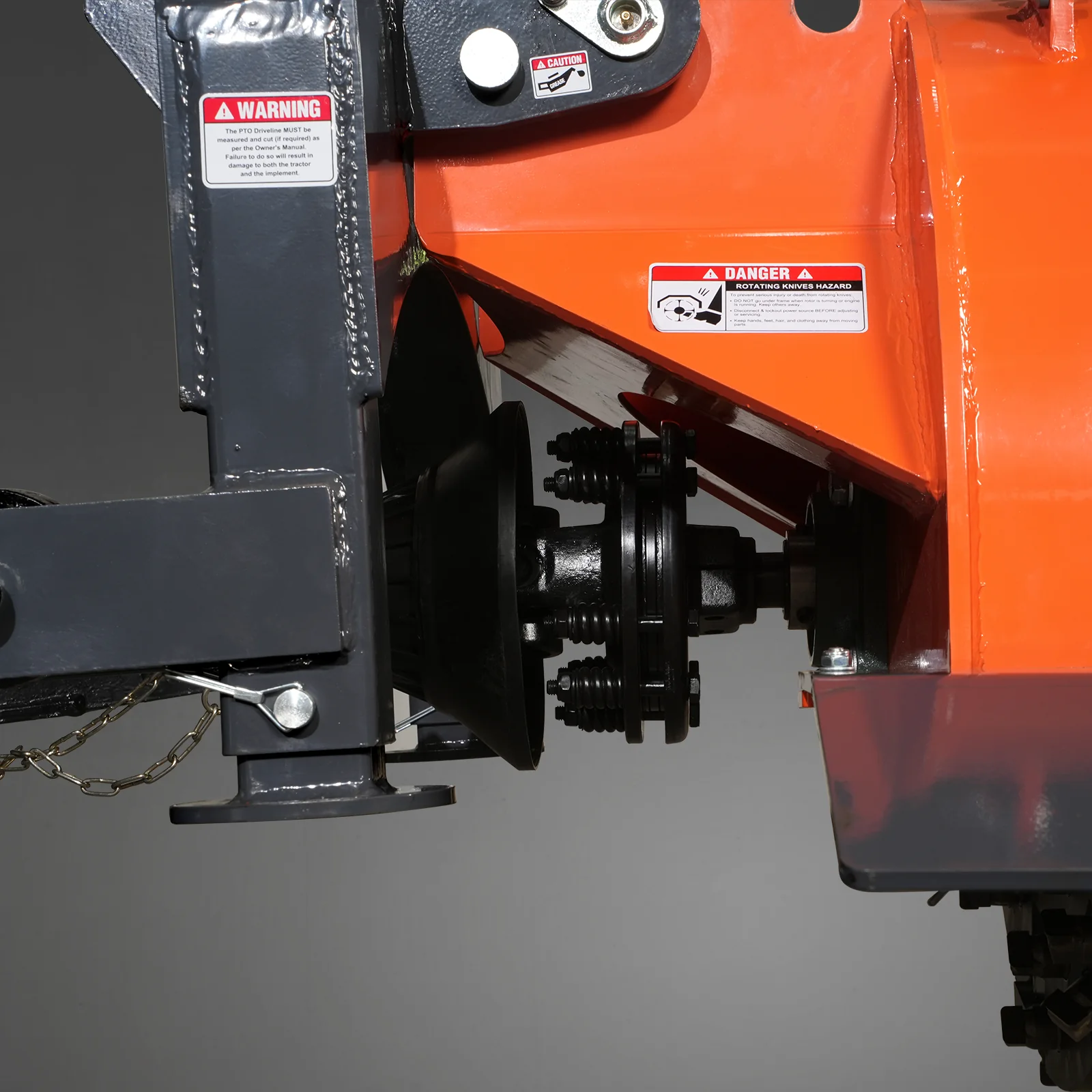

| Friction Torque Limiter (Slip Clutch) | Included |

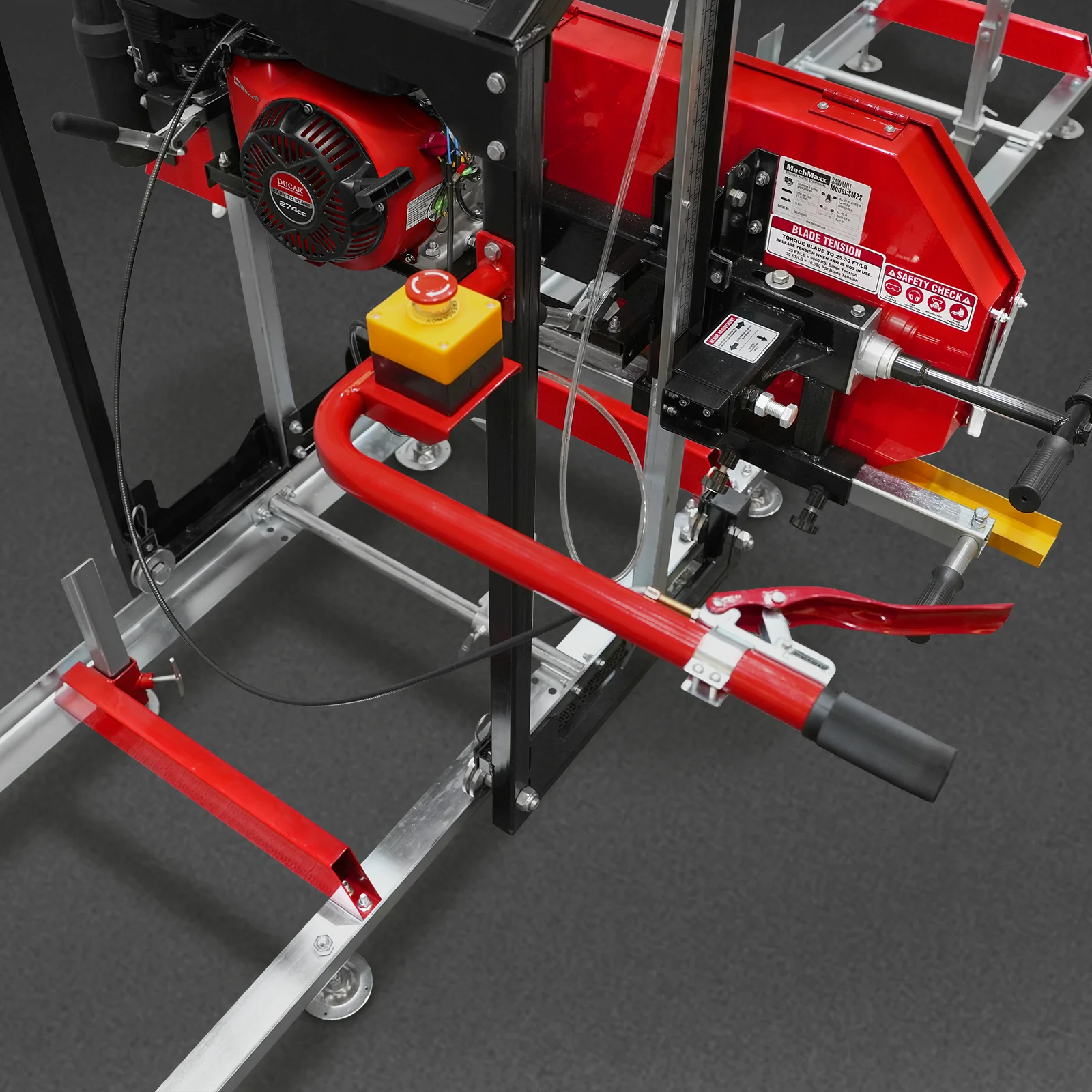

22" Portable Sawmill

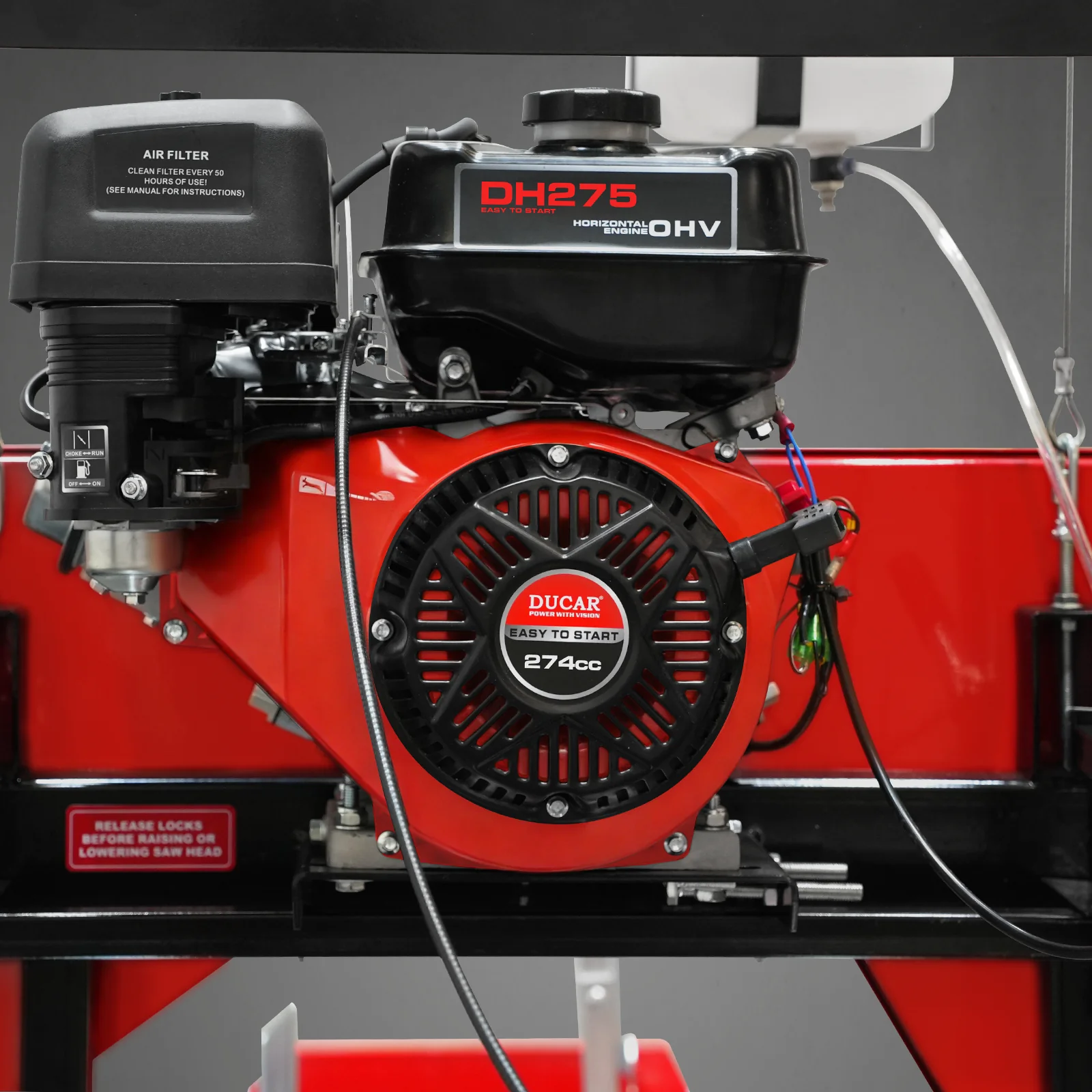

| Engine | DUCAR DH275 | Lubricant Tank Size | 2.6 gal |
| Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV | Track Load-Bearing | 2 ton |
| Engine Displacement | 274 cc | Track Width | 2 ft 2 in |
| Horsepower | 8.1 HP | Track Length | 13 ft |
| Start | Recoil | Track Extension Length | 6.4 ft |
| Log Diameter | 22 in | Leveling Feet | 12 |
| Max Live Edge Width | 18 in | Log Rests | 2 Long and 2 Short Rests |
| Standard Cutting Length | 10.4 ft | Log Clamps | 2 x Quick Lock |
| Max Board Thickness | 6 in | Track Bunks | 1.6 x 3.9 in |
| Blade Engagement System | Centrifugal Clutch | 4 Post Head Design | Yes |
| Cast Iron Bandwheel Diameter | 16.5 in | Finish | Powder Coat Paint Galvanized Steel |
| Blade Wheel Engagement | Belt Drive | Sawmill Warranty | 2 Years |
| Blade Guide | By Roller | Engine Warranty | 1 Year |
| Blade Tension | By Adjustable Lever | Package Method | Wood |
| Blade Size | 127 x 1.3 in | Packing Size | 87 x 19 x 32 in |
| Blade Pitch | 7/8 in | Weight (N.W./G.W.) | 509/600 lbs |
| Blade Lubrication | Water Lube - Manual Valve |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
