22" Portable Sawmill & Forestry Log Skidding Winch Combo, SM22 & FW8800

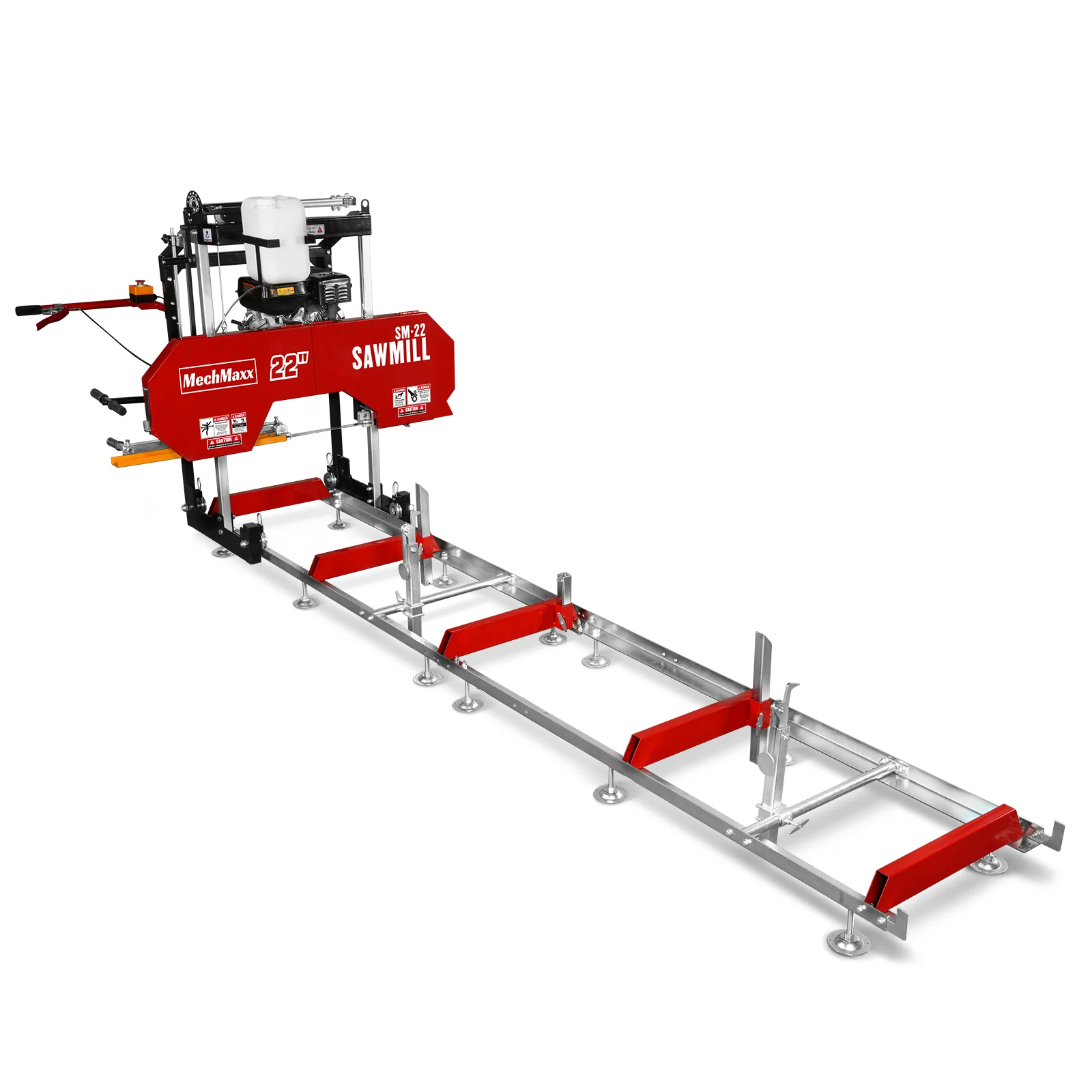

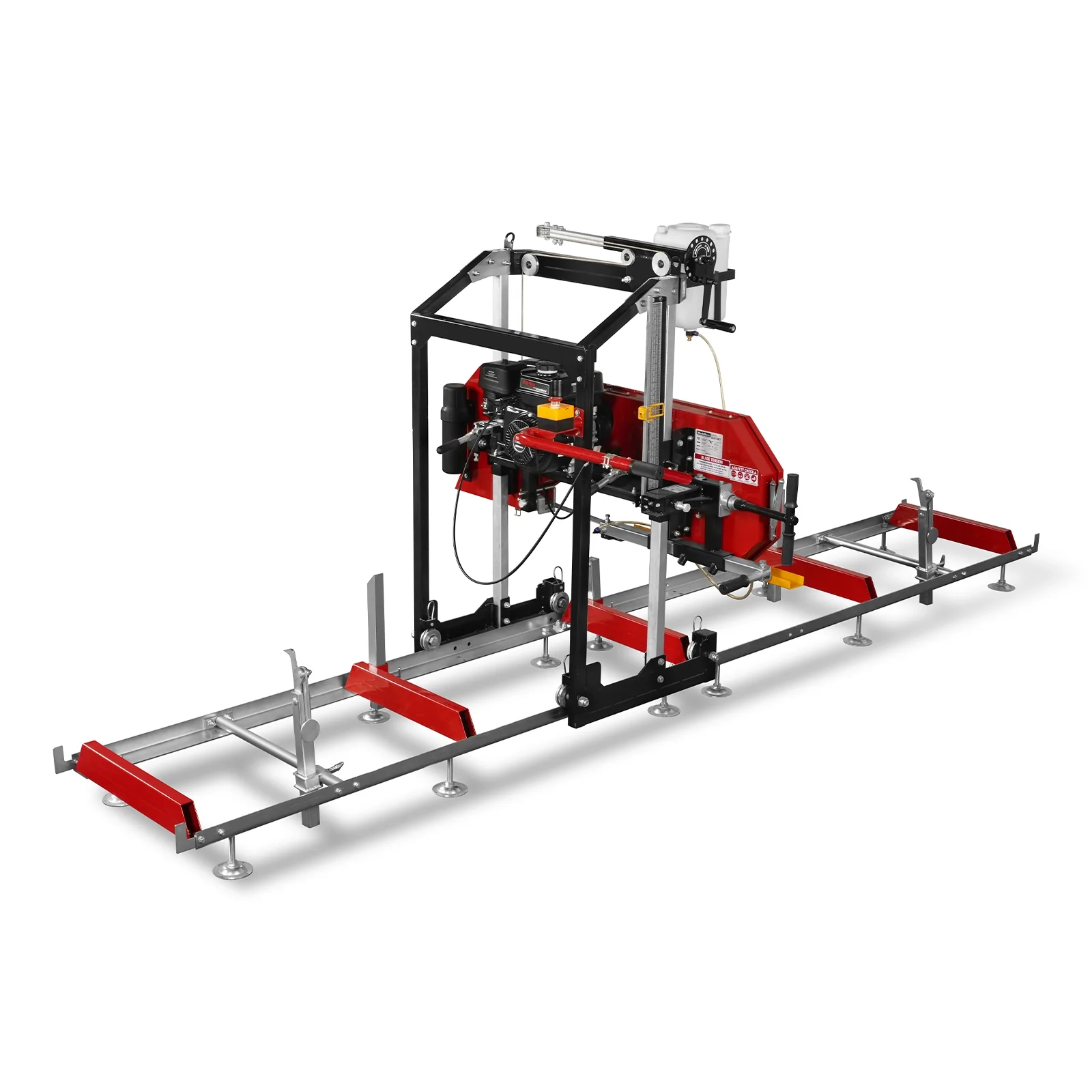

22" Portable Sawmill

Engine	DUCAR	Blade Lubrication	Water Lube - Manual Valve
Engine Type	Single Cylinder, 4 Stroke, Air-Cooled, OHV	Lubricant Tank Size	2.6 gal

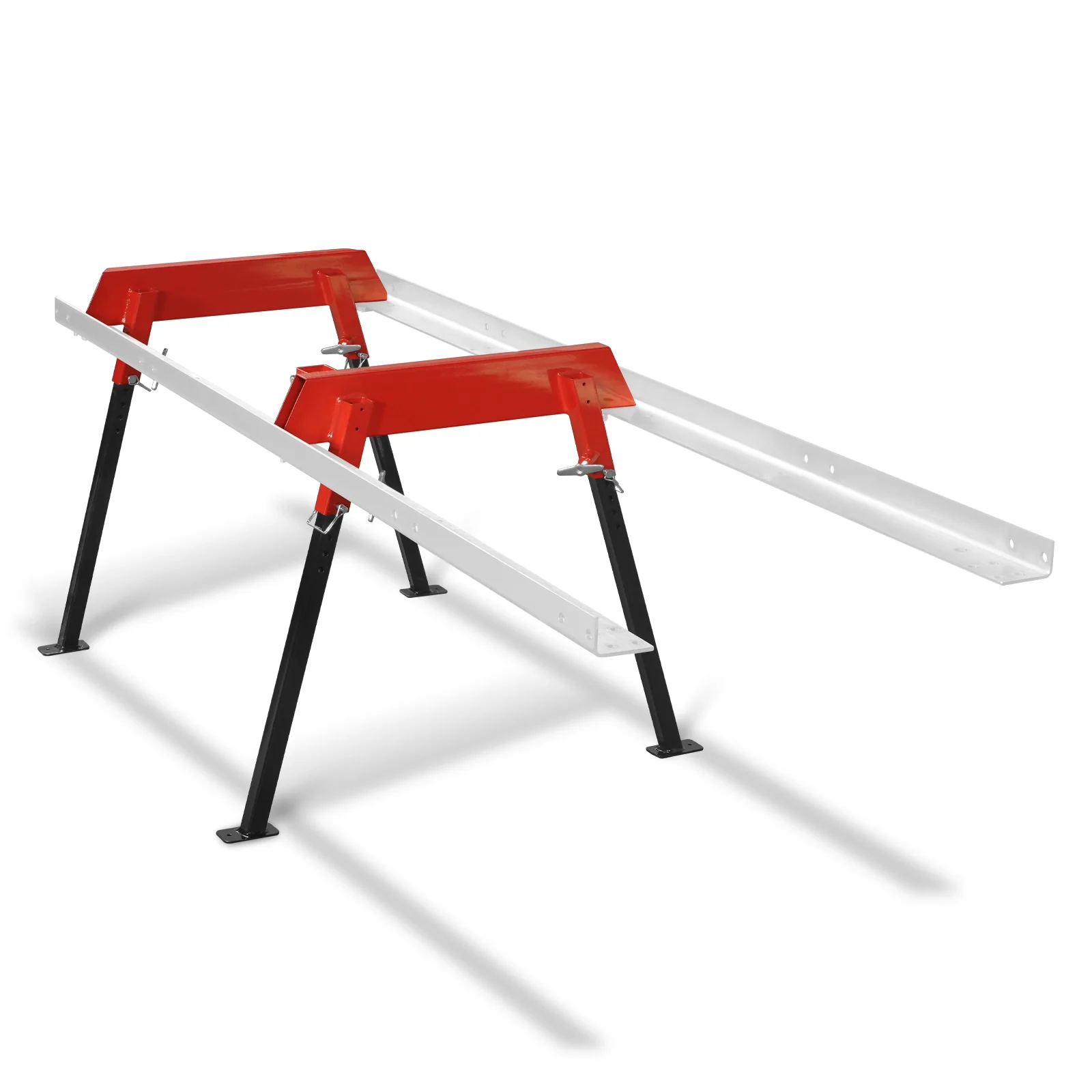

Engine Displacement	224 cc	Track Width	2 ft 2 in
Horsepower	7 HP	Track Length	13 ft
Start	Recoil	Track Extension Length	6 ft 6 in
Log Diameter	22 in	Levelling Feet	12
Max Live Edge Width	20 in	Log Rests	2 Long and 2 Short Rests
Standard Cutting Length	10 ft 5 in	Log Clamps	2 x Quick Lock
Max Board Thickness	6 in	Track Bunks	1.6 x 3.9 in
Blade Engagement System	Centrifugal Clutch	4 Post Head Design	Yes
Cast Iron Bandwheel Diameter	16.5 in	Finish	Powder Coat Paint Galvanized Steel
Blade Wheel Engagement	Belt Drive	Sawmill Warranty	2 Years

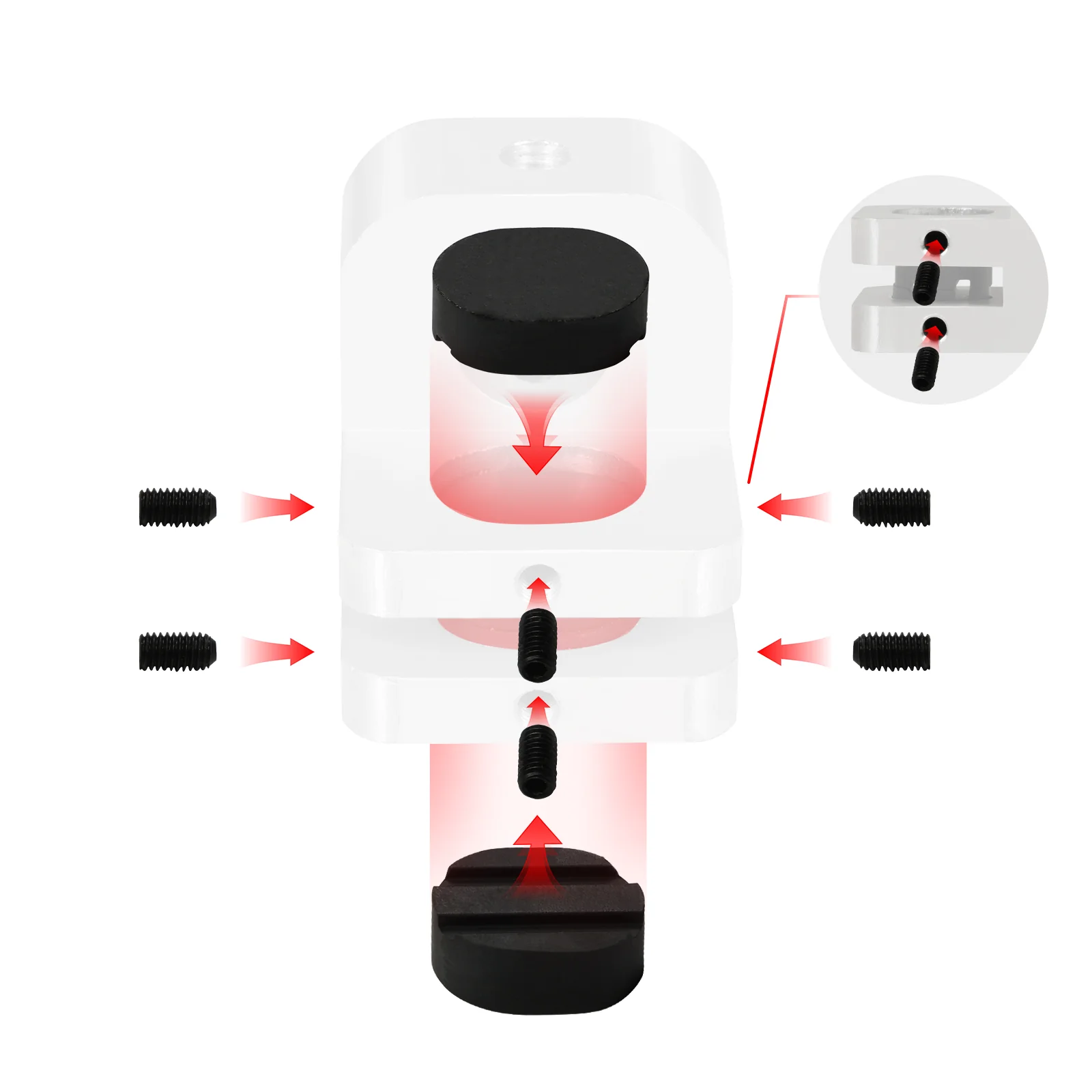

Blade Guide	By Roller	Engine Warranty	1 Year
Blade Tension	By Adjustable Lever	Package Method	Wood
Blade Size	127 x 1.3 in	Packing Size	87 x 19 x 32 in
Blade Pitch	7/8 in	Weight (N.W./G.W.)	483/580 lbs

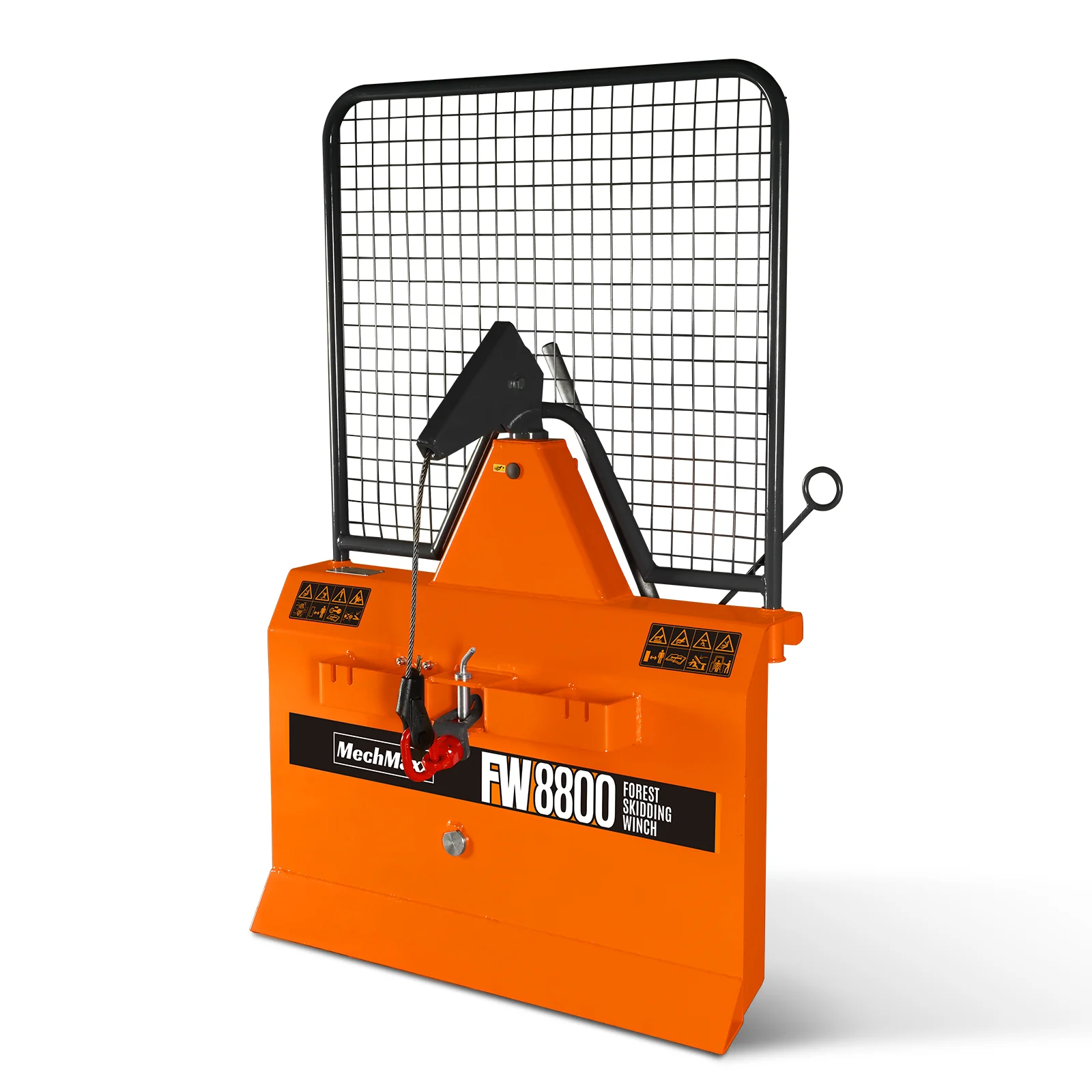

Forestry Log Skidding Winch

Recommended Tractor Power	25-60hp
Pulling Capacity	8800lbs
Winch Type	Mechanical, Dry Disc Clutch
Average Winching Speed	180 ft/minute
Cable Length	200 ft
Cable Diameter	3/8 in
Cable Type	Steel
Tractor CAT	CAT 1
PTO Input Speed	540 RPM
PTO Shaft	1-3/8in 6 Spline Tractor， With Shear Bolt
Dimensions	47 X 20 X 71 in
Packing Size	49 x 21 x 73 in
Weight (N.W/G.W.)	602/659 lbs
