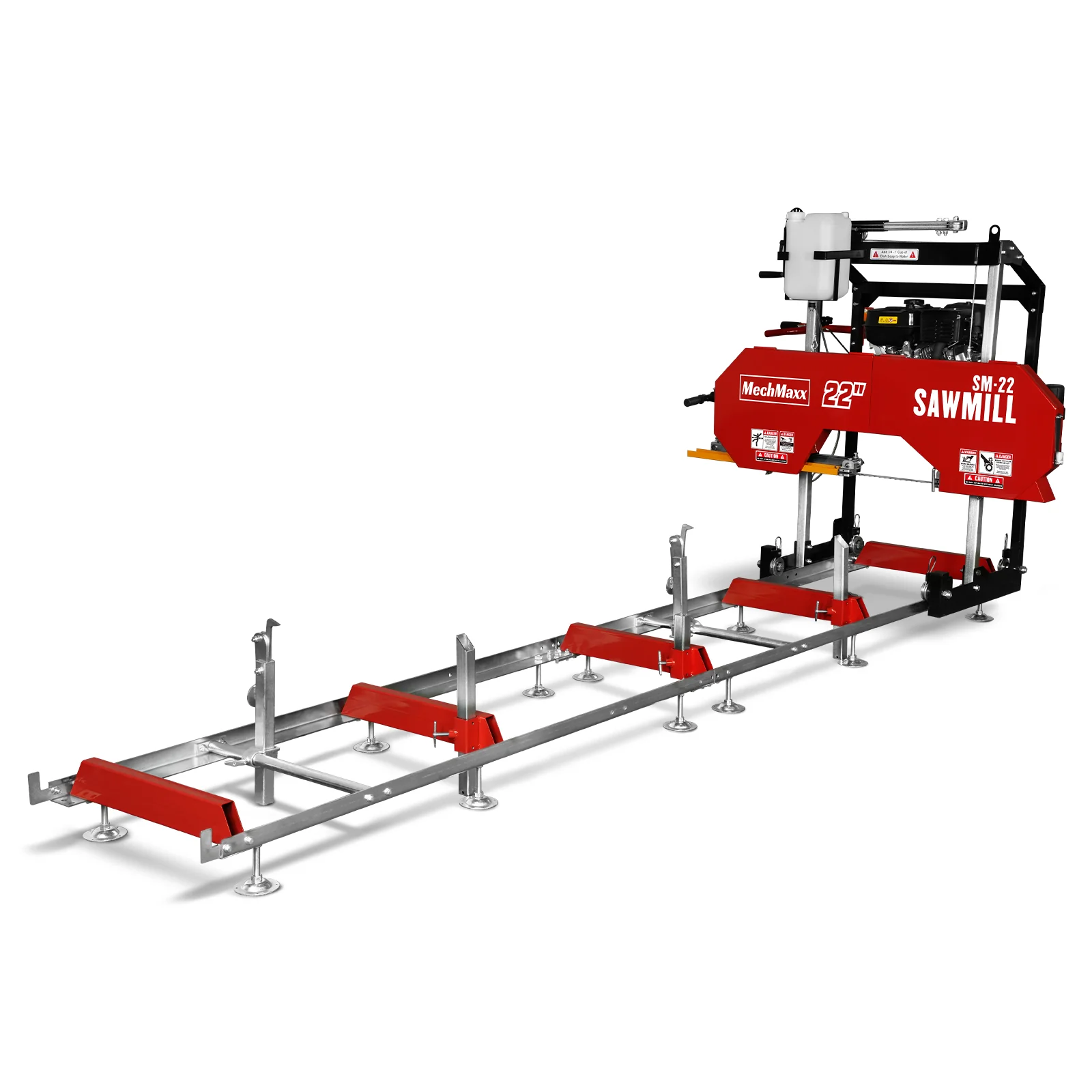

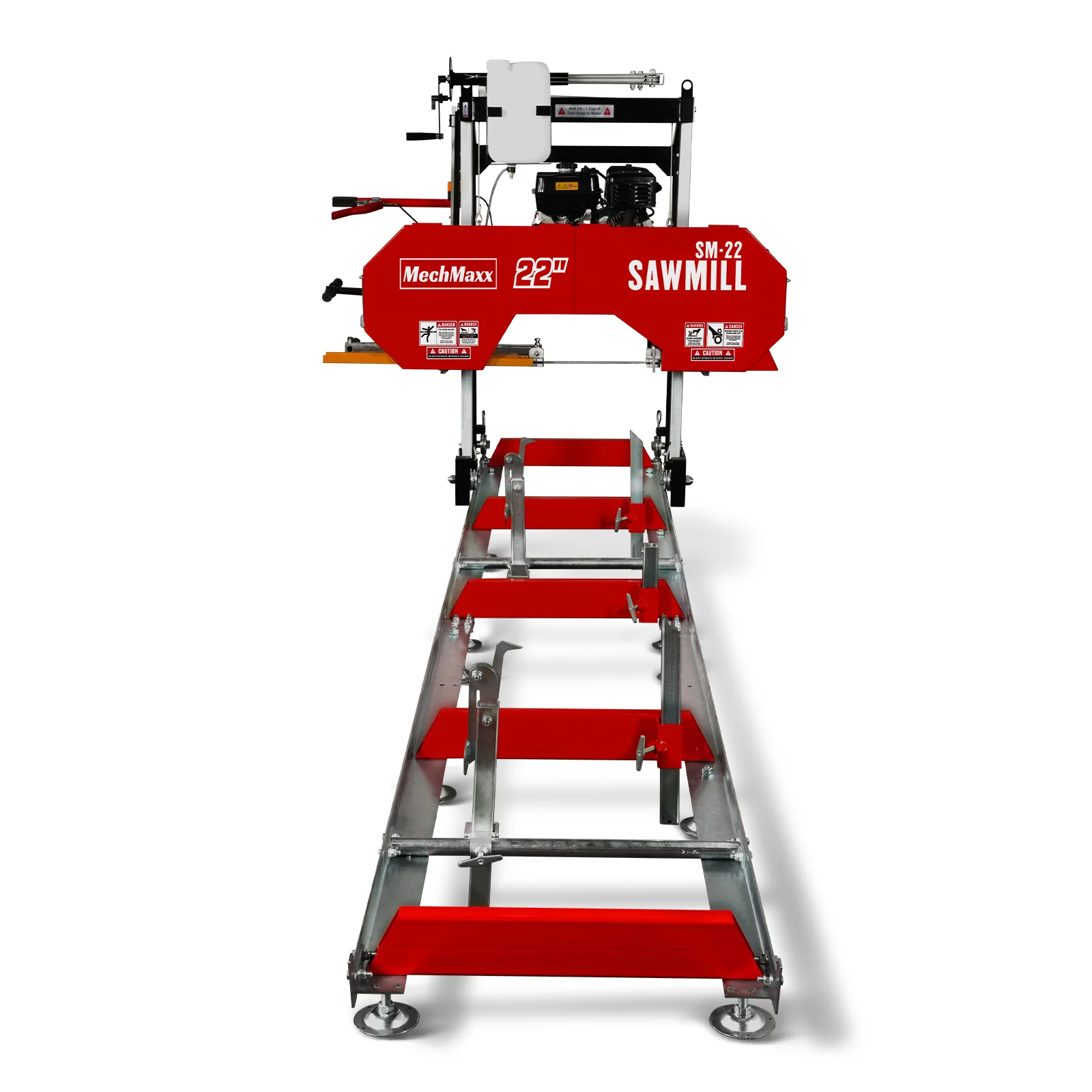

22" Portable Sawmill, 274cc 8.1HP Gasoline Engine, 18" Board Width, 13' Track Length , SM-22

Engine	DUCAR DH275	Lubricant Tank Size	2.6 gal
Engine Type	Single Cylinder, 4 Stroke, Air-Cooled, OHV	Track Load-Bearing	2 ton
Engine Displacement	274 cc	Track Width	2 ft 2 in
Horsepower	8.1 HP	Track Length	13 ft
Start	Recoil	Track Extension Length	6.4 ft
Log Diameter	22 in	Leveling Feet	12
Max Live Edge Width	18 in	Log Rests	2 Long and 2 Short Rests
Standard Cutting Length	10.4 ft	Log Clamps	2 x Quick Lock
Max Board Thickness	6 in	Track Bunks	1.6 x 3.9 in
Blade Engagement System	Centrifugal Clutch	4 Post Head Design	Yes
Cast Iron Bandwheel Diameter	16.5 in	Finish	Powder Coat Paint Galvanized Steel
Blade Wheel Engagement	Belt Drive	Sawmill Warranty	2 Years
Blade Guide	By Roller	Engine Warranty	1 Year
Blade Tension	By Adjustable Lever	Package Method	Wood
Blade Size	127 x 1.3 in	Packing Size	87 x 19 x 32 in
Blade Pitch	7/8 in	Weight (N.W./G.W.)	509/600 lbs
Blade Lubrication	Water Lube - Manual Valve



WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
