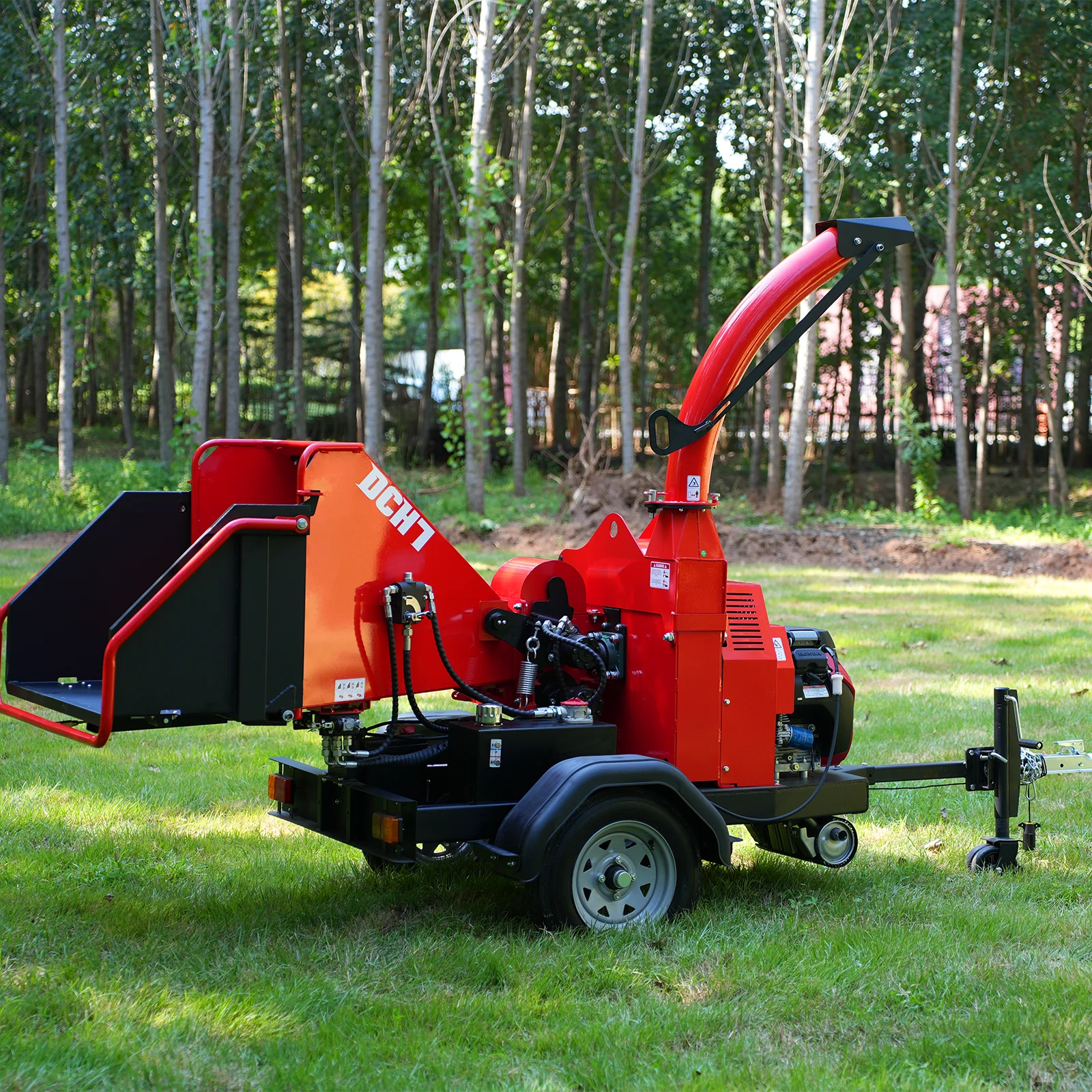

HONDA GX690 22HP 688cc Twin Cylinder Gasoline Engine Powered 7" Hydraulic Feeding Wood Chipper, DCH7

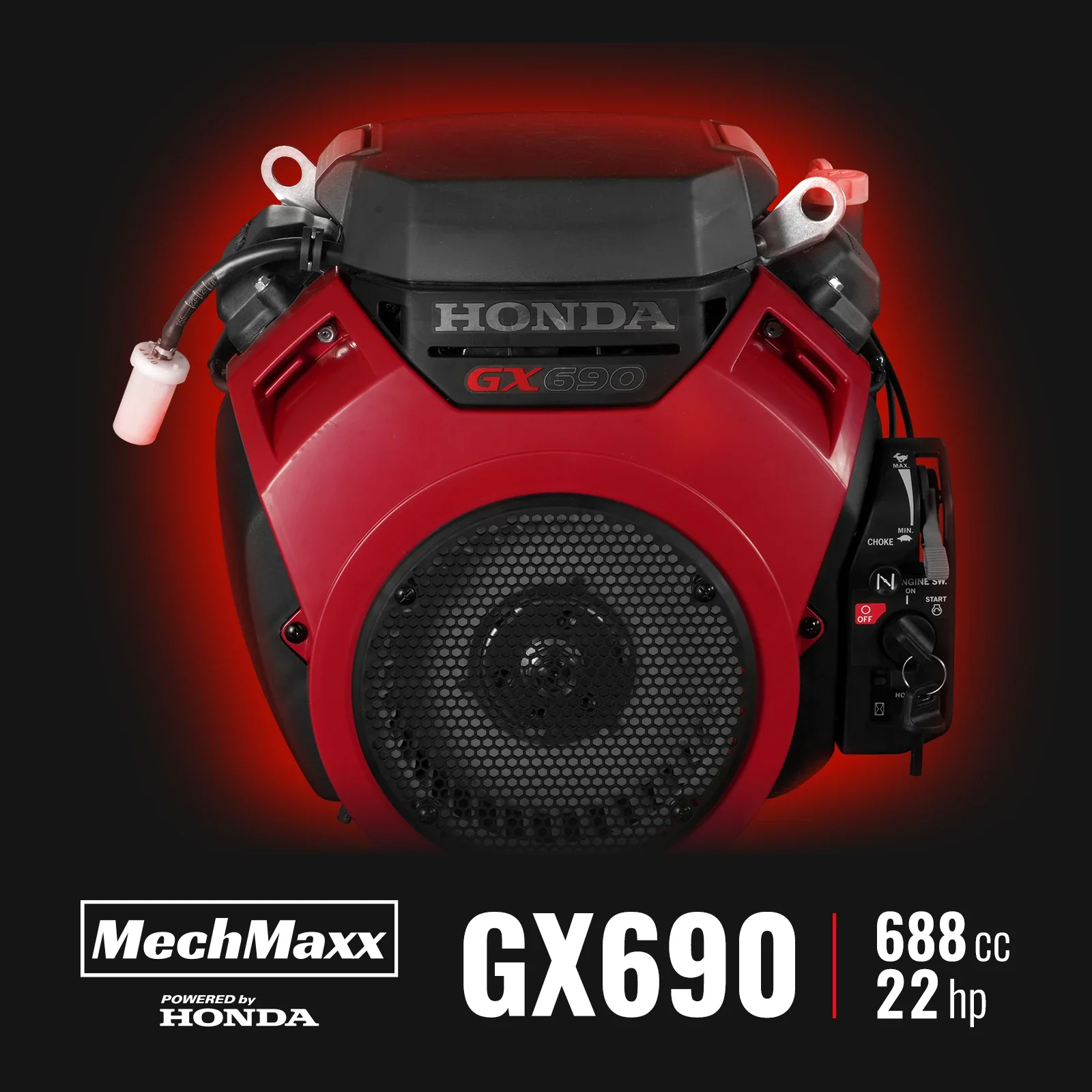

Engine	HONDA GX690	Blade	2 x Blades; 1 x Anvil
Engine Type	Air Cooled 4-Stroke OHV Petrol Engine，90° V-Twin Design, Horizontal Shaft	Blade Material	A8 （5Cr8MoVSi）
Displacement	688 cc; 22 HP	Blades Type	Double Edge Blade
Rated Power	13.0 kw / 3600 RPM	Flywheel System	Open Top Flywheel 26 in x 1 in Twin
Max. Net Torque	48.3 N·m / 2500 RPM	Discharge Chute	360 Degree Rotating
Fuel Capacity	3.17 gal	Emergency Stop	Stop Bar
Recommended Oil	SAE 10W-30 Classification SE or Higher	Towing Length	Tow Bar With 2 in Coupler
Hydraulic Tank	6.87 gal	Wheel	5.3-12 Tubeless
Starting	Electric Starting	Wheelbase	52.5 in
Battery	36Ah 12V Lead-Acid Battery	Axle	Damping Torsion Axle
Ignition System	CDI	Max. Speed	50 mph
Governor System	Mechanical Centrifugal Type	Chassis	Channel Steel Welded Frame
Belt	2 x V-Belts	Package Method	Iron Fram With Black Film
Belts Material	Kevlar	Weight (N.W./G.W.)	1389 / 1587 lbs
Clutch	Centrifugal Clutch	Product Size (L*W*H)	137 x 55 x 90 in
Cutting Method	Disc	Packing Size (L*W*H)	87 x 46 x 51 in
Max. Chipping Dia.	7 in	Machine Warranty	2 Years

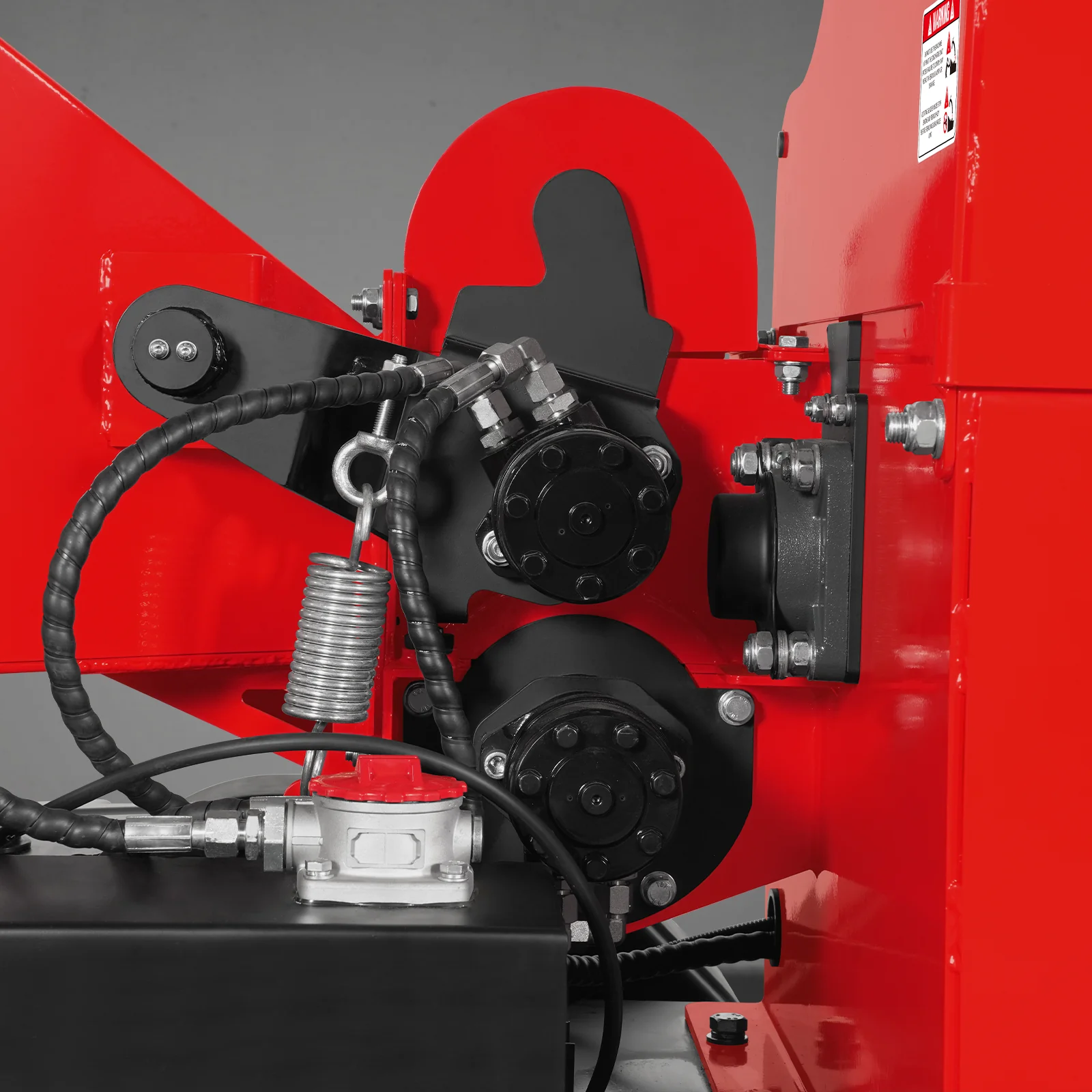

Feed Roller	7.5 in x 6.5 in	Engine Warranty	2 Years



WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
