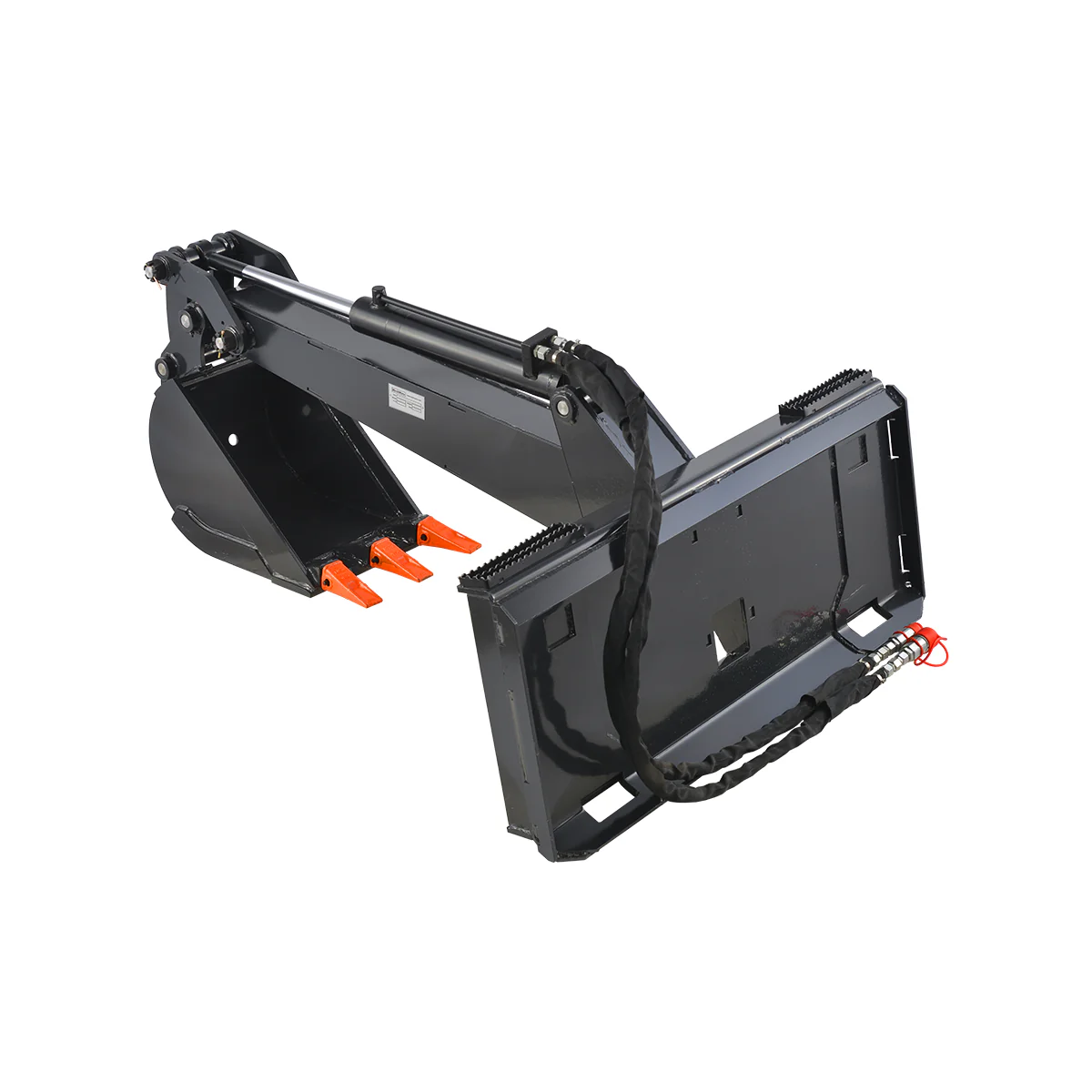

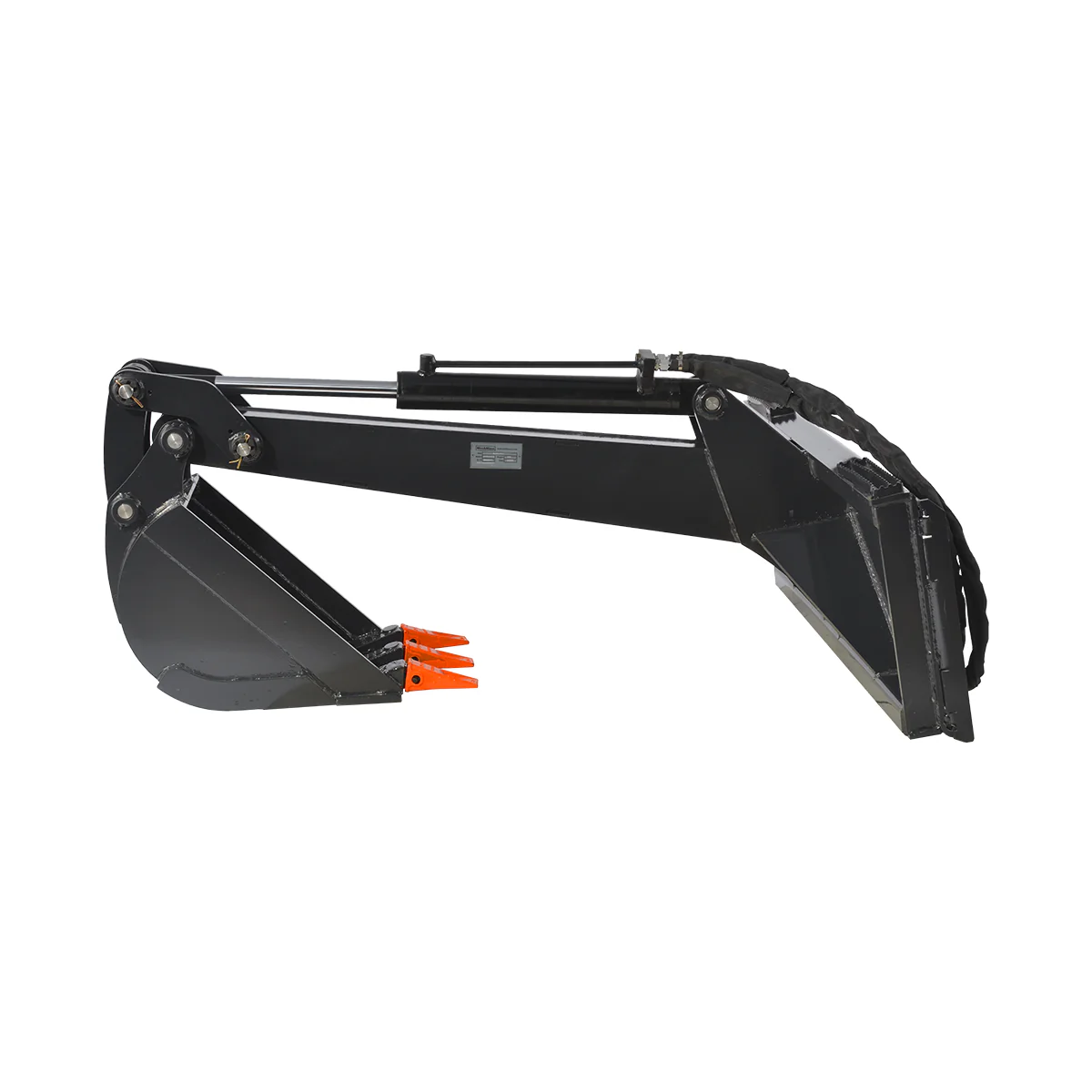

MechMaxx Skid Steer Backhoe Attachment, 14” Bucket Included, 78in Digging Depth,LBH-14
| Bucket Width | 14 in | Thumb Jaw Length | 5.5 in |
| Max Digging Depth | 78 in | Quick Coupler | G1/2 |
| Overall Reach | 85 in | Overall Swing Arc Right/Left | Fixed |
| Bucket Breakout Force | 2000 lbs | Finish | Durable Powder Coated finish |
| Lift Capacity | 1000 lbs | Product Size | 59x49x31 in |
| Max System Pressure | 2320 psi | Package Method | Iron Frame with Film |
| Hydraulic Cylinder Stroke | 14 in | Packing Size | 67x50x31 in |
| Hydraulic Cylinder Diameter | 2.5 in | Weight（N.W./G.W.) | 574/640 lbs |
| Bucket Rotation | 160° | Warranty | 1 Year |
| Hydraulic Pipe Length | 67 in |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
