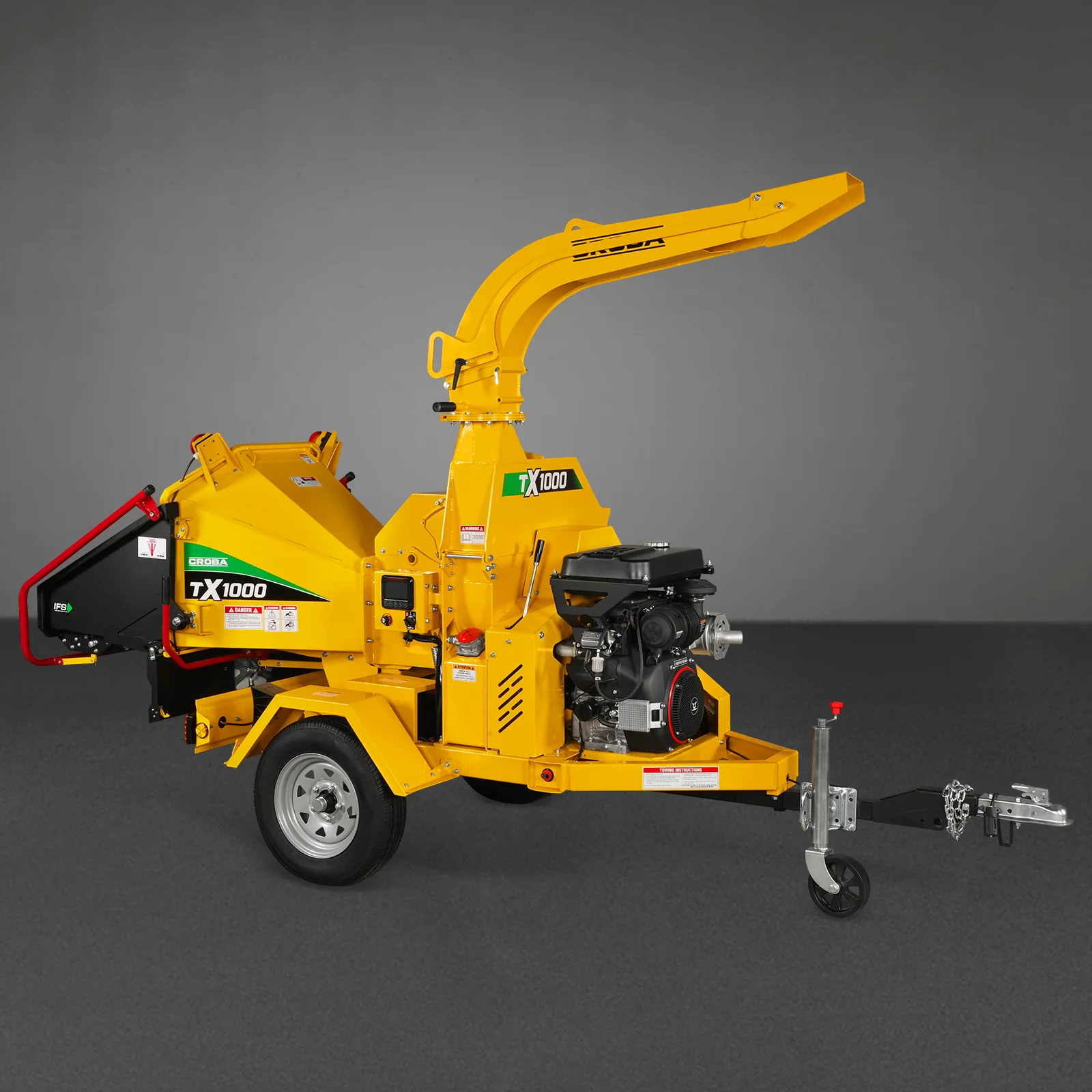

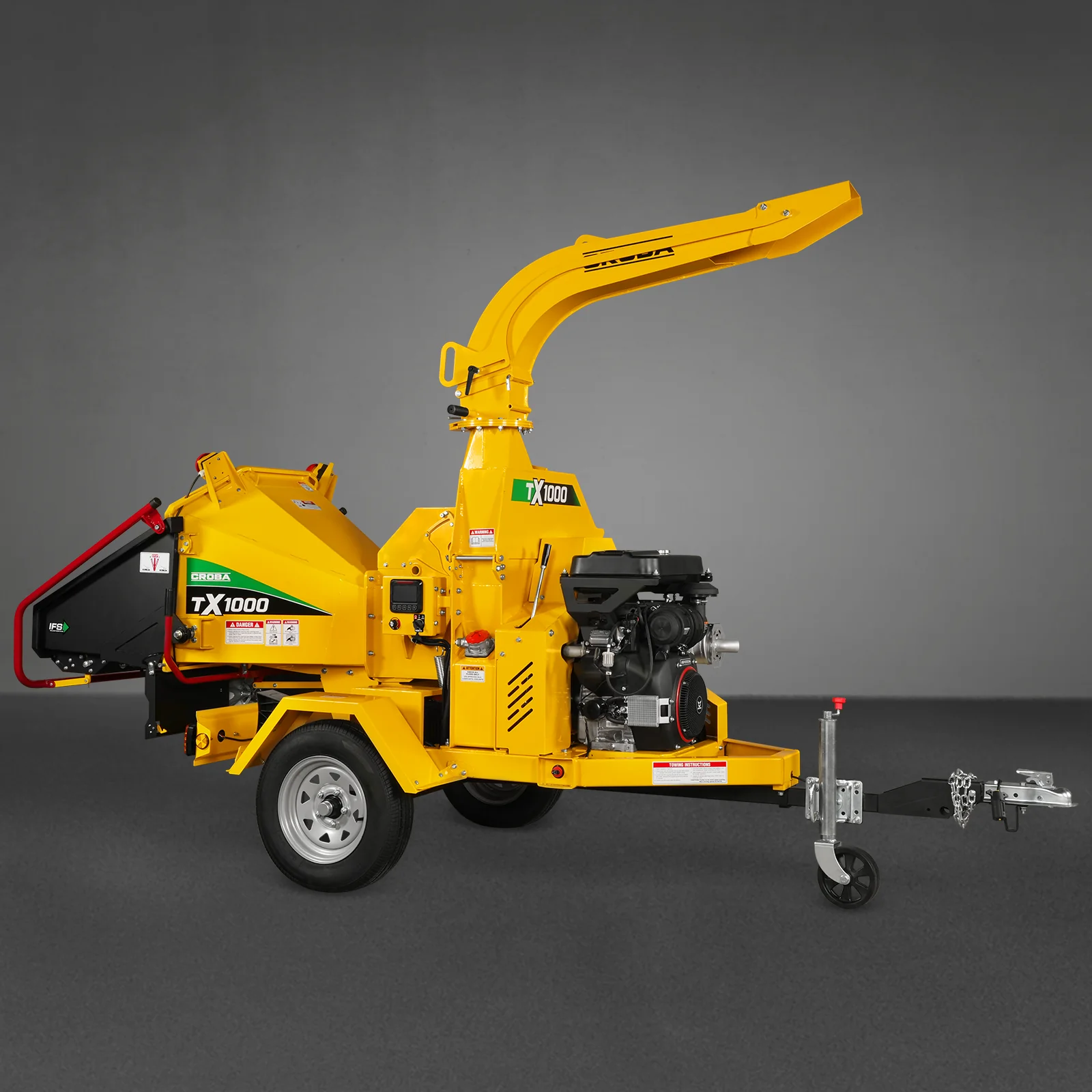

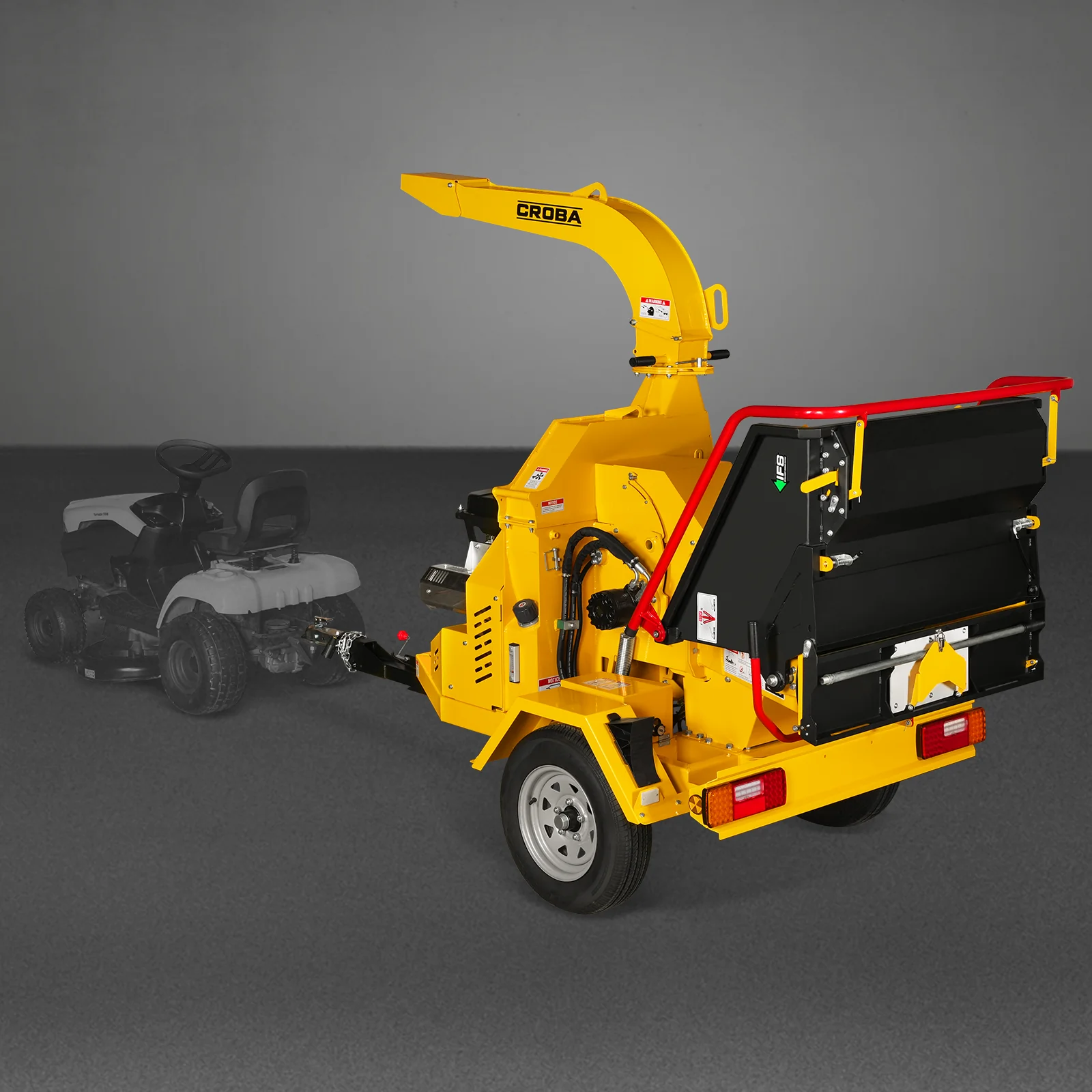

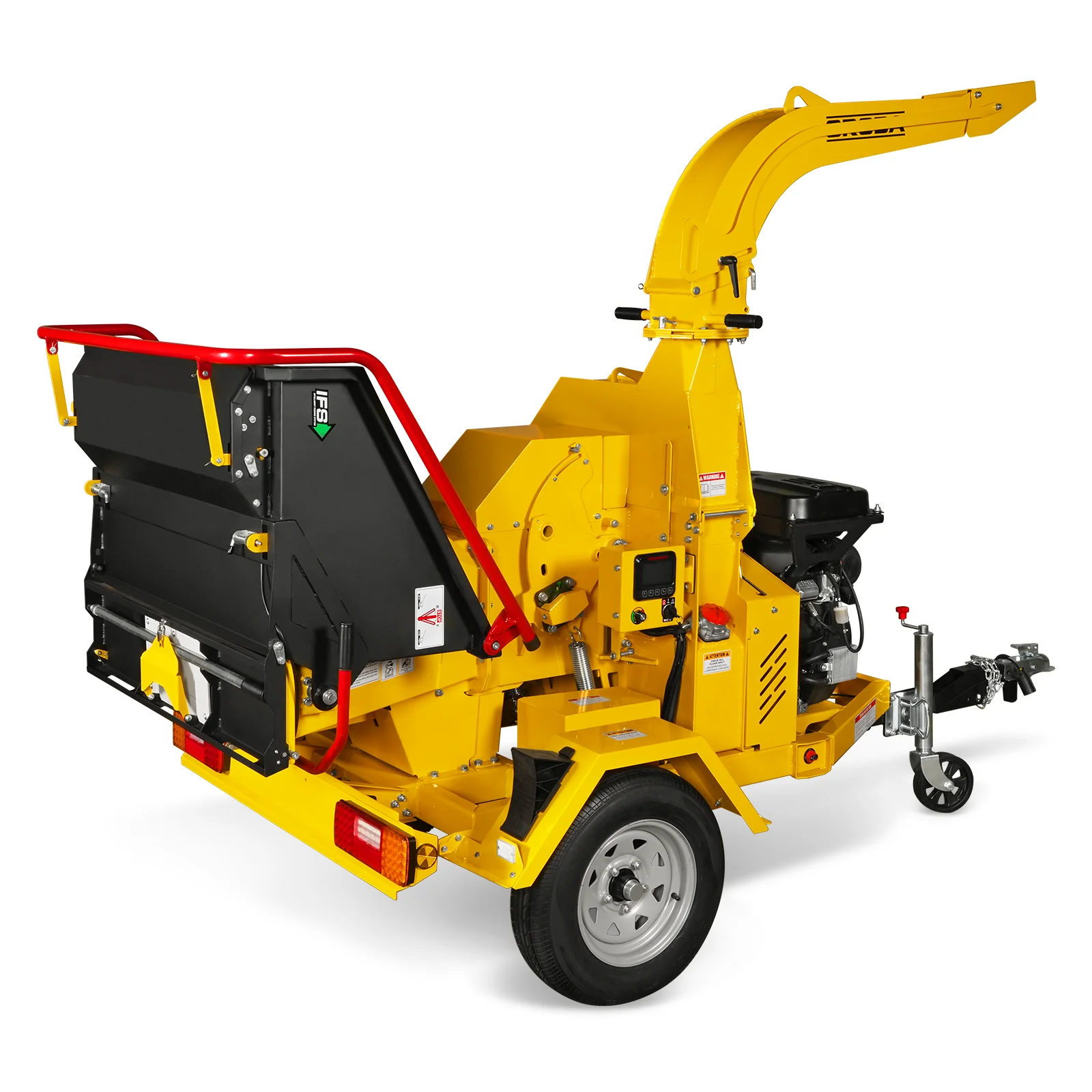

35hp 1000cc ZONSEN E-Start 8 inch Gas Powered Commerical Wood Chipper with Intelligent Hydraulic Feeding System , CROBA TX1000

Engine Parameter

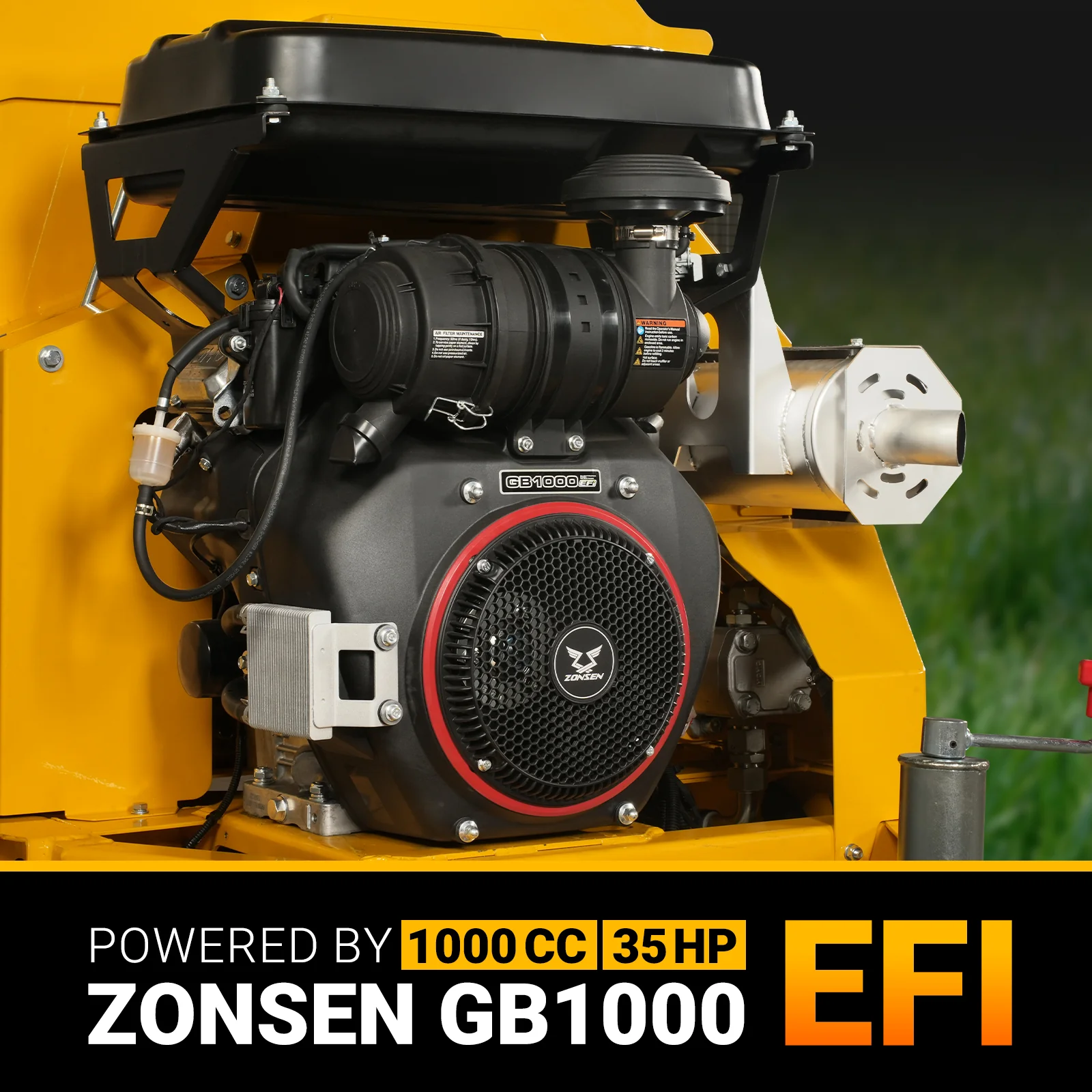

Engine Brand Model	Zonsen GB1000EI
Engine Power	35HP
Torque	74Nm
Fuel Tank Capacity	18L
Max Fuel Consumption	2.38gal/h
Fuel Type	Gasoline 92#
Air Cleaner	Double Filtration
Oil Filter	Screw Mountiing
Recommended Oil	SAE 10W-30
Oil Volume with Filter	2.5L
Maximum Continuous Working Angle	20°
Cooling Medium	Forced Cooling
Alternator	25A/300W
Clutch Type	Manual Clutch
Engine Shaft Diameter	1.125 in
Tensioner	Spring Automatic Tensioning
Belt	2SB1505LE

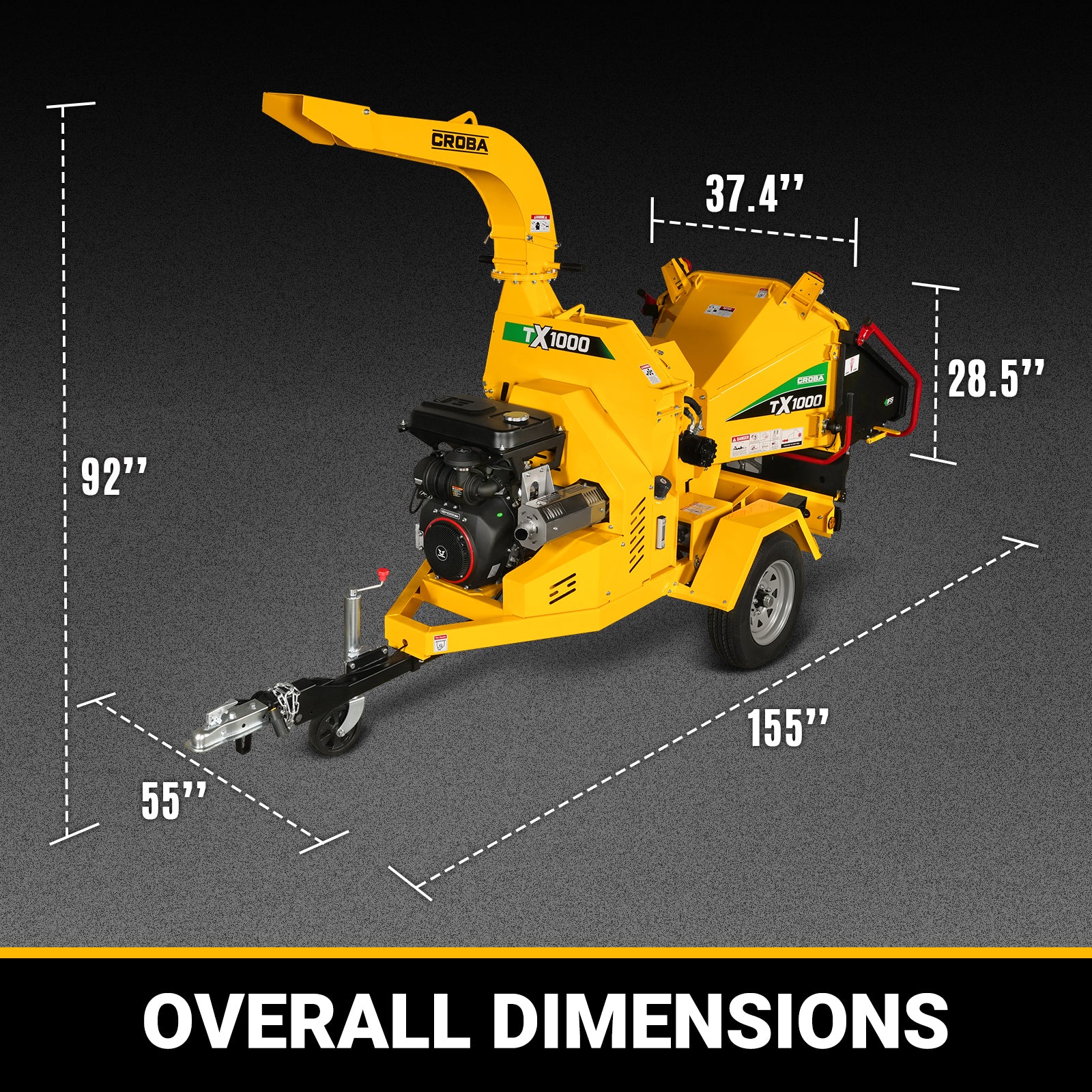

General Dimensions And Weight
Overall Length-Feed Table Up	135 in
Overall Length-Feed Table Down	155 in
Overall Width	55 in
Overall Height-Discharge Chute Up	79 in
Overall Height-Discharge Chute Down	92 in
Overall Weight	1874 lbs
Tongue Weight	198 lbs

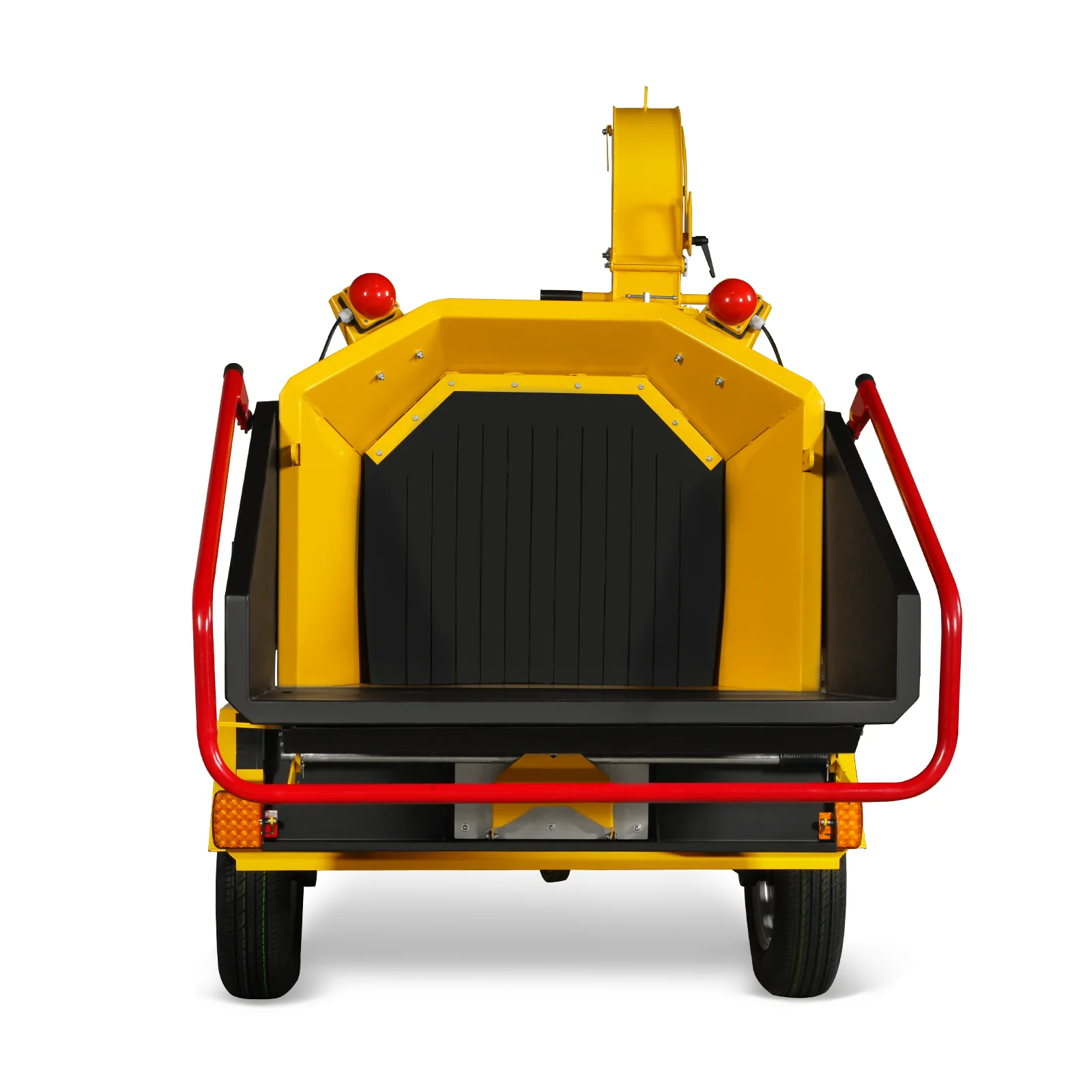

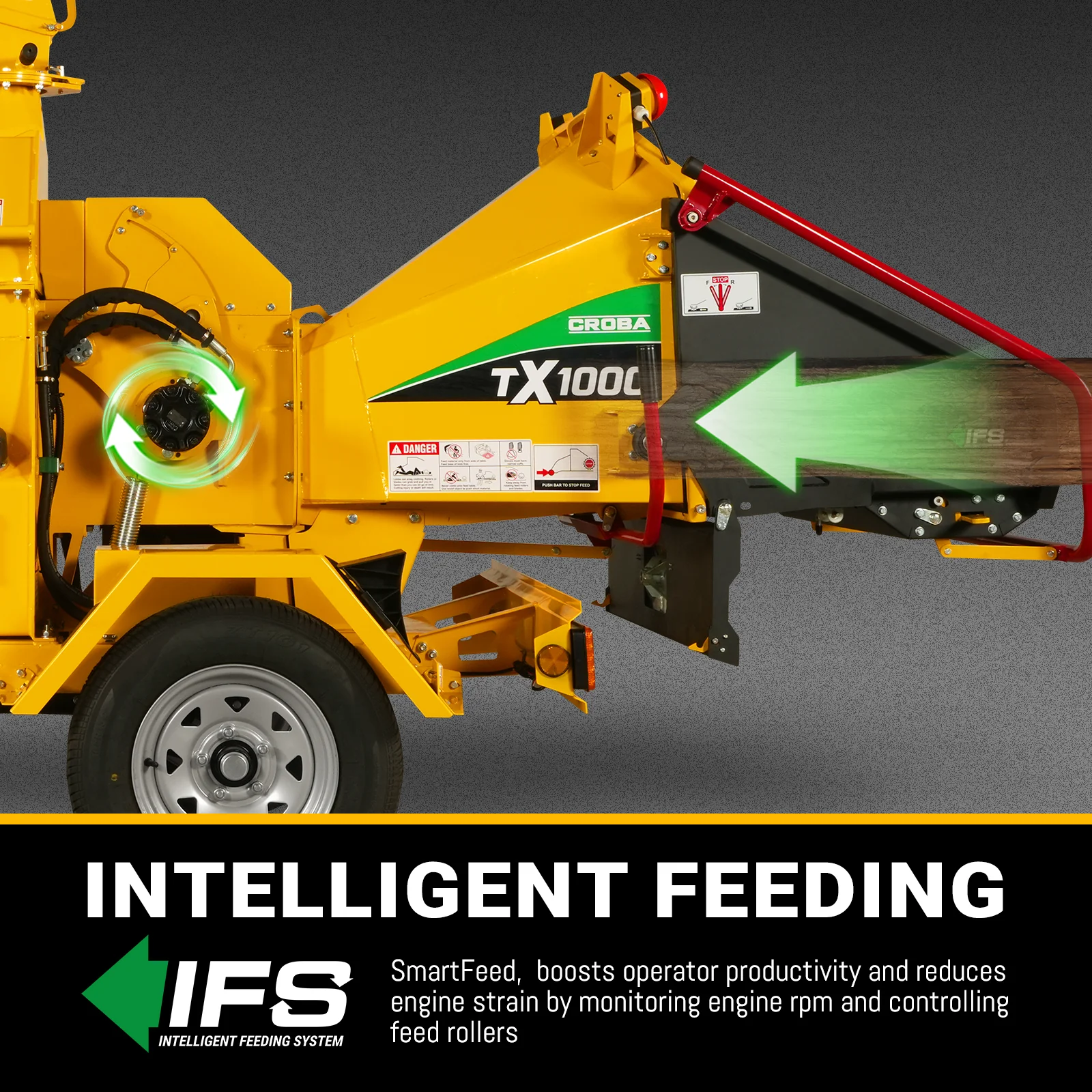

Feed System
Feed Roller Orientation	Horizontal
Feed Roller Nos.	1
Feed Roller Clamp Load	344 lbs
Knife Nos.	4
Number Of Feed Roller Motors	1
Feed Roller Clamping Mechanism Type	Spring + Feeding Roller Weight
Feed Roller Dimension	φ12*11 in
Minimum Distance From Feed Roller To Blade Housing	5 in
Weight Of Feed Roller Assembly	123 lbs
Feed Speed	54ft/min
Infeed Table Height	22 in
Infeed Table Length	24 in
Infeed Table Width	41 in
Infeed Throat Size	12*8 in
Distance From Feed Roller To End Of Feed Table	61 in
Distance From Feed Table To Ground	30 in
Safety System
Bottom Feed Stop Bar Function	Feed Roller Stopped - Reset
Bottom Feed Stop Bar	Standard
Bottom Feed Stop Bar Diameter	1.2 in
Bottom Feed Stop Bar Material Thickness	0.07 in
Stop Bar Resetting Method	Manual Reset

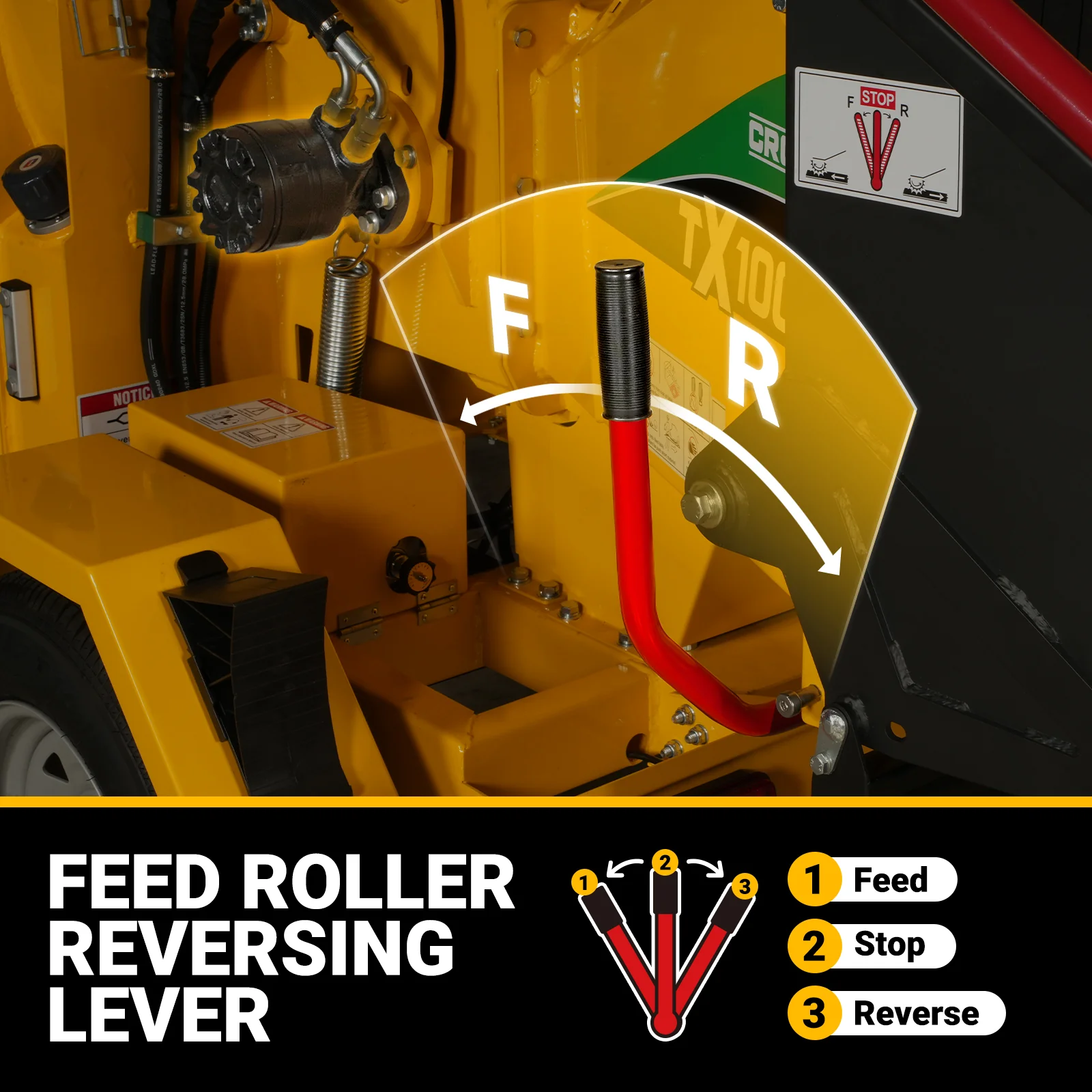

Three-Position Feed Control Bar	Standard
Control Bar Diameter	1 in
Control Bar Material Thickness	0.07 in
Control Bar Position Function	Forward/Stop/Reverse

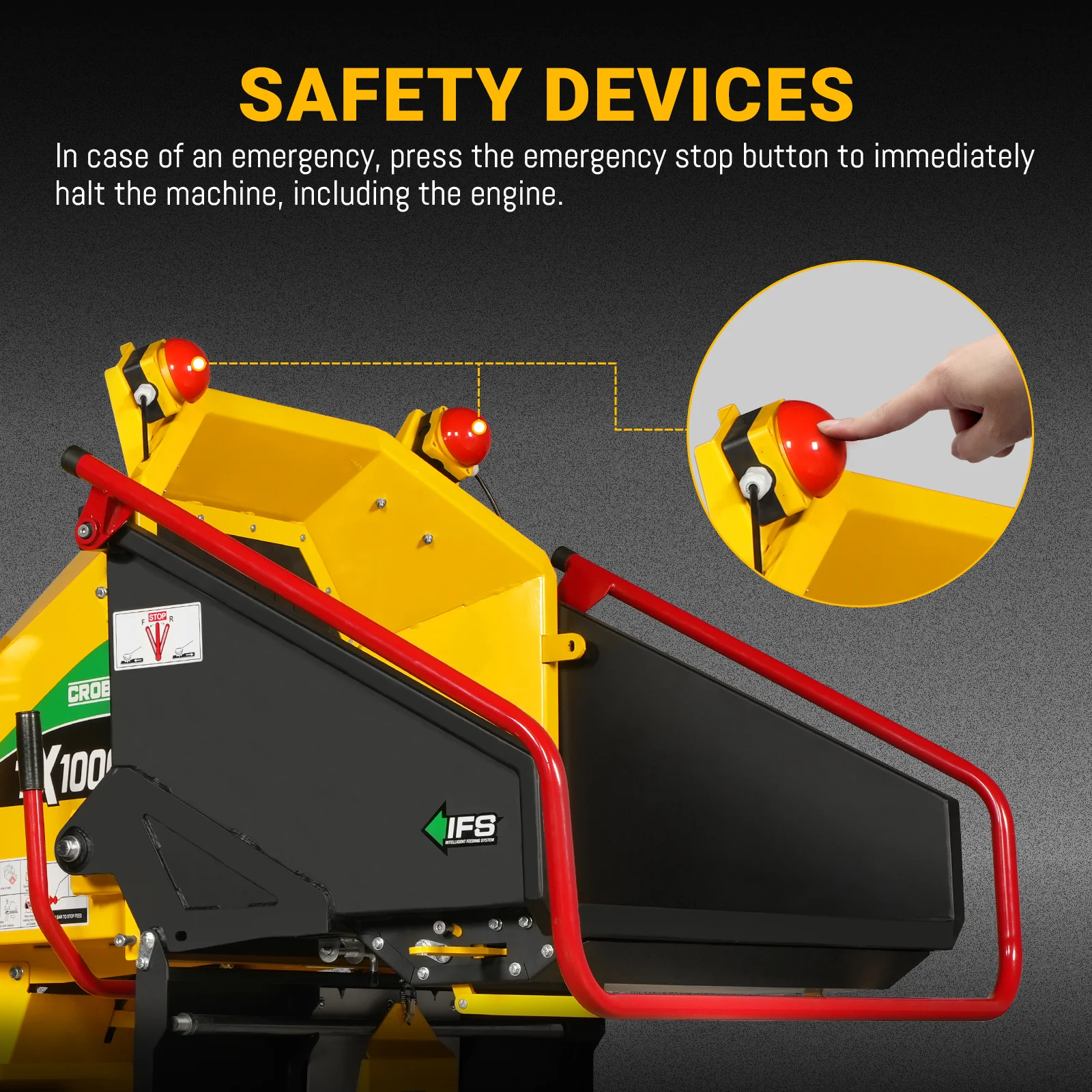

Red Emergency Stop Button	Stop The Engine
Red Emergency Stop Button Reset Method	Manual Reset
Blade Housing Parameter

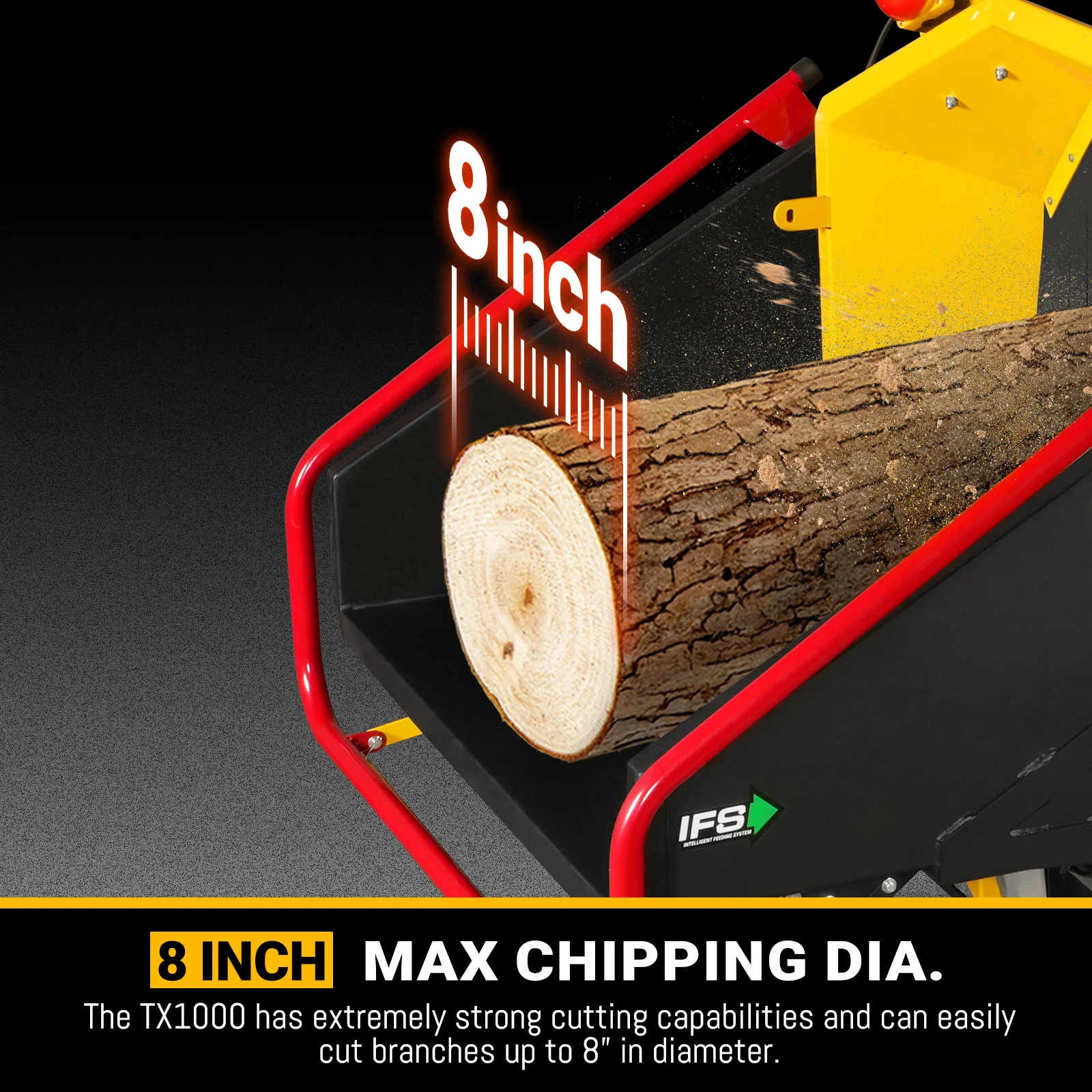

Chipping Capacity	8 in
Blade Housing Width	7 in
Cutting Disc Size	30*0.7 in
Cutting Disc Rotating Speed	1800
Weight With Shaft	225 lbs
Safety Lock - Number Of Positions	1
Blade Size	4*1*0.5 in
Blade Cutting Edge Nos.	2
Blade Bolt Nos.	3
Vertical Anvil Size	3.5*7.8*0.5 in
Vertical Anvil Cutting Edge Nos.	2
Horizontal Anvil Size	3.7*11.6*0.4 in
Horizontal Anvil Cutting Edge Nos.	2
Blade Material	A8 Steel
Anvil Material	Cr12
Blade Holder Replaceable	No
Fan Blades Nos.	4
Fan Blade Fixation Method	Bolt Fixing
Fan Blade Air Flow	3249CFM
Disc
Bearing Nos.	2
Bearing Hole Diameter	2 in
Bearing Type	Spherical Bearing
Bearing Brand	SKF
Dynamic Capacity	23.2KN
Static Capacity	27KN
Tensioner	Automatic Tensioning
Belt Type	Combined Belt
Discharge System
Chute Height	97 in
Flange Thickness	0.2 in
Side Wall Thickness	0.07 in
Chute Rotation Angle	360°
Rotation Type	Manual
Rotatation Lock	Included
Rotational Lock Type	Tighten The Dual Handle Bolts

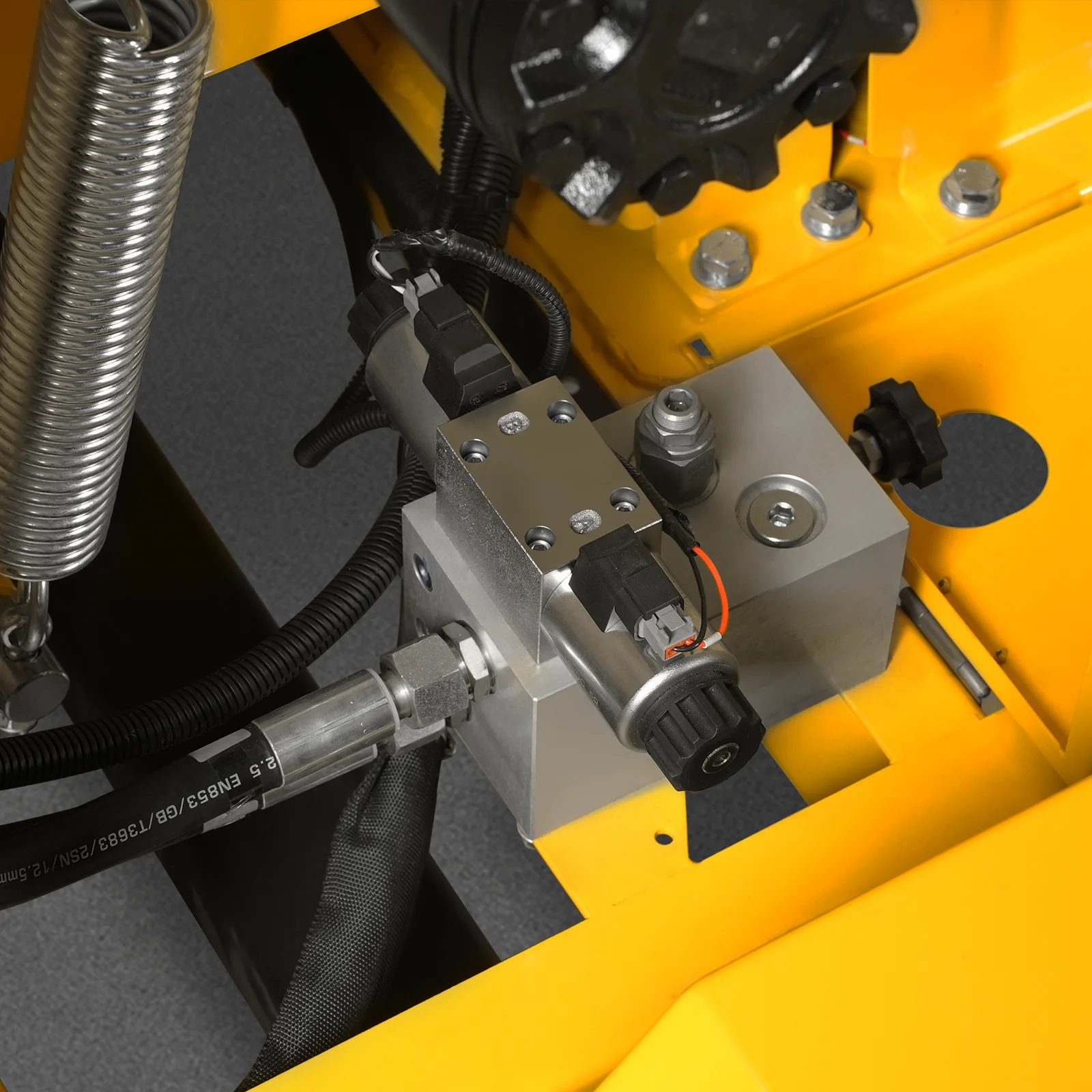

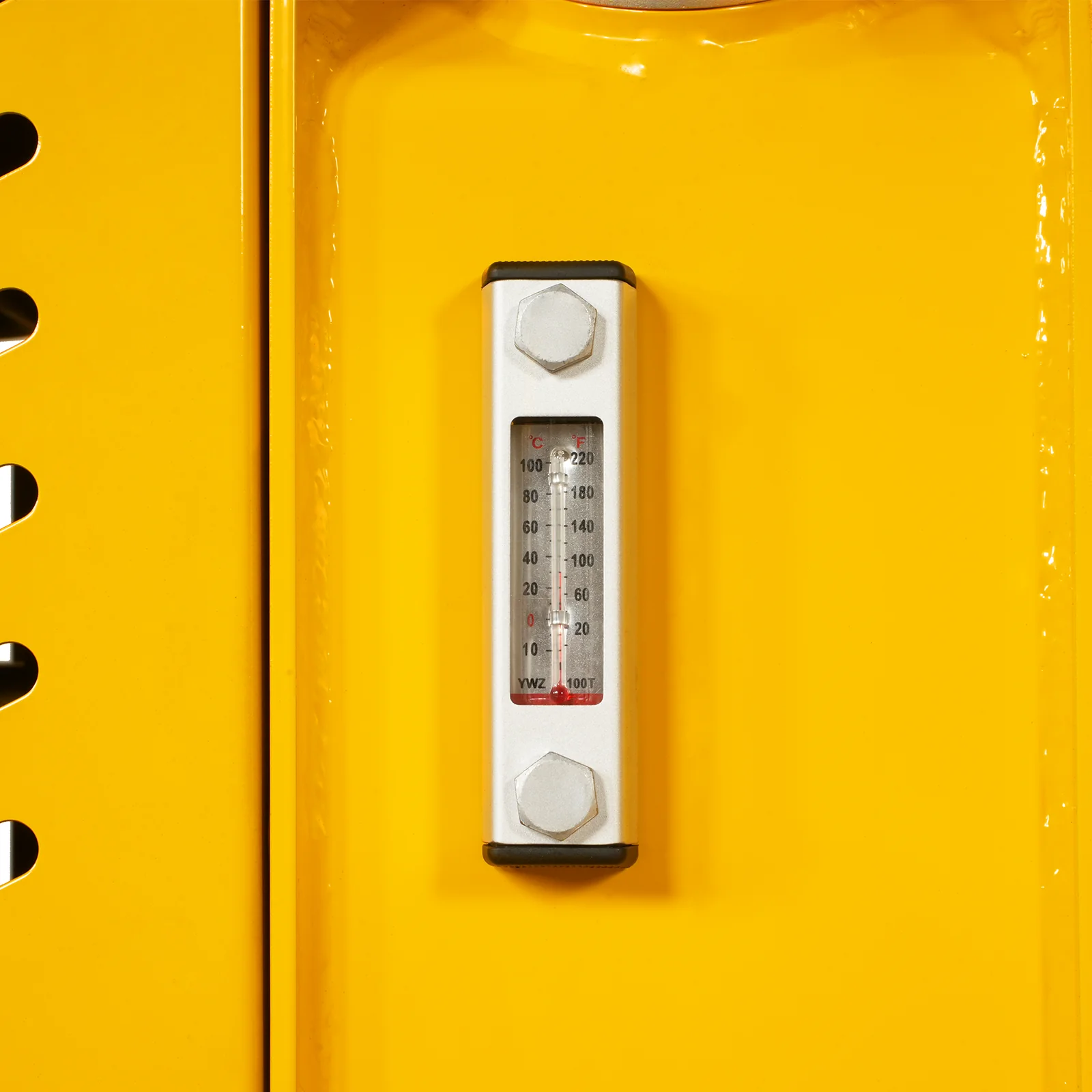

Hydraulic System
Tank Capacity	7.4 gal
Recommended Oil Type	hm46
System Type	Open Center
Filtration Method	Return Oil Filtration - 10um
Pump flow at the maximum RPM	4.2 gal
Maximum Pressure	2102psi
Electric Control Parameter
System Voltage	12V
Battery	12V 48AH

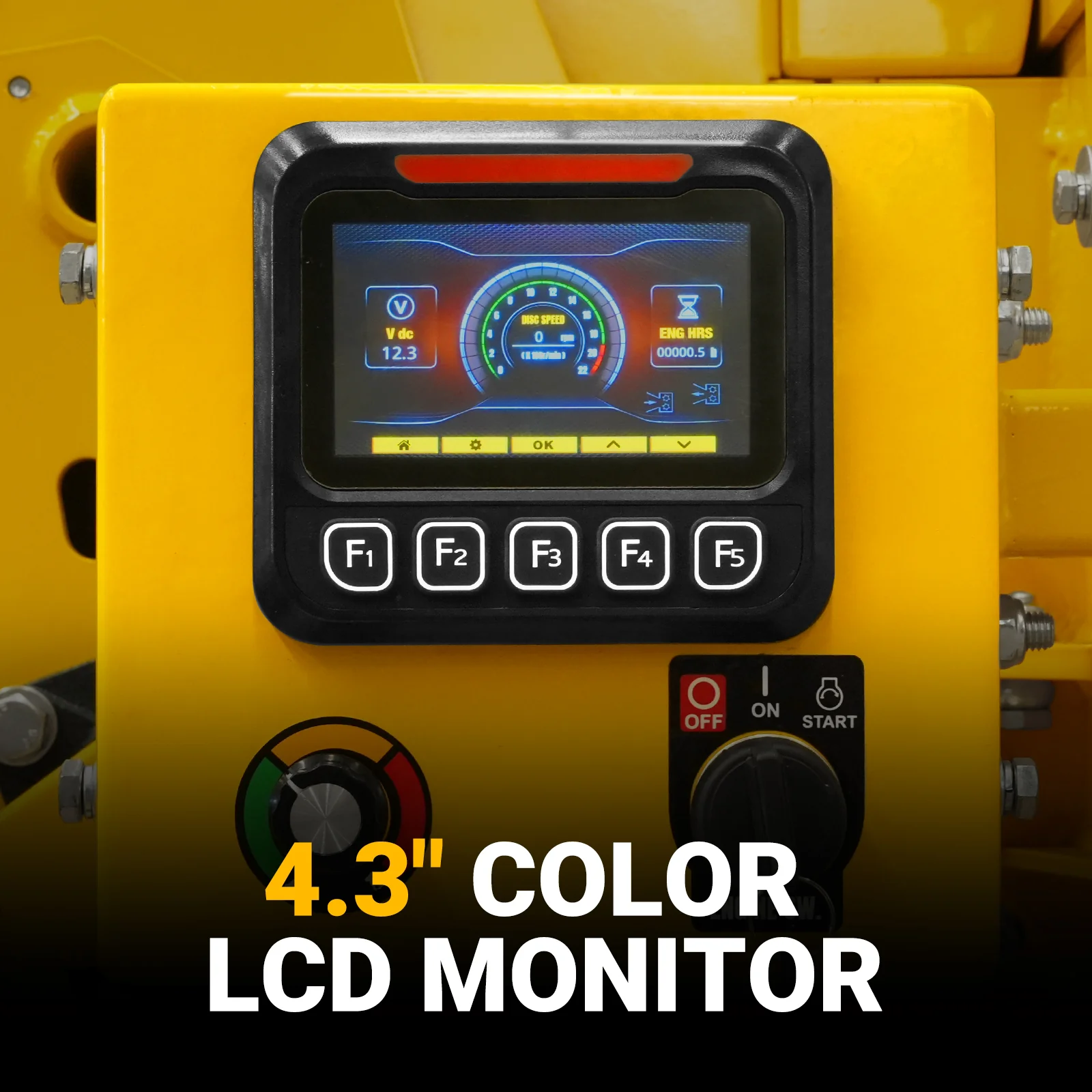

Display Screen Size	4.3 in.
Controller Function	Timer, Automatic Control, Status Display, Speed Display, Etc.
Shutdown System	Engine
Trailer Lights	Vehicle Power Supply
Others
Tow Ball Size	2" Coupler Hitch / 2" Ball Coupler
Hook Type	Ball Coupler
Axle Load-Bearing Capacity	2756 lbs Torsion Shaft
Mud Guard	Bolt Fixing
Torque Shaft Type	Solid Torque Shaft
Tyre	φ594x165R13

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
