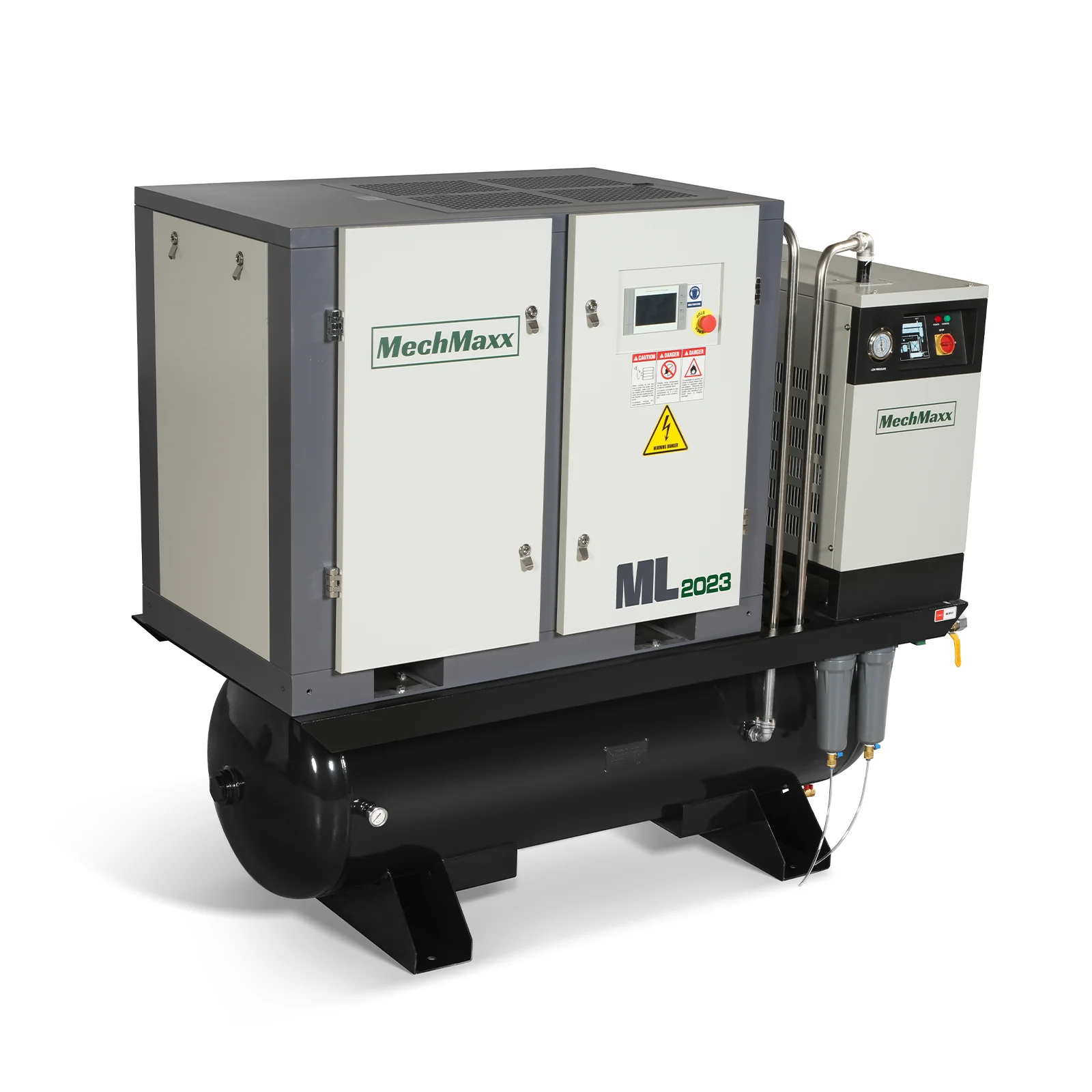

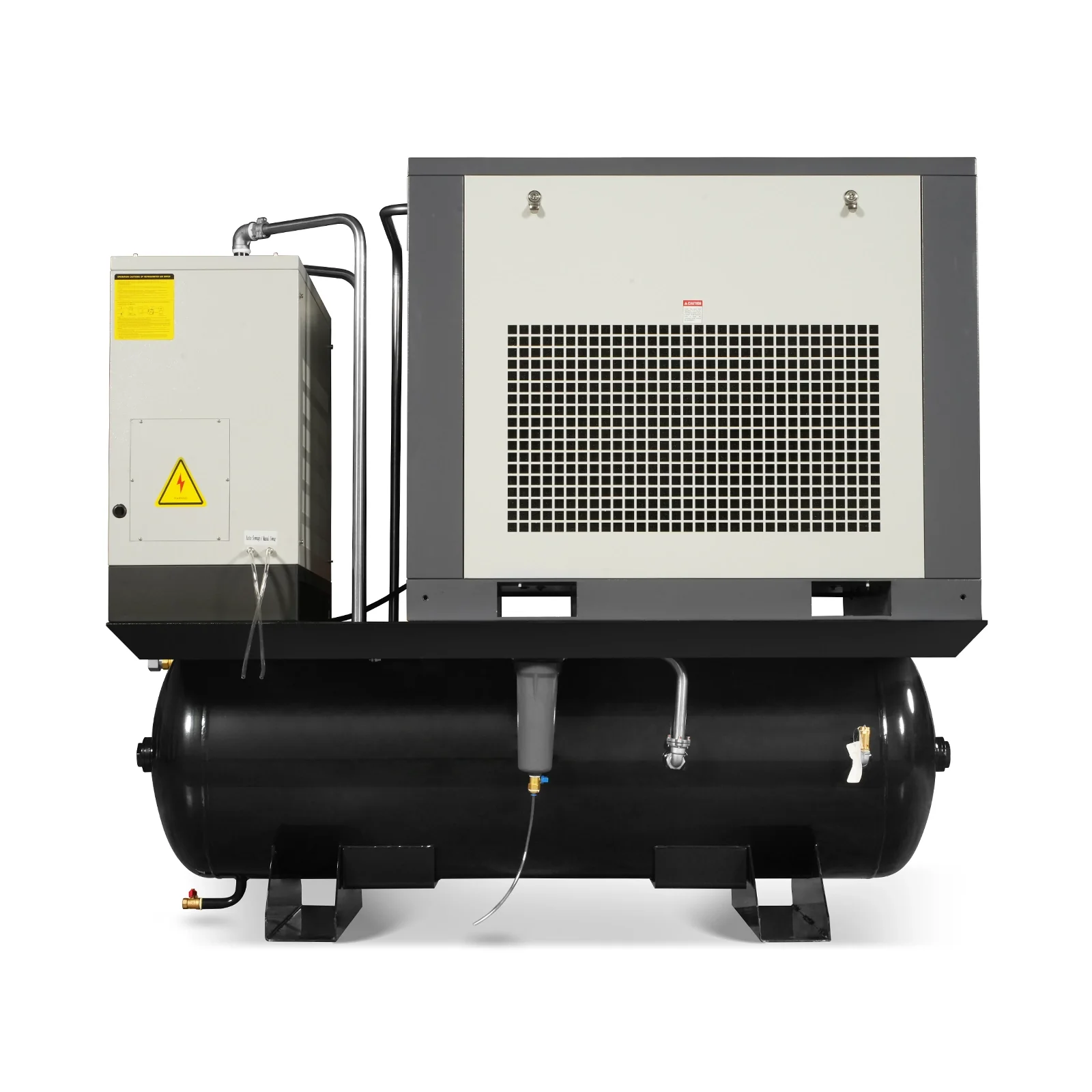

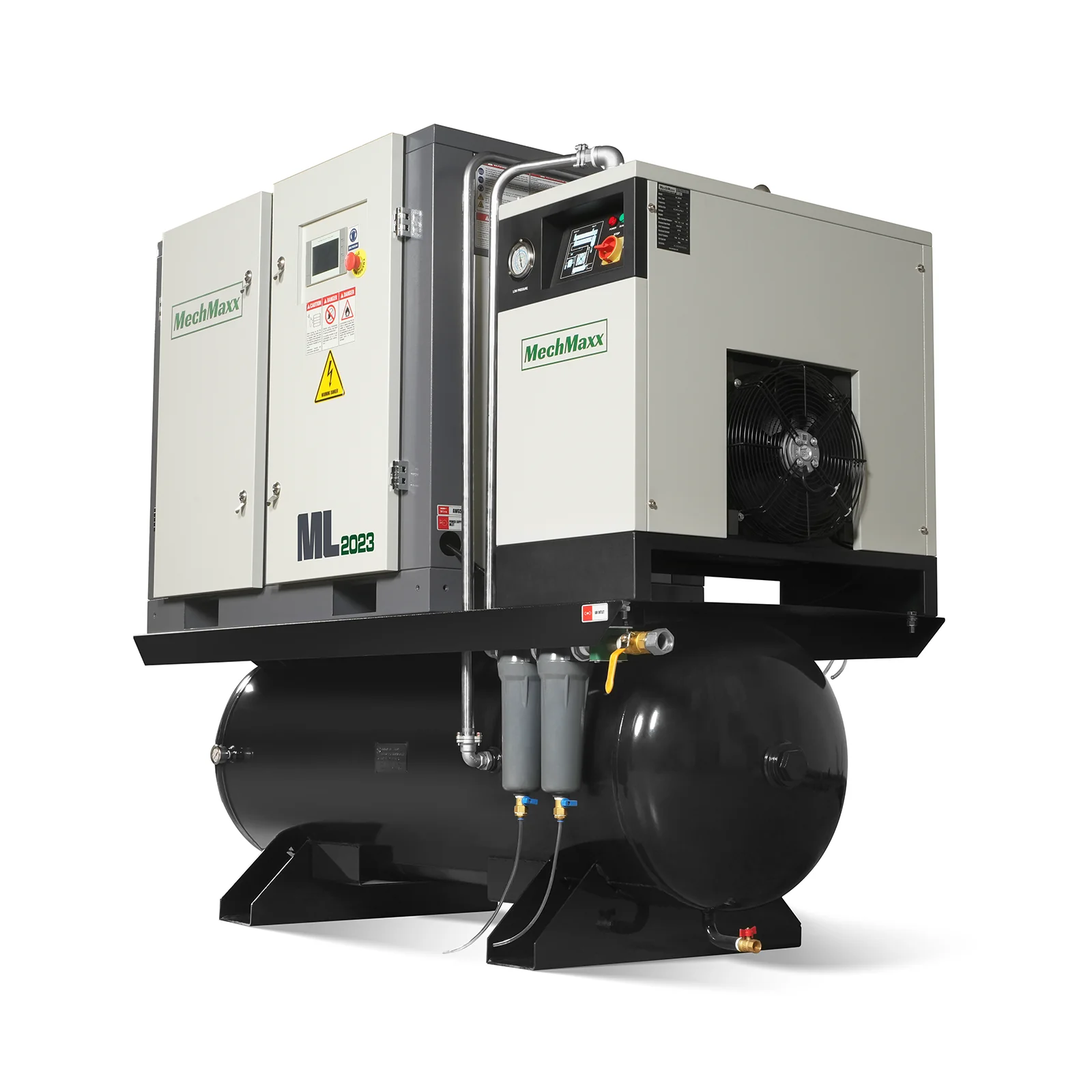

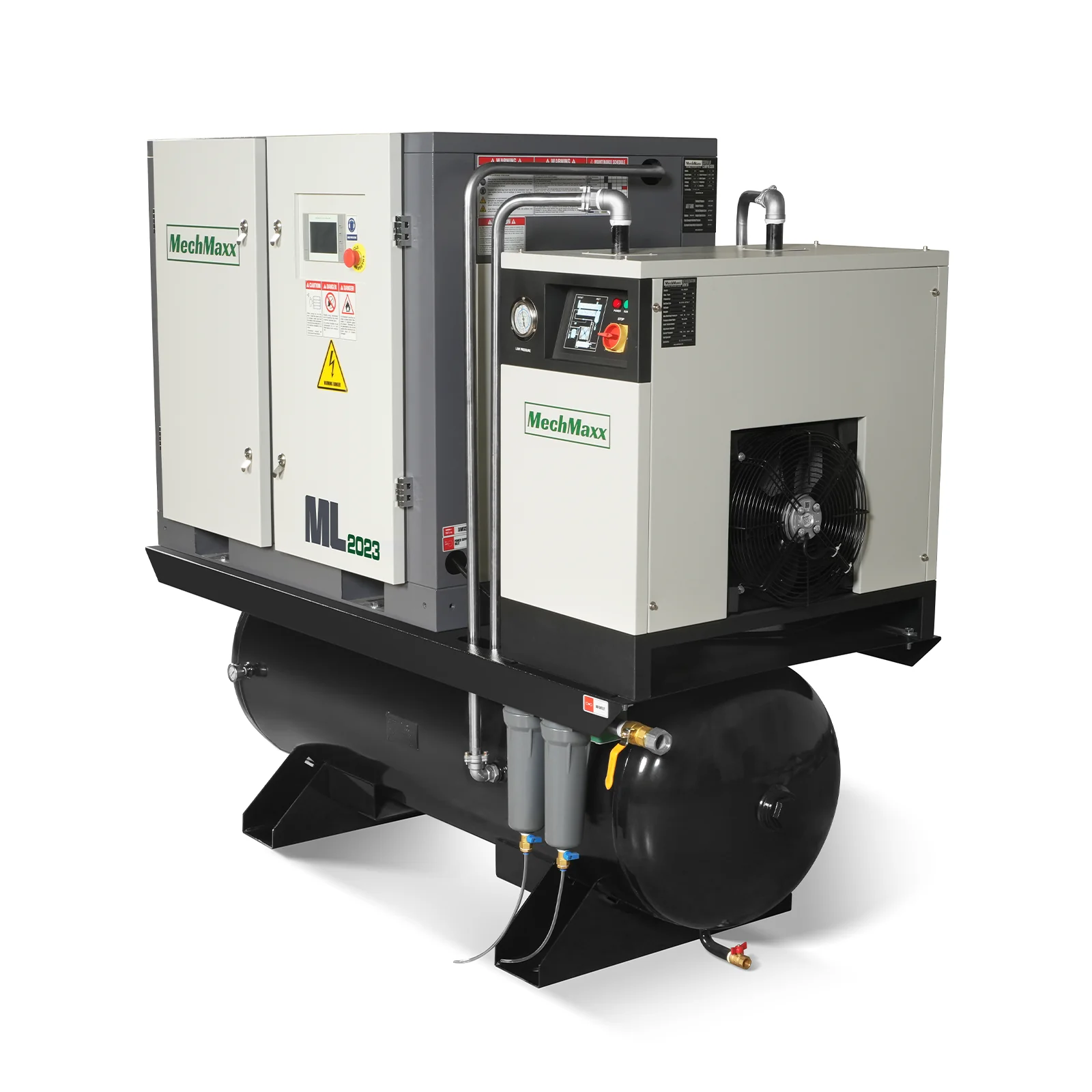

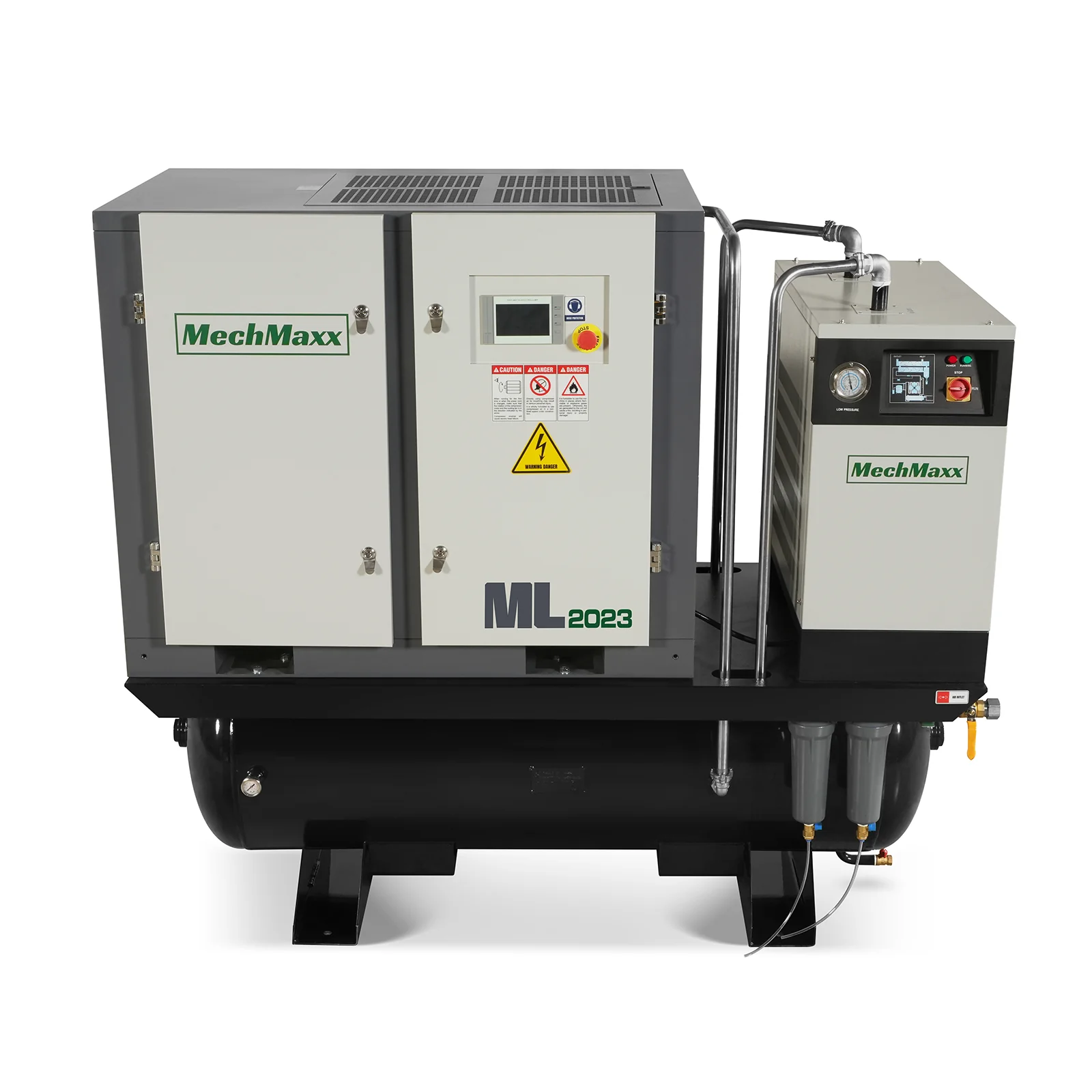

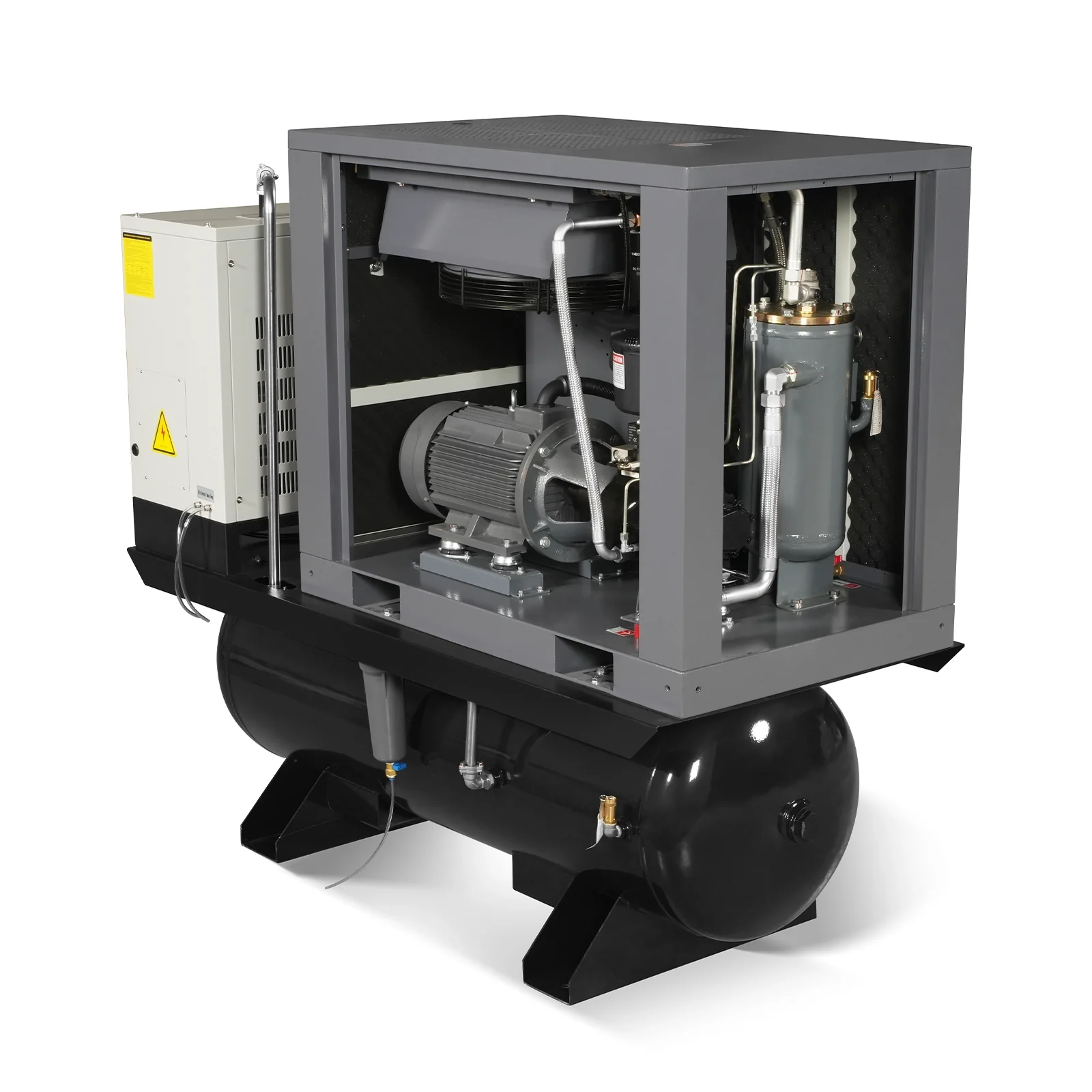

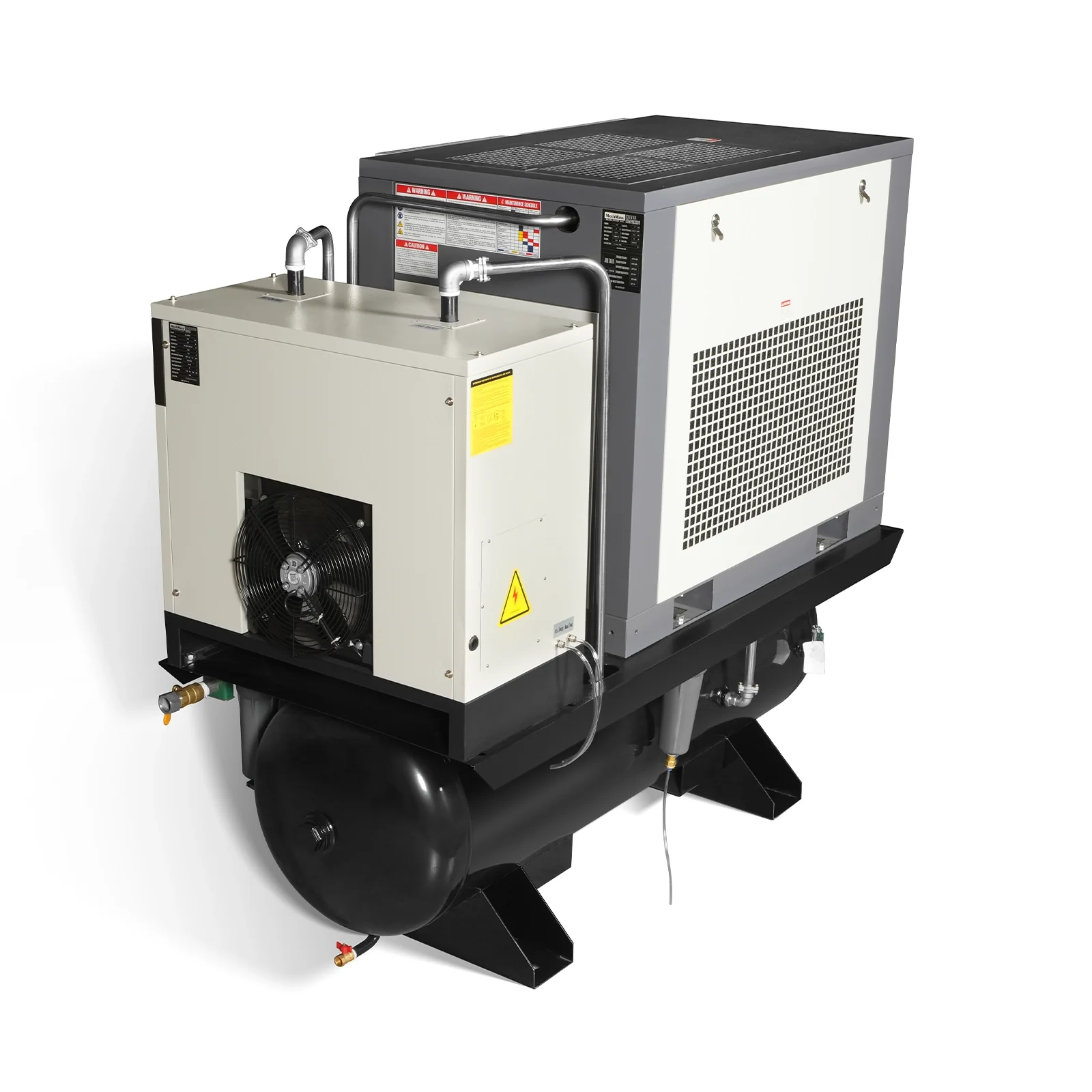

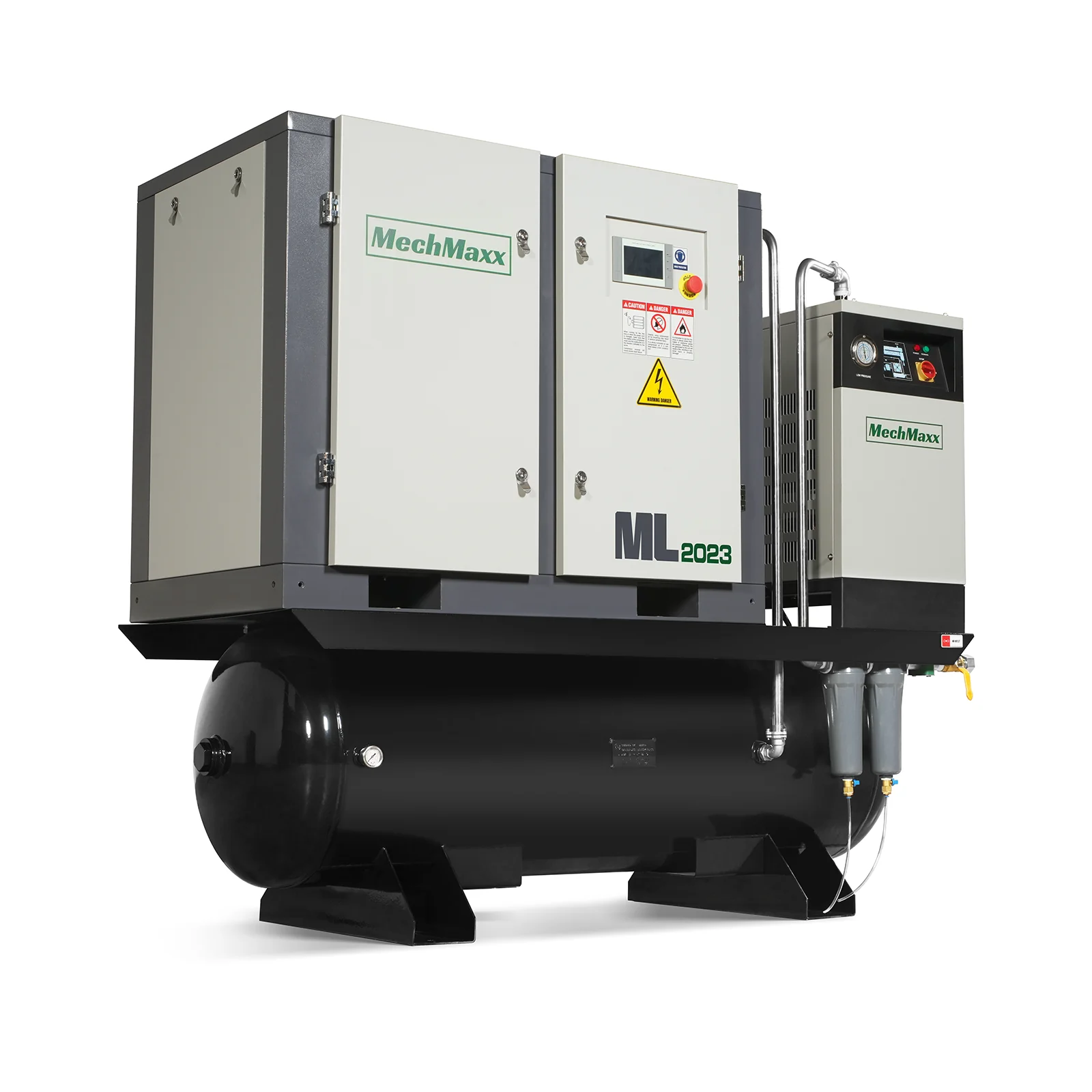

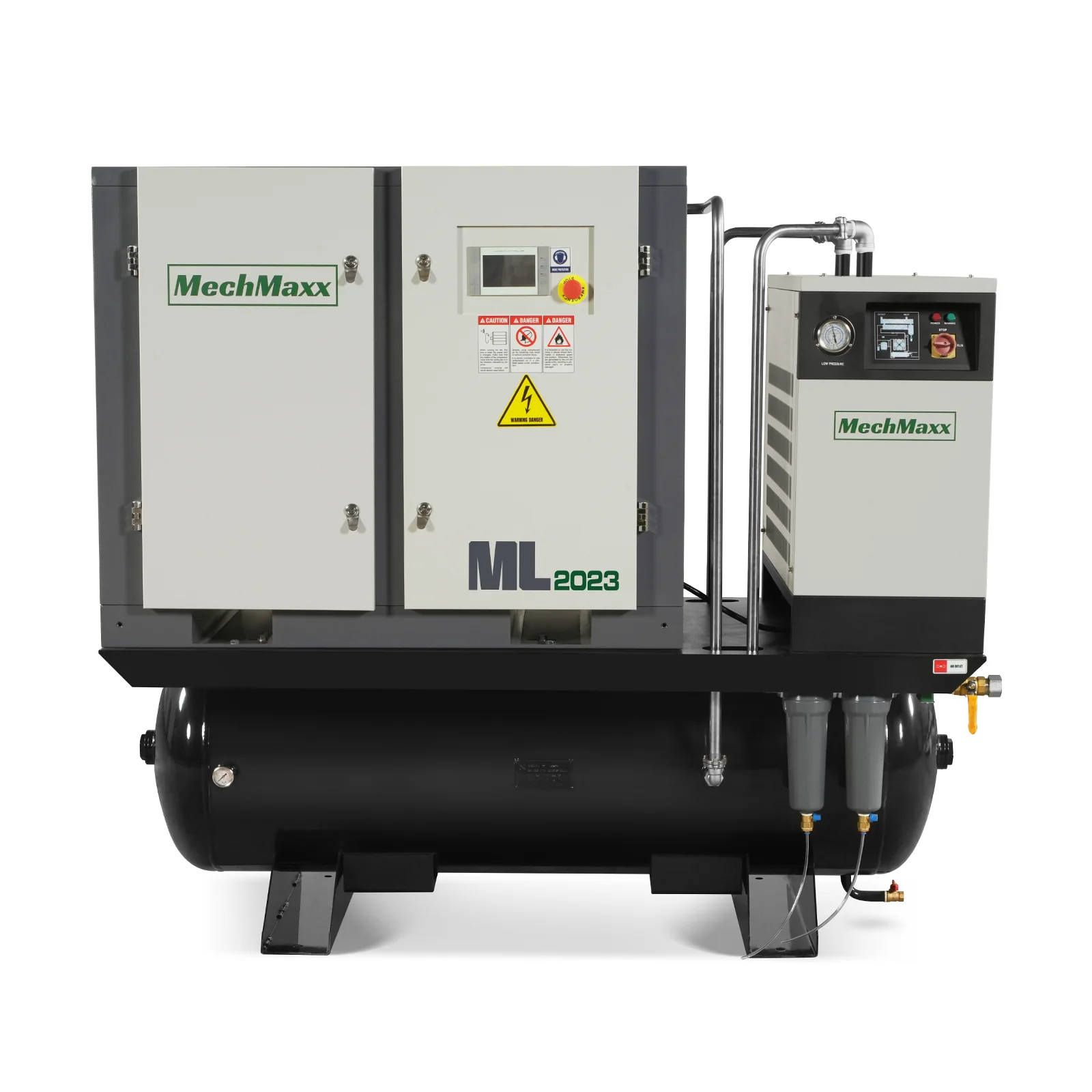

20HP Combined Rotary Screw Air Compressor with Dryer & 105-Gal ASME Tank | 78 CFM, 116 PSI, 230V 3-Phase - Industrial Grade
20HP Combined Rotary Screw Air Compressor with Dryer & 105-Gal ASME Tank | 78 CFM, 116 PSI, 230V 3-Phase - Industrial Grade
| Air Compressor Information | |
| Voltage | 230V 3PH 60HZ（L1+L2+L3,G） |
| Air Flow Capacity | 78CFM |
| Wire Gauge | AWG3 |
| Air Outlet Thread | 1"NPT |
| Oil Tank Capacity | 2.64Gal (10L) |
| Rated Power | 20HP |
| Starting Method | Star-Delta (Wye-Delta) Start |
| Rated Pressure | 116 PSI (0.8 MPa) |
| Noise Level | 70dba |
| Motor Speed | 3515RPM |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Recommended Oil Grade | S3R46 |
| Oil Sight Glass | Yes |
| Pump Drive | Belt Drive |
| Air Tank & Refrigerated Air Dryer Information | |
| Working Pressure | ≤145PSI/1.0MPa |
| Design Pressure | 145PSI/1.0MPa |
| Max Allowable Working Pressure | 145PSI/1.0MPa |
| Working Temprerature | ≤302℉/150℃ |
| Design Temprerature | 302℉/150℃ |
| Maximum Design Metal Temperature | 17.6℉/-8℃ |
| Air Tank Capacity | 400L / 105.6GAL |
| Air Dryer Capacity Flow | 100CFM |
| Machine Size: | 72.8" x 33.5" x 66.1" |
| Packing Size: | 75.5" x 38" x 72.8" |
| N.W.:/ G.W.: | 1235 lbs/ 1474 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
