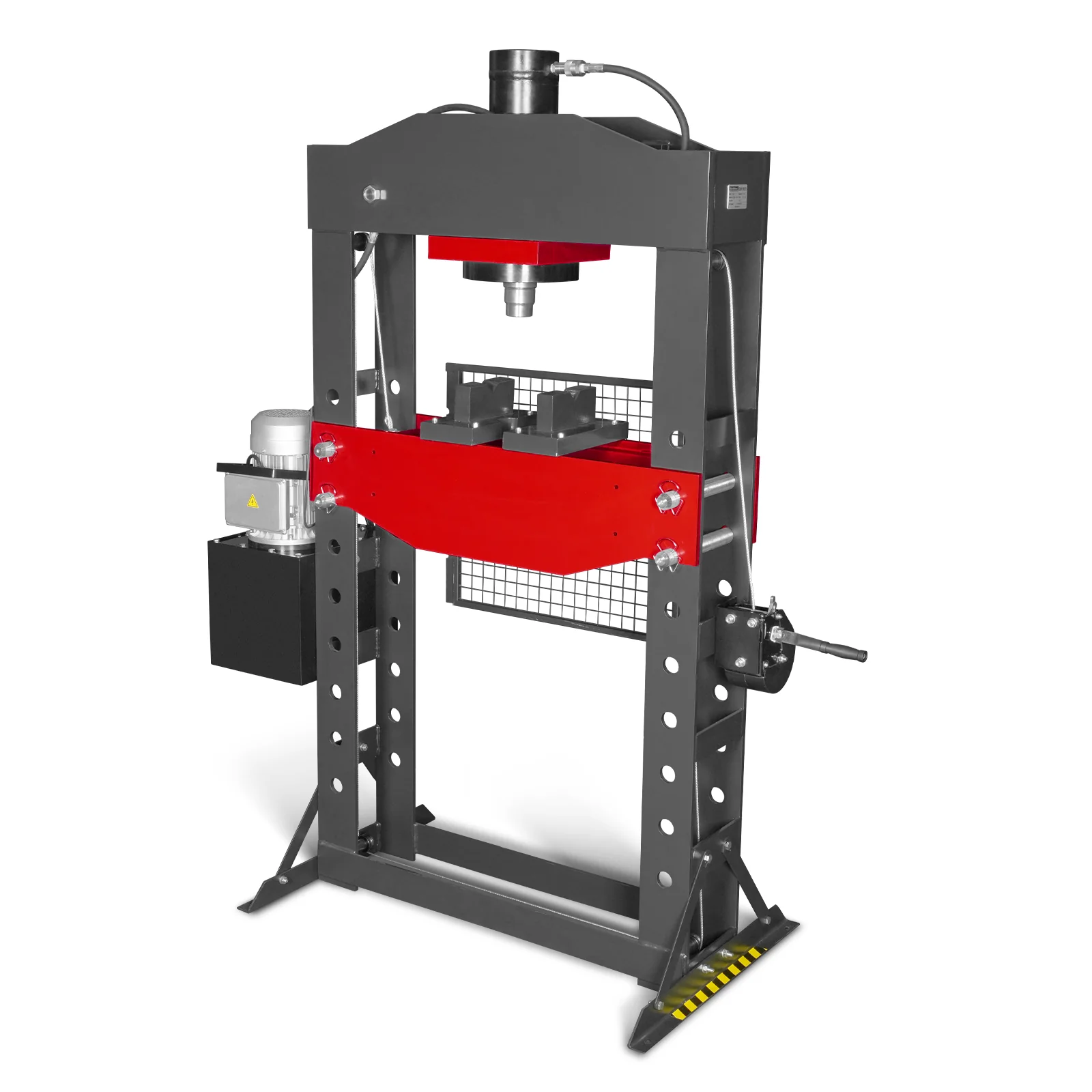

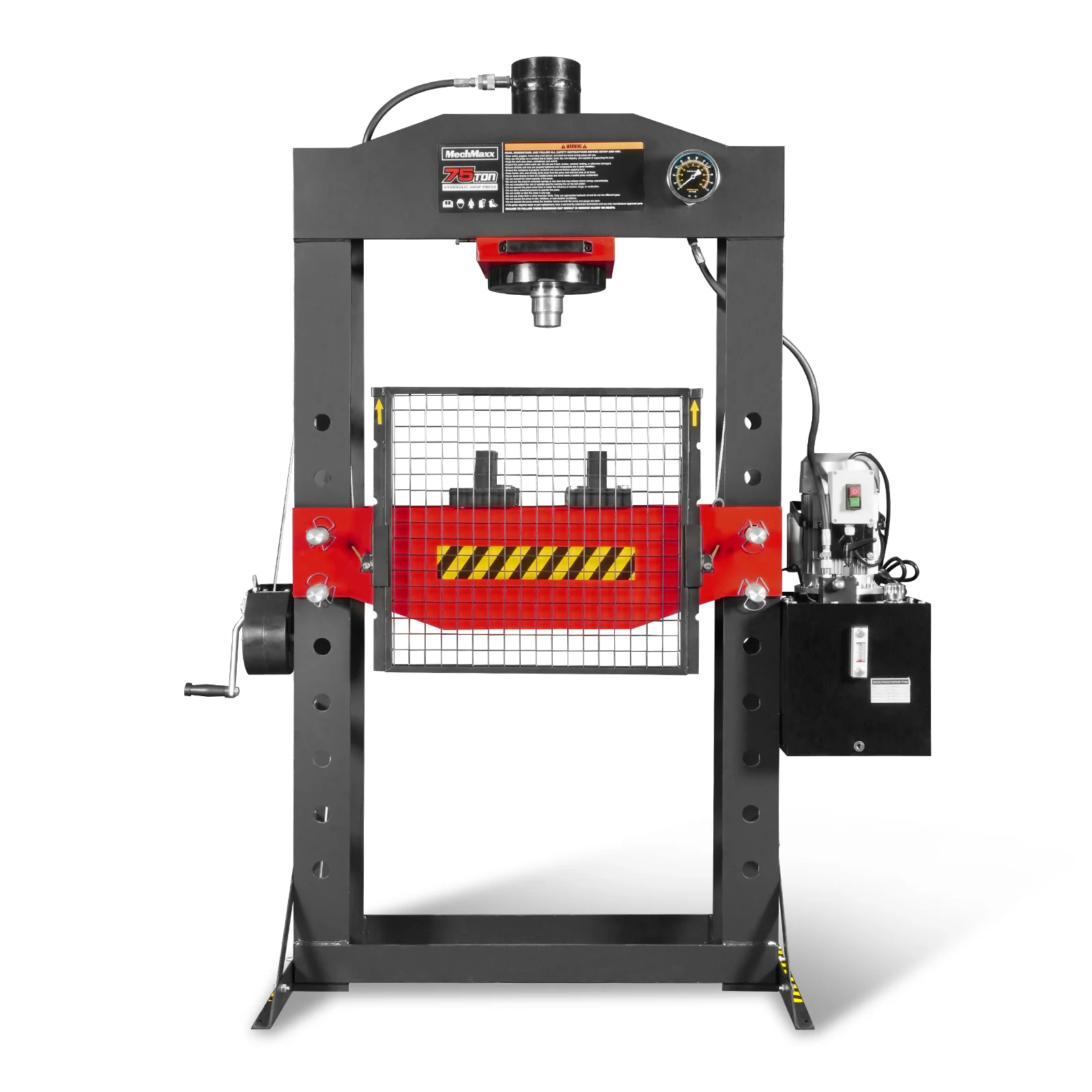

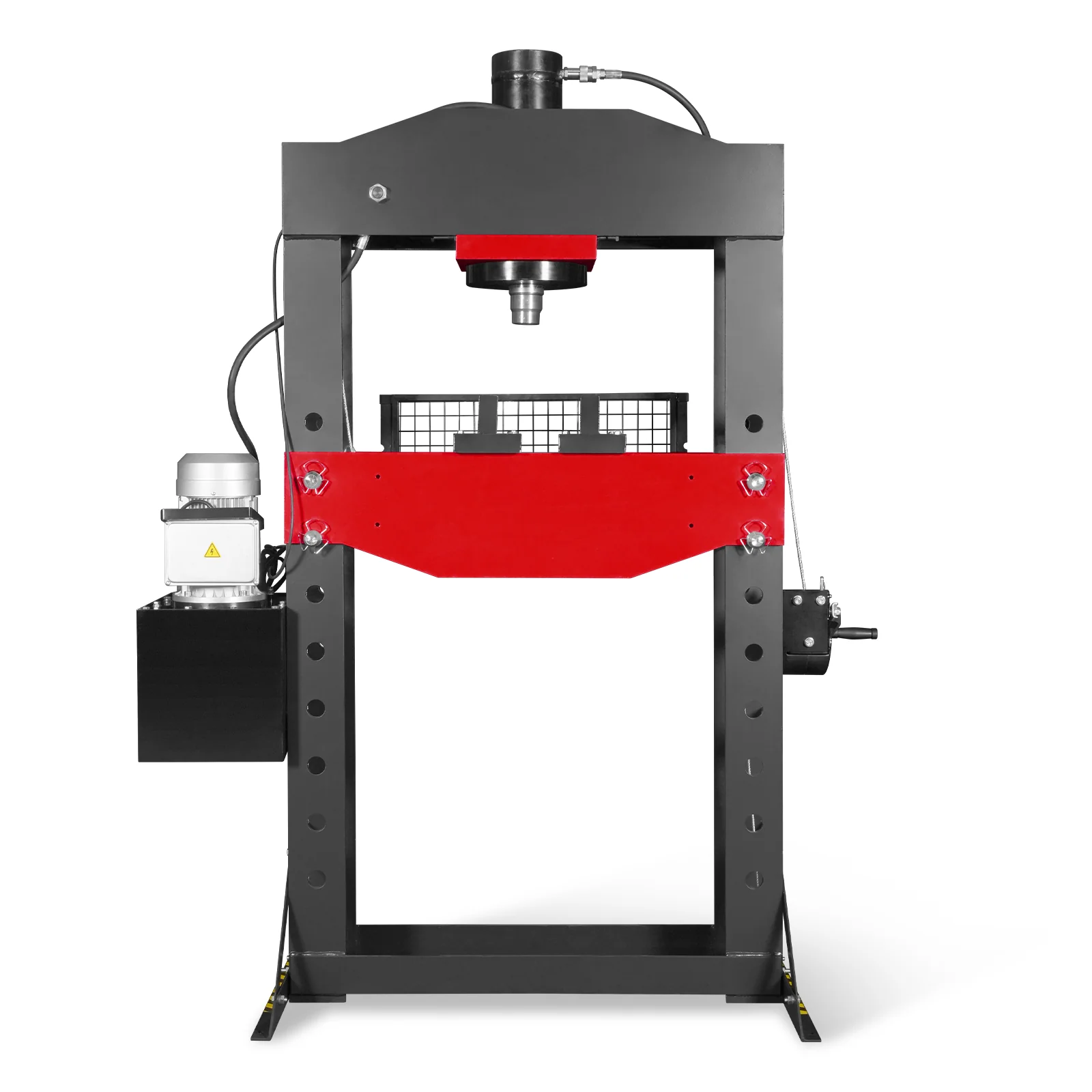

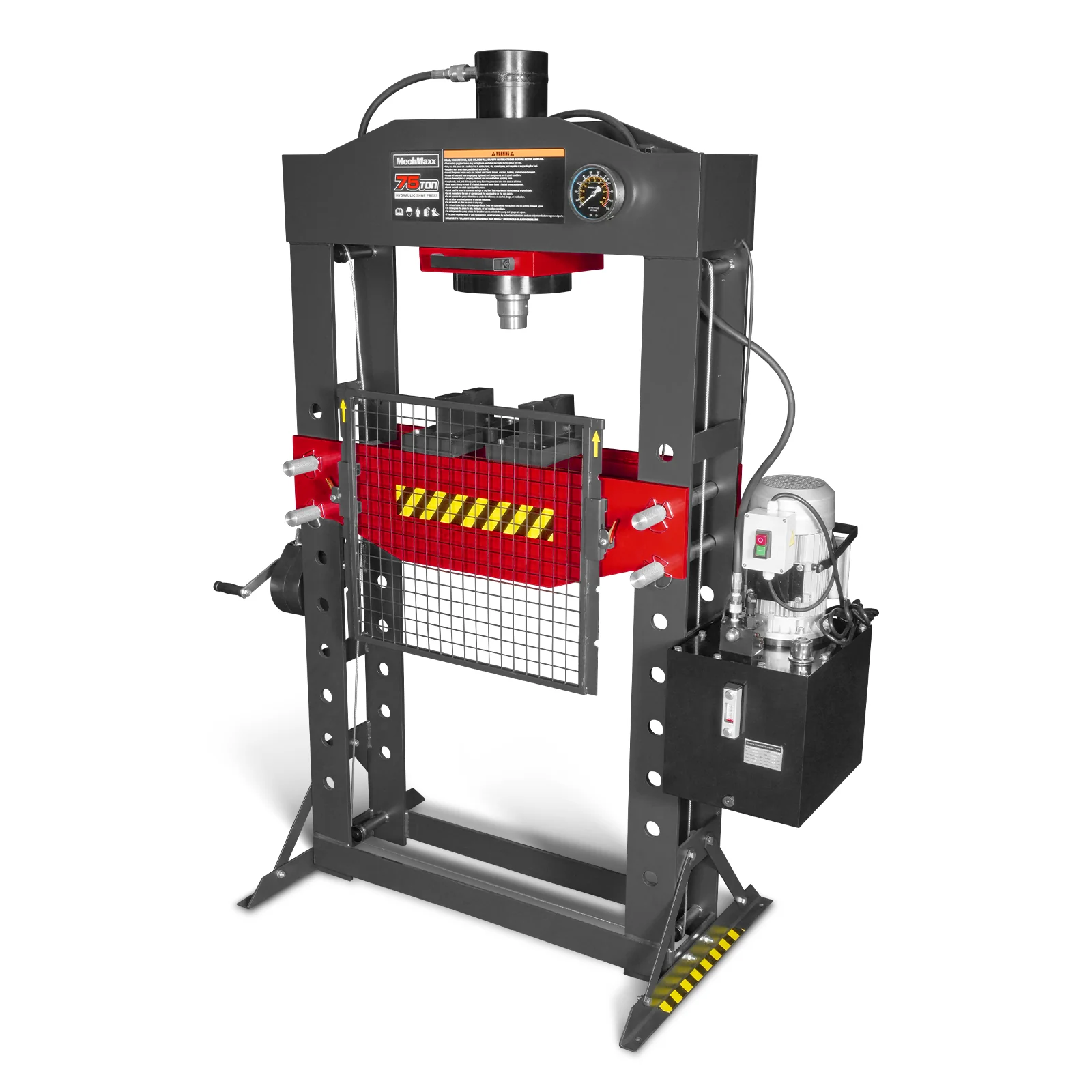

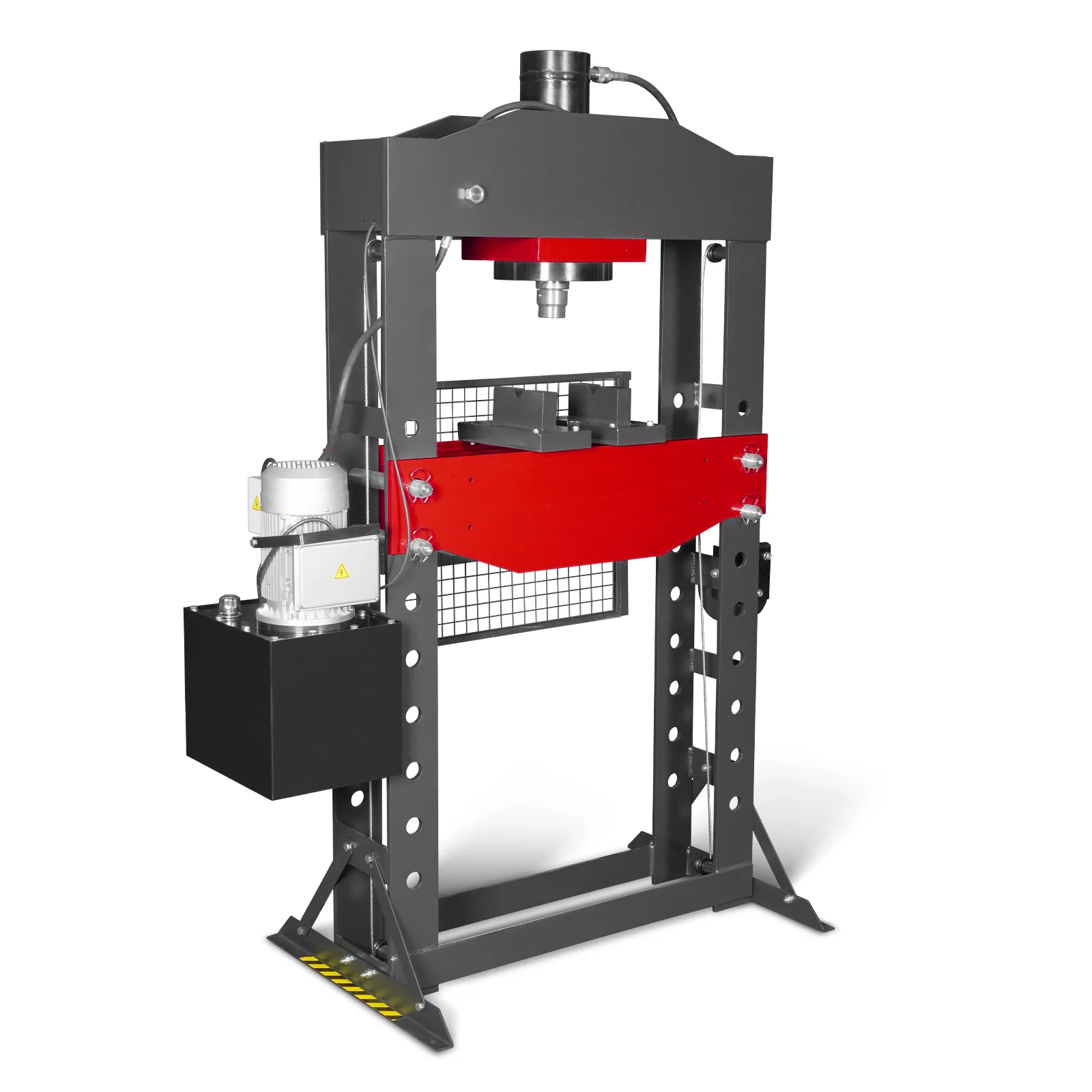

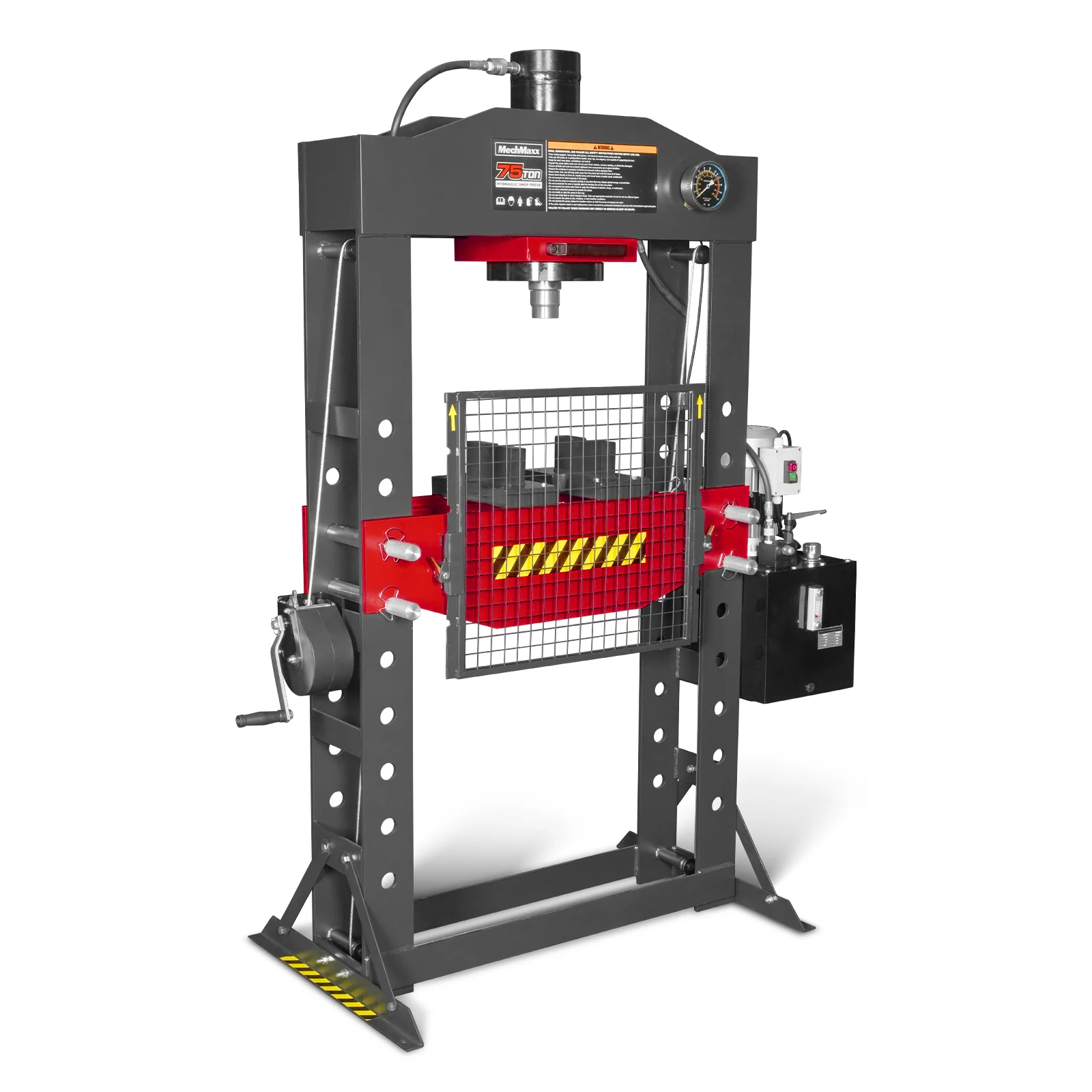

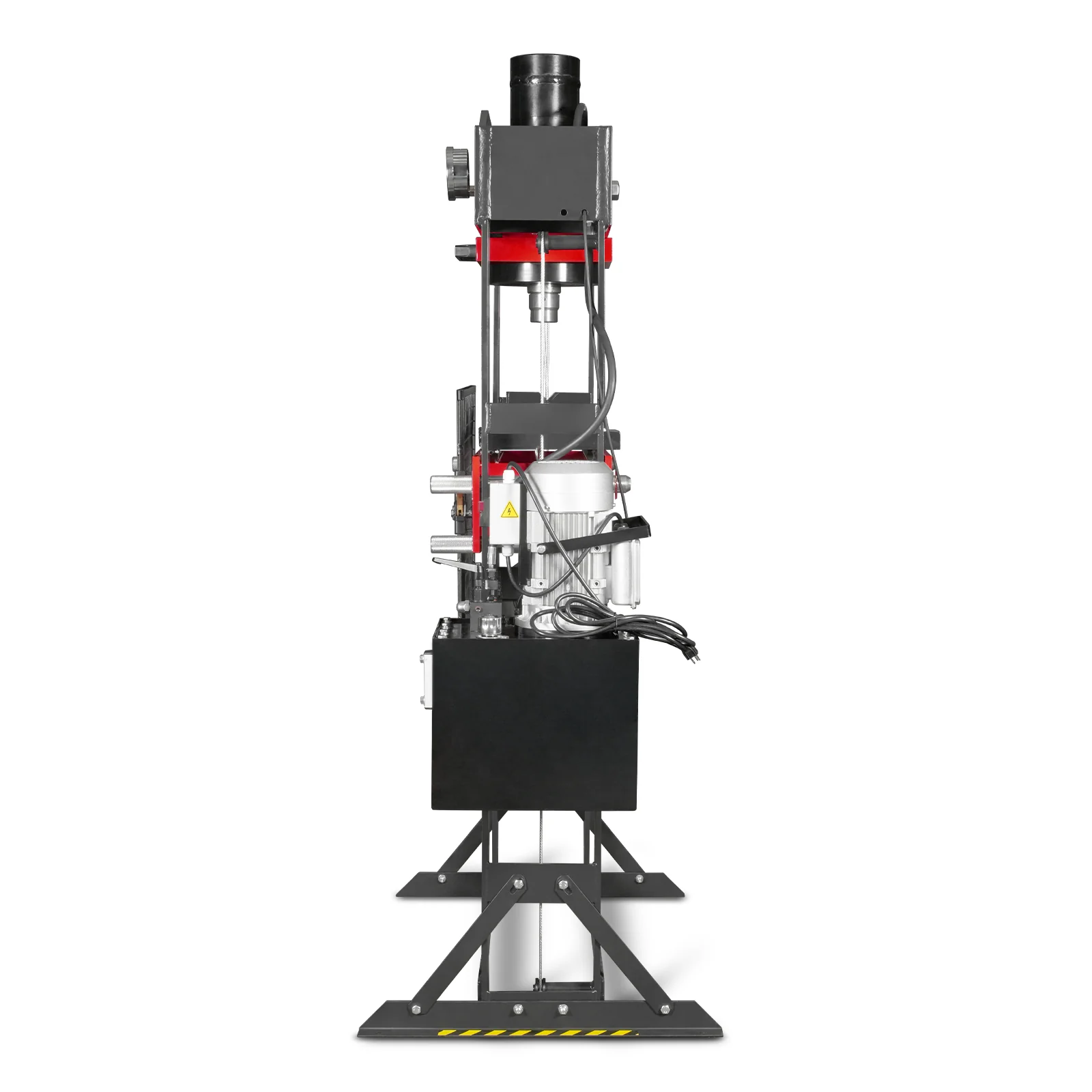

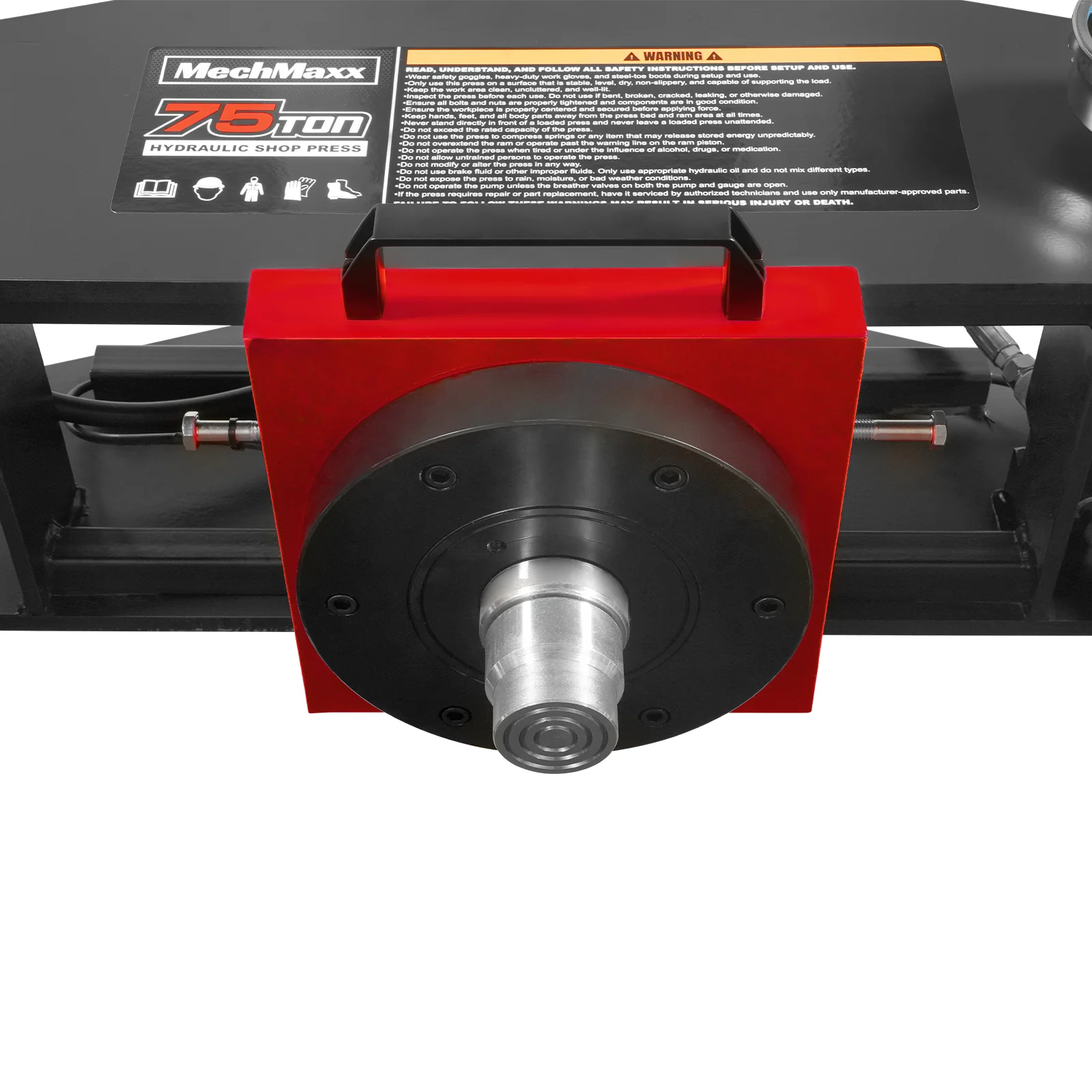

75 Ton H-Frame Electric Hydraulic Shop Press with Hand Winch, 110V Motor, Fully Welded Steel Frame, Safety Guard, Foot Pedal Control, HSP75E

Rated Capacity	75 Tons	Pump Type	Single-acting

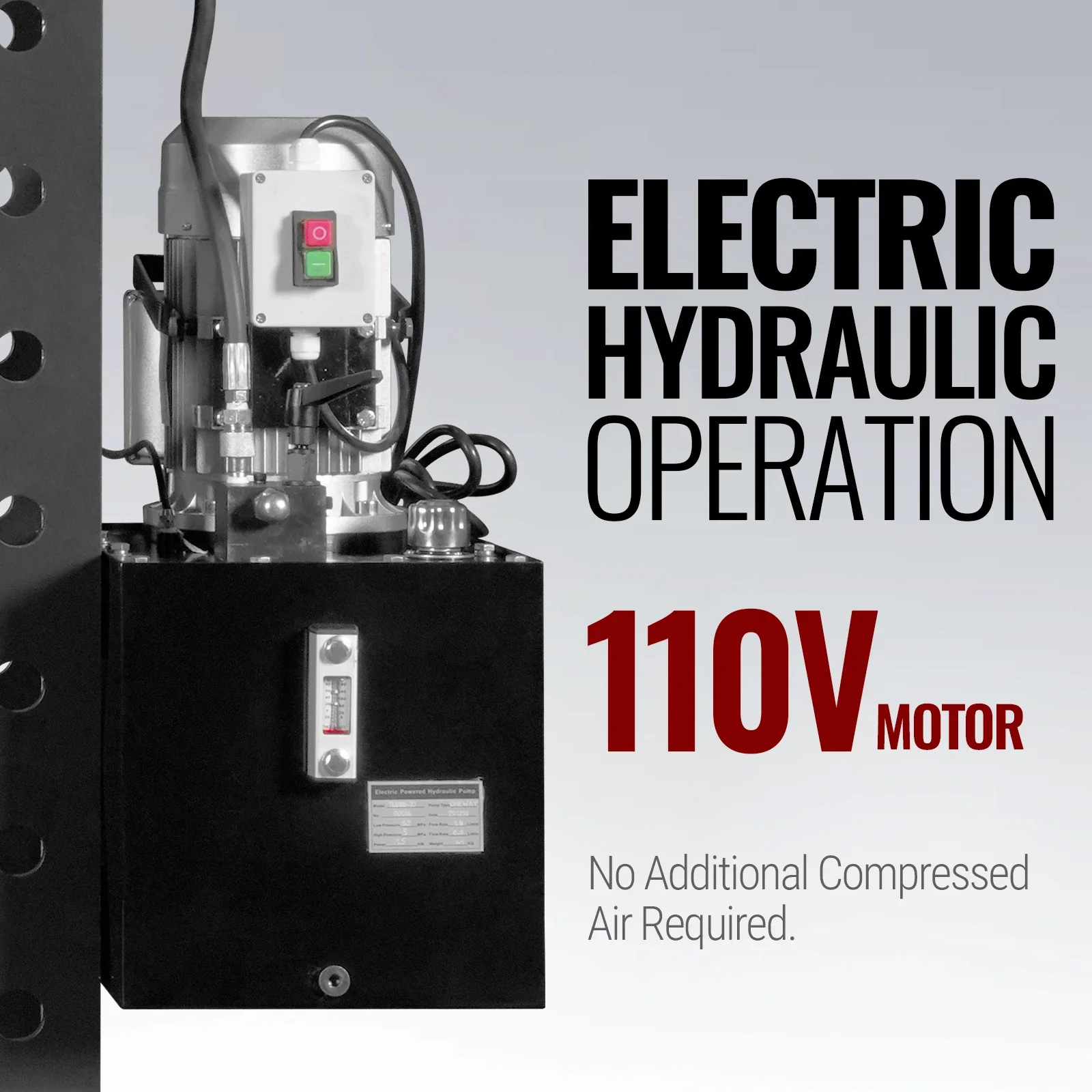

Operation Type	Electric Hydraulic Operation	Voltage	110V / 60Hz
Ram Stroke	9.8 in	Power	2 HP（1.5 kW）
Ram Diameter	3 in	Revolutions Per Minute	1800 RPM
Cylinder Bore	5 in	Working Pressure – Low Pressure Stage	725 PSI

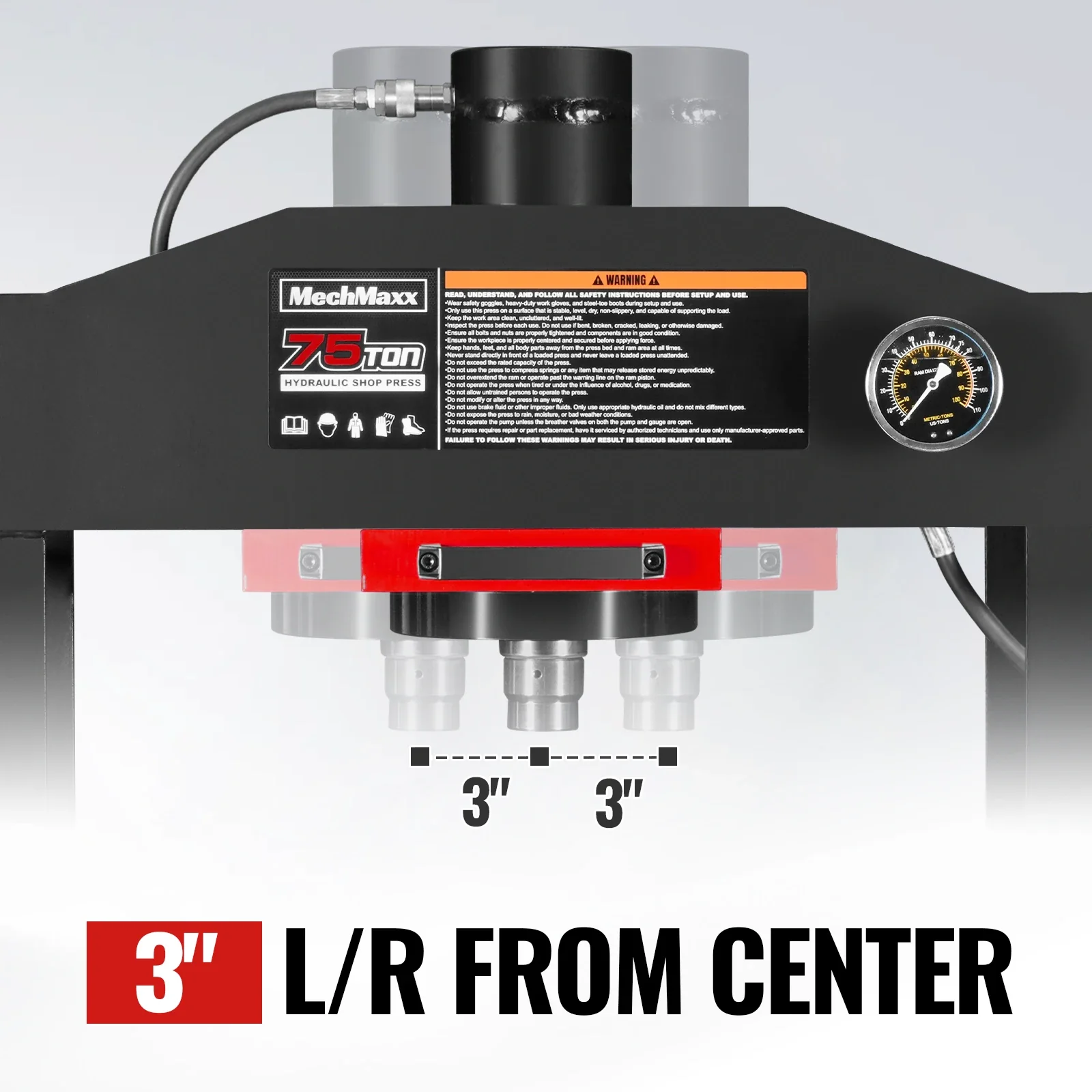

Ram Range of Movement	3 in Left / Right from Center	Working Pressure – High Pressure Stage	9135 PSI
Bed Depth	9.5 in	Flow Rate – Low Pressure Stage	1.74 GPM
Bed Height	10.2 in	Flow Rate – High Pressure Stage	0.48 GPM
Minimum Ram to Bed	10 in	Usable Oil Capacity	7.9 US Gallons
Maximum Ram to Bed	30 in	Oil Tank Capacity	10 US Gallons

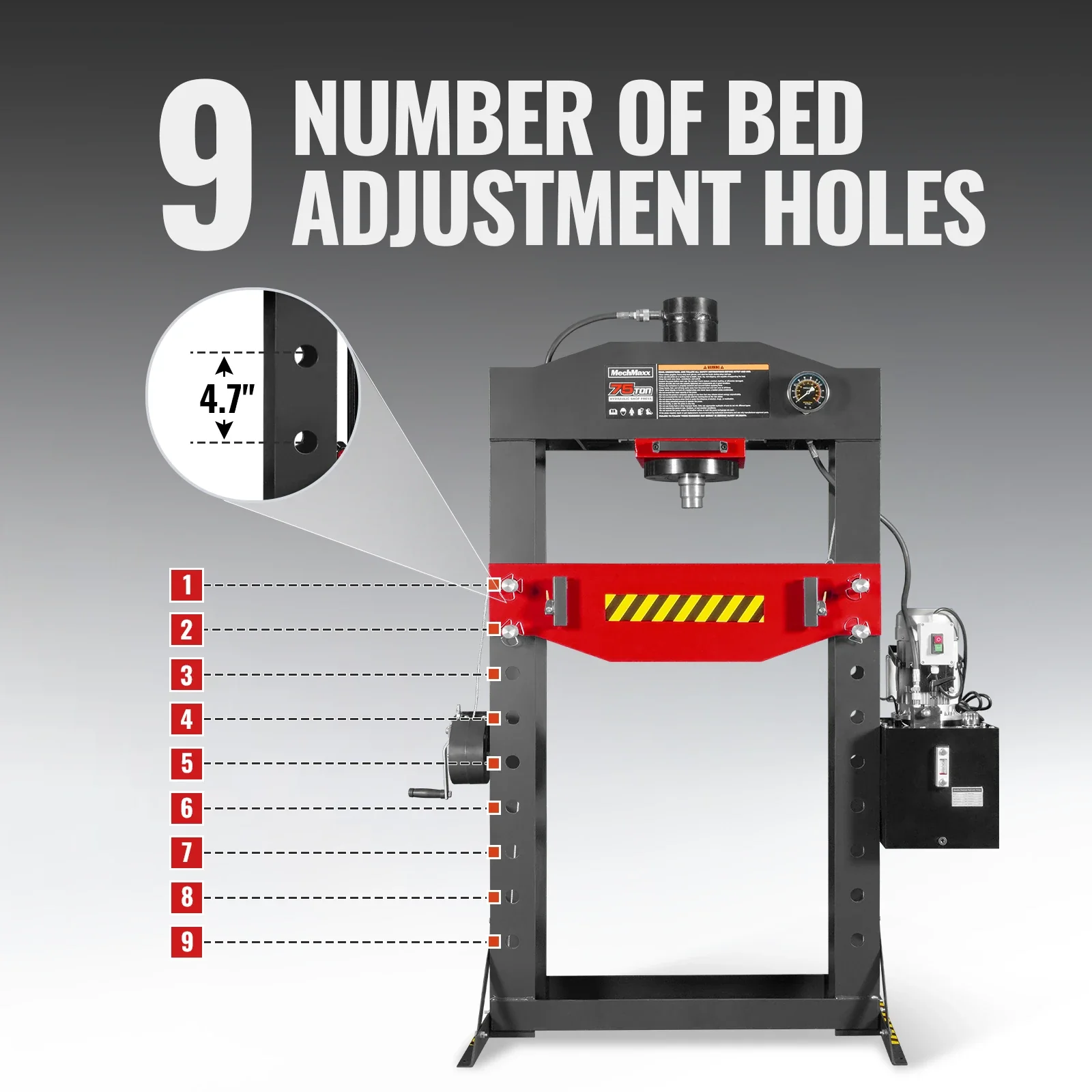

Number of Bed Adjustment Holes	9	Recommended Hydraulic Oil	AW32 Hydraulic Oil
Bed Adjustment Hole Spacing	4.7 in	Pump Size	25.5 x 16 x 12 in

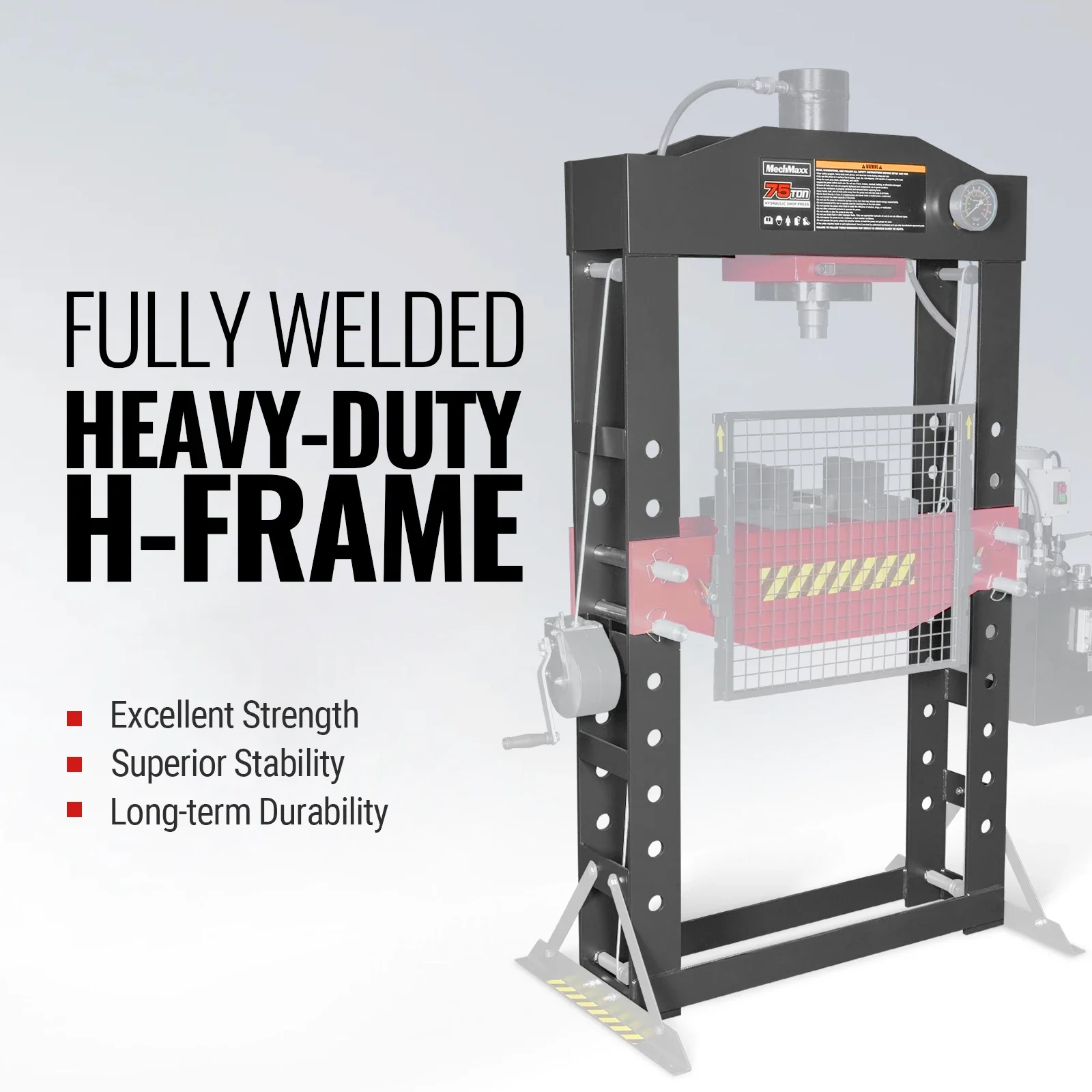

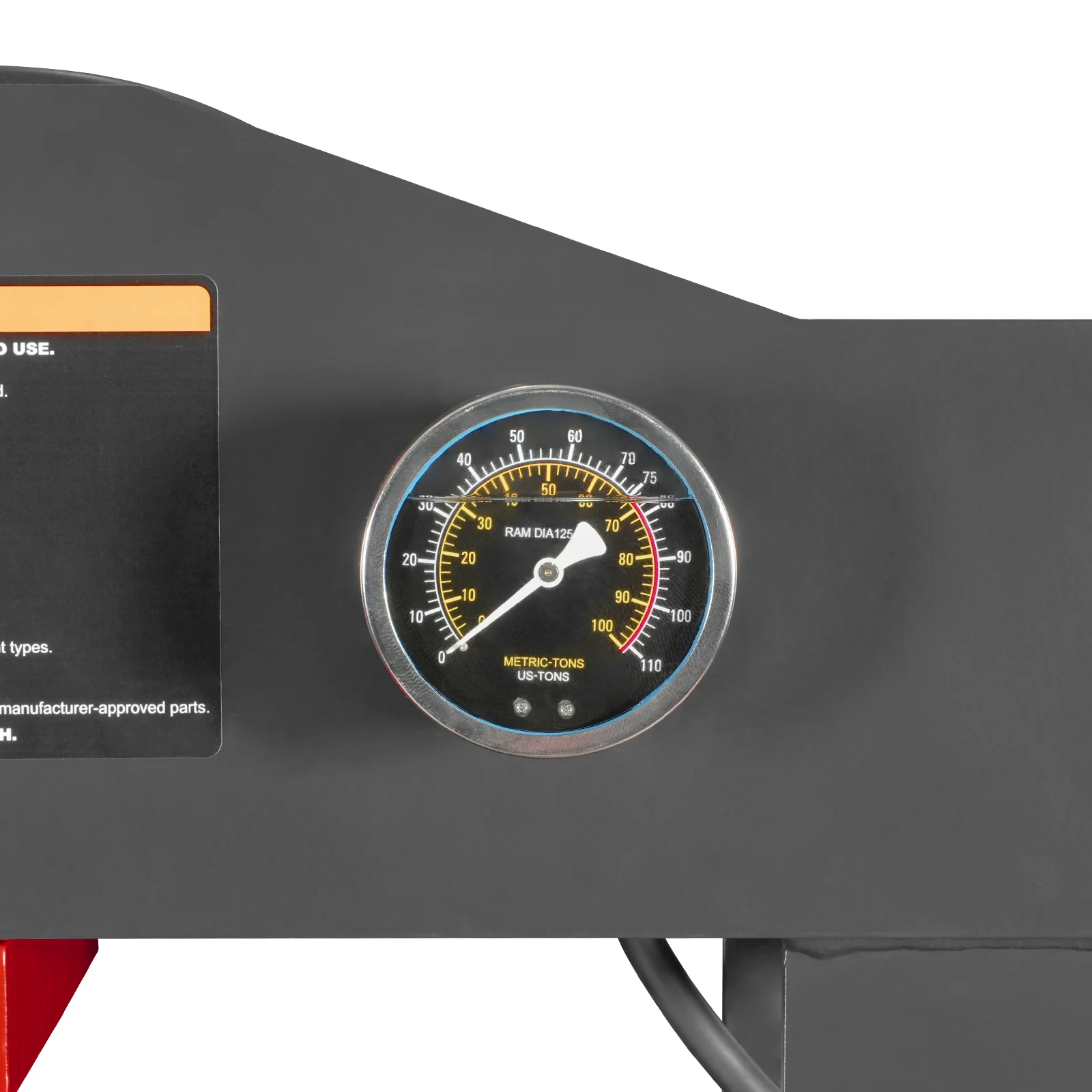

Frame Construction	Fully Welded Heavy-Duty H-Frame	Gauge Type	4 in Oil-Filled Pressure Gauge

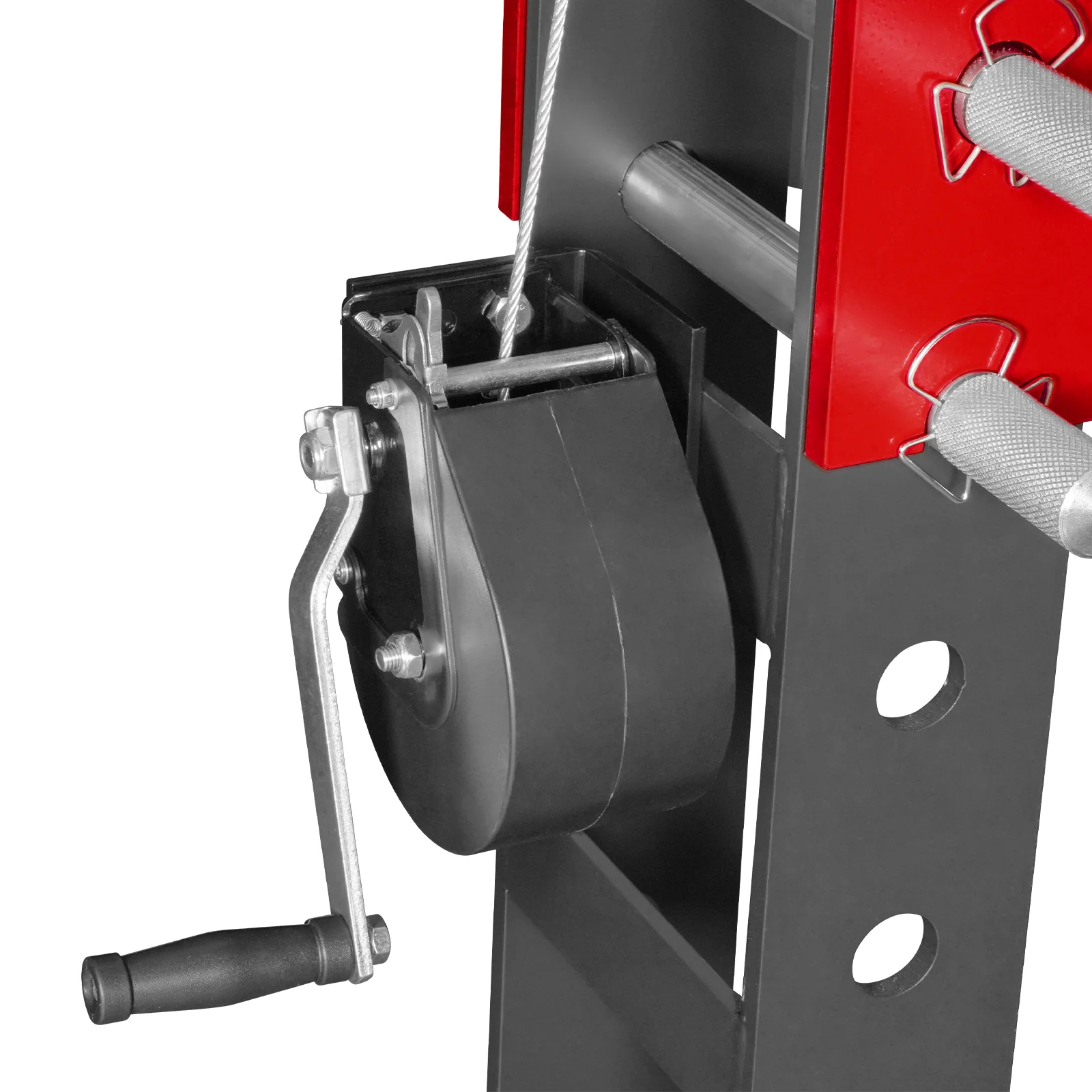

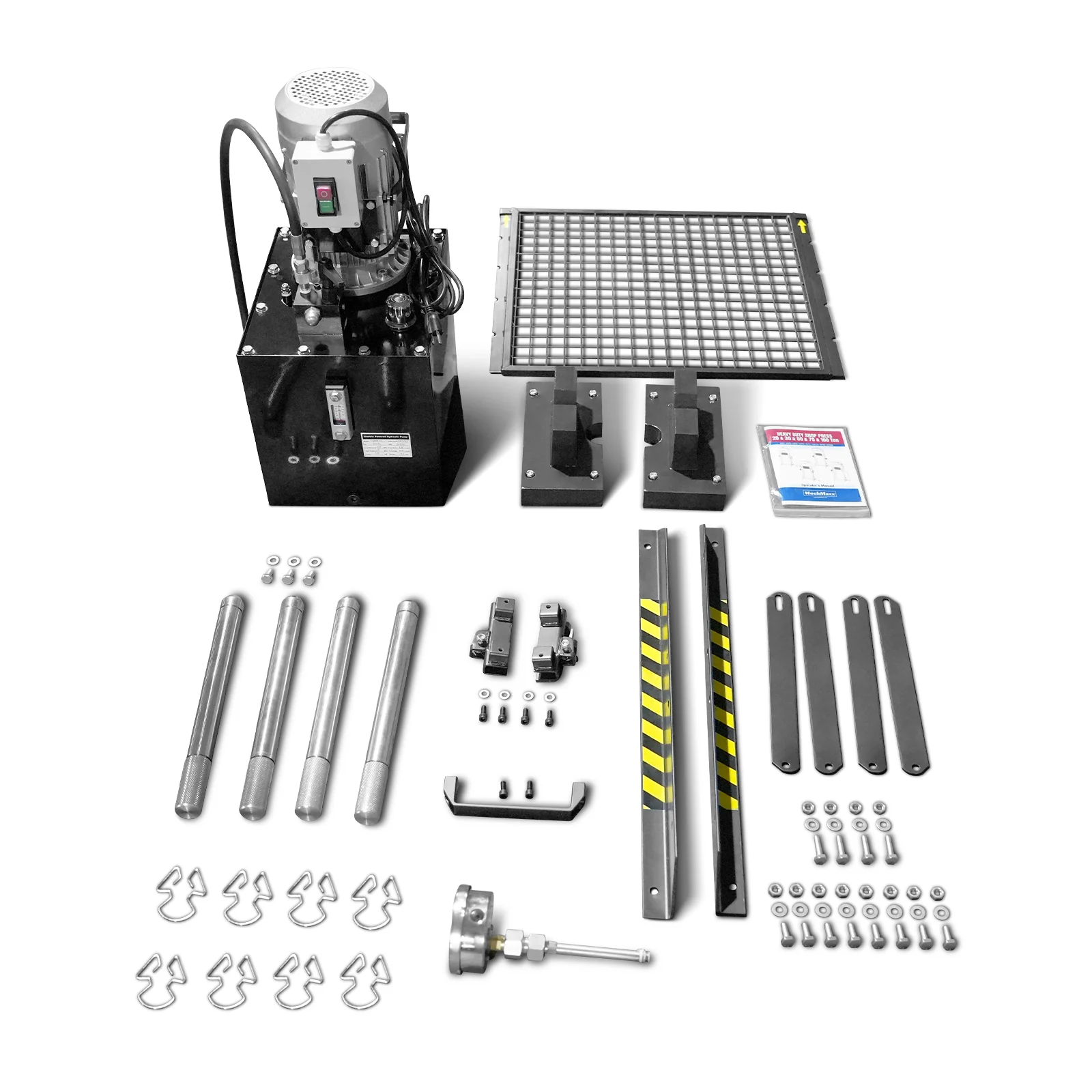

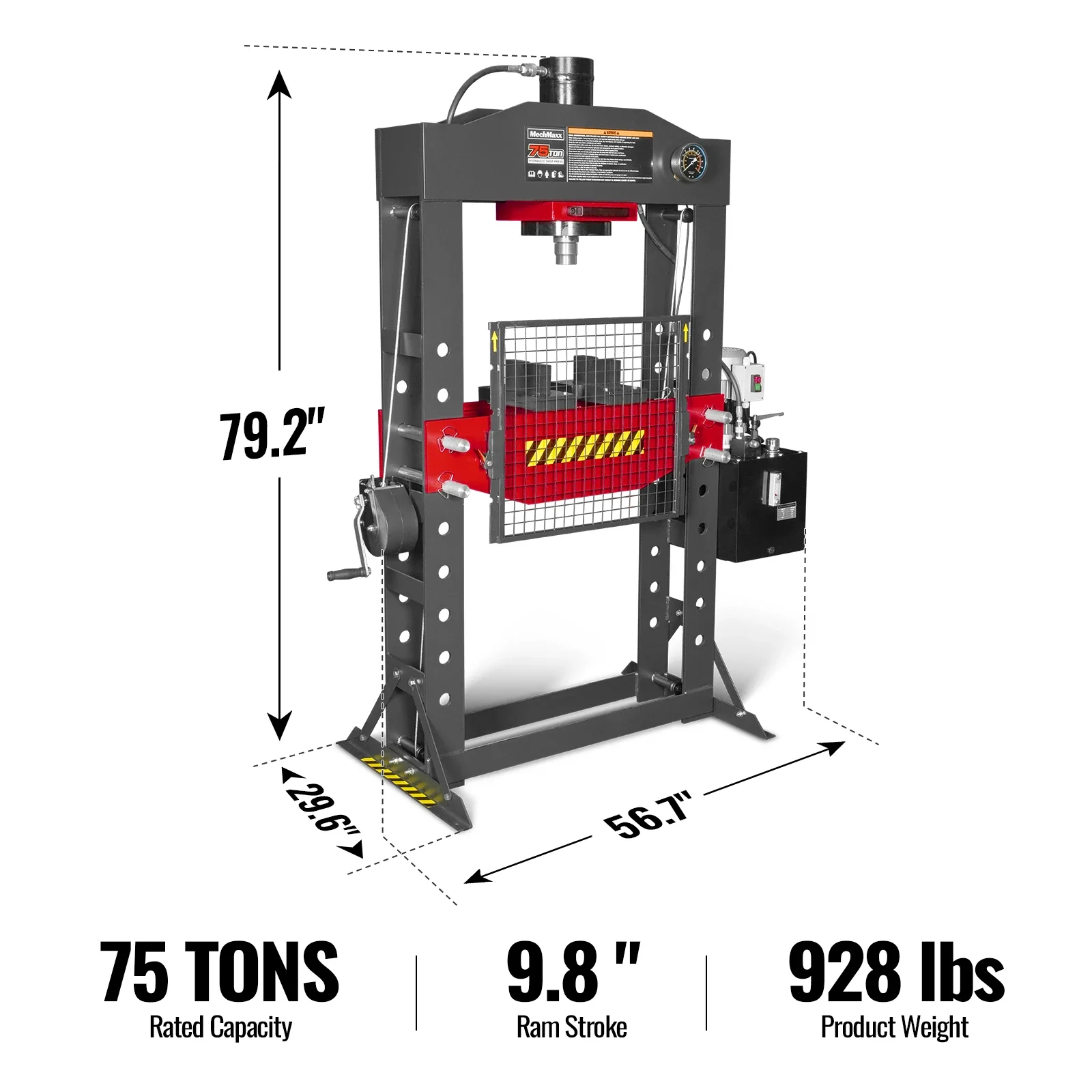

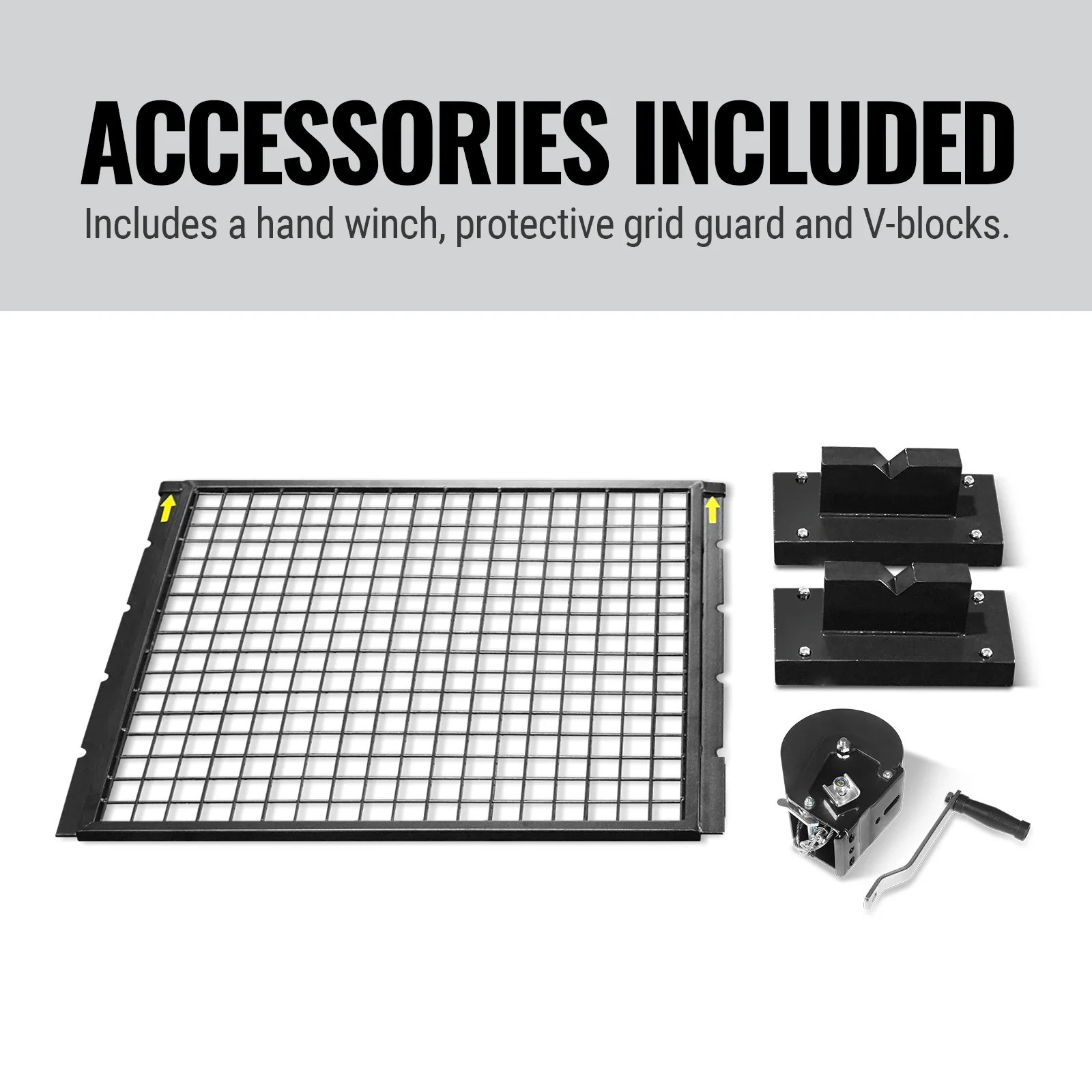

Assembled Size (H x D x W)	79.2 × 29.6 × 56.7 in	Included Accessories	Protective Grid Guard, Hand Winch, V-Blocks
Internal Frame Width	31.5 in	Packing Size (LxWxH)	81.5 x 42.9 x 16.9 in

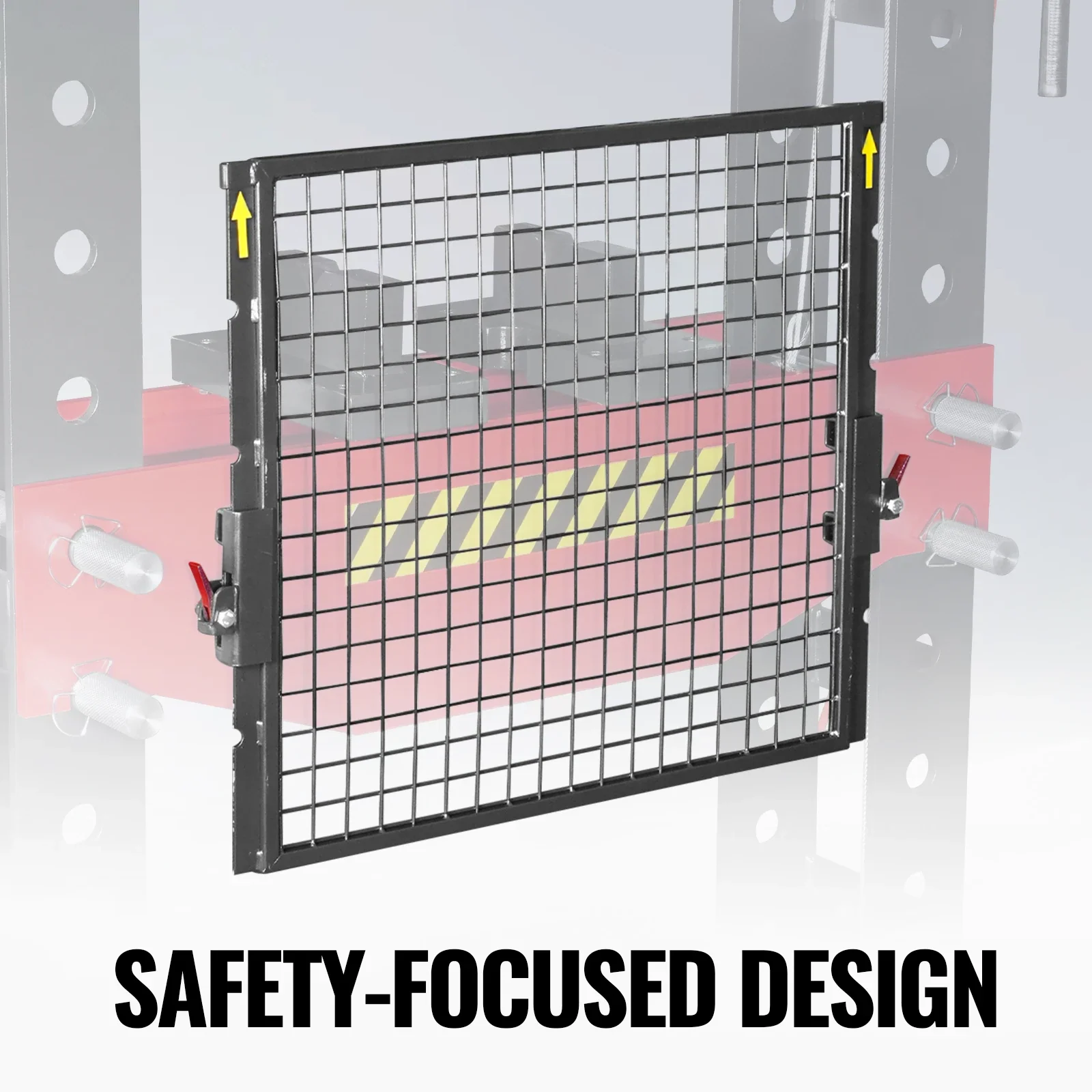

Protective Grid Guard Size	27 x 24 in	Weight (N.W/G.W.)	928.0 lbs / 1031.7 lbs
Ram Retraction	Twin Springs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
