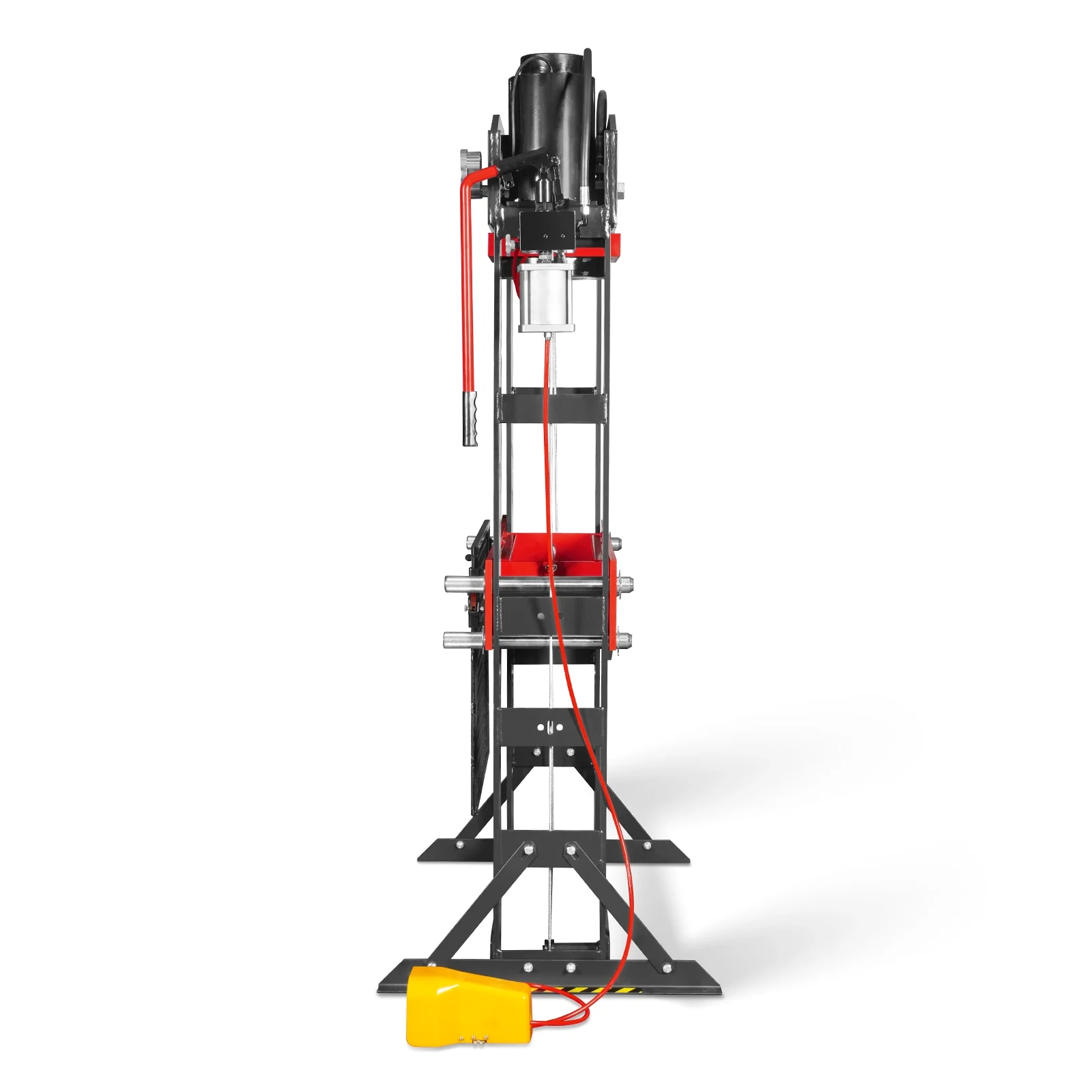

75 Ton H-Frame Air/Hydraulic Shop Press with Hand Winch, Fully Welded Steel Frame, Safety Guard, Foot Pedal Control, HSP75

Rated Capacity	75 Tons	Number of Bed Adjustment Holes	9
Operation Type	Air & Manual Dual Operation	Bed Adjustment Hole Spacing	4.7 in

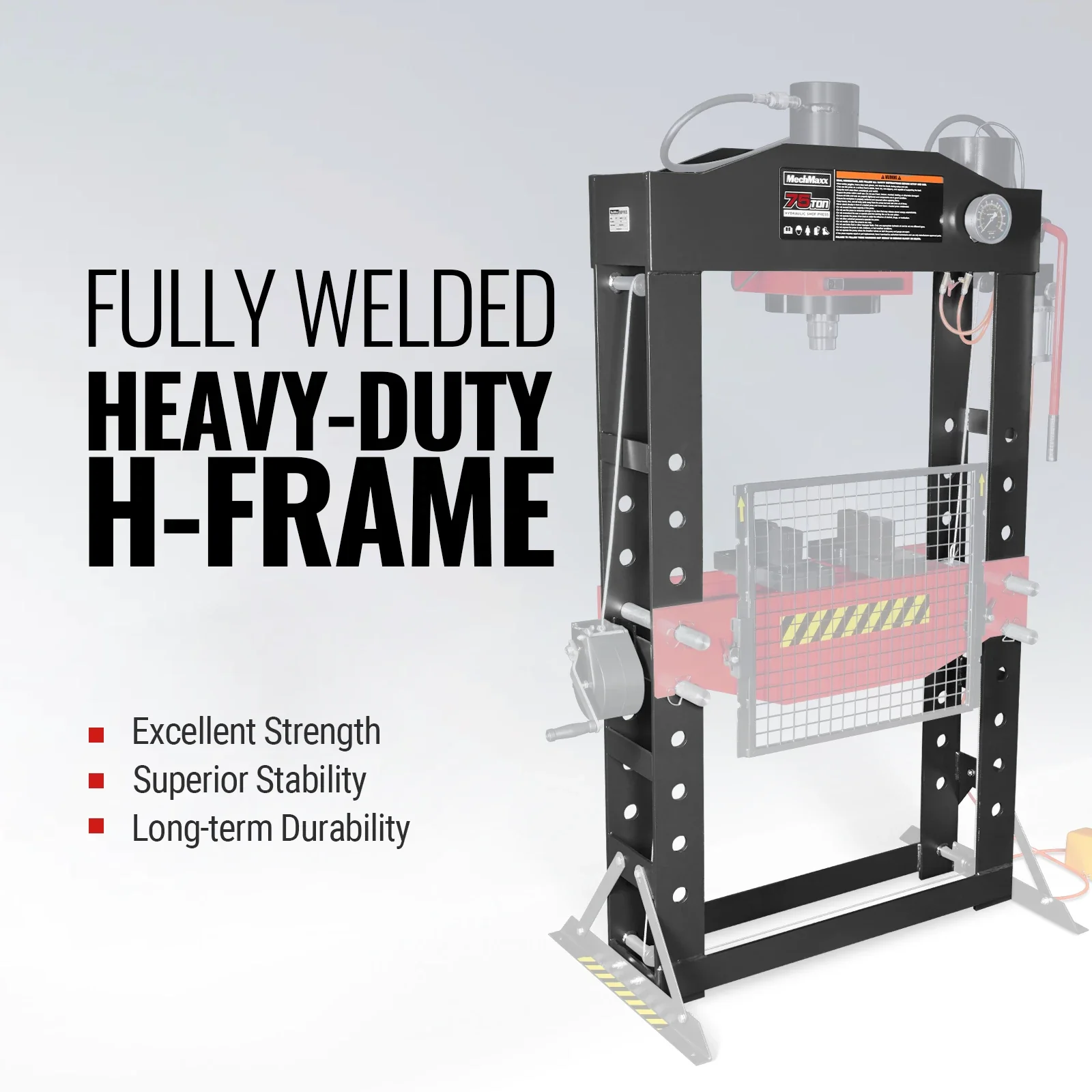

Air Pressure	110-125 PSI	Frame Construction	Fully Welded Heavy-Duty H-Frame

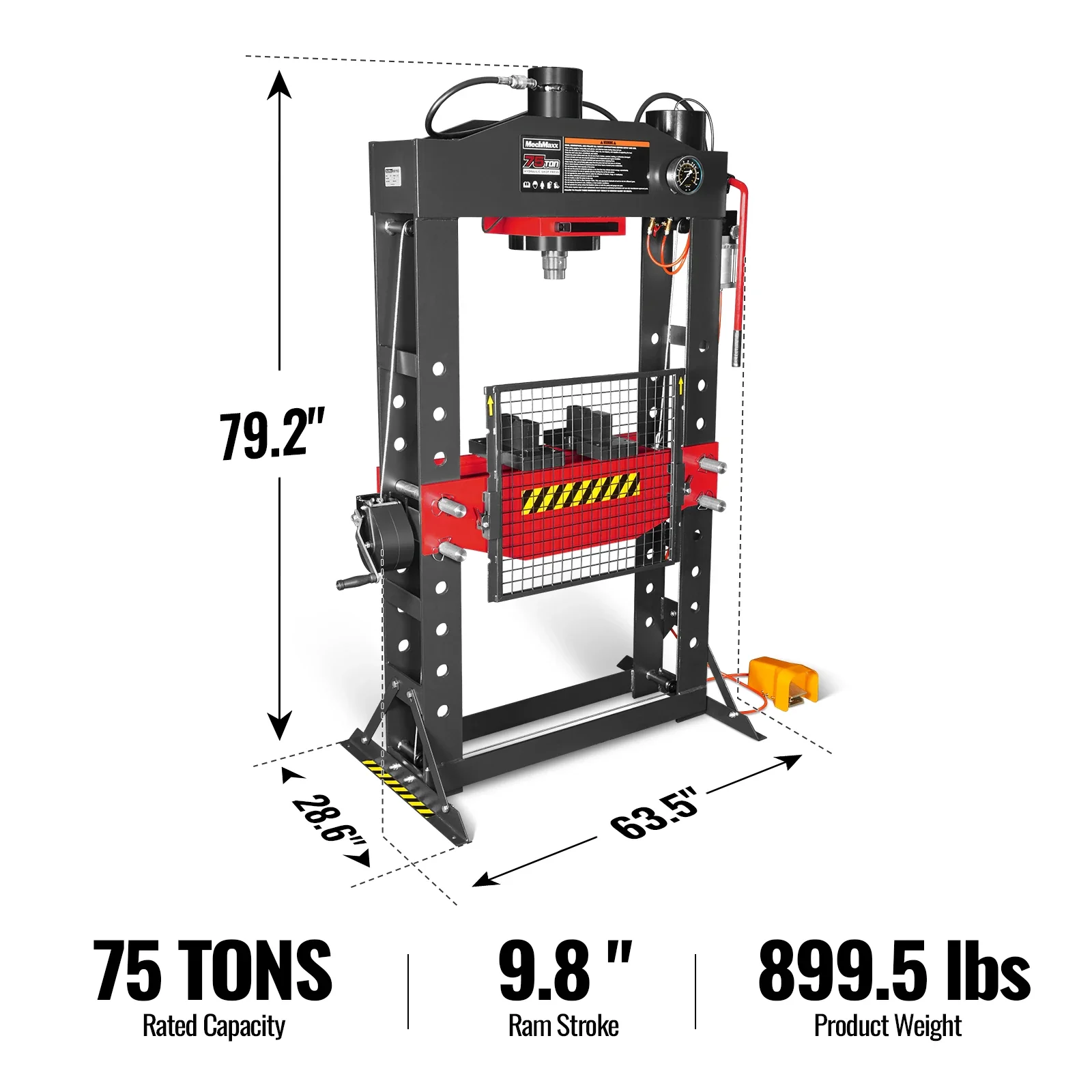

Ram Stroke	9.8 in	Assembled Size (H x D x W)	79.2 x 28.6 x 63.5 in
Ram Diameter	3 in	Internal Frame Width	31.5 in
Cylinder Bore	5 in	Protective Grid Guard Size	27 x 24 in

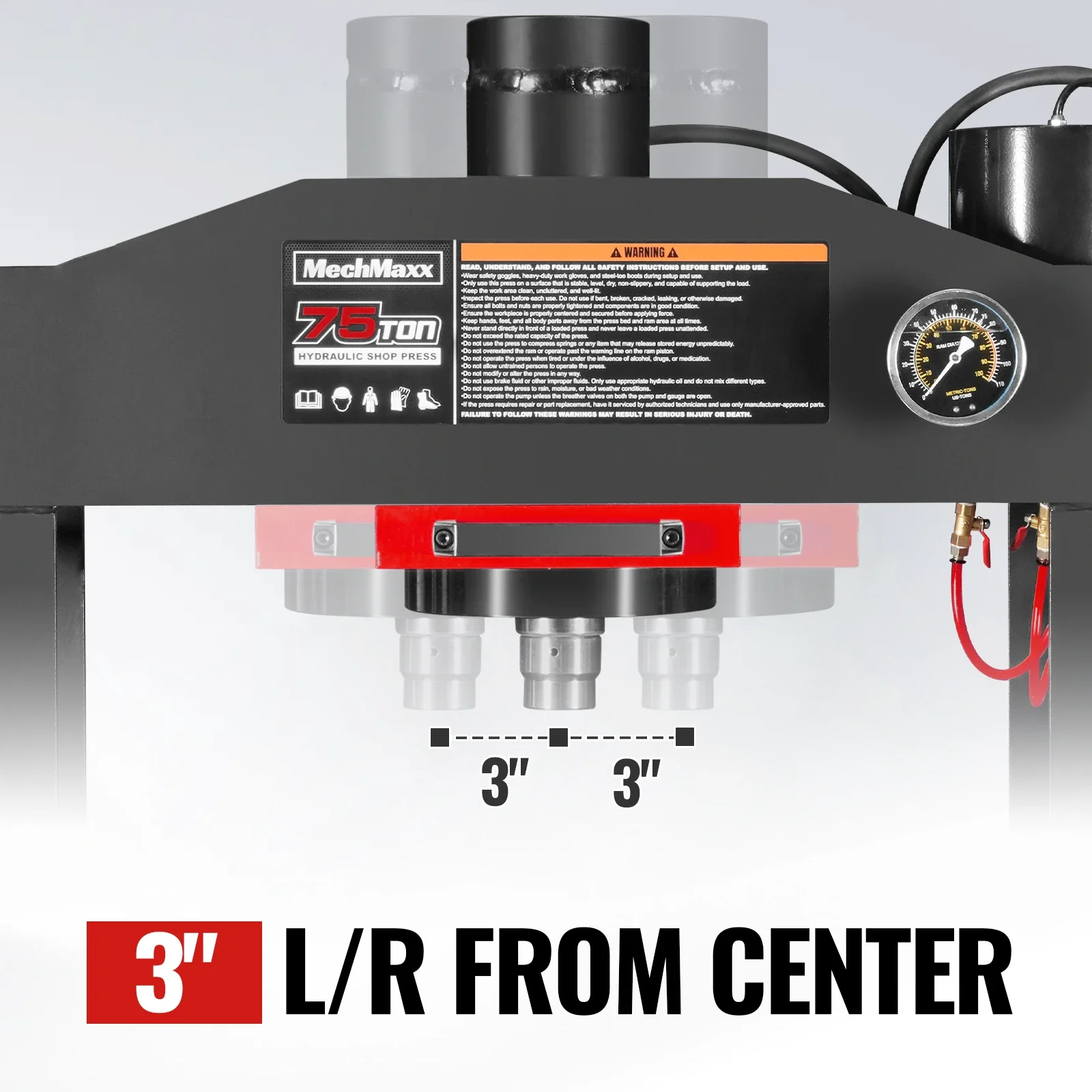

Ram Range of Movement	3 in Left / Right from Center	Recommended Hydraulic Oil	AW32 Hydraulic Oil

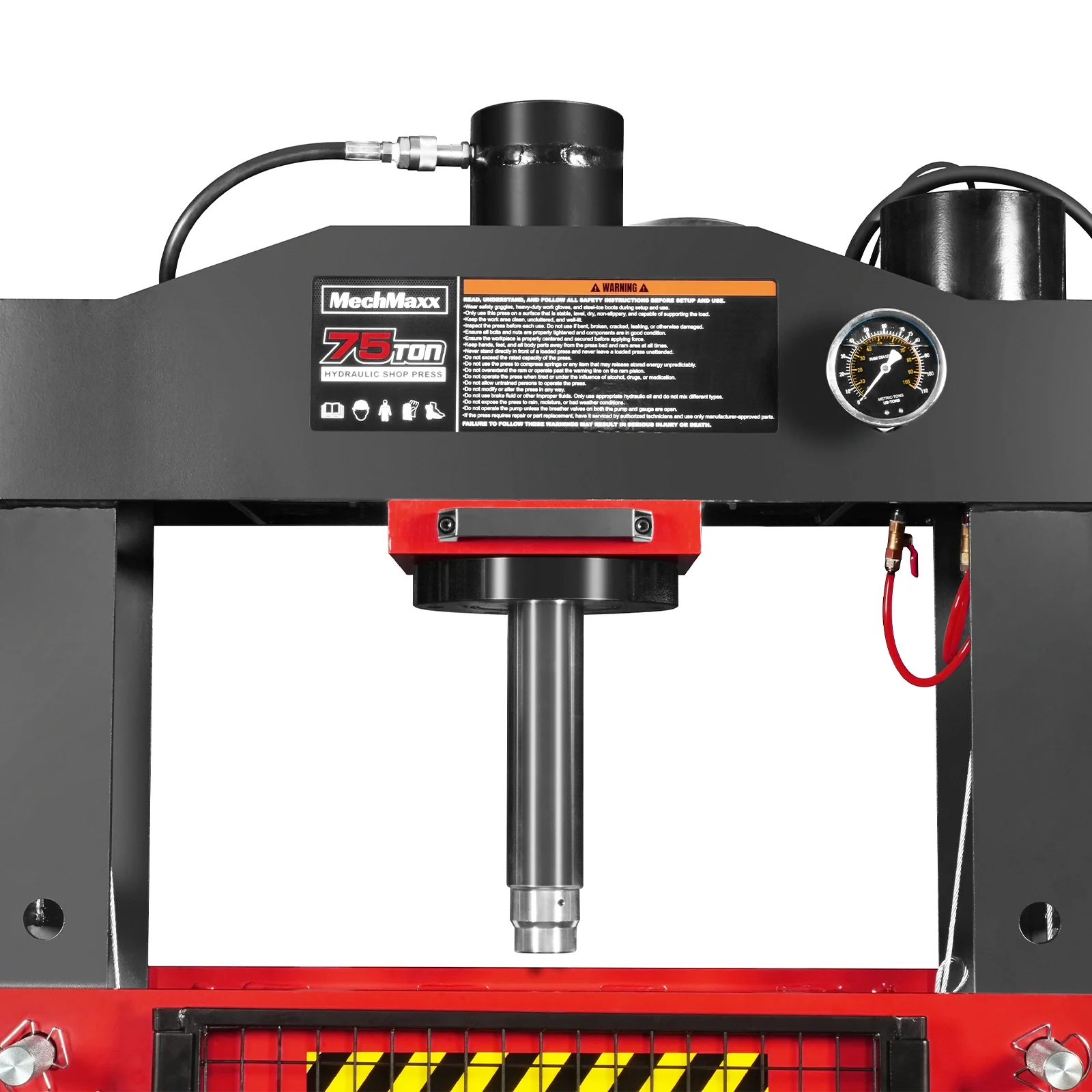

Bed Depth	9.5 in	Gauge Type	4 in Oil-Filled Pressure Gauge
Bed Height	10.2 in	Included Accessories	Protective Grid Guard, Hand Winch, Foot Pedal Valve, V-Blocks
Minimum Ram to Bed	6.7 in	Packing Size (LxWxH)	81.5 x 42.9 x 16.1 in
Maximum Ram to Bed	39.4 in	Weight (N.W/G.W.)	899.5 lbs / 1003.1 lbs
Ram Retraction	Twin Springs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
