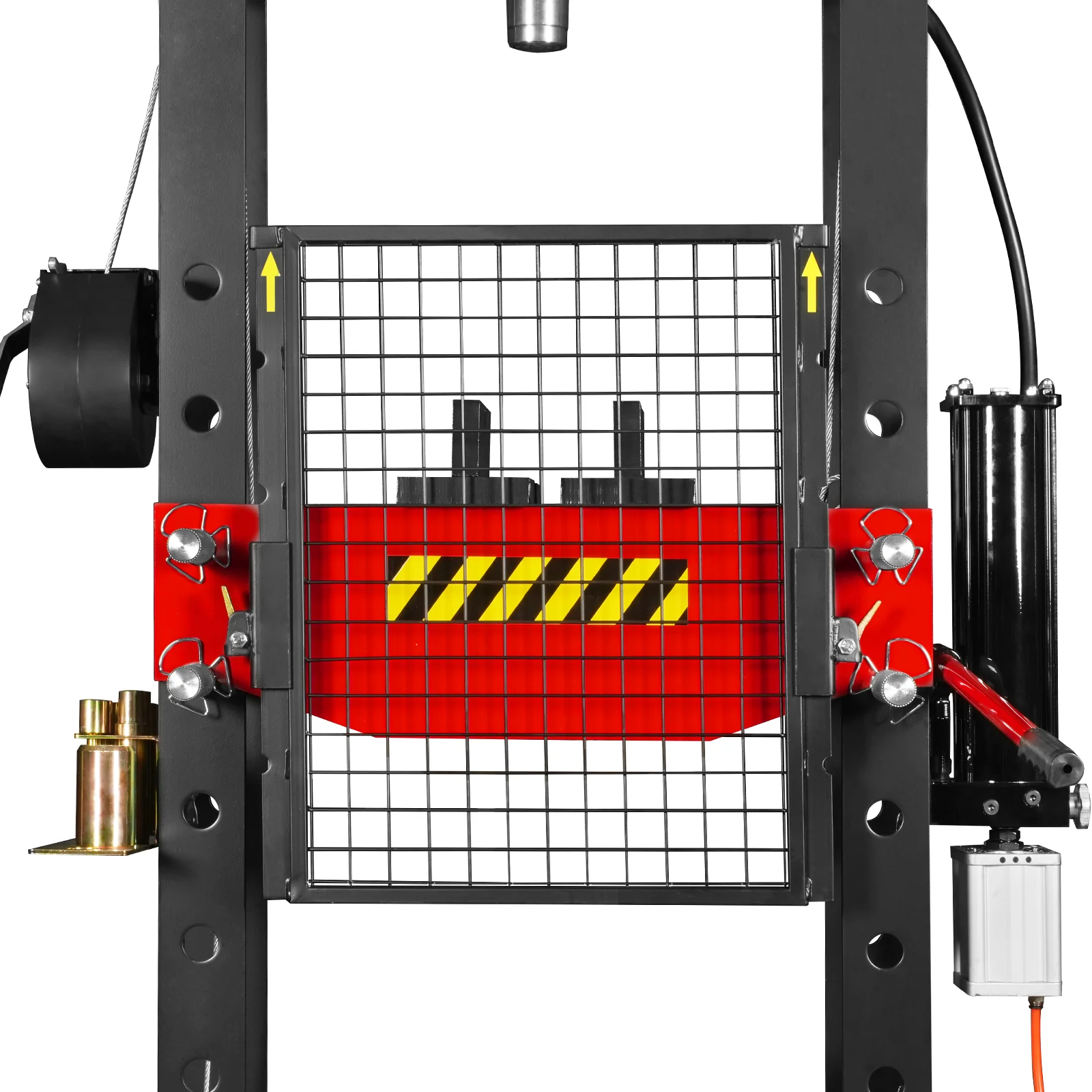

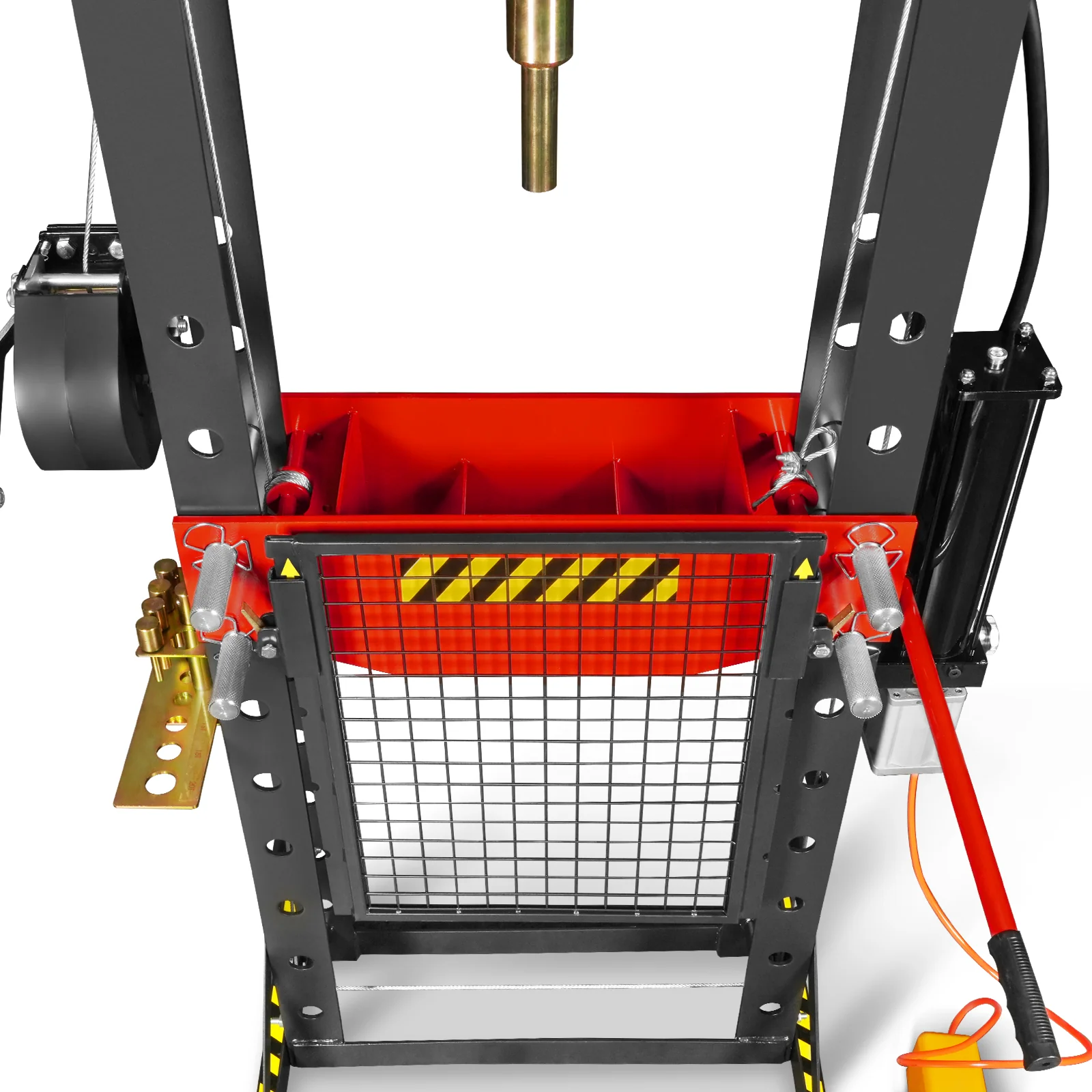

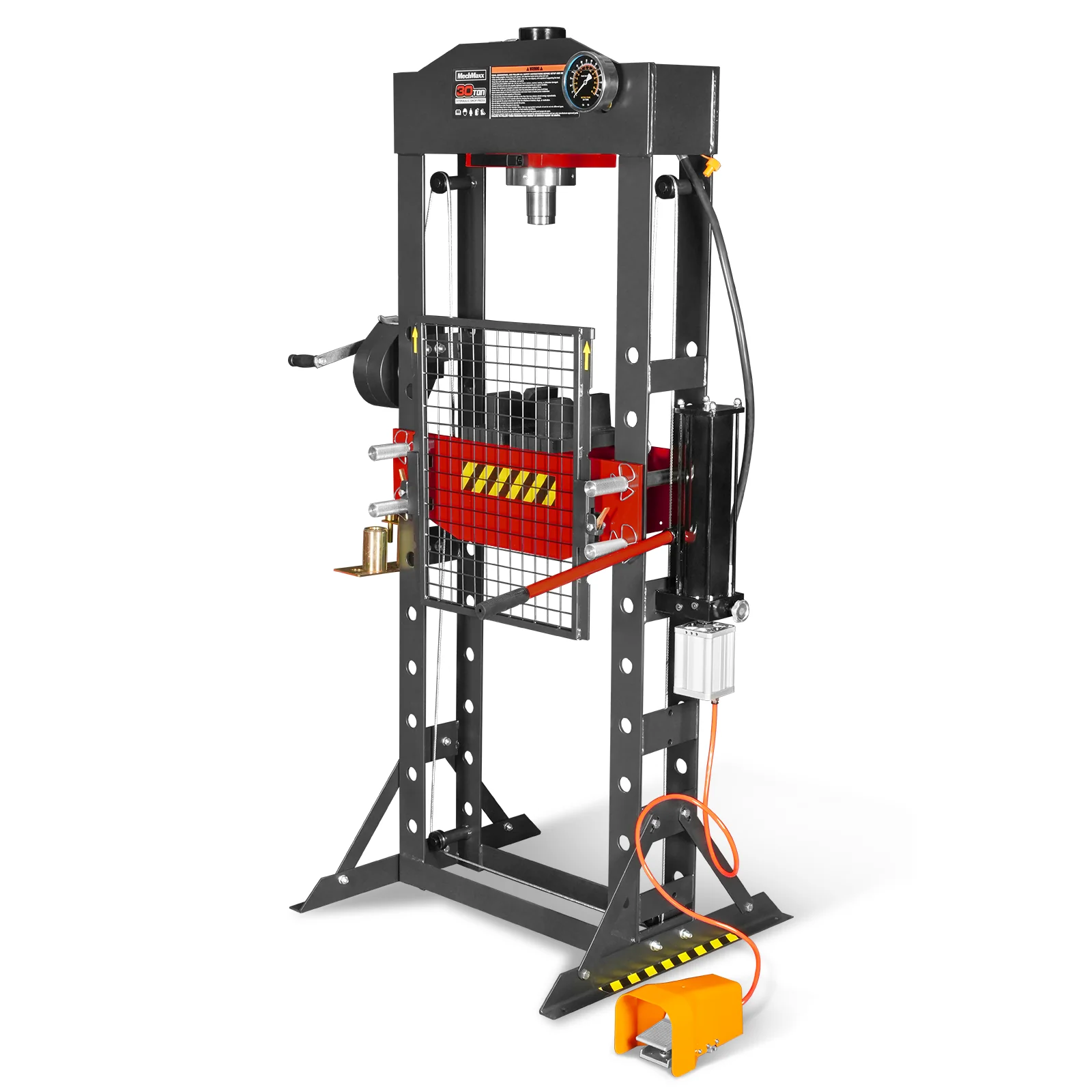

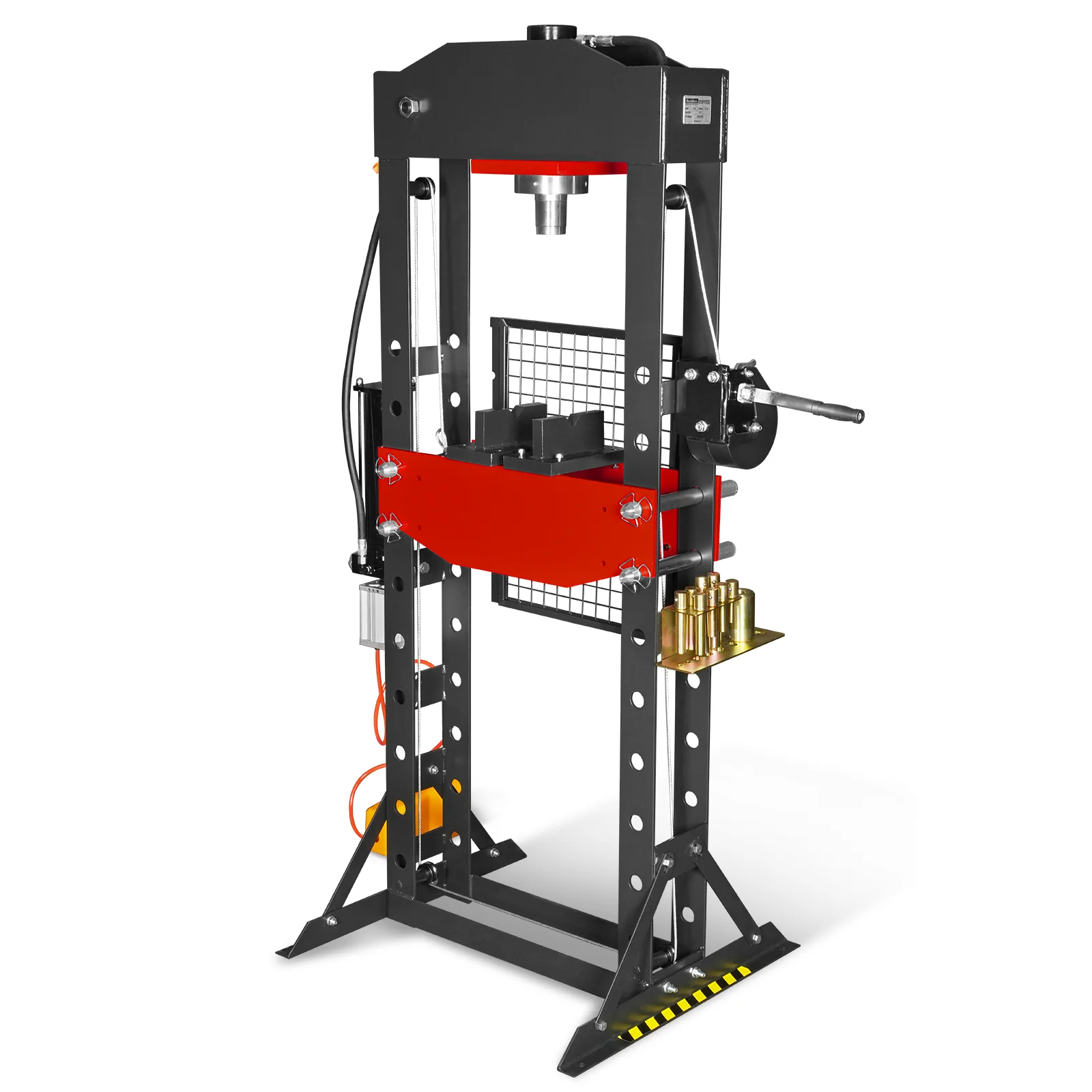

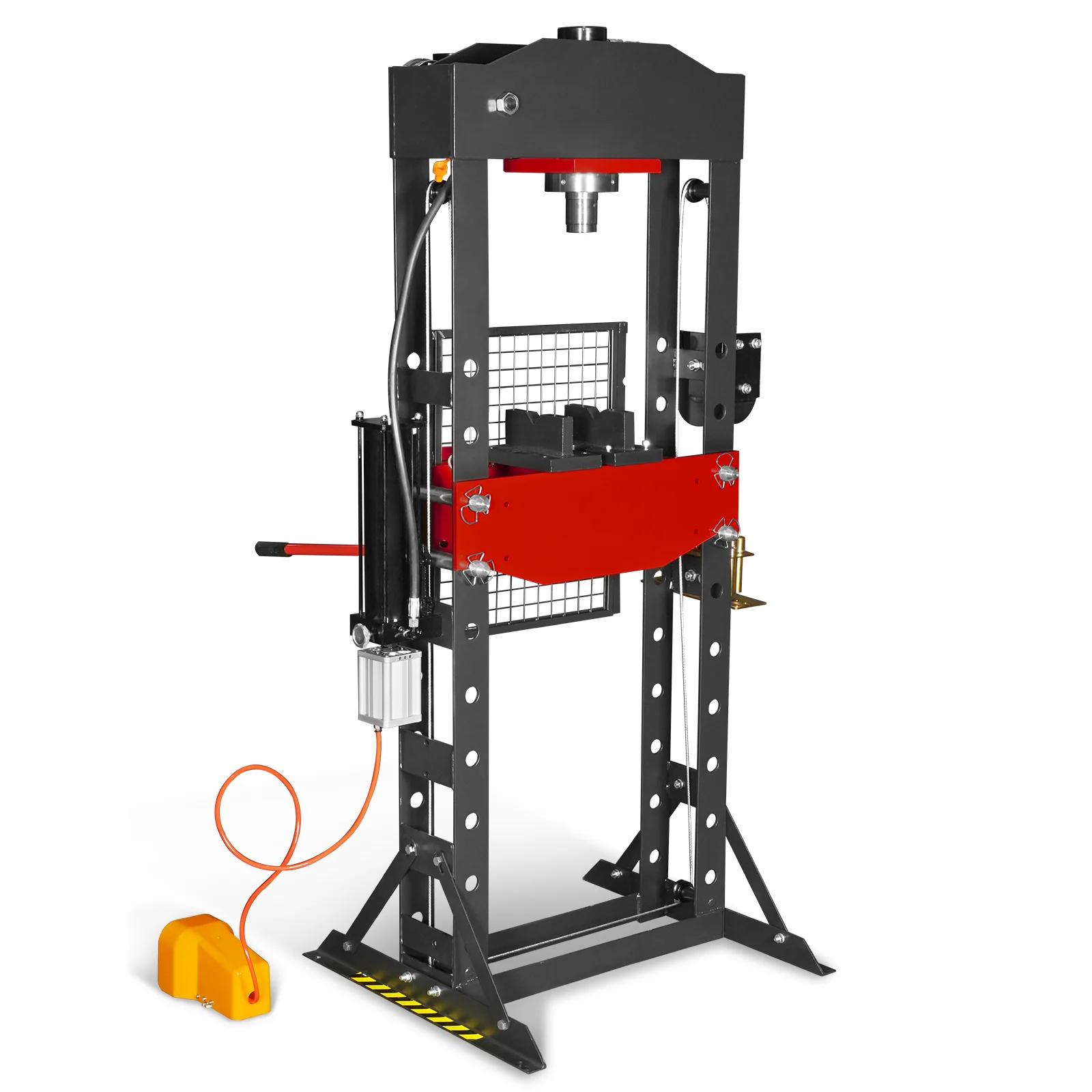

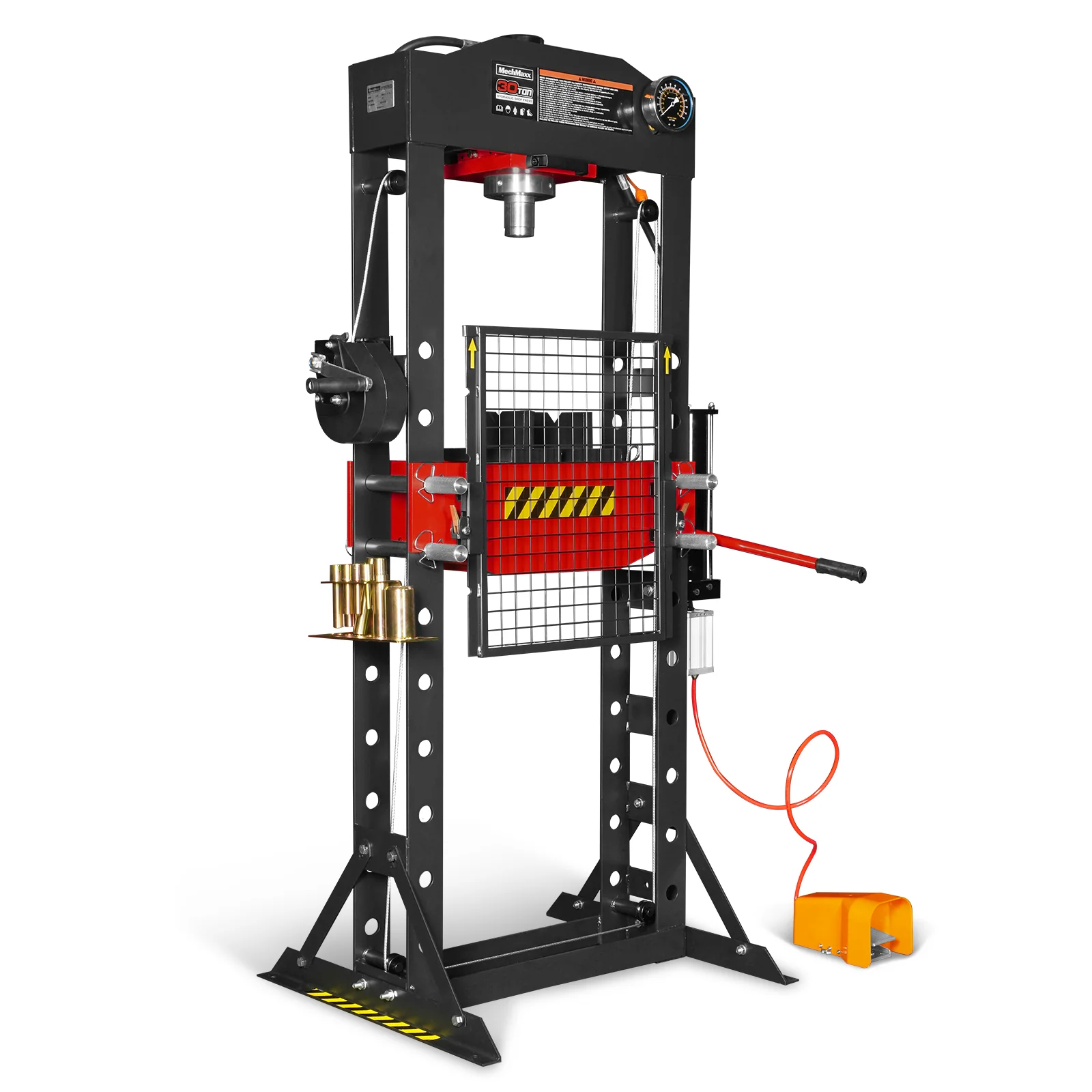

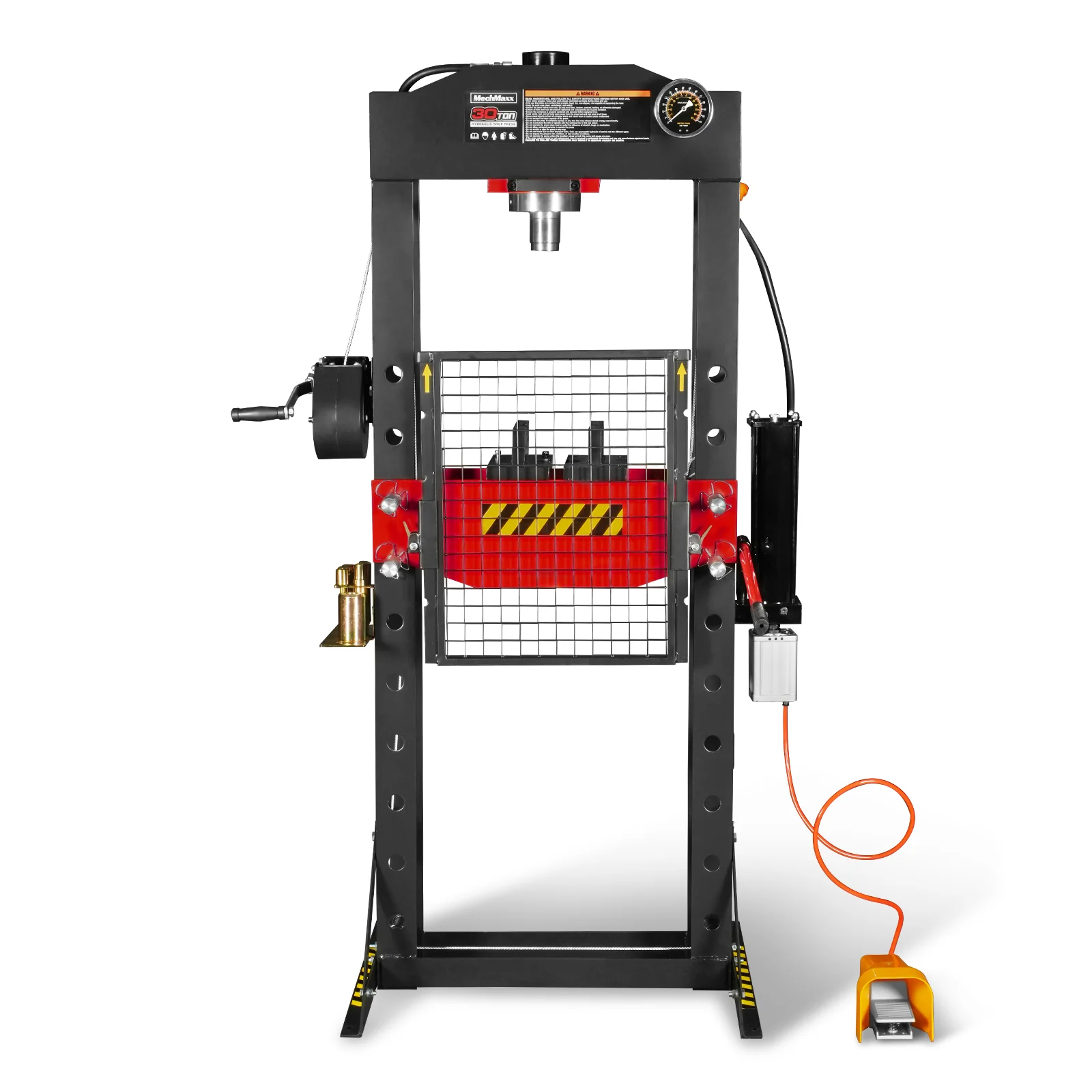

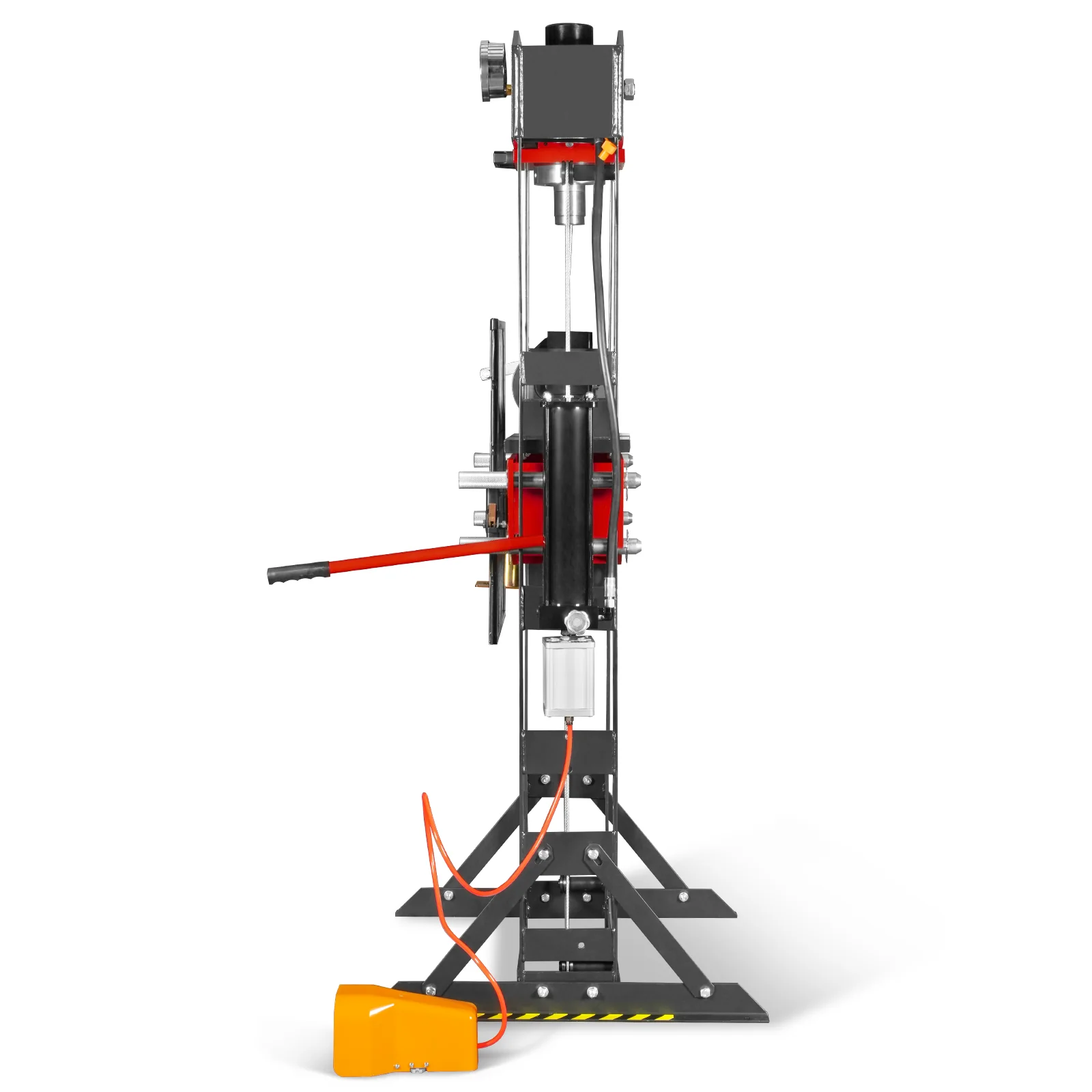

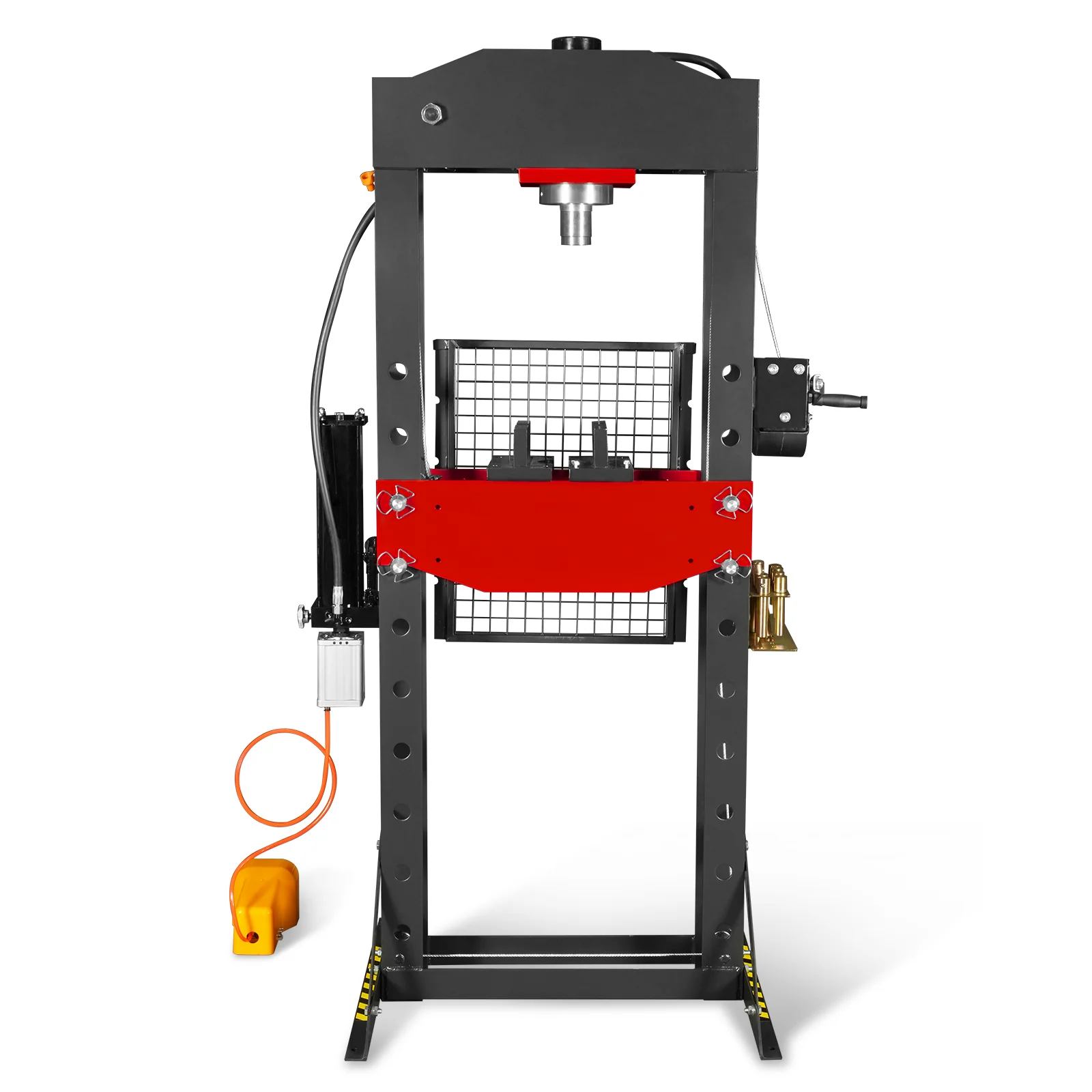

30 Ton H-Frame Air/Hydraulic Shop Press with Hand Winch & Press Pin Kit, Fully Welded Steel Frame, Safety Guard, Foot Pedal Control, HSP30

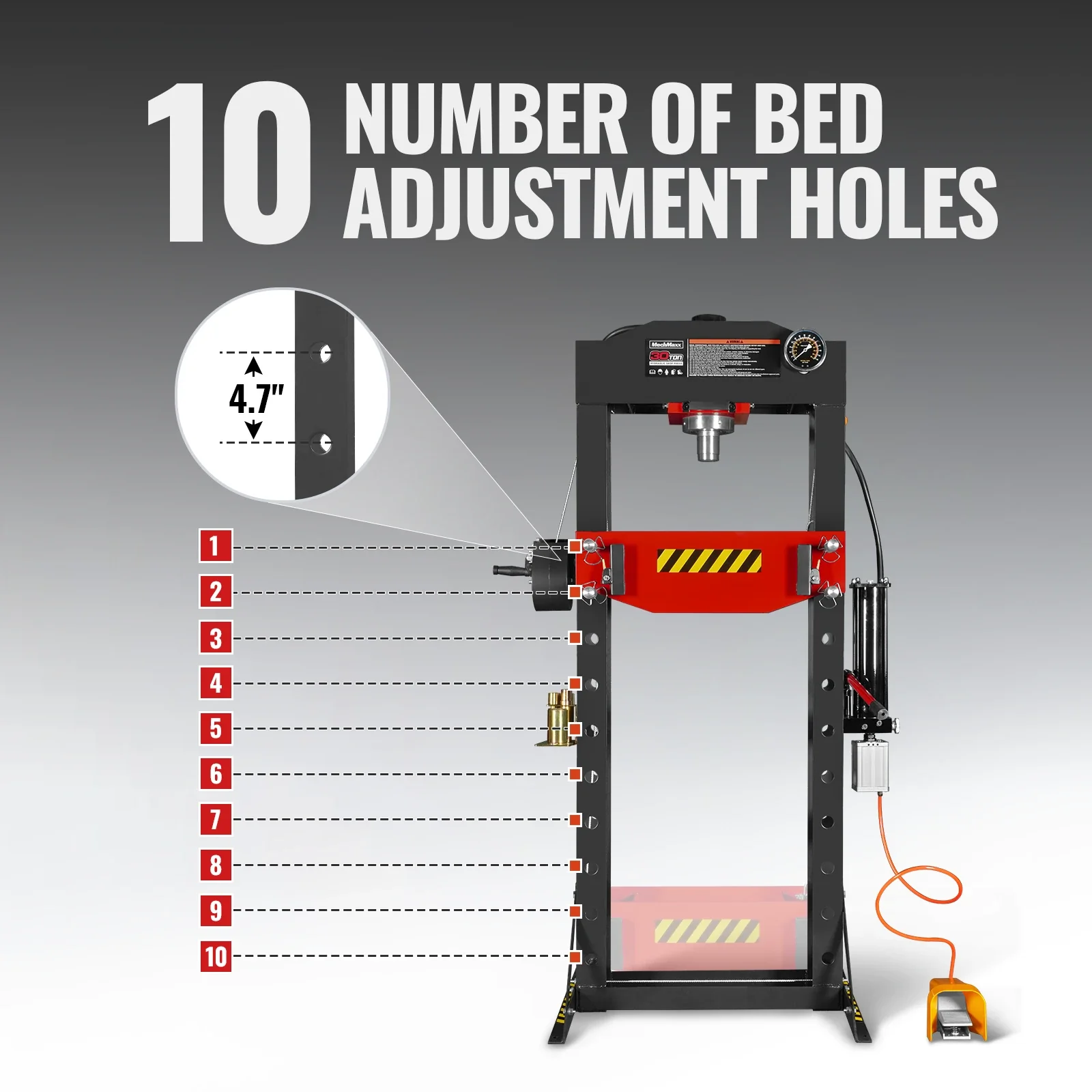

Rated Capacity	30 Tons	Number of Bed Adjustment Holes	10

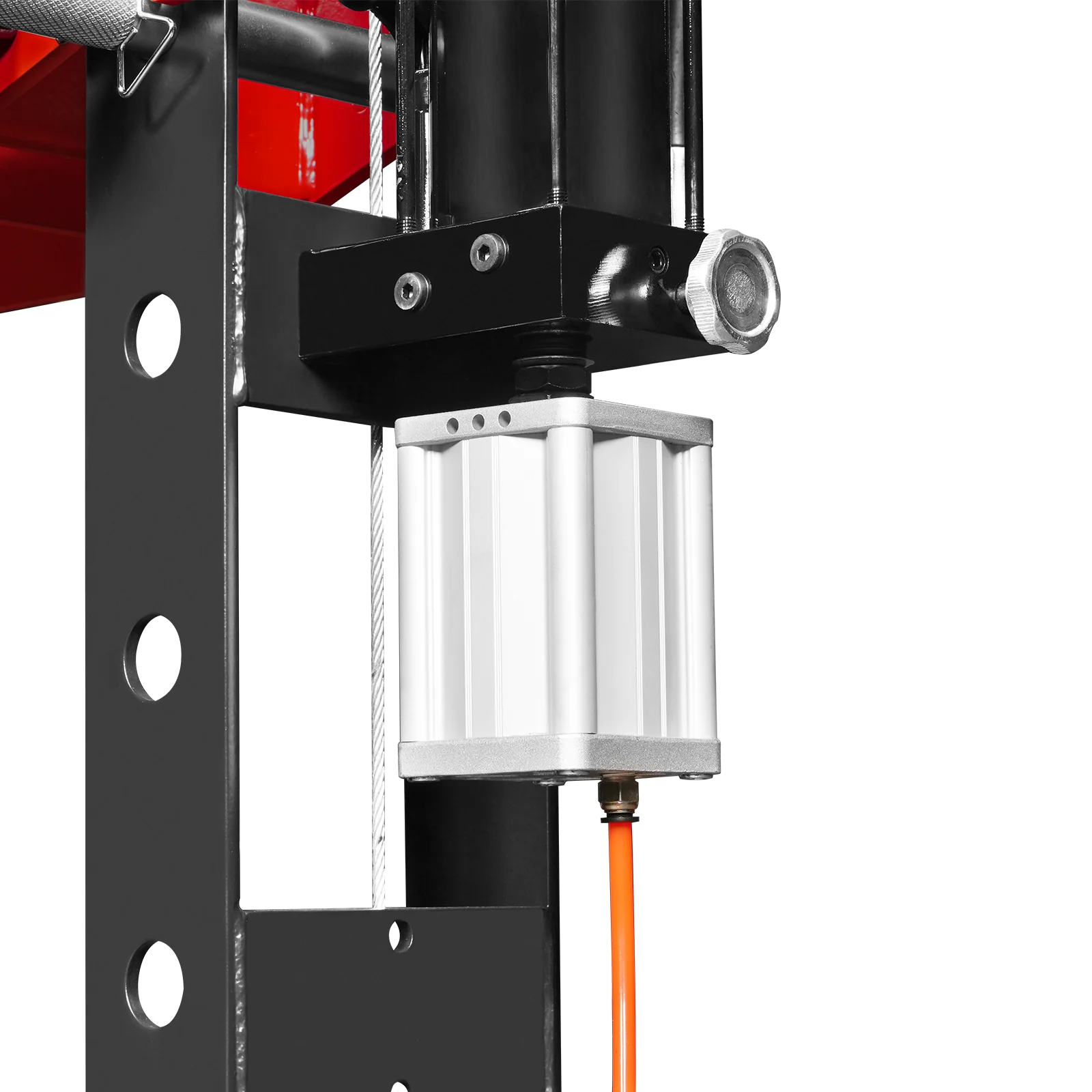

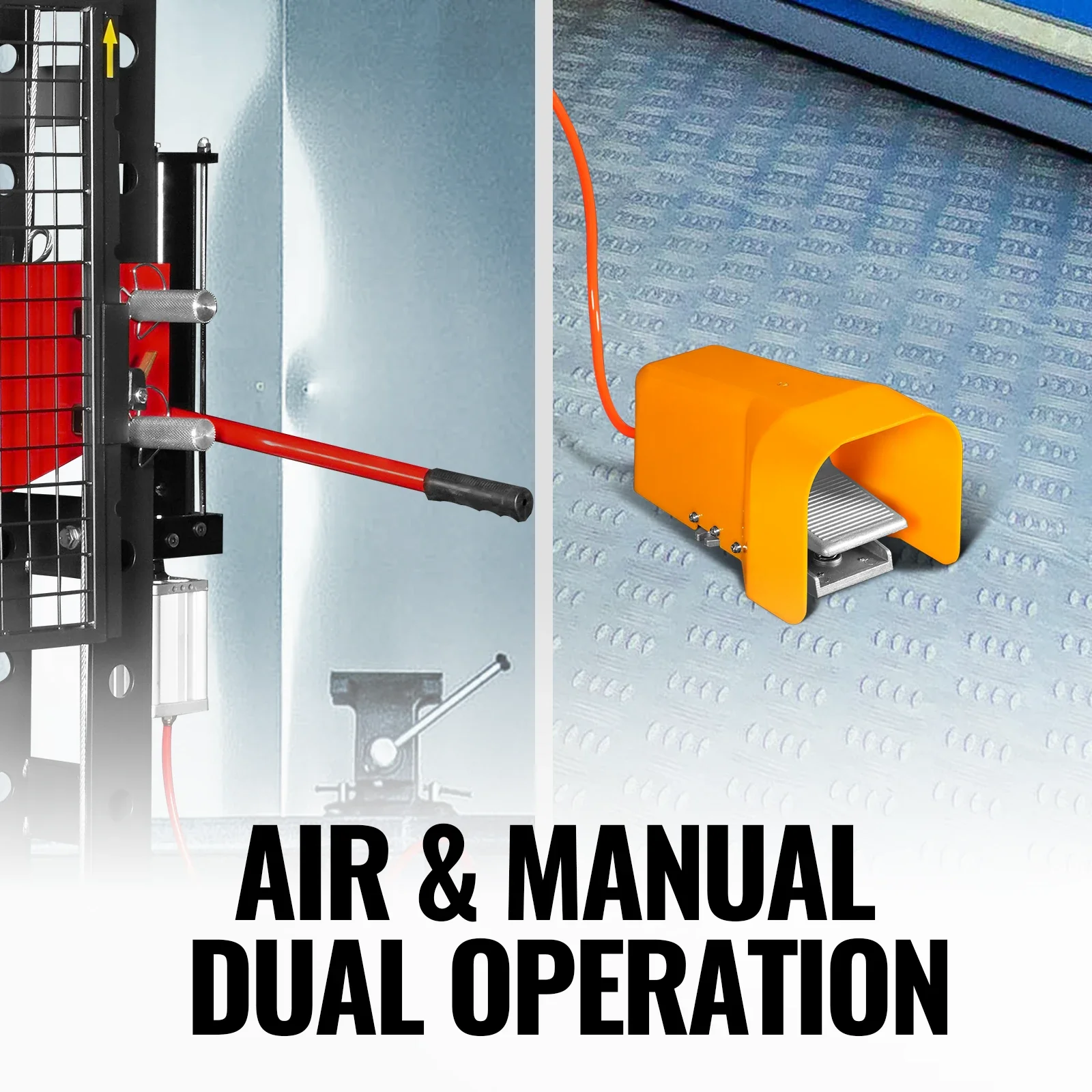

Operation Type	Air & Manual Dual Operation	Bed Adjustment Hole Spacing	4.7 in

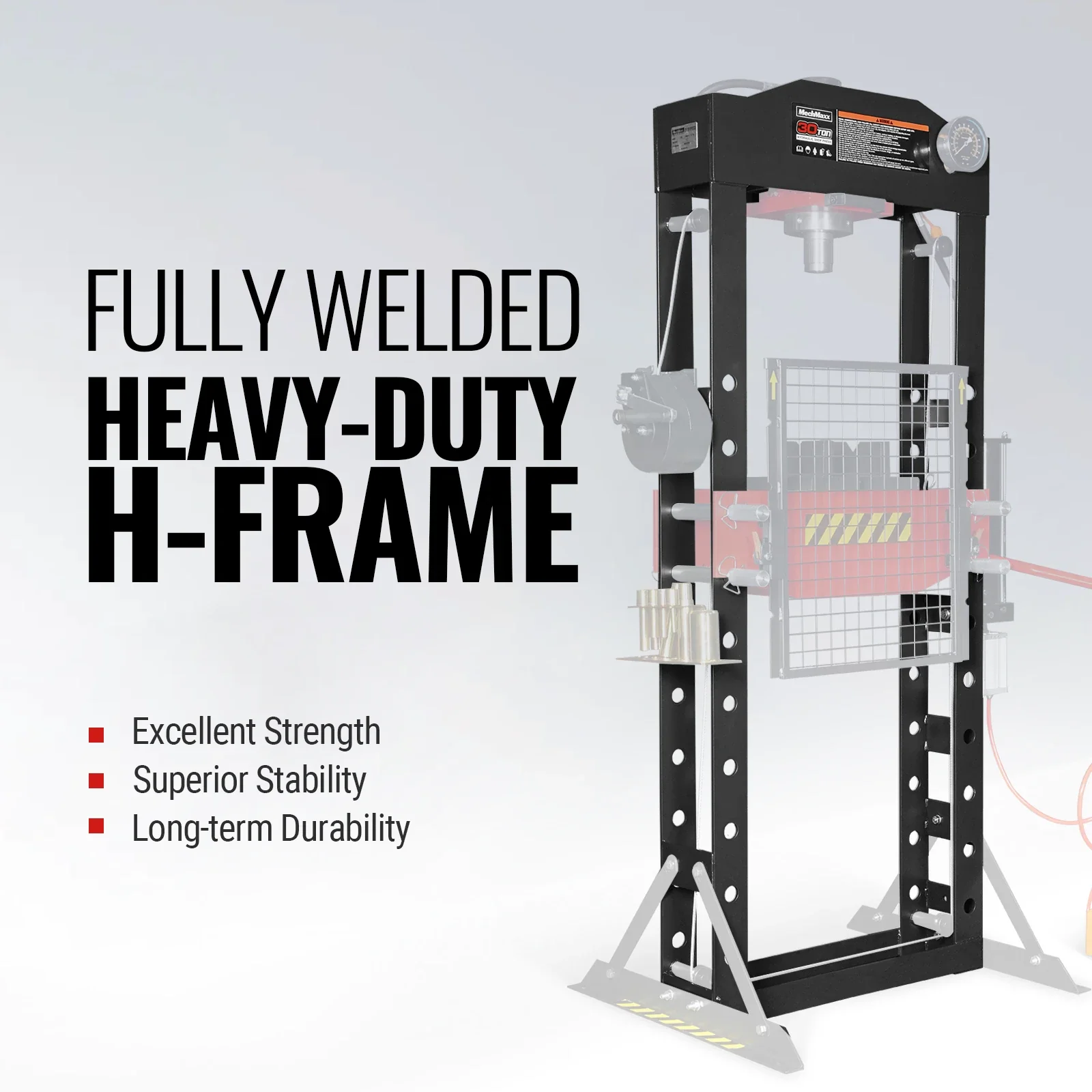

Air Pressure	110-125 PSI	Frame Construction	Fully Welded Heavy-Duty H-Frame
Ram Stroke	5.9 in	Assembled Size (H x D x W)	72.4 x 28.8 x 42 in
Ram Diameter	3 in	Internal Frame Width	21.3 in
Cylinder Bore	2.4 in	Protective Grid Guard Size	24 x 20 in

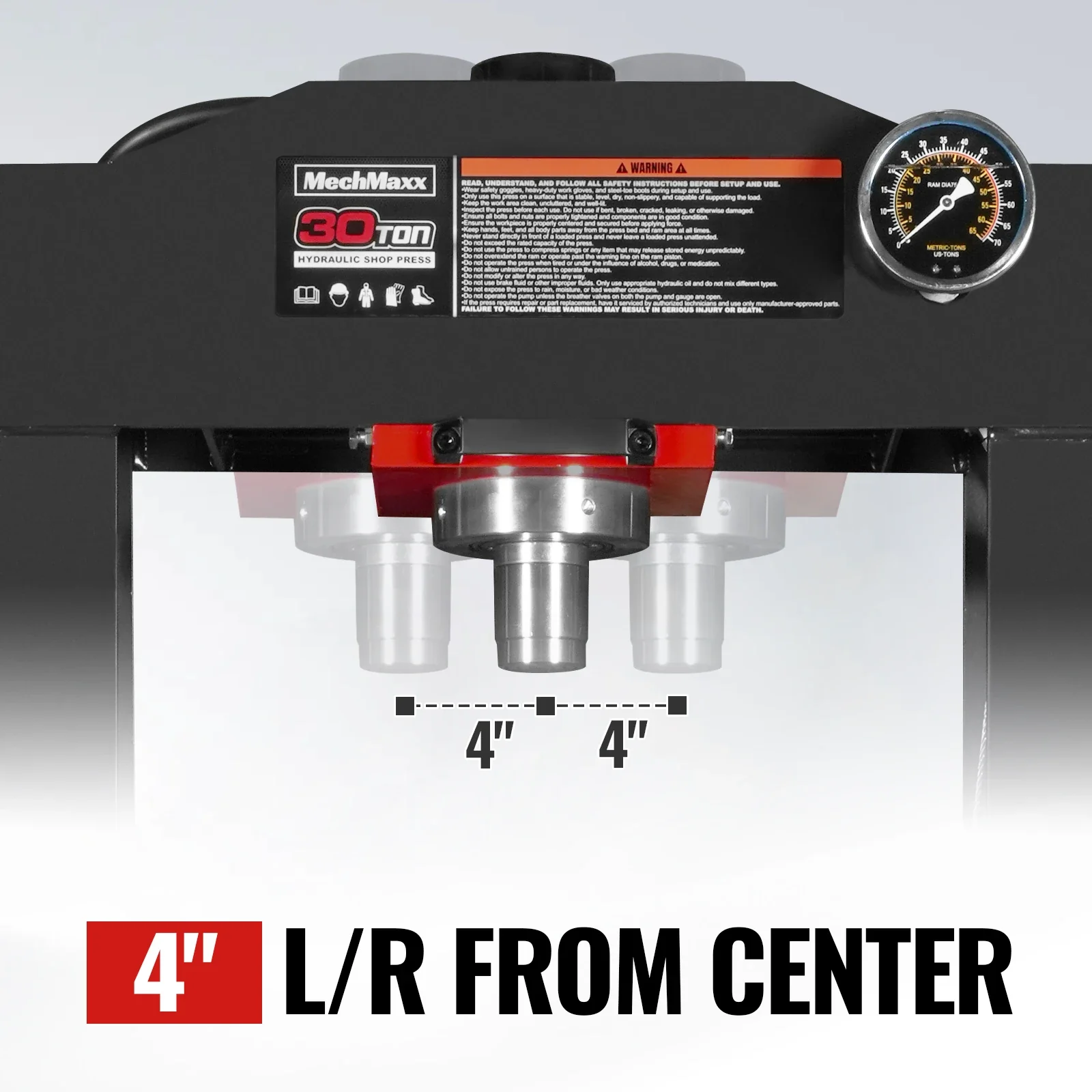

Ram Range of Movement	4 in Left / Right from Center	Recommended Hydraulic Oil	AW32 Hydraulic Oil

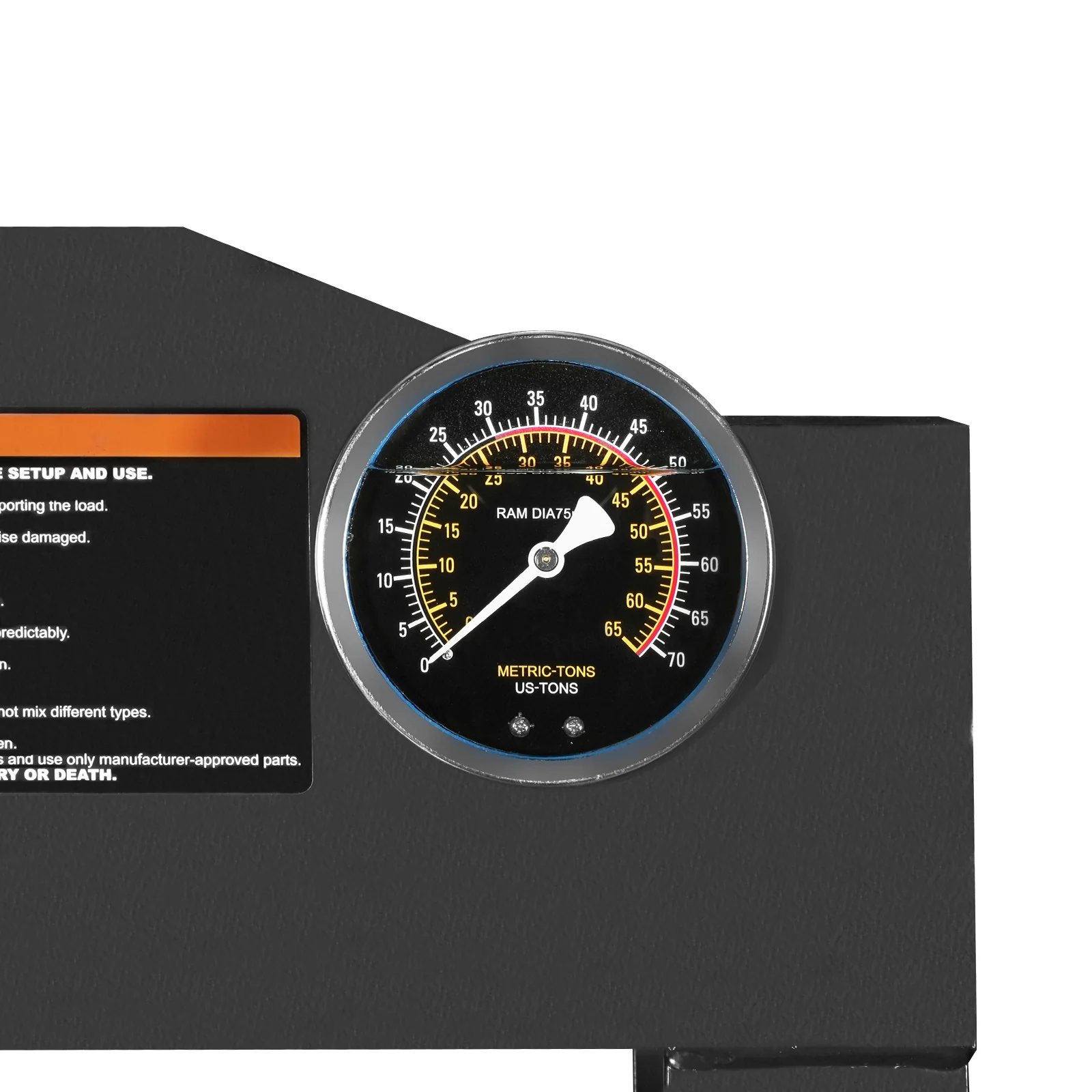

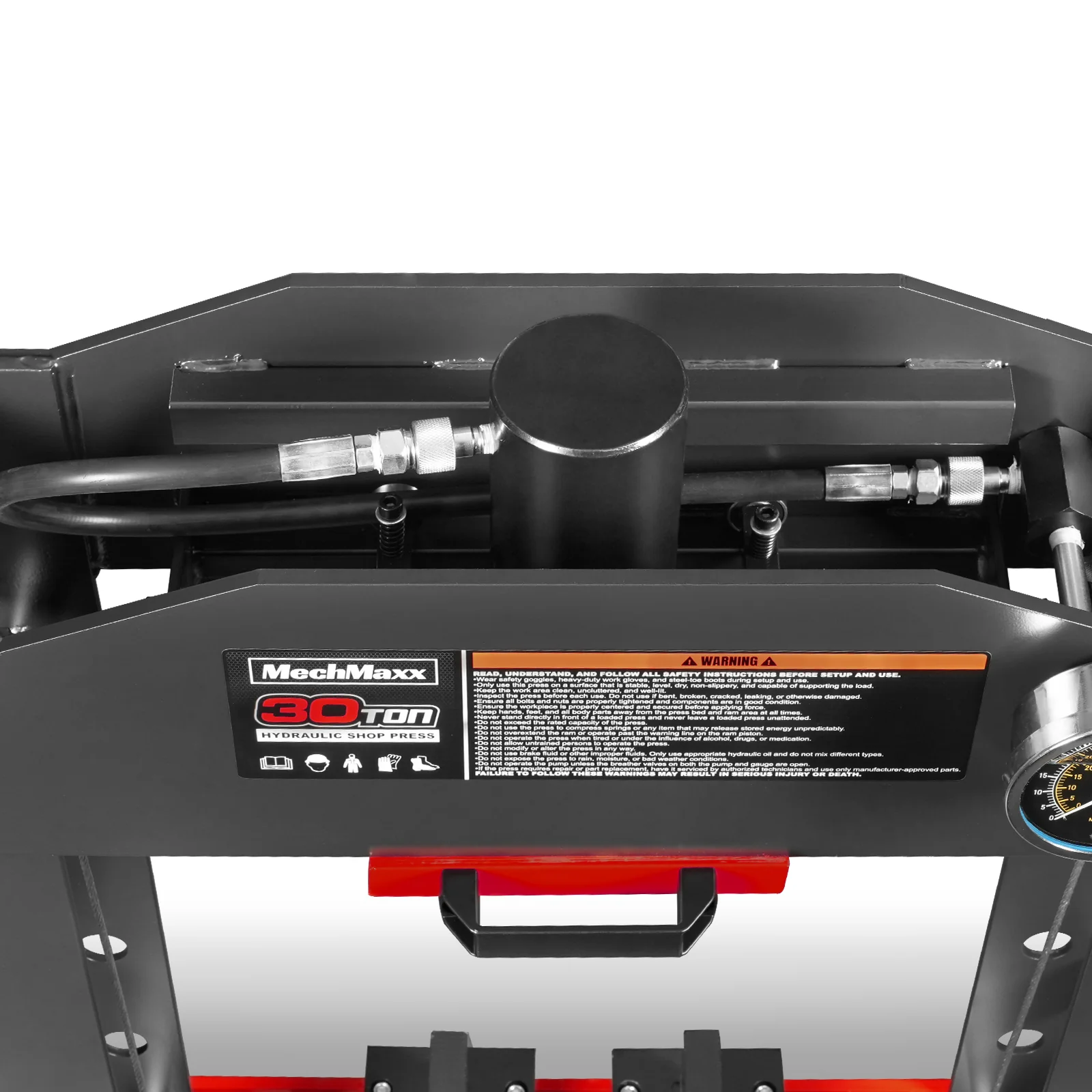

Bed Depth	8 in	Gauge Type	4 in Oil-Filled Pressure Gauge

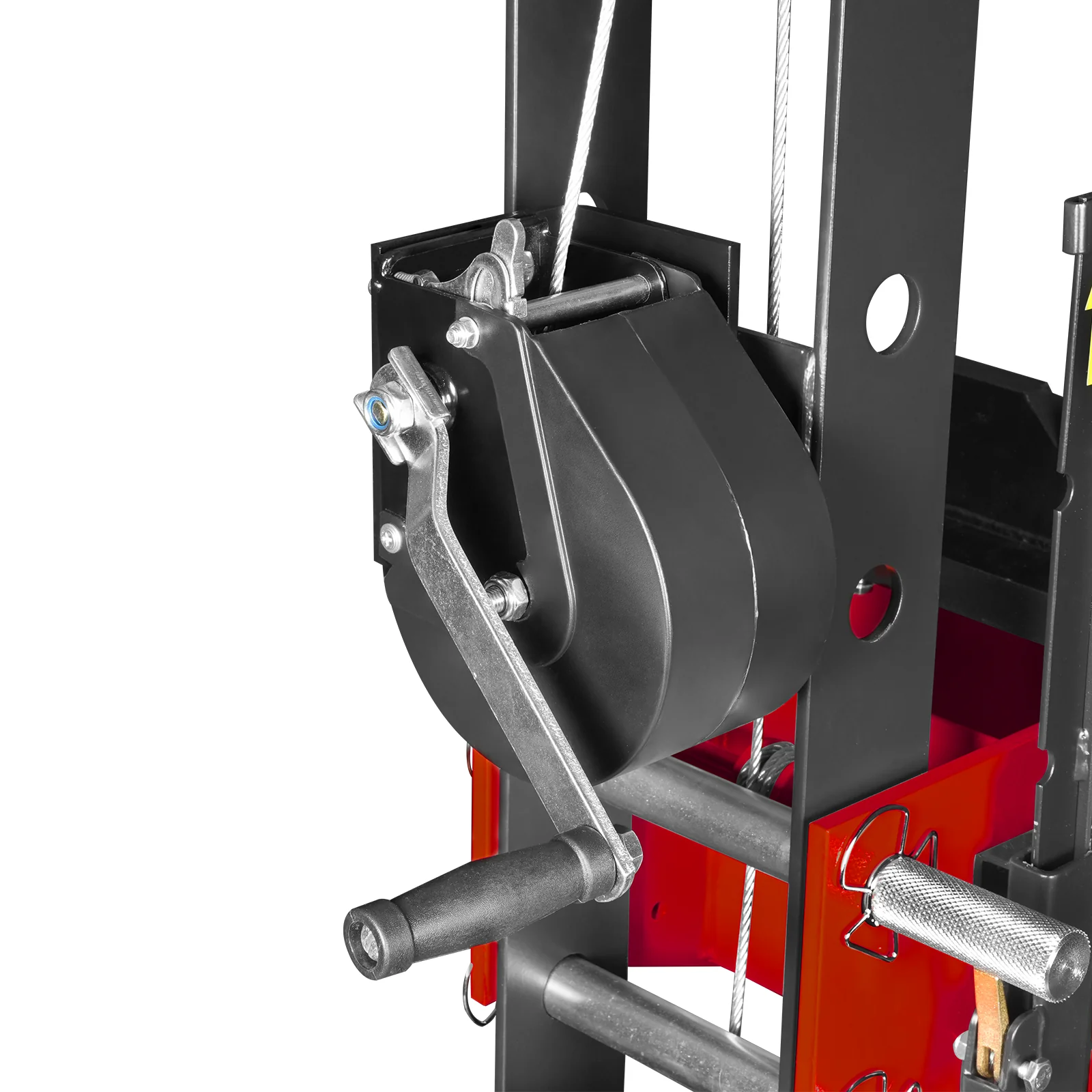

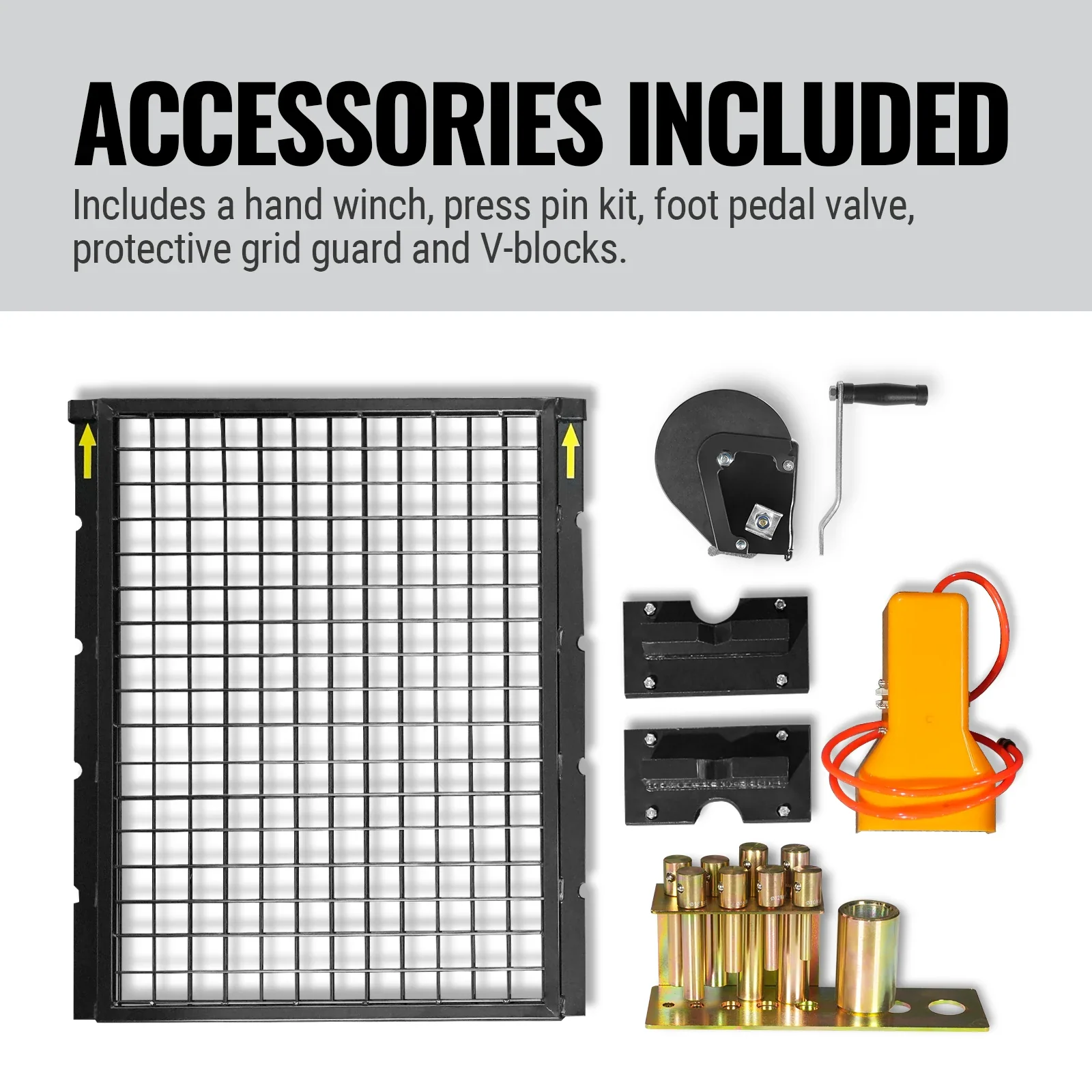

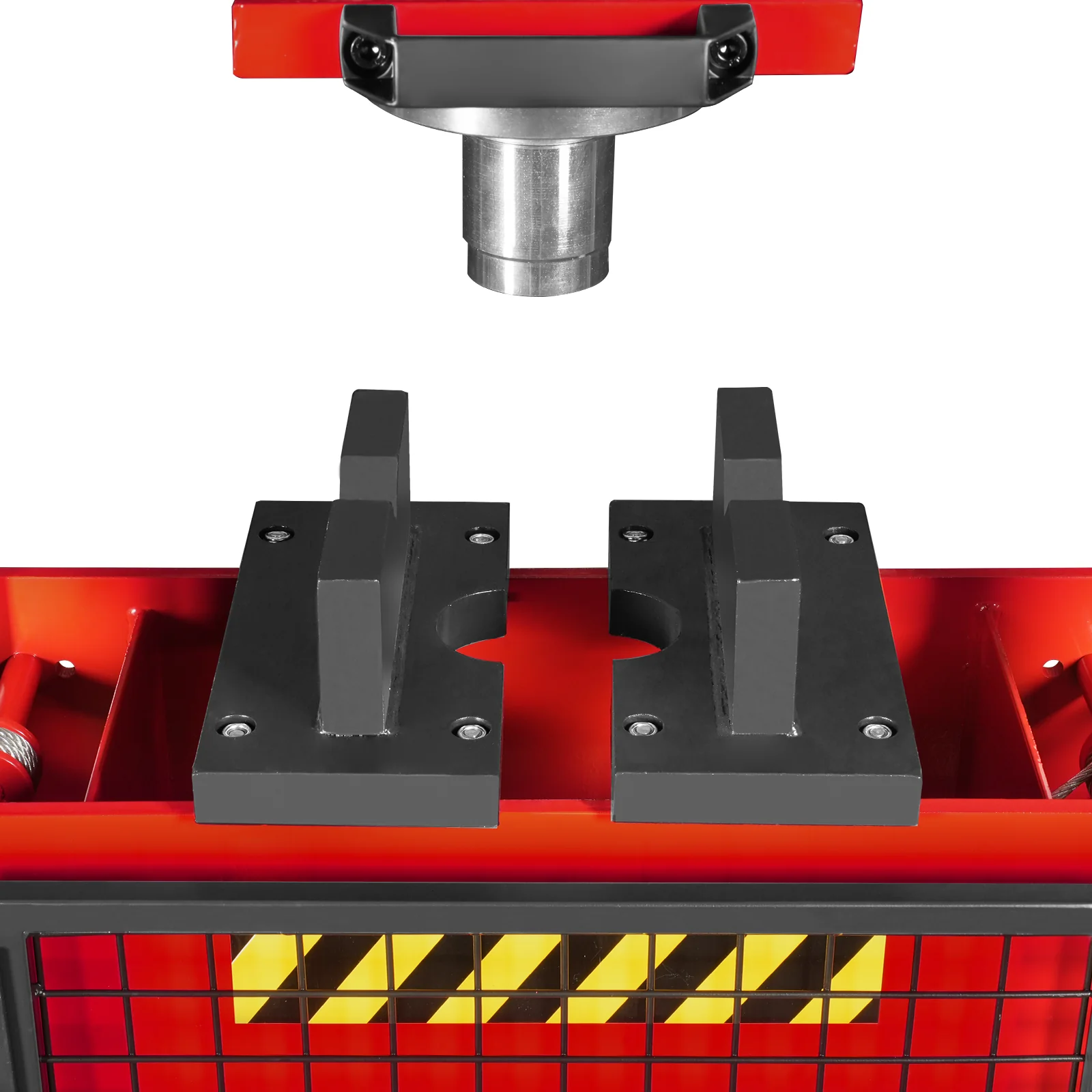

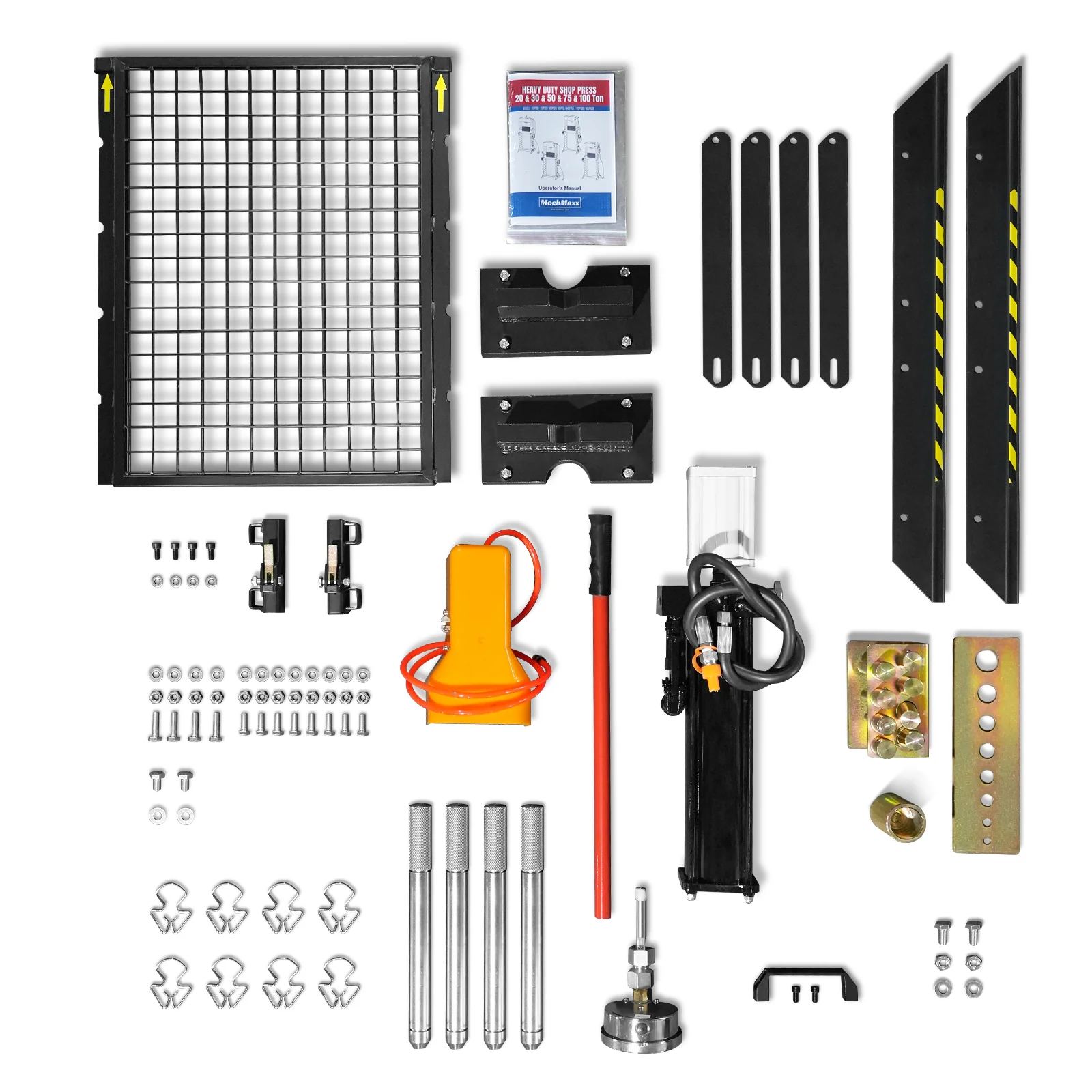

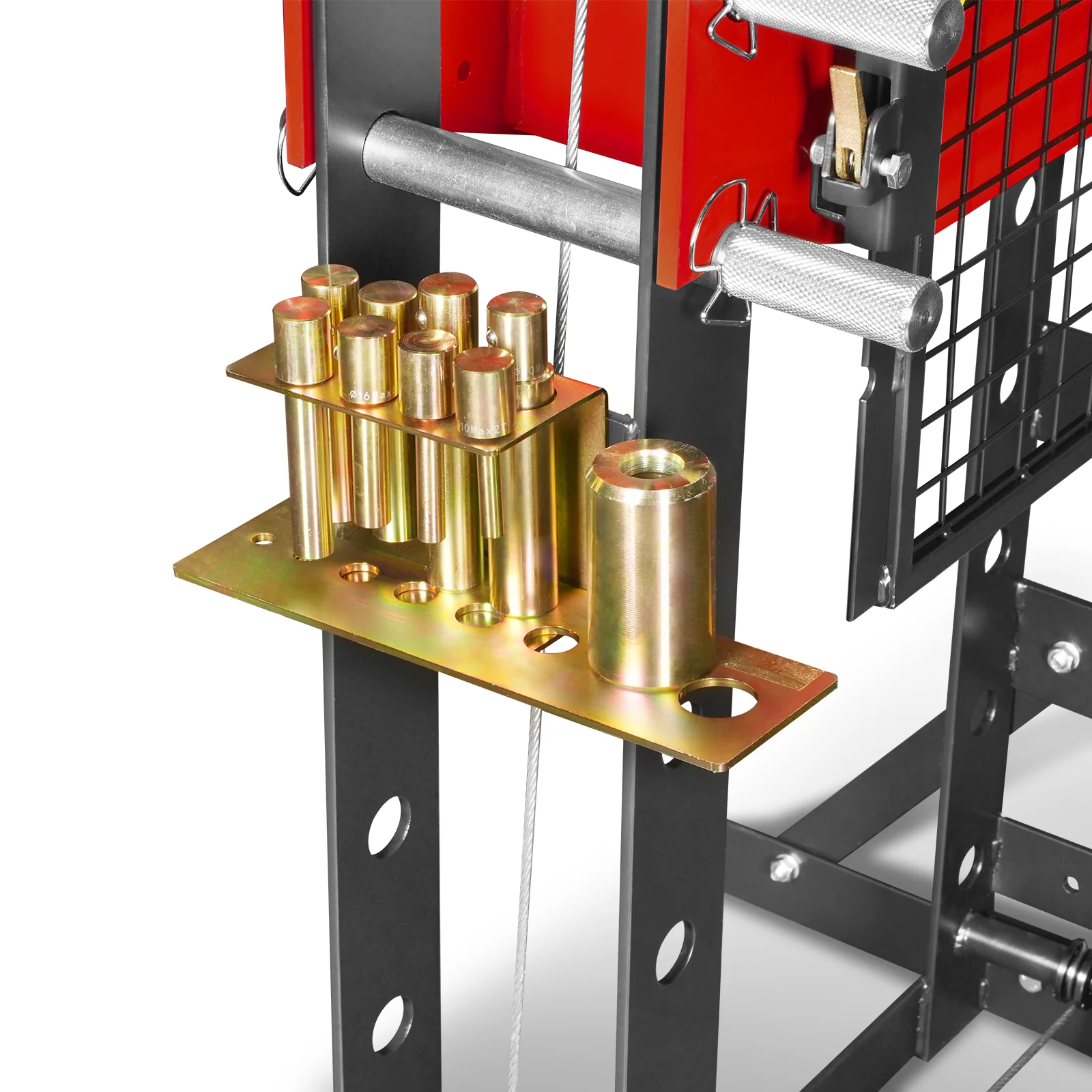

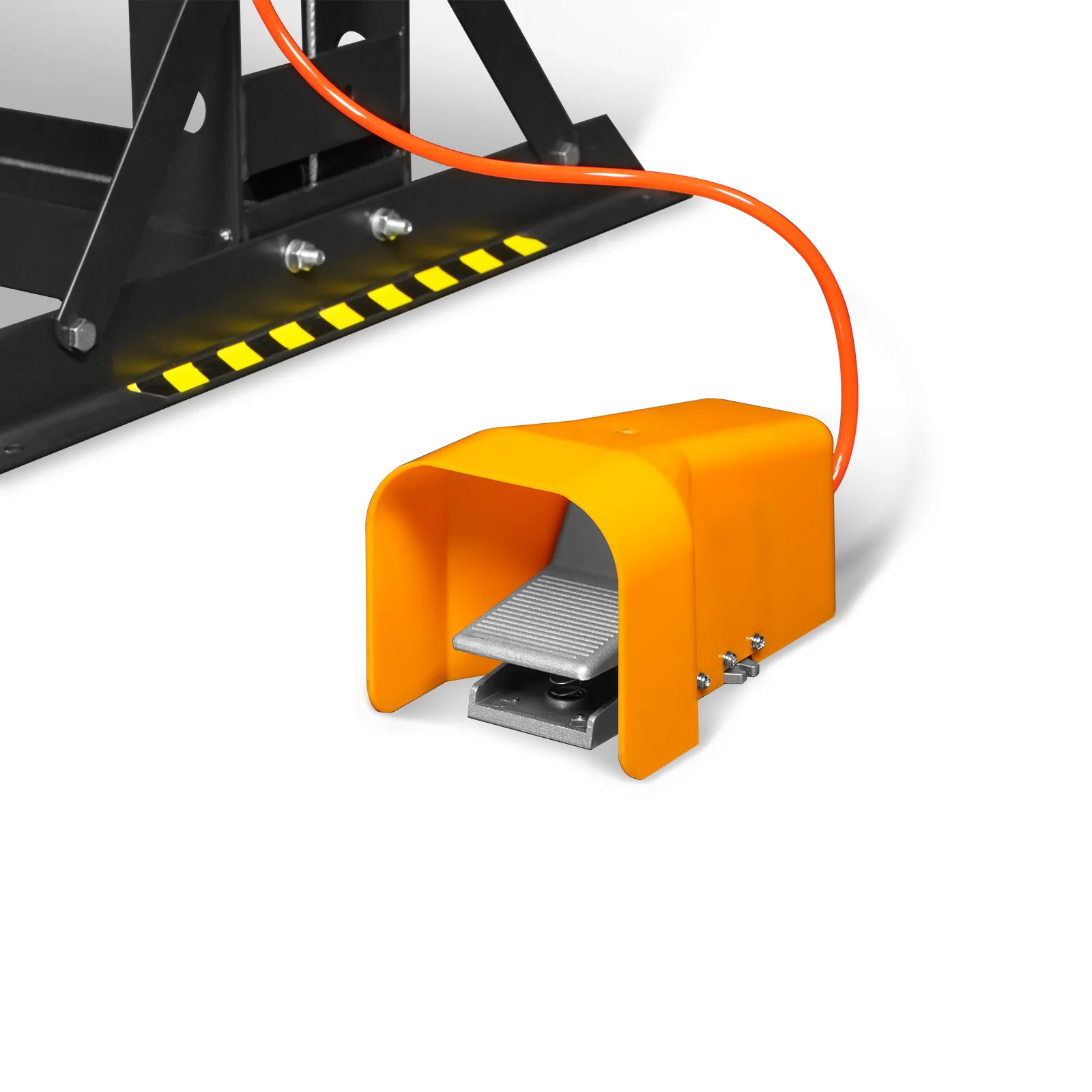

Bed Height	8.3 in	Included Accessories	Press Pin Kit, Protective Grid Guard, Hand Winch, Foot Pedal Valve, V-Blocks
Minimum Ram to Bed	6.5 in	Packing Size (LxWxH)	74.4 x 29.5 x 13.0 in
Maximum Ram to Bed	44.3 in	Weight (N.W/G.W.)	385.8 lbs / 432.1 lbs
Ram Retraction	Twin Springs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
