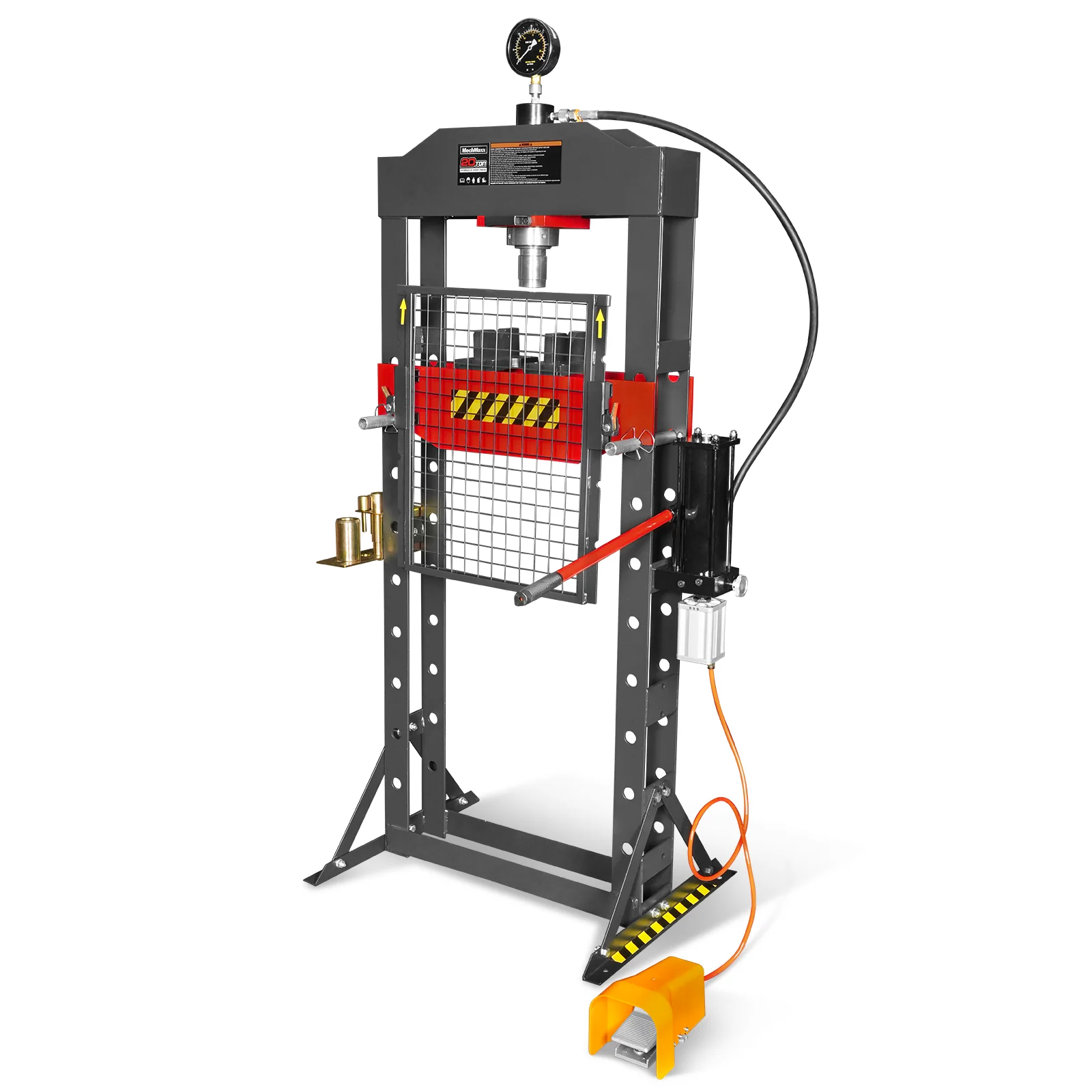

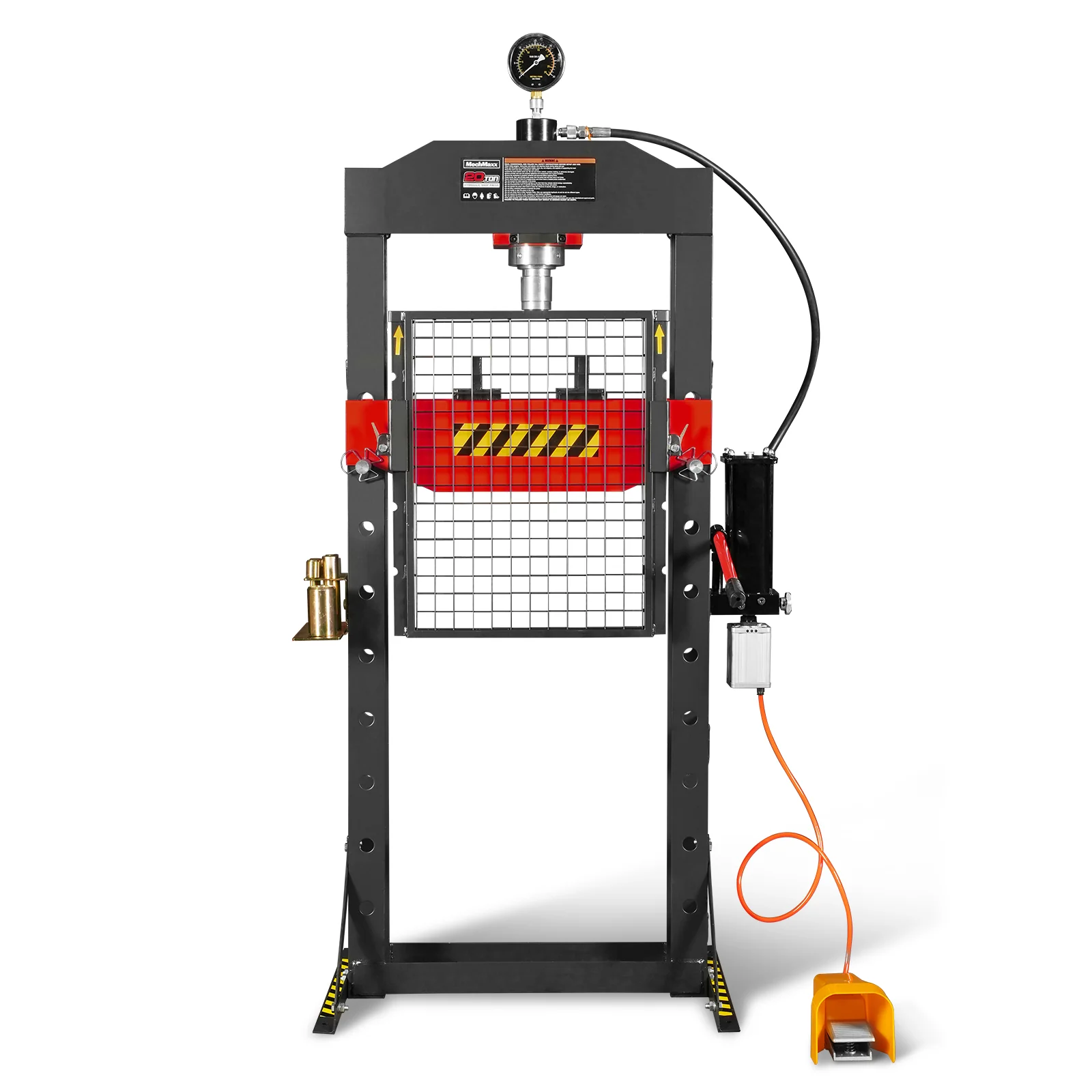

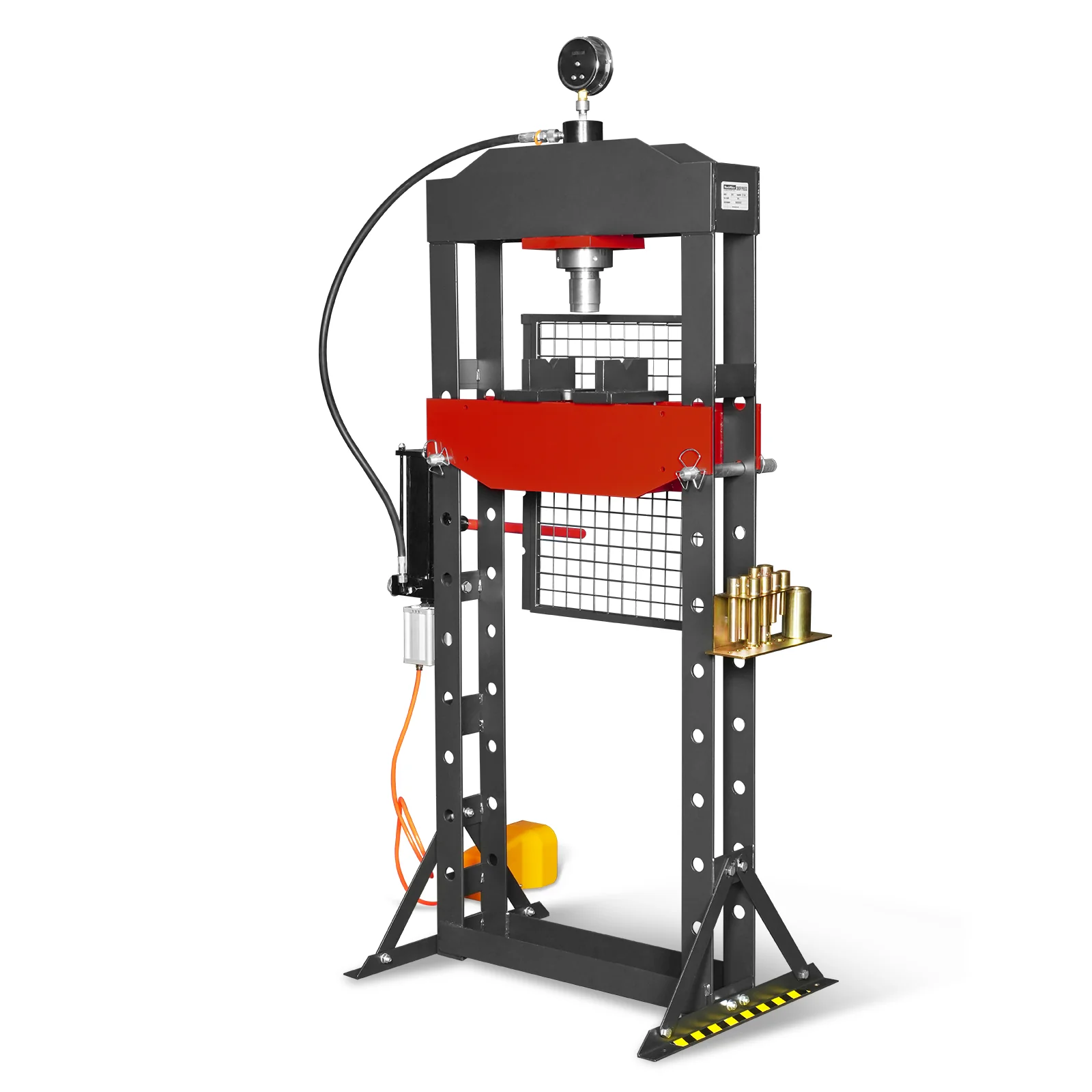

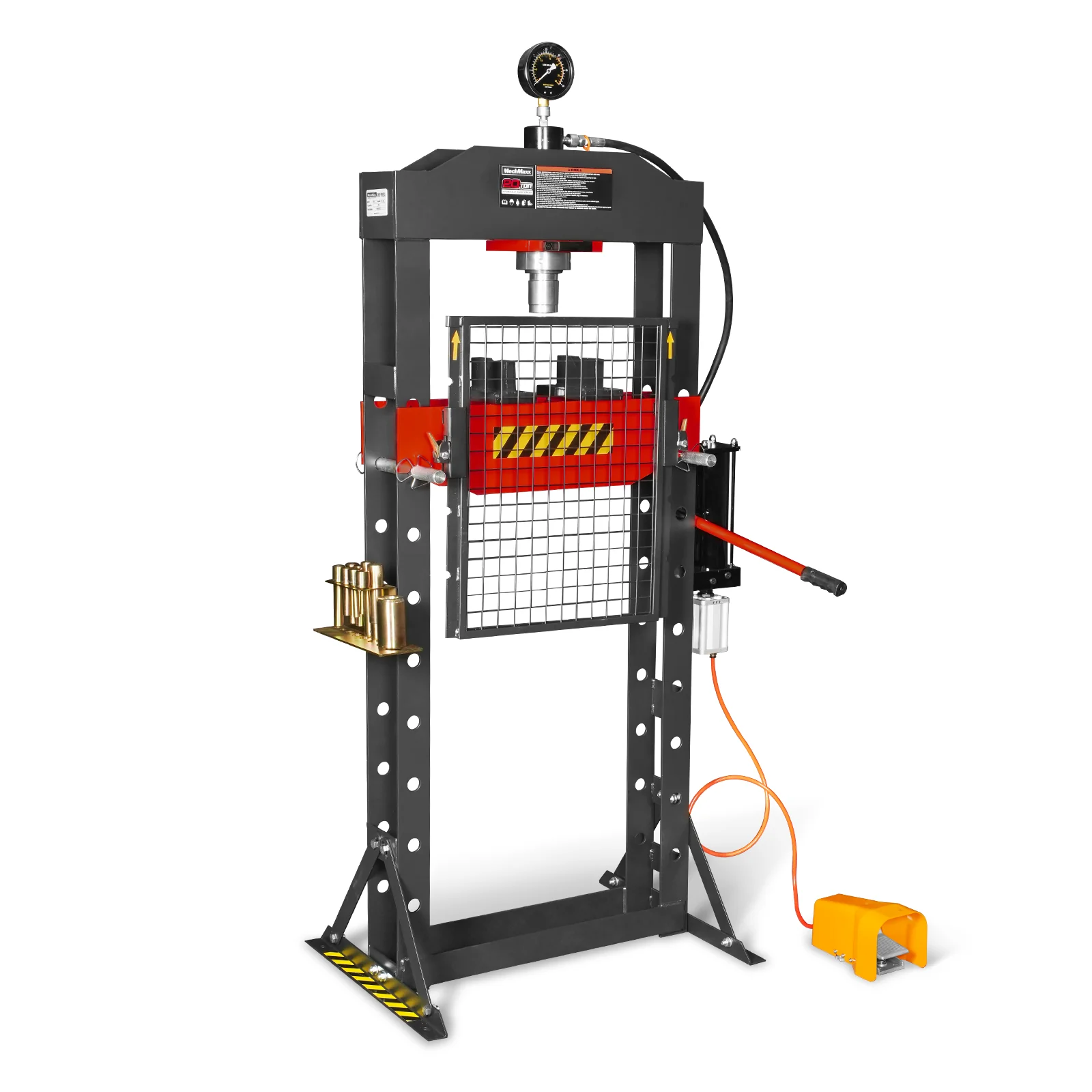

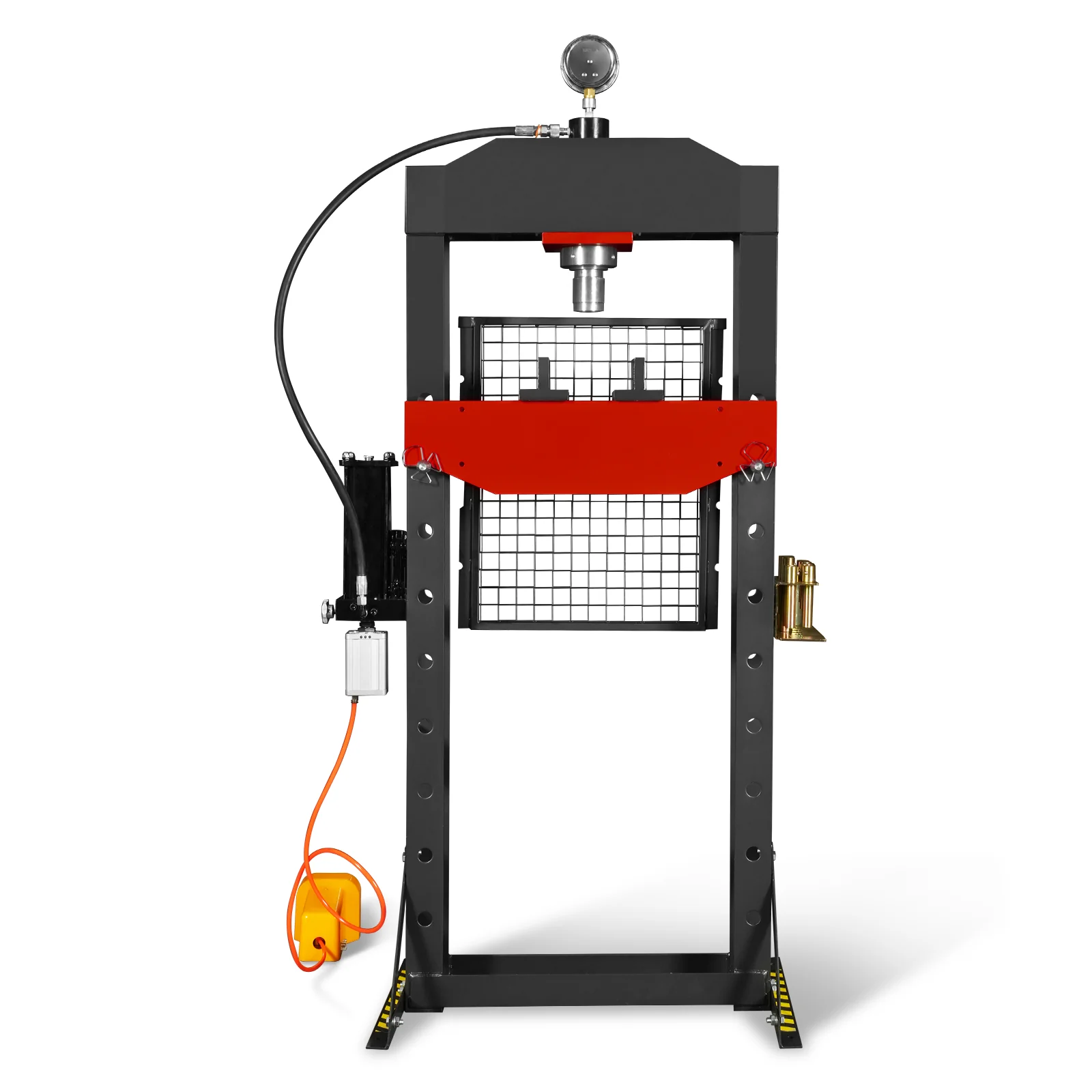

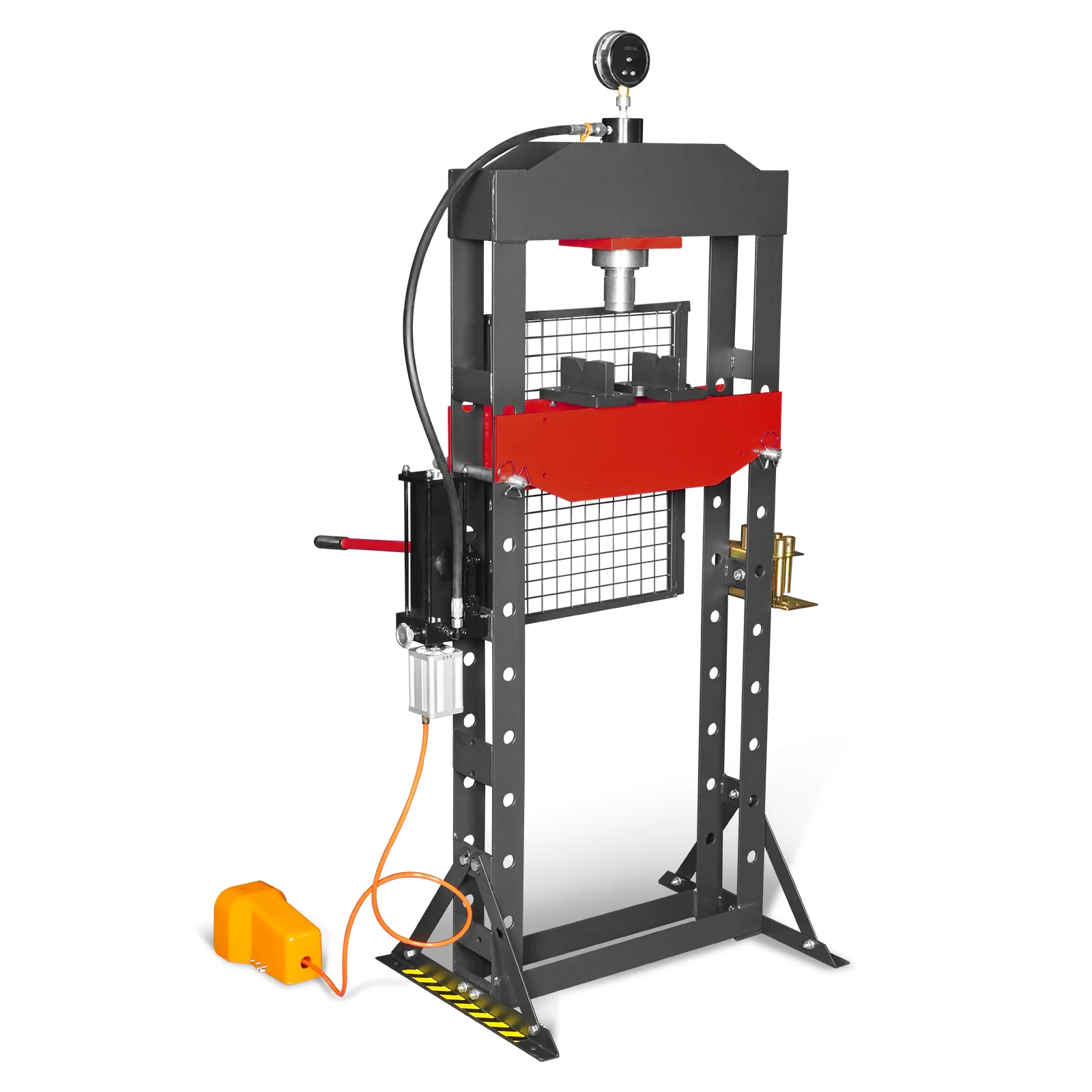

20 Ton H-Frame Air/Hydraulic Shop Press with Press Pin Kit, Fully Welded Steel Frame, Safety Guard, Foot Pedal Control, HSP20
20 Ton H-Frame Air/Hydraulic Shop Press with Press Pin Kit, Fully Welded Steel Frame, Safety Guard, Foot Pedal Control, HSP20

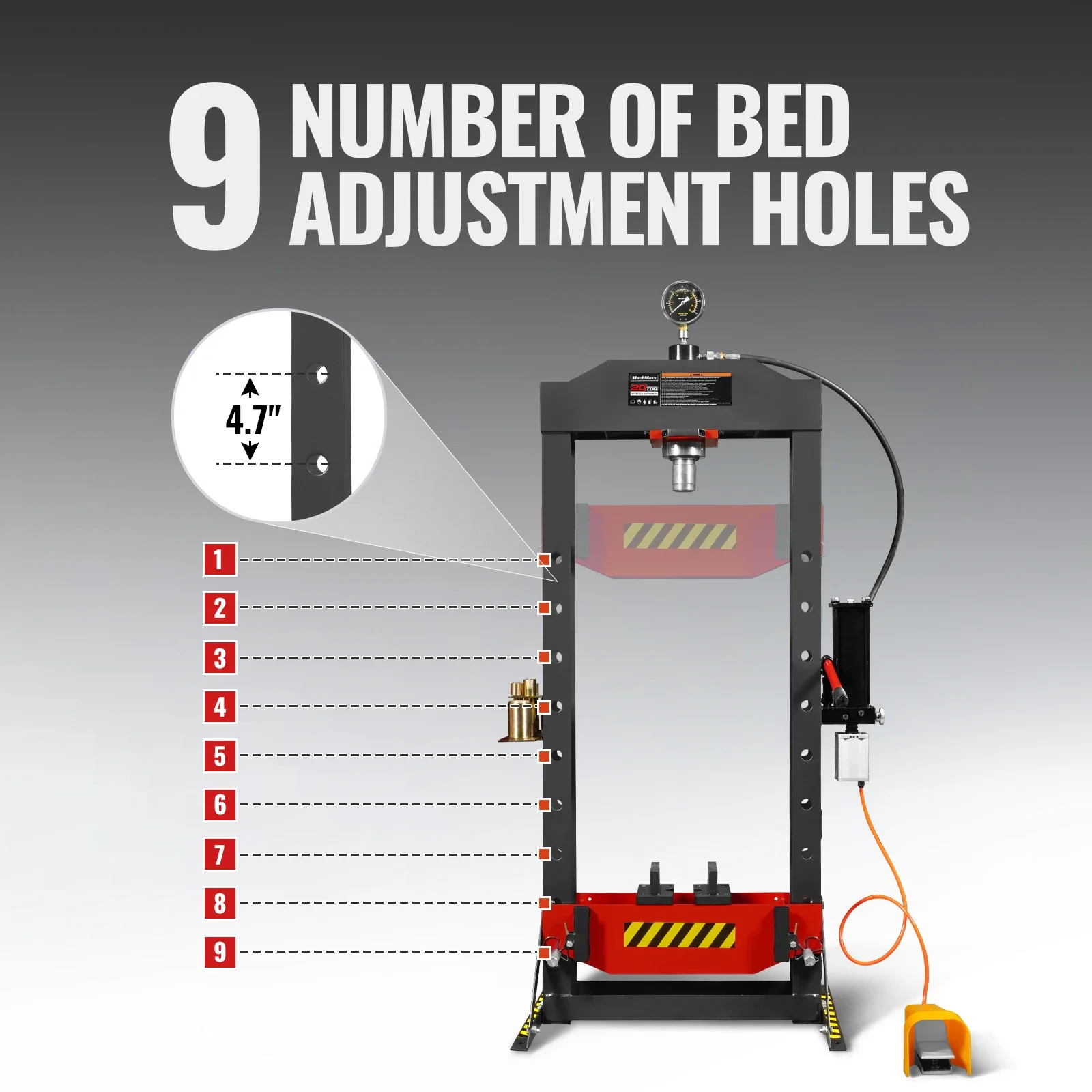

| Rated Capacity | 20 Tons | Number of Bed Adjustment Holes | 9 |

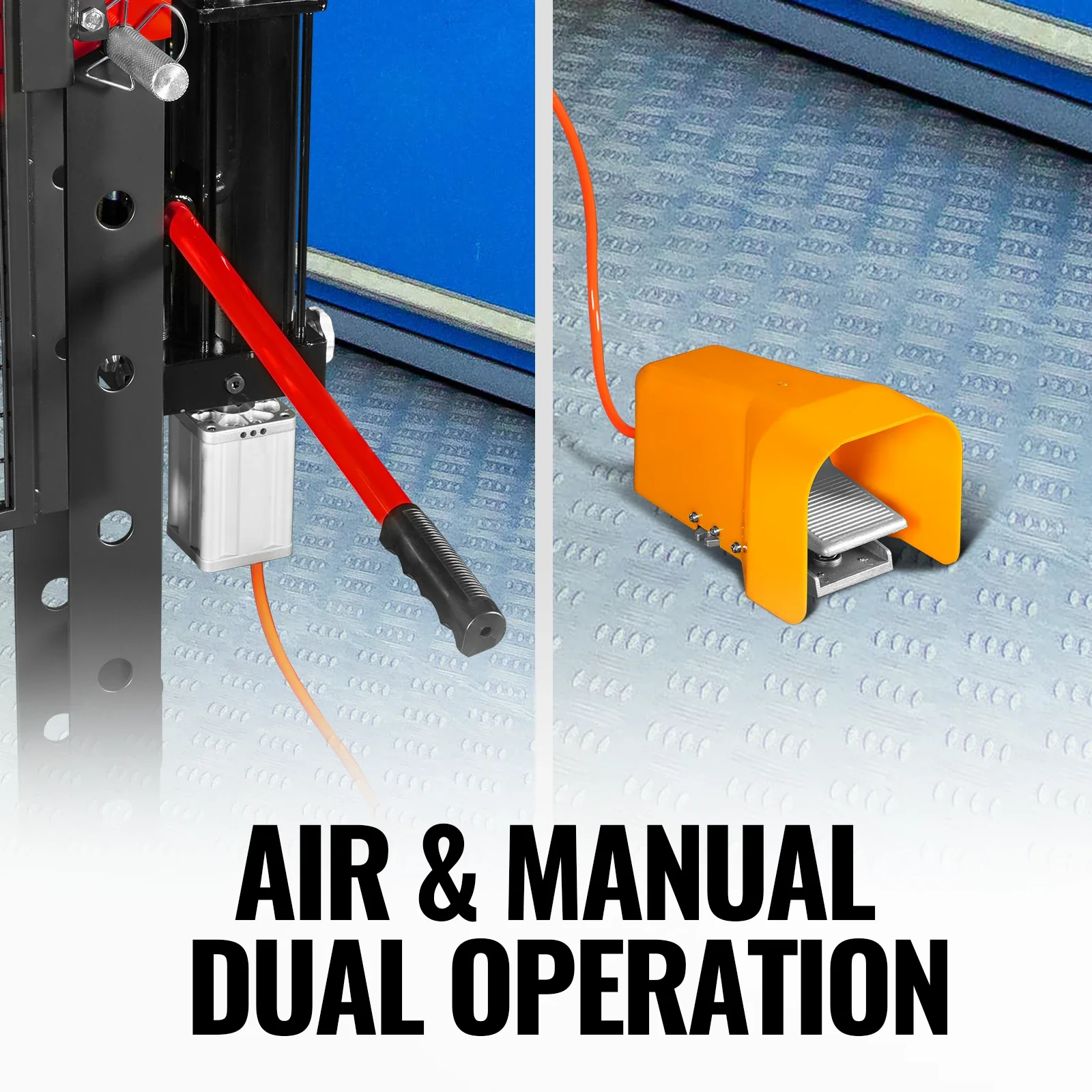

| Operation Type | Air & Manual Dual Operation | Bed Adjustment Hole Spacing | 4.7 in |

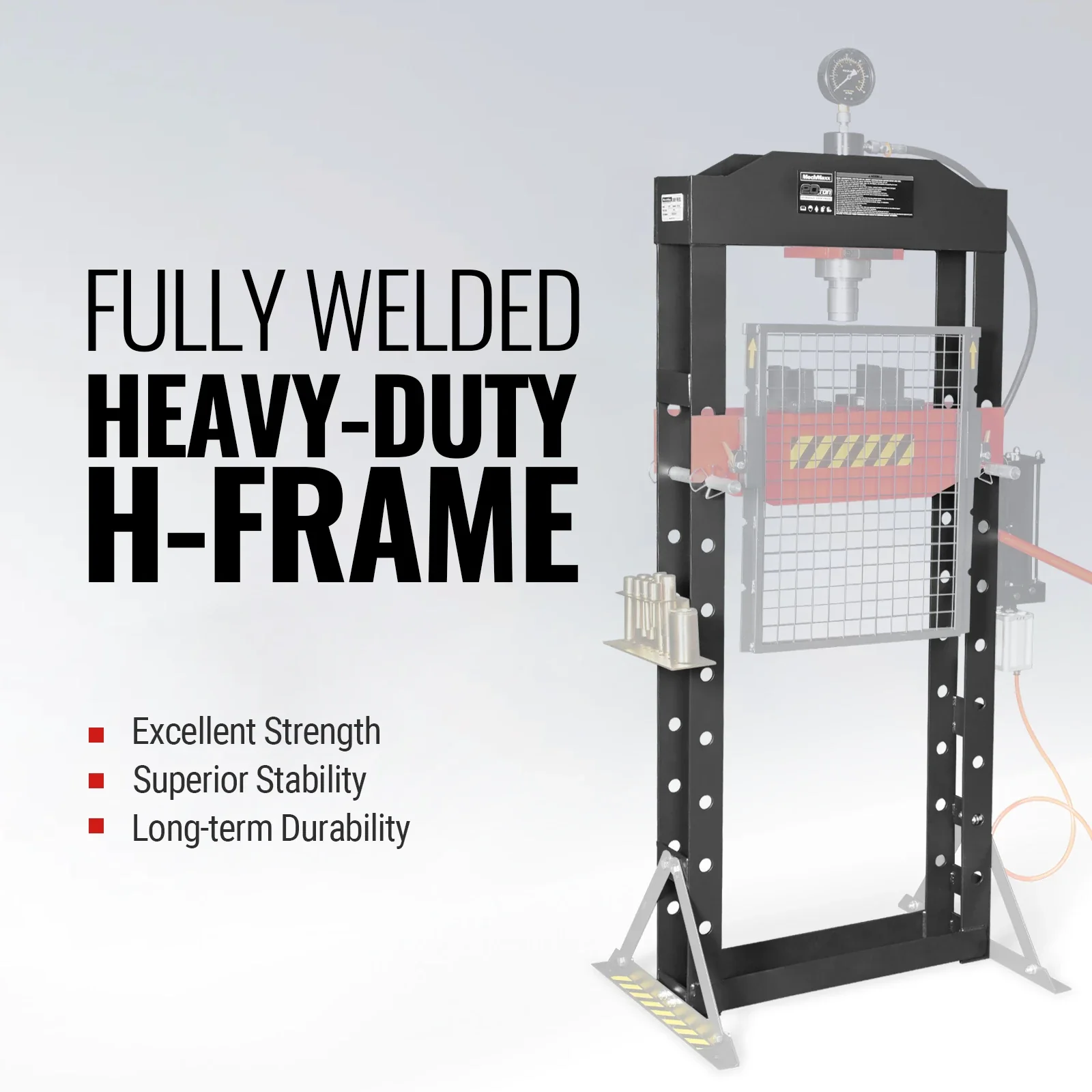

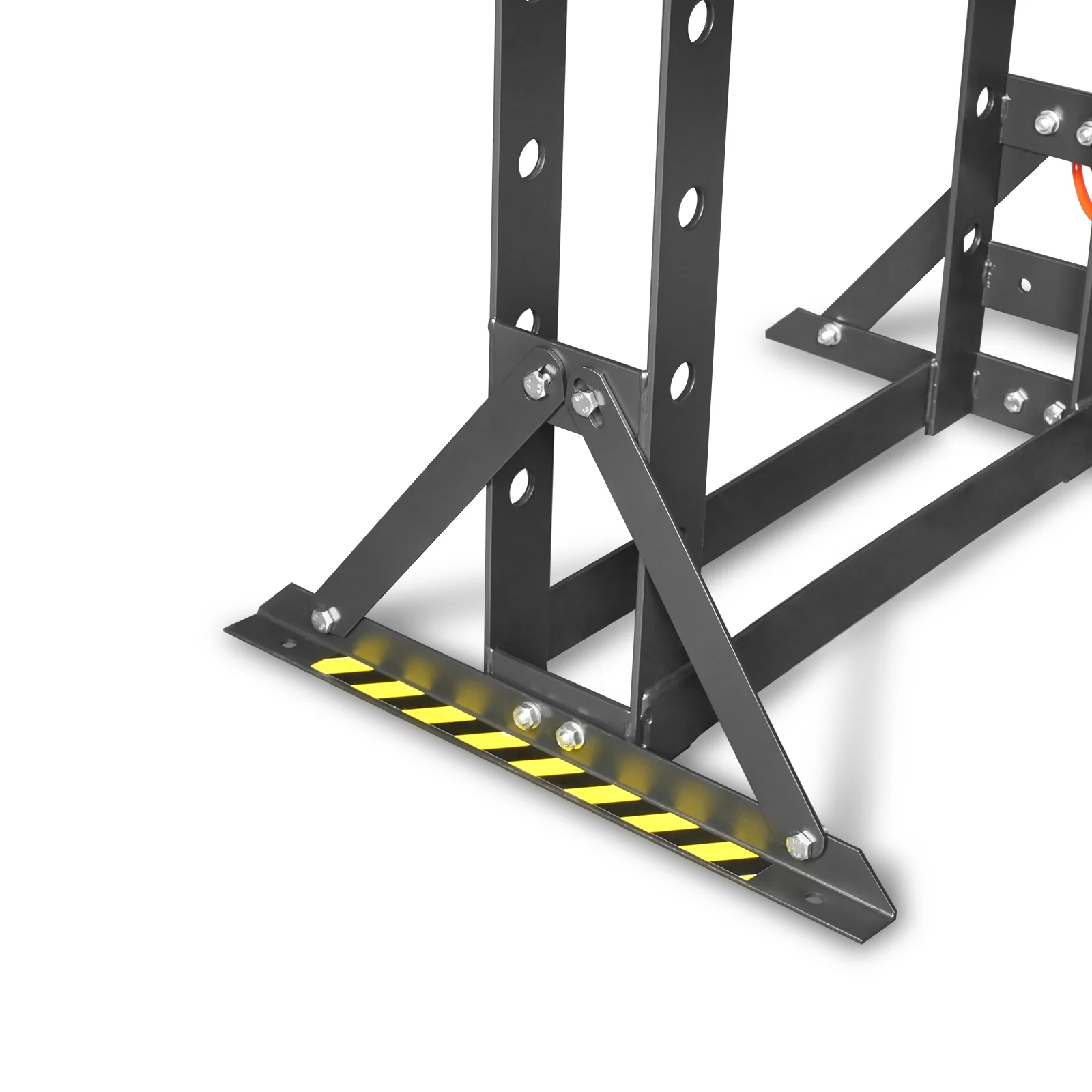

| Air Pressure | 110-125 PSI | Frame Construction | Fully Welded Heavy-Duty H-Frame |

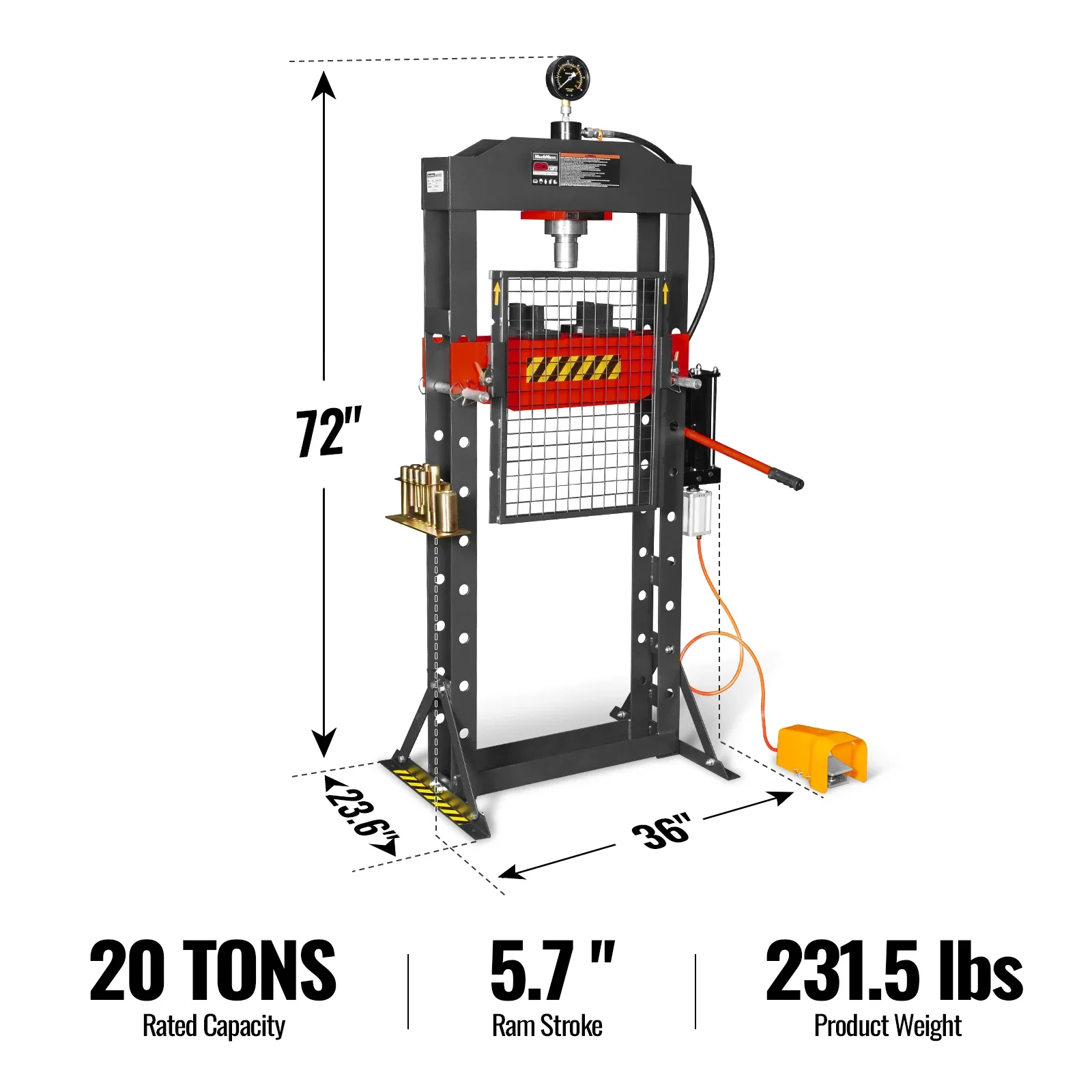

| Ram Stroke | 5.7 in | Assembled Size (H x D x W) | 72 x 23.6 x 36 in |

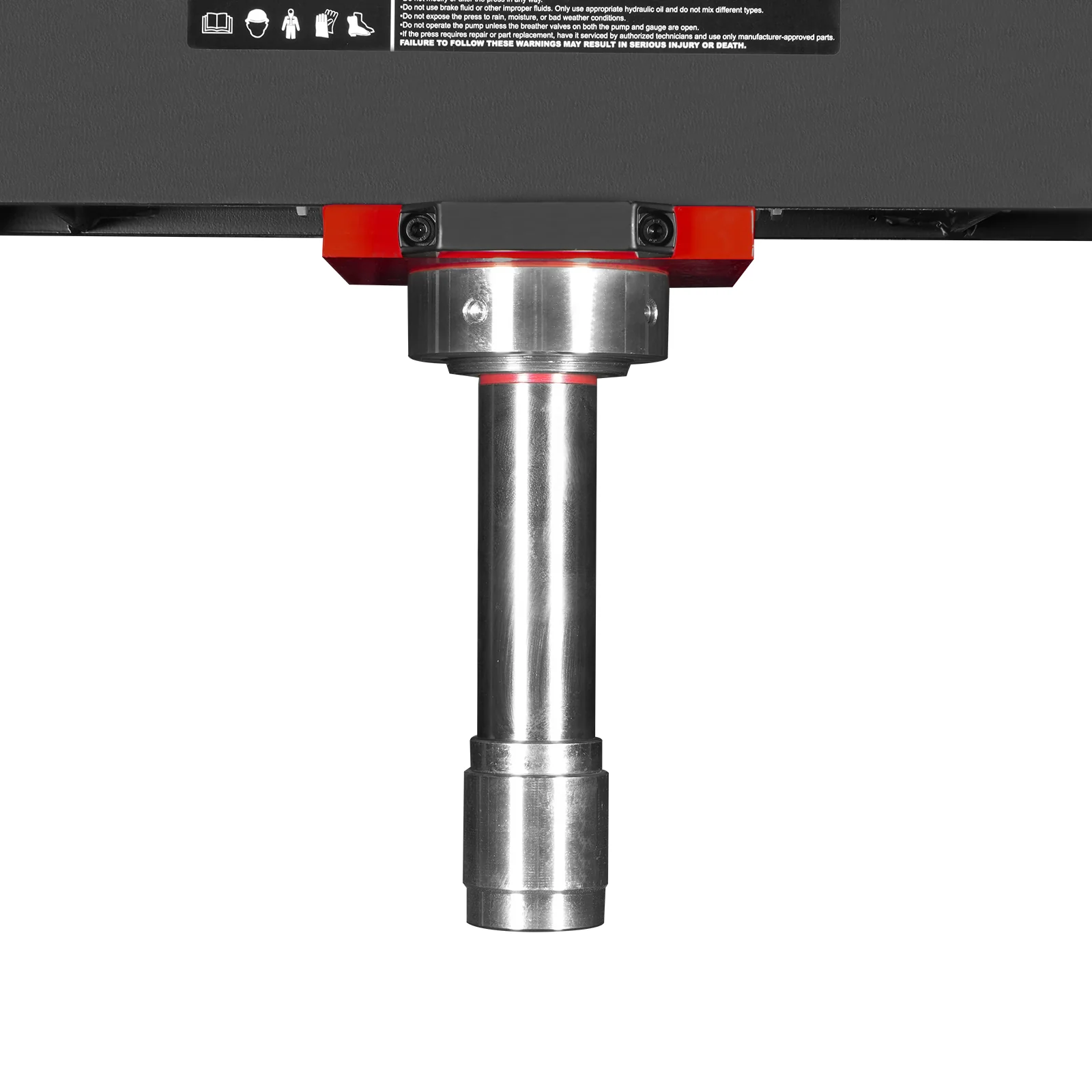

| Ram Diameter | 1.9 in | Internal Frame Width | 21.3 in |

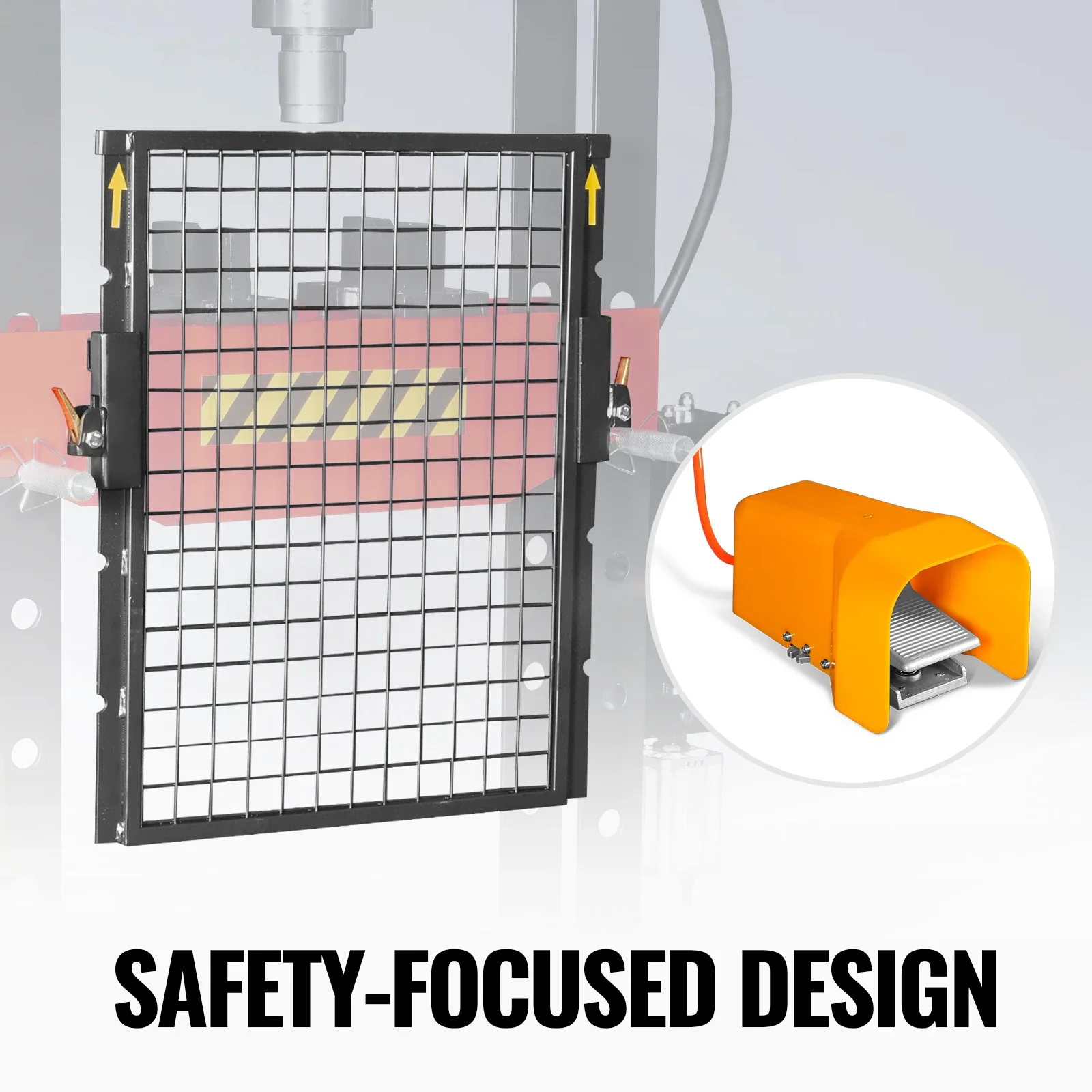

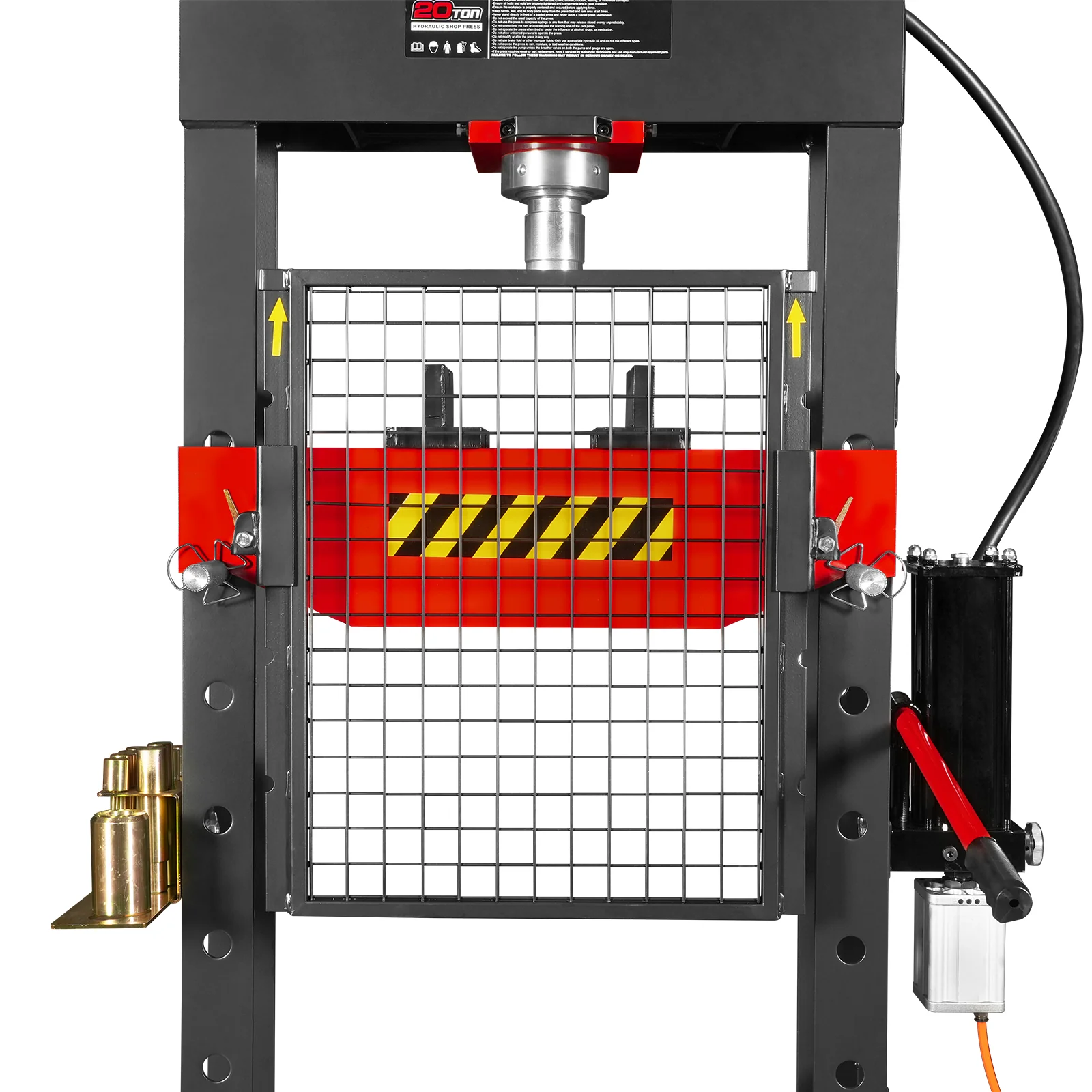

| Cylinder Bore | 2.4 in | Protective Grid Guard Size | 24 x 20 in |

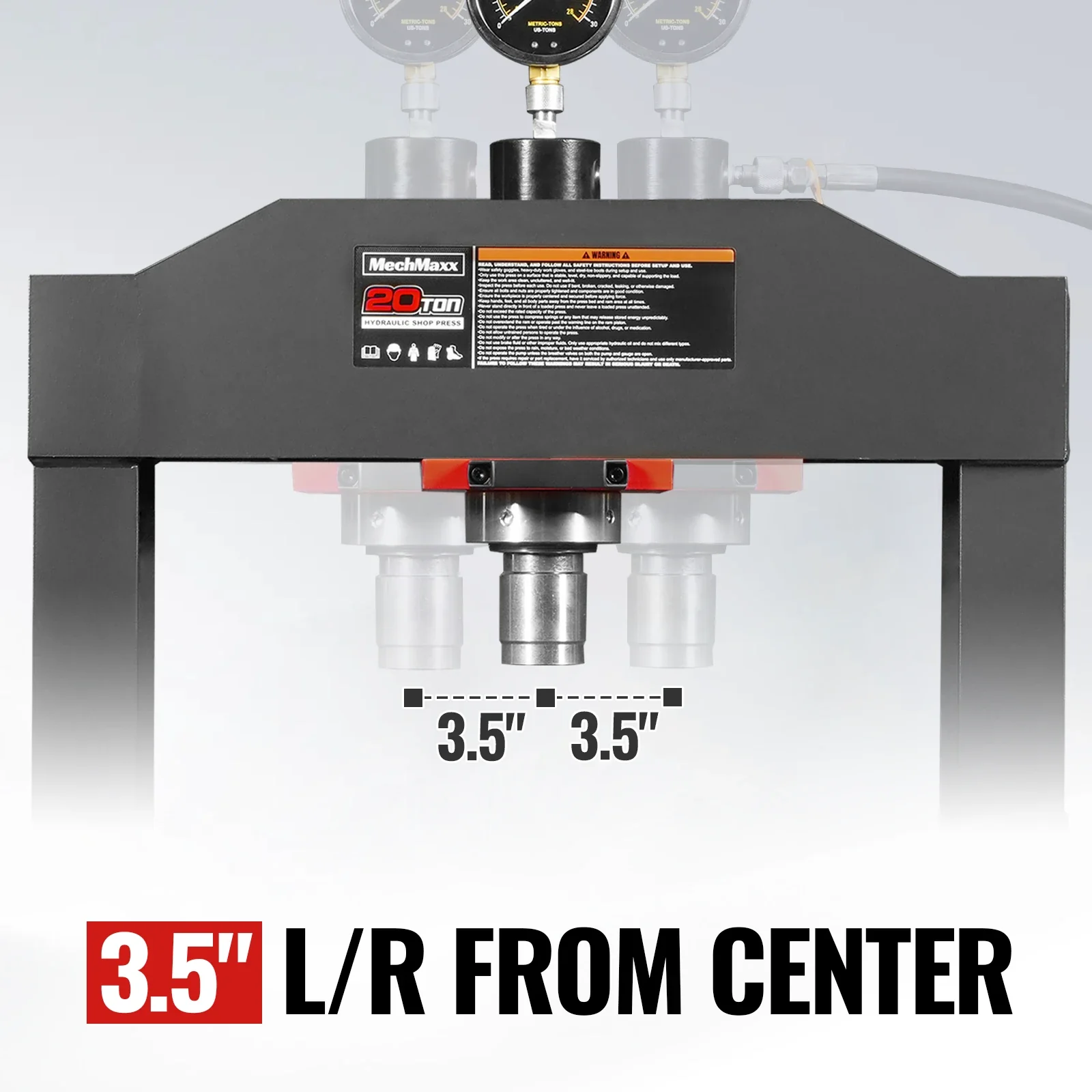

| Ram Range of Movement | 3.5 in Left / Right from Center | Recommended Hydraulic Oil | AW32 Hydraulic Oil |

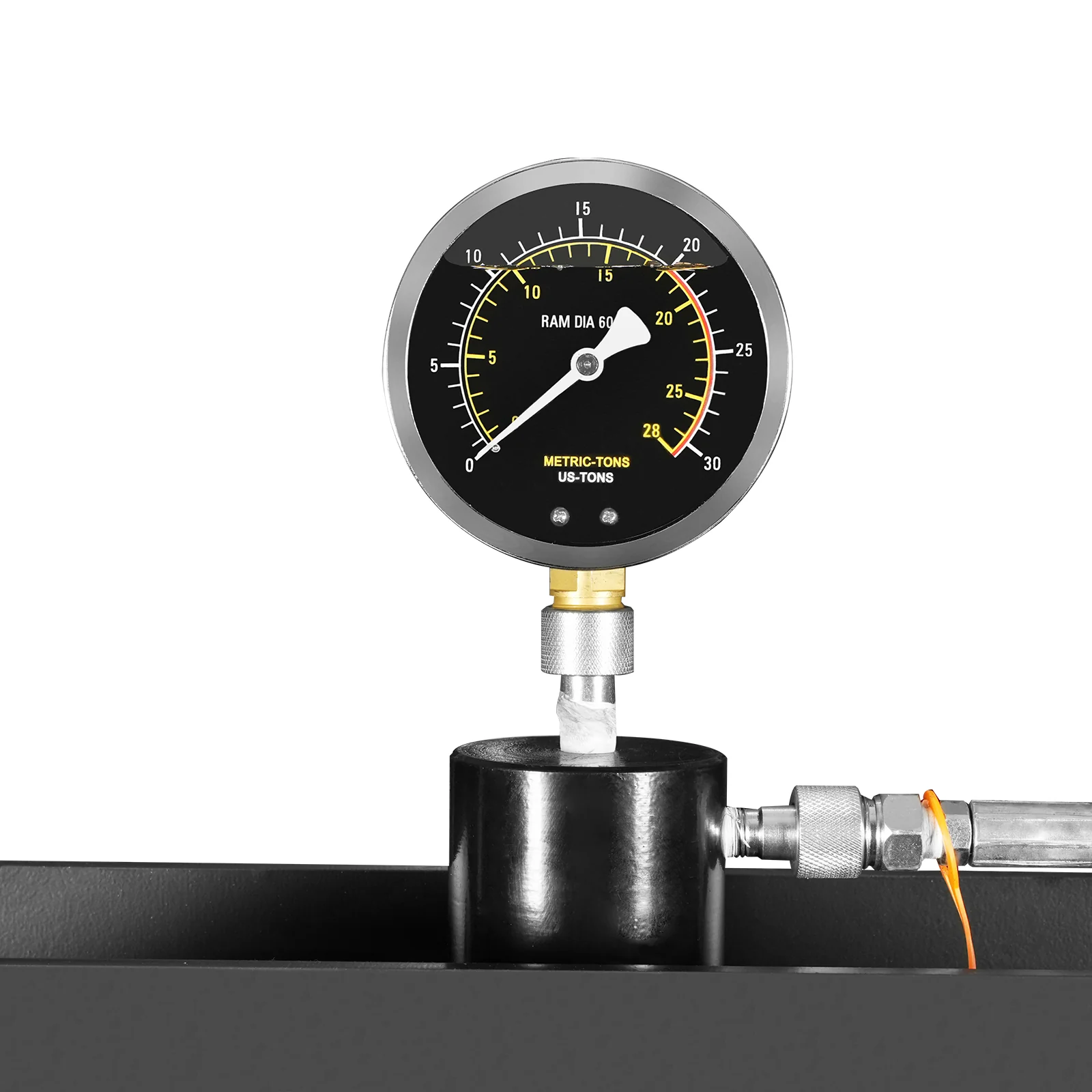

| Bed Depth | 6.3 in | Gauge Type | 4 in Oil-Filled Pressure Gauge |

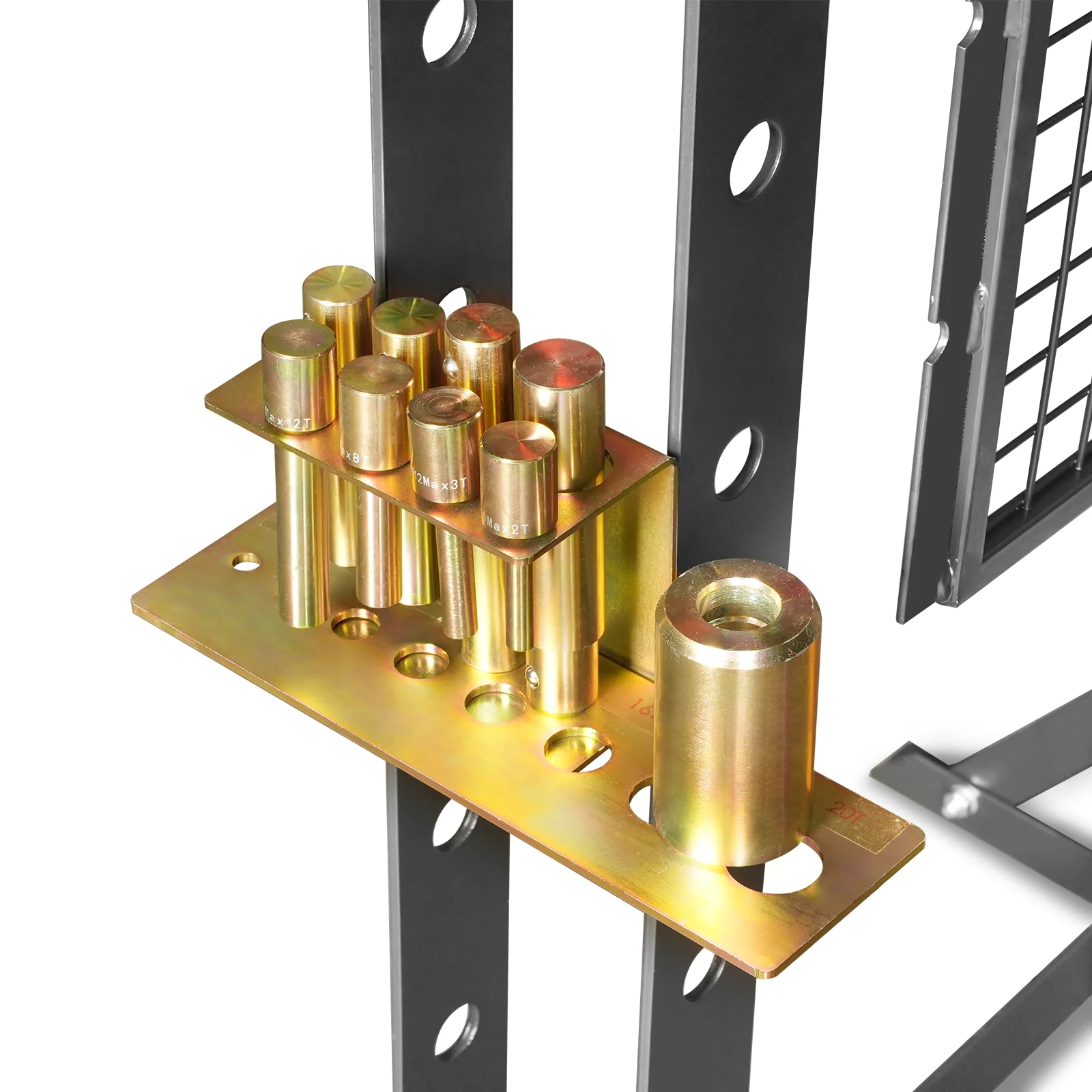

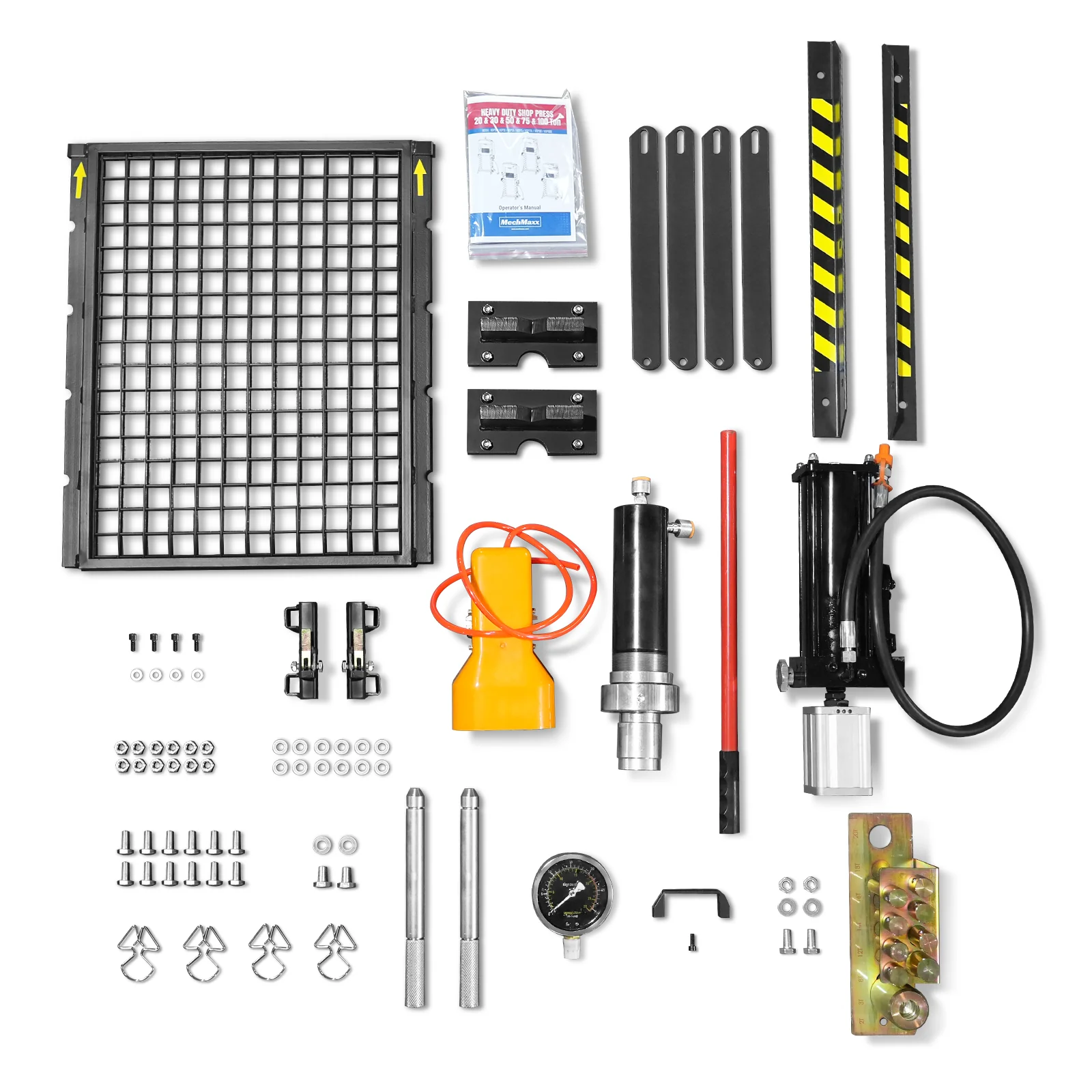

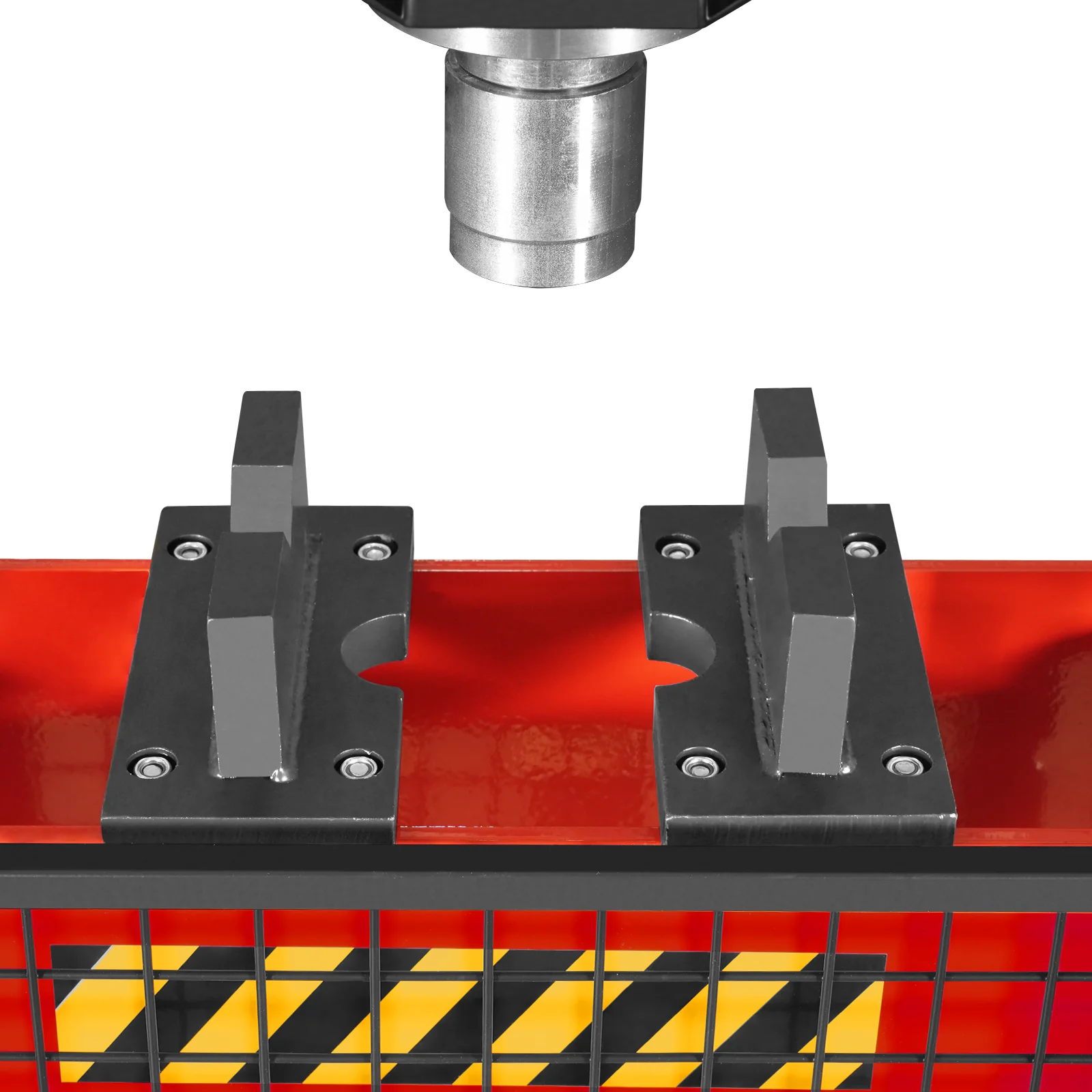

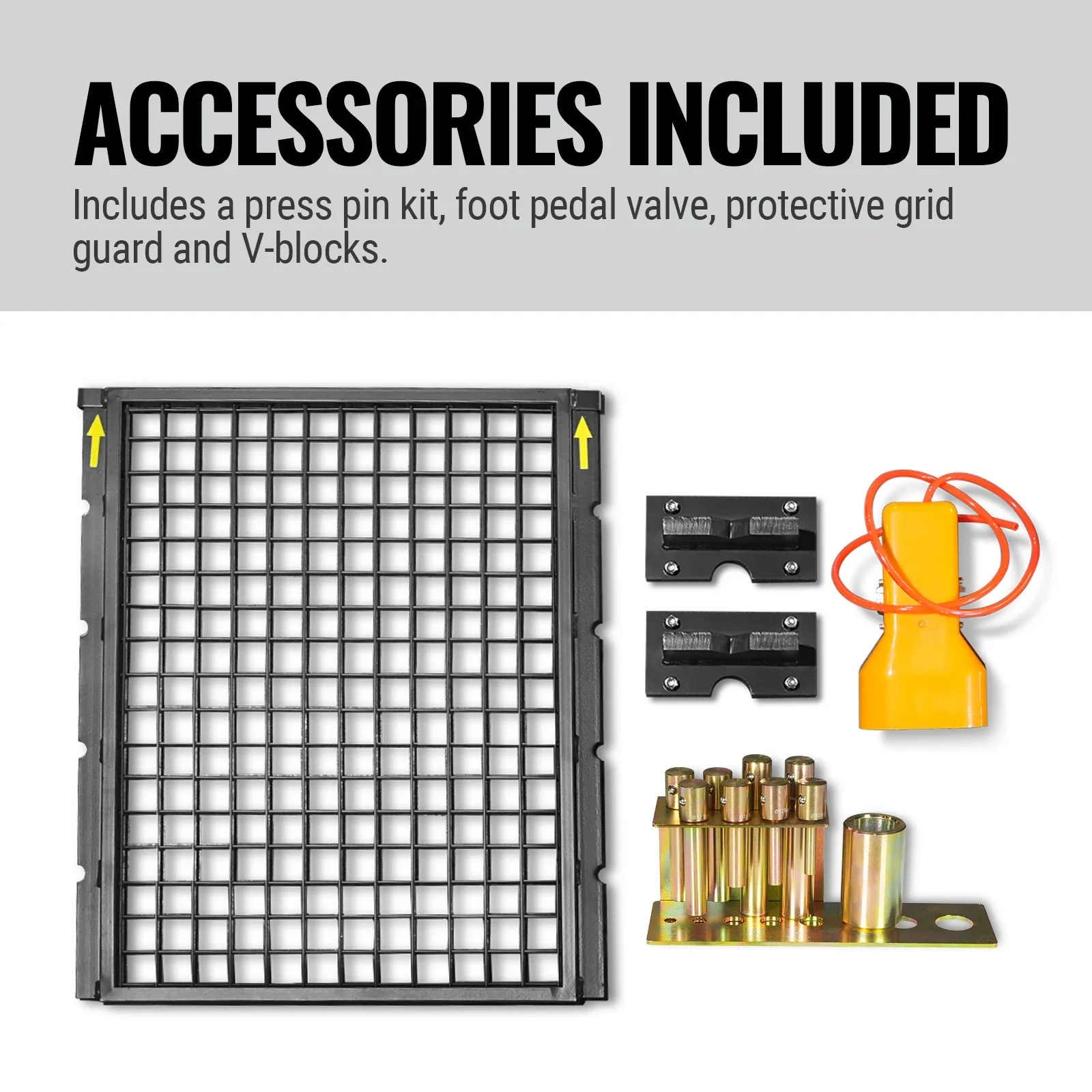

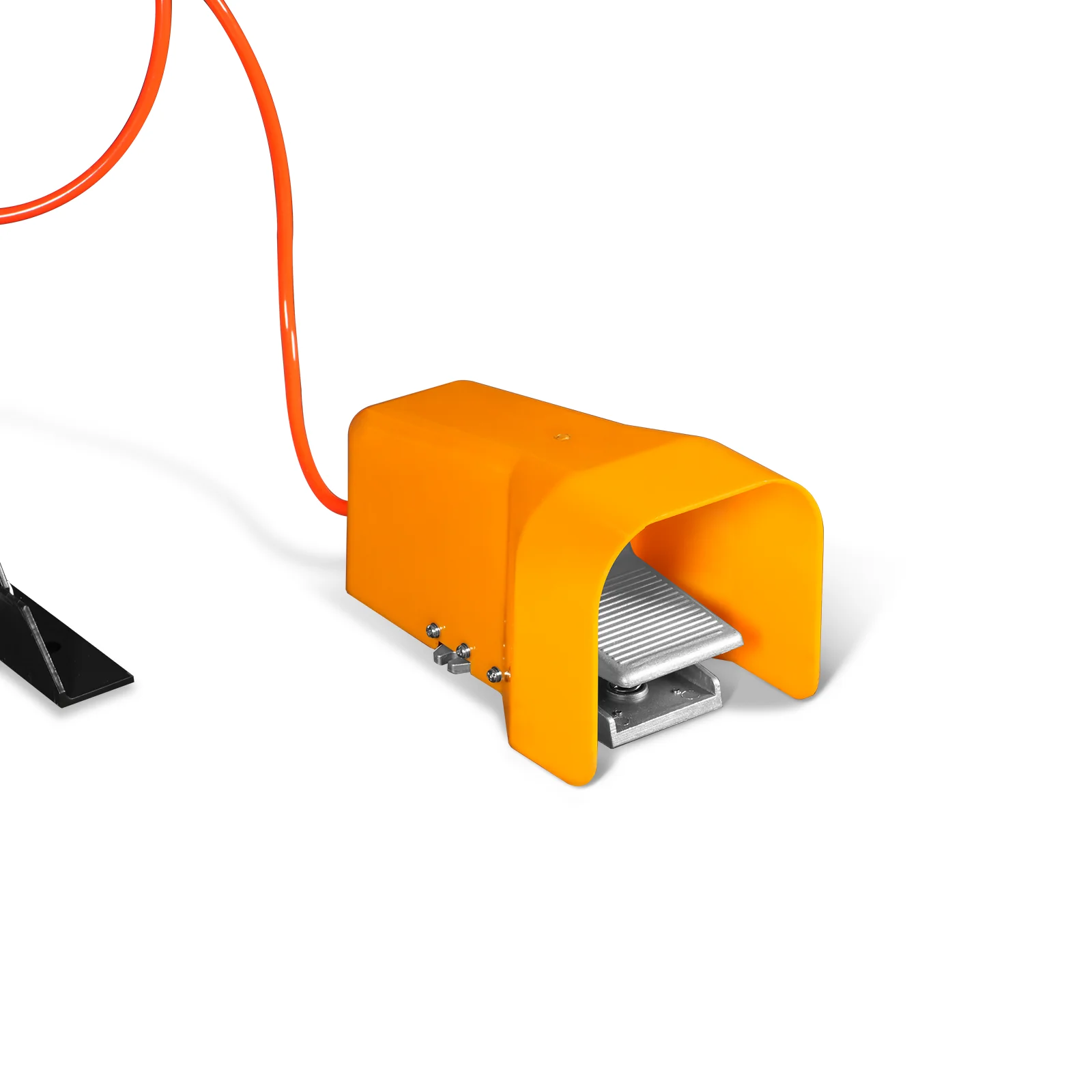

| Bed Height | 6.7 in | Included Accessories | Press Pin Kit, Protective Grid Guard,Ā Foot Pedal Valve, V-Blocks |
| Minimum Ram to Bed | 2.3 in | Packing Size (LxWxH) | 67.7 x 28.7 x 11.0 in |
| Maximum Ram to Bed | 40.1 in | Weight (N.W/G.W.) | 231.5 lbs / 273.4 lbs |
| Ram Retraction | Twin Springs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go toĀ www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) Ā for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
