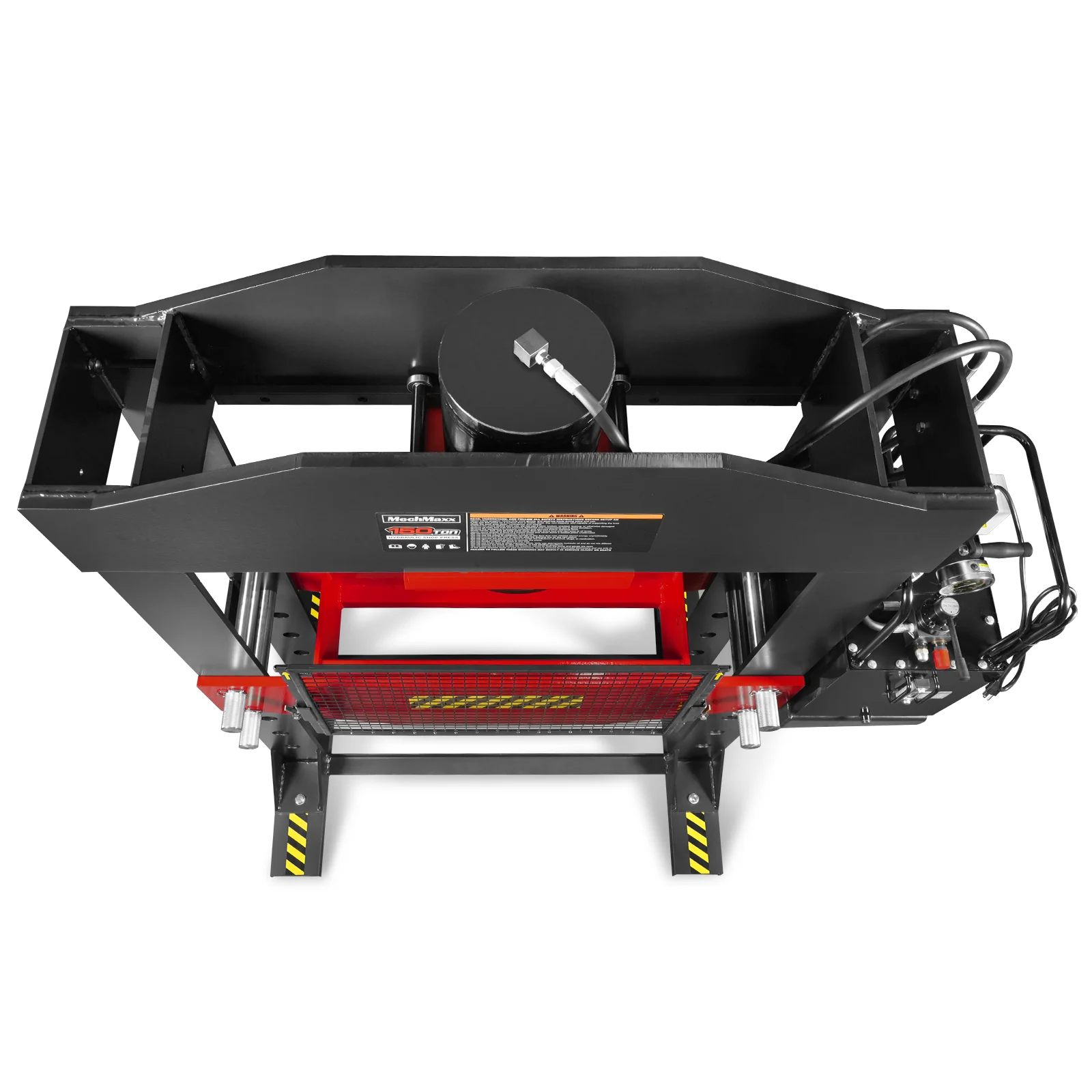

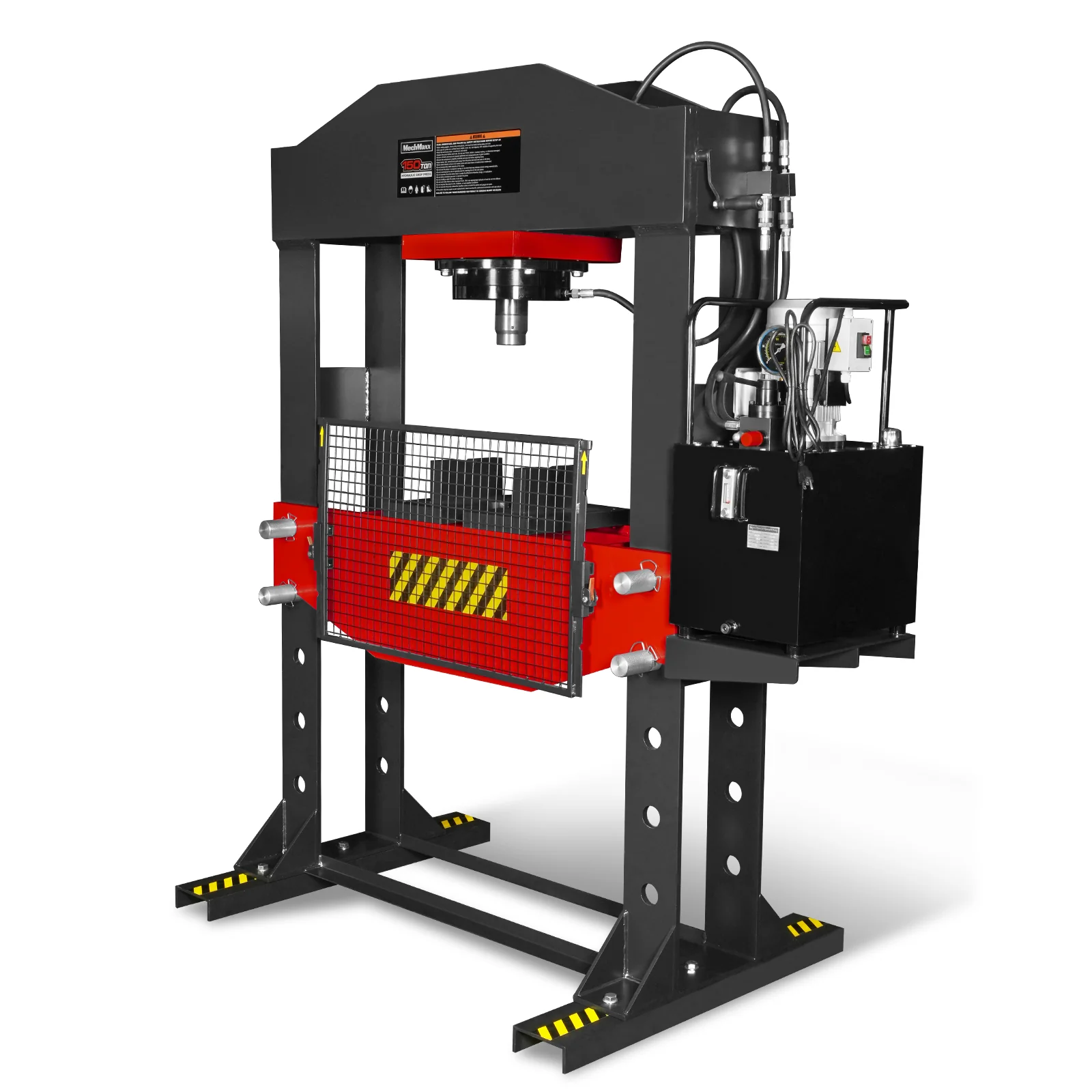

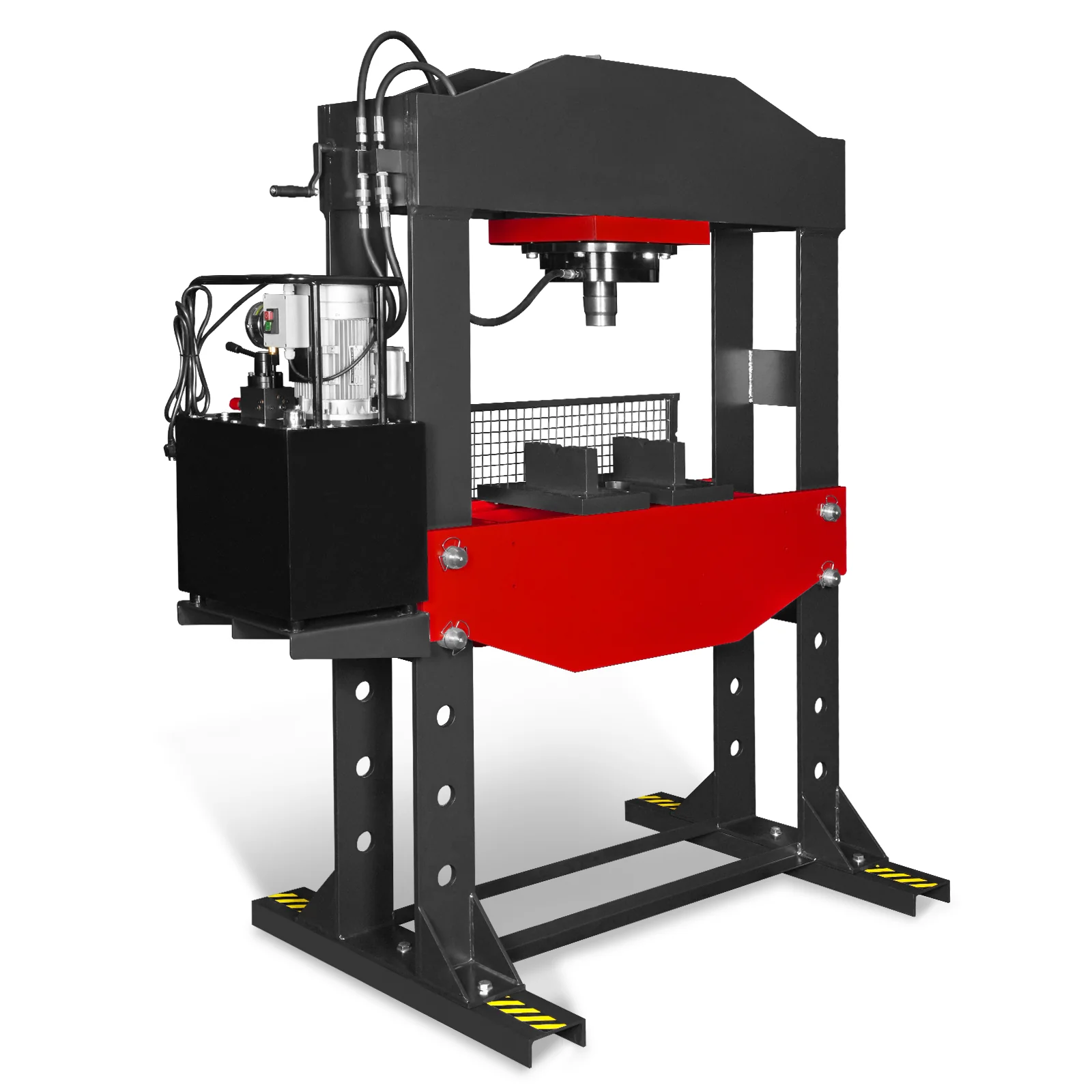

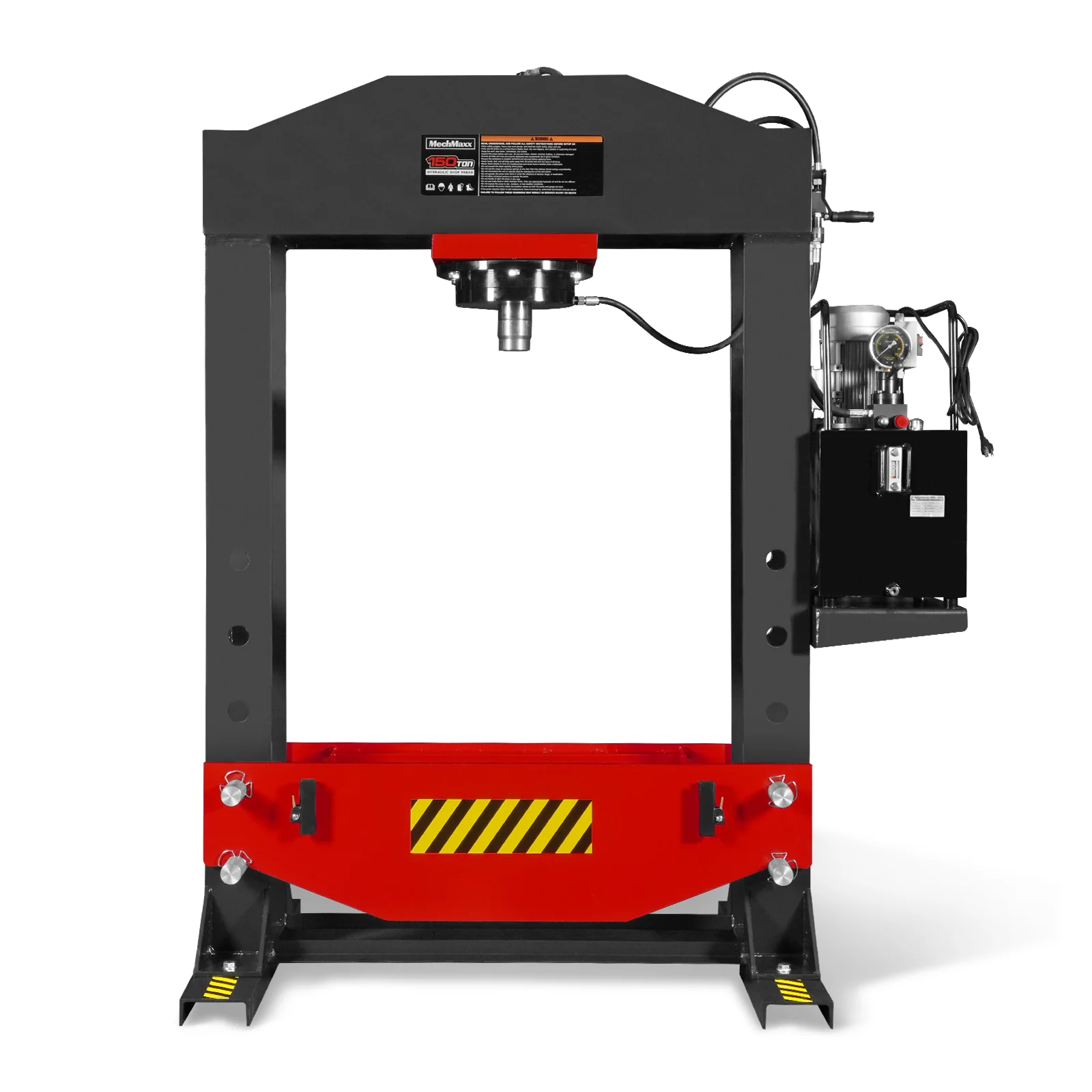

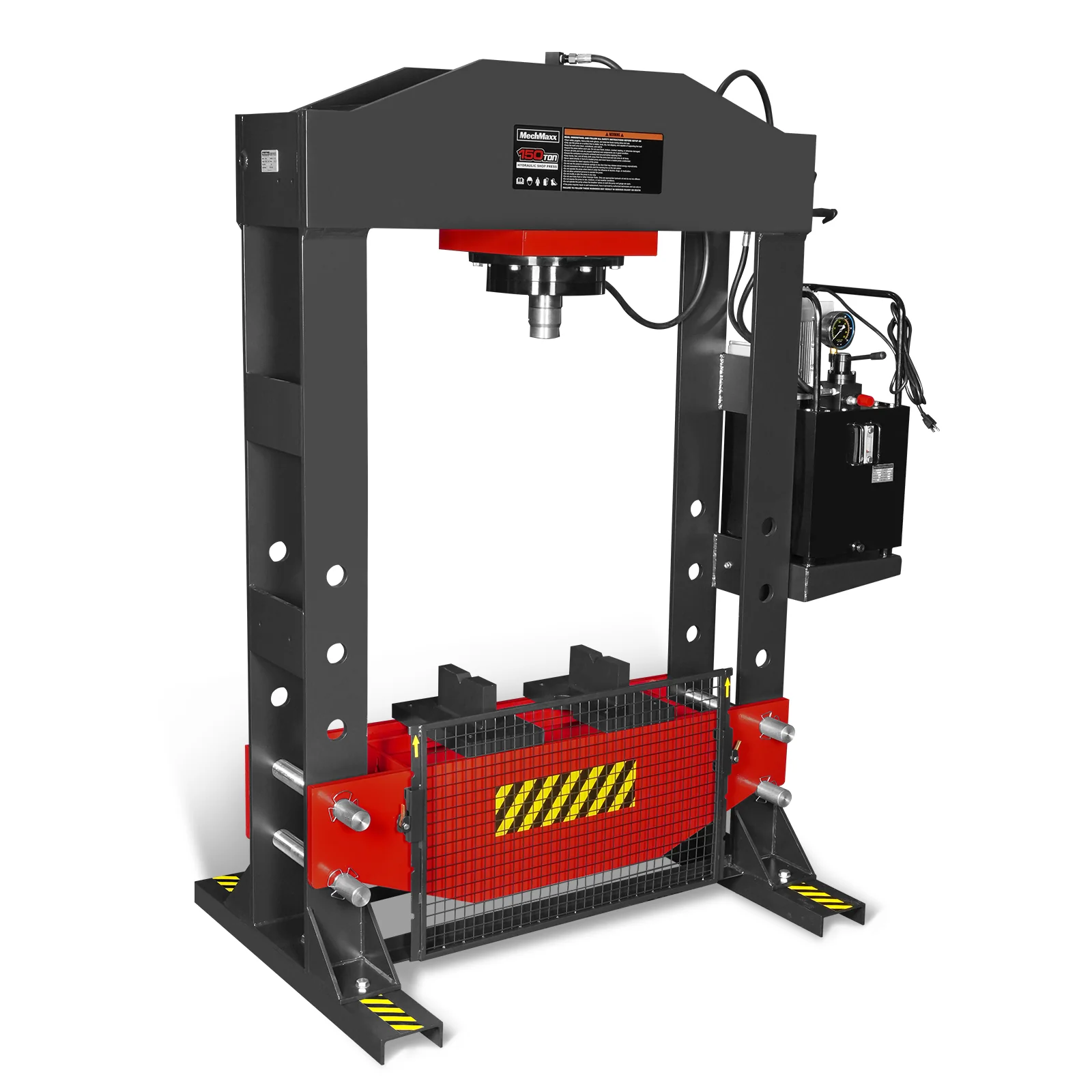

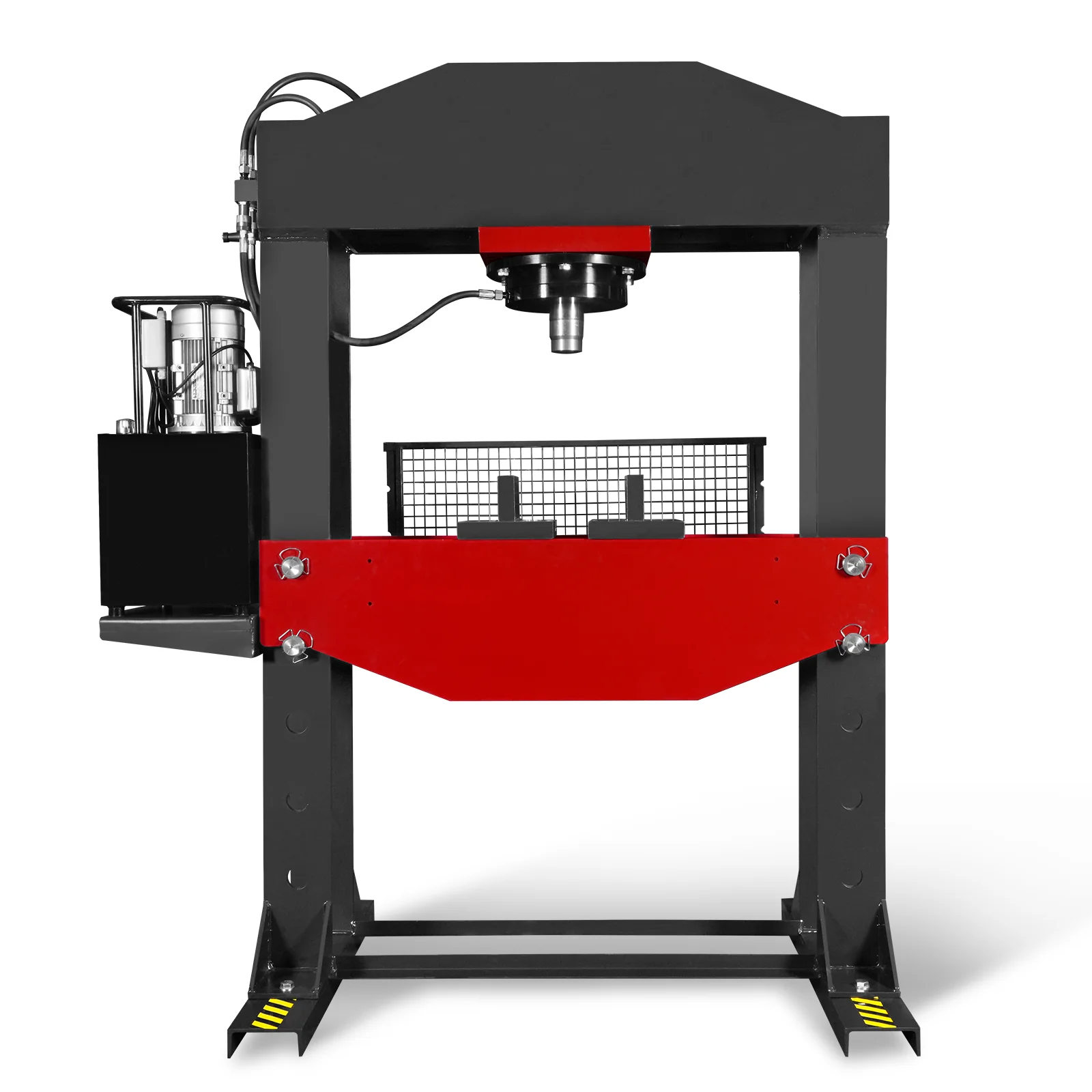

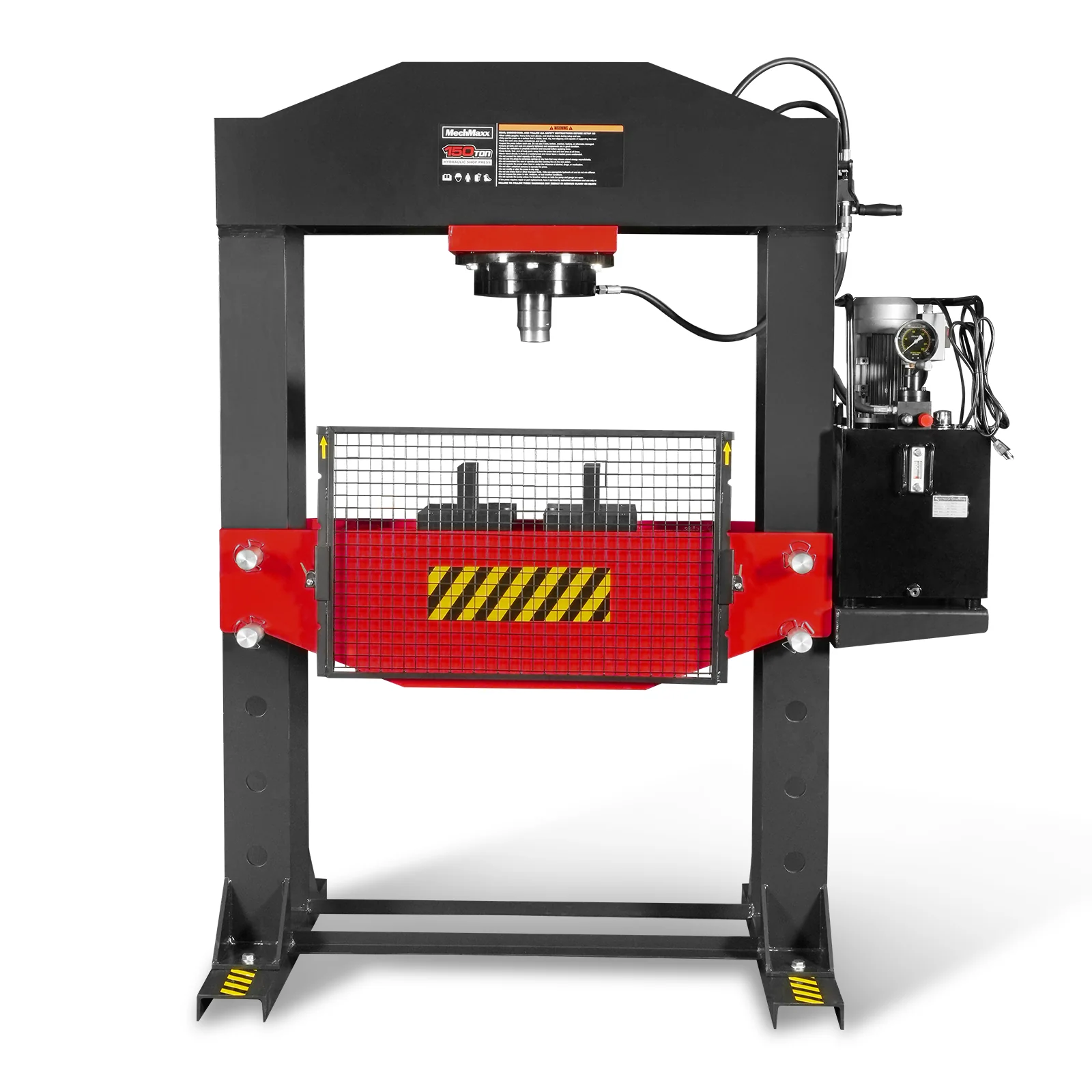

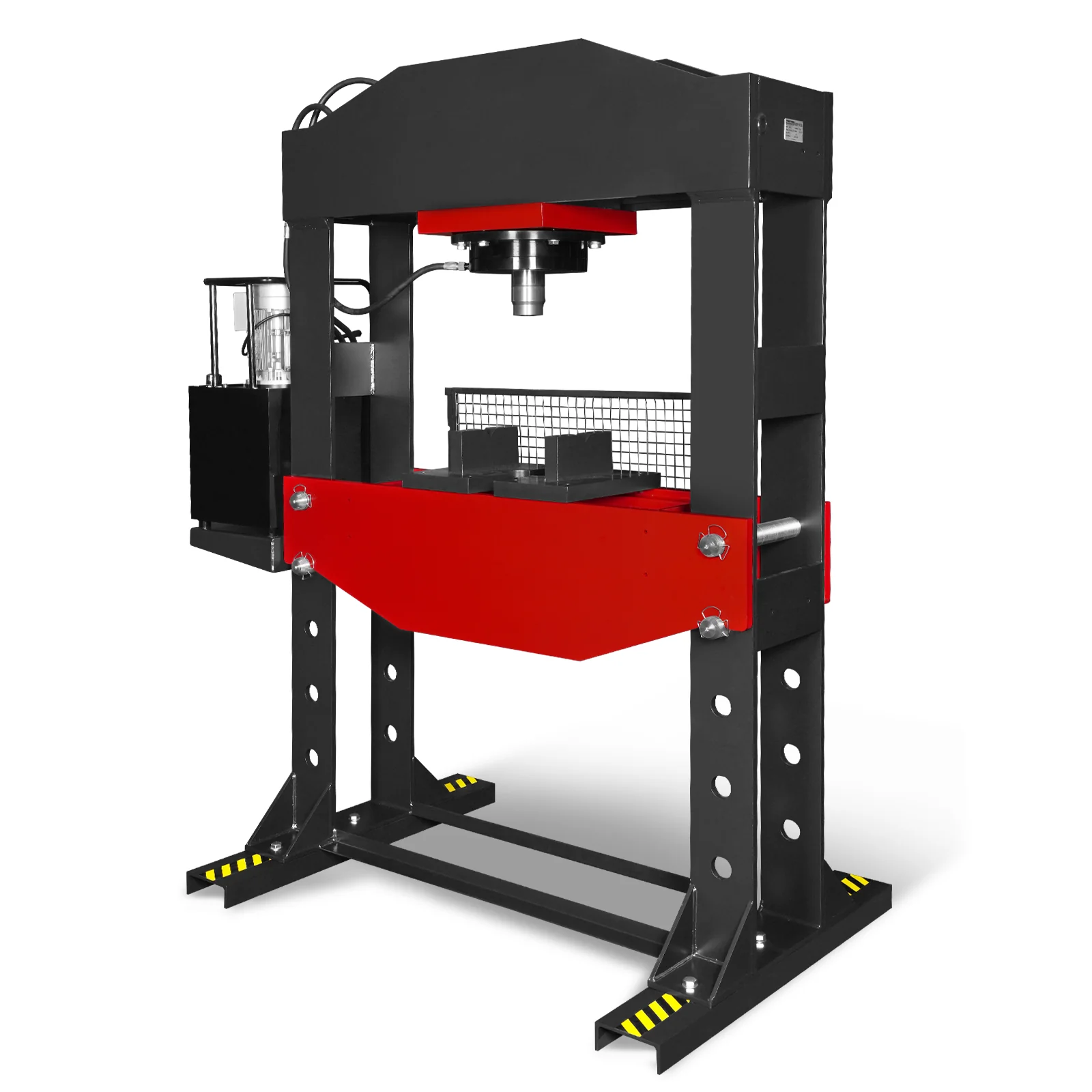

150 Ton H-Frame Electric Hydraulic Shop Press with Double-Acting Cylinder & Chain-Driven Table Lift, 110V Motor, Fully Welded Steel Frame, Safety Guard, HSP150E

Rated Capacity	150 Tons	Pump Type	Single-acting

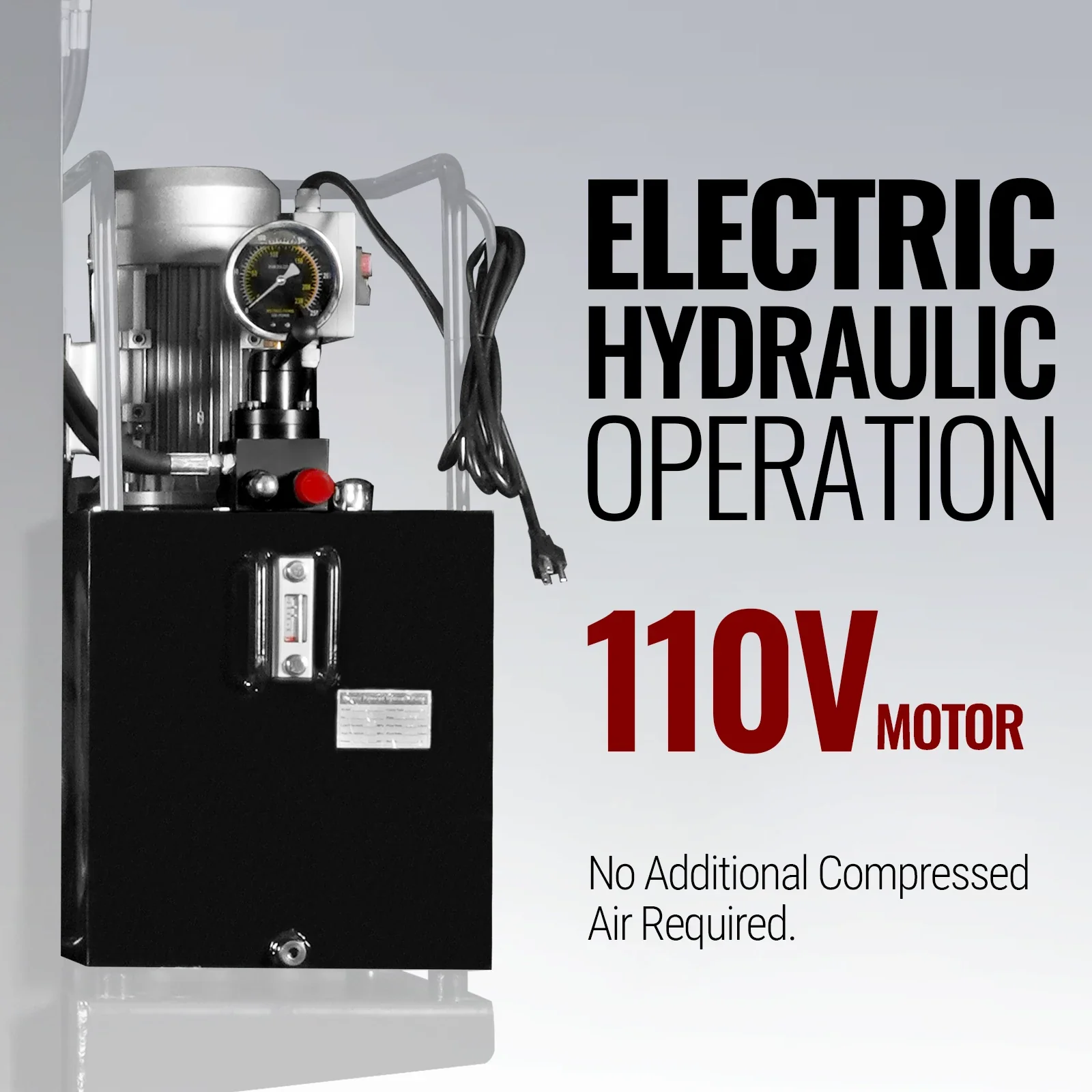

Operation Type	Electric Hydraulic Operation	Voltage	110V / 60Hz
Ram Stroke	13.8 in	Power	2 HP（1.5 kW）

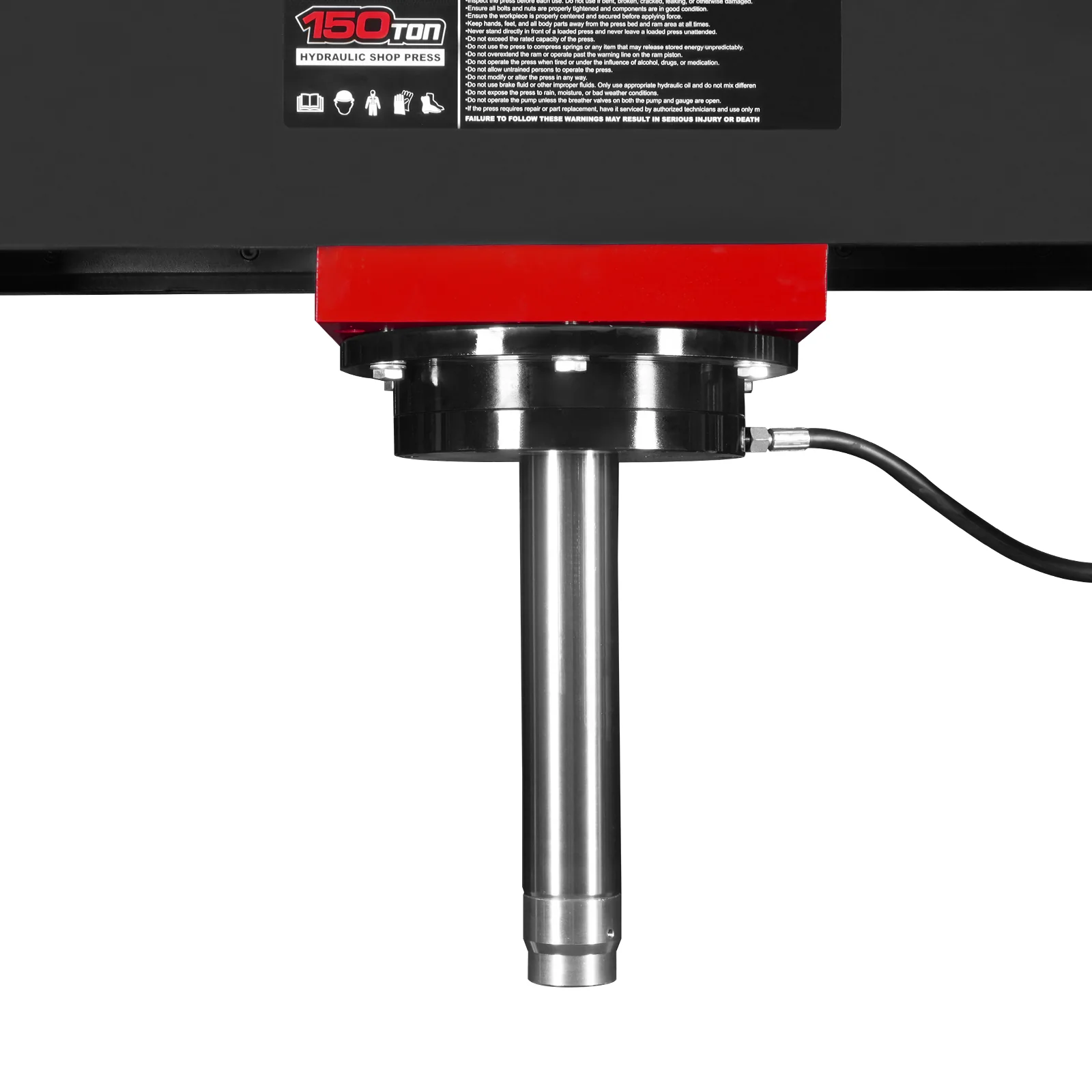

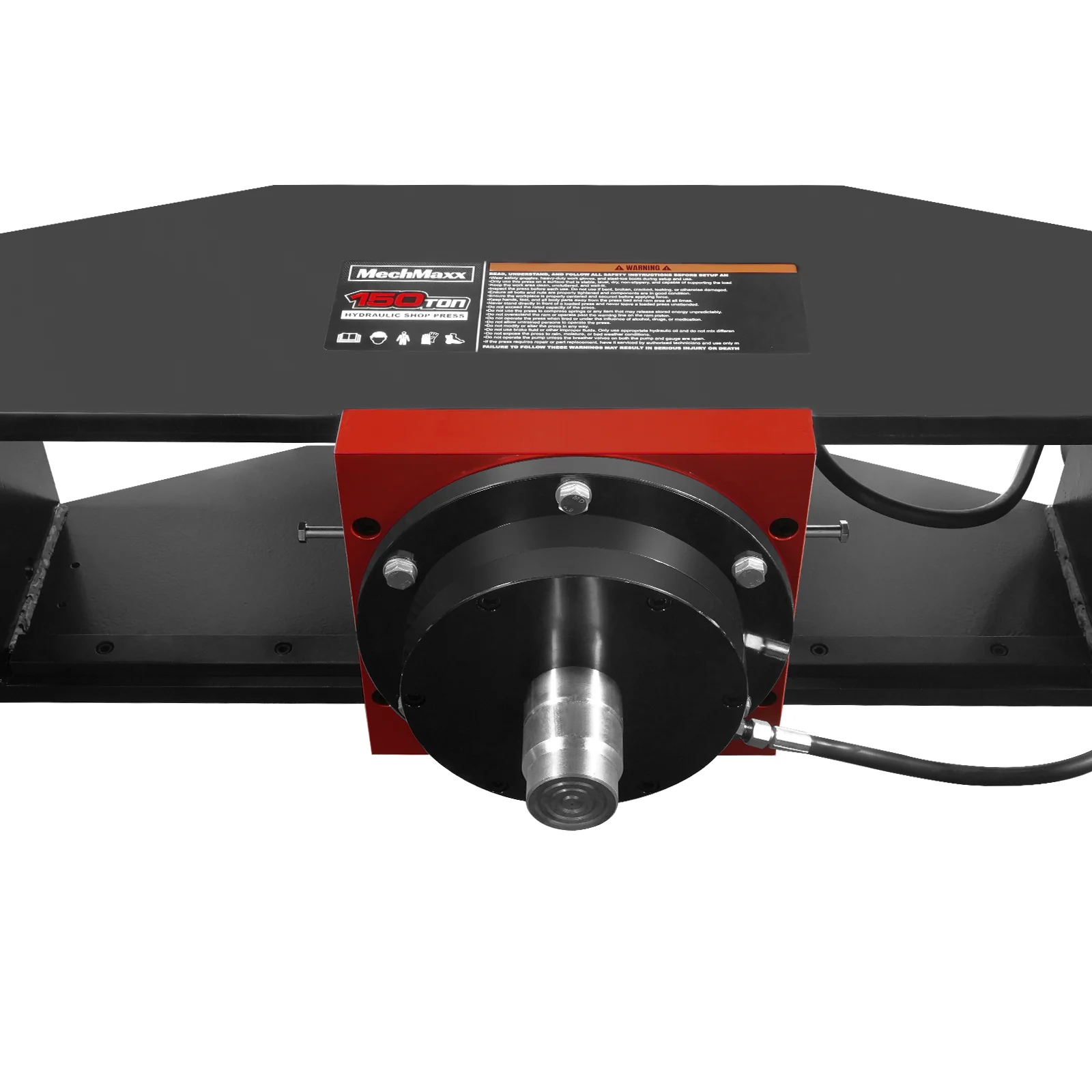

Ram Diameter	3.4 in	Revolutions Per Minute	1800 RPM
Cylinder Bore	8.7 in	Working Pressure – Low Pressure Stage	725 PSI
Ram Range of Movement	11.8 Left / Right from Center	Working Pressure – High Pressure Stage	5582.5 PSI
Bed Depth	13 in	Flow Rate – Low Pressure Stage	2.9 GPM
Bed Height	15 in	Flow Rate – High Pressure Stage	0.48 GPM
Minimum Ram to Bed	18 in	Usable Oil Capacity	7.9 US Gallons
Maximum Ram to Bed	38 in	Oil Tank Capacity	10 US Gallons

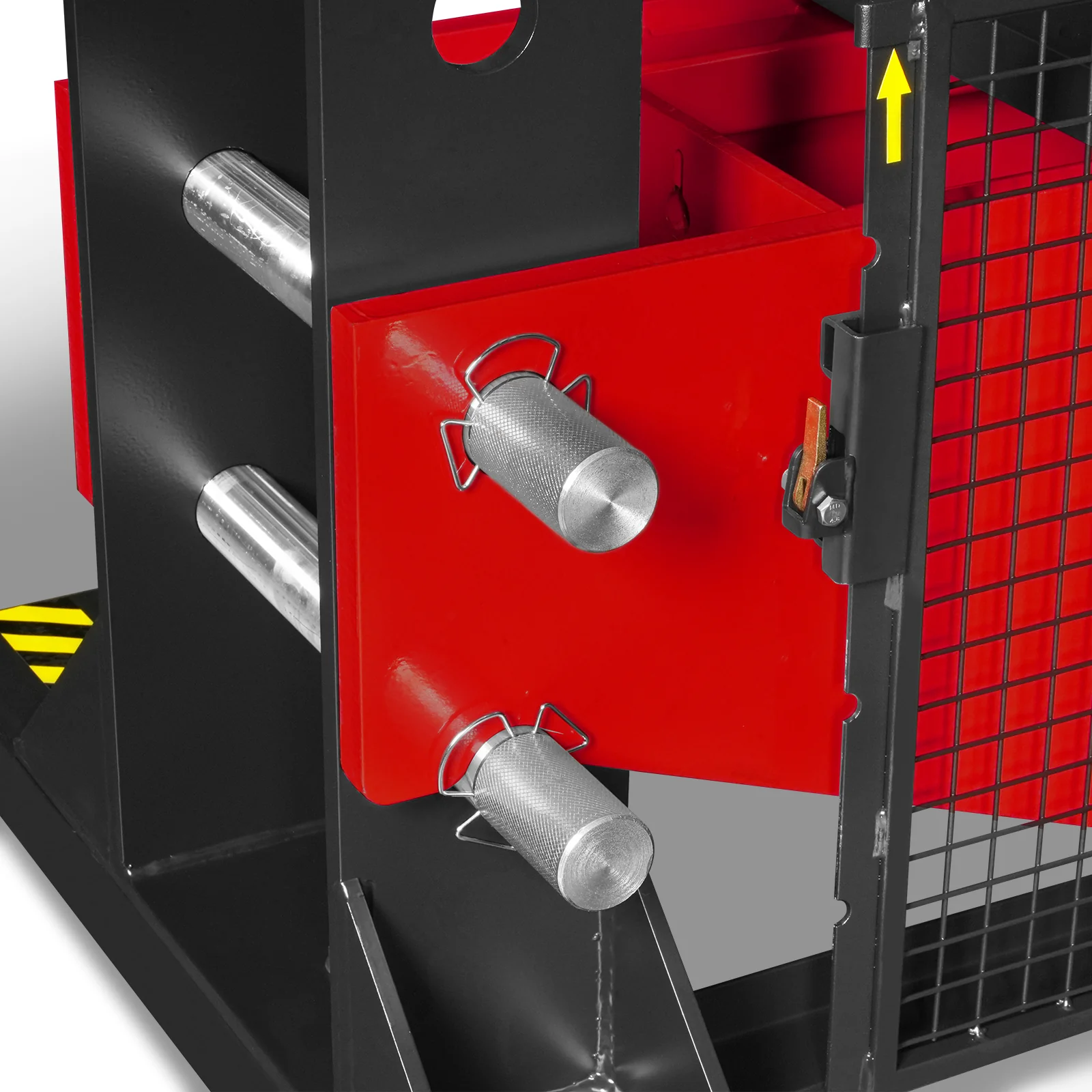

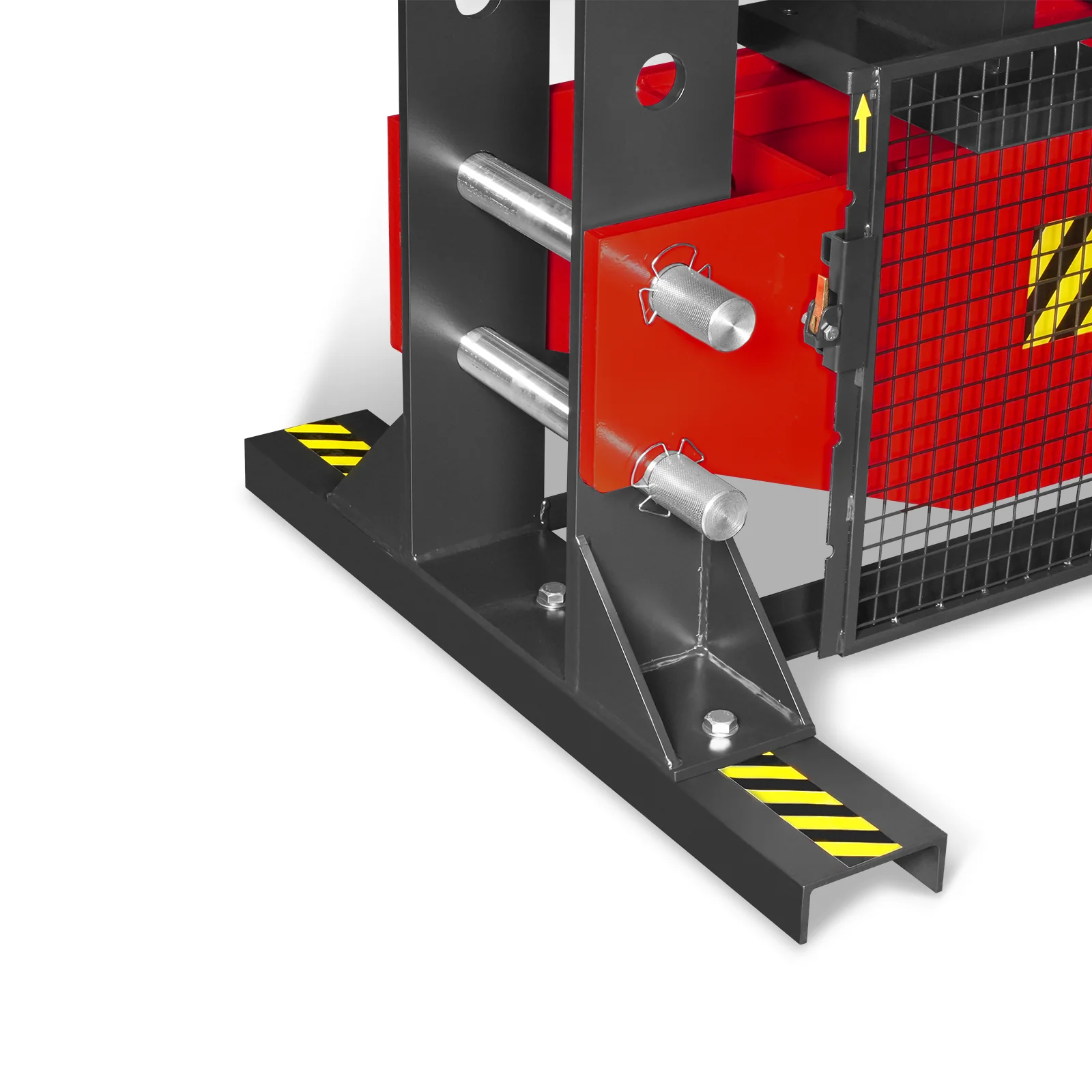

Number of Bed Adjustment Holes	5	Recommended Hydraulic Oil	AW32 Hydraulic Oil
Bed Adjustment Hole Spacing	7.5 in	Pump Size	28.3 x 18.8 x 13.8 in

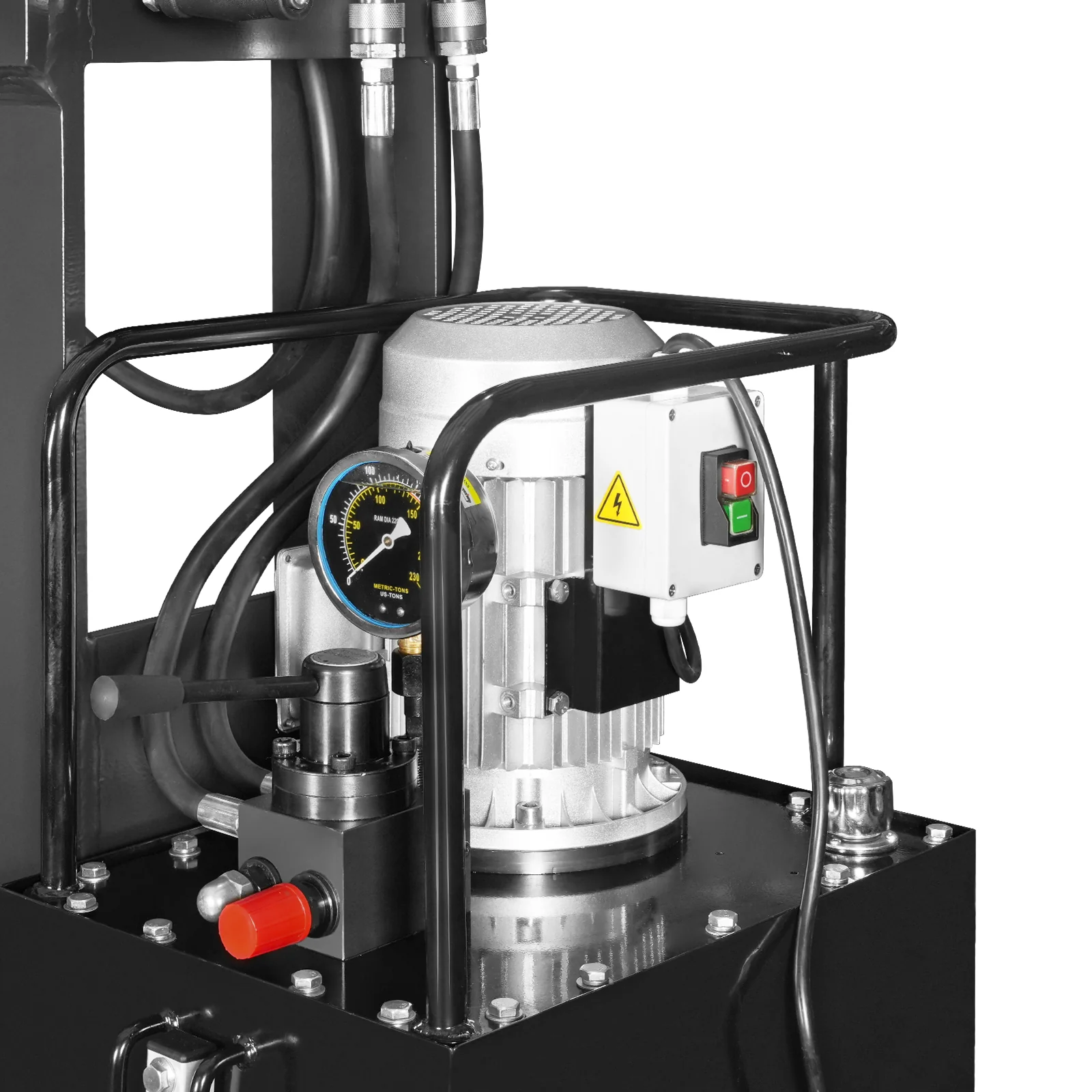

Frame Construction	Fully Welded Heavy-Duty H-Frame	Gauge Type	4 in Oil-Filled Pressure Gauge

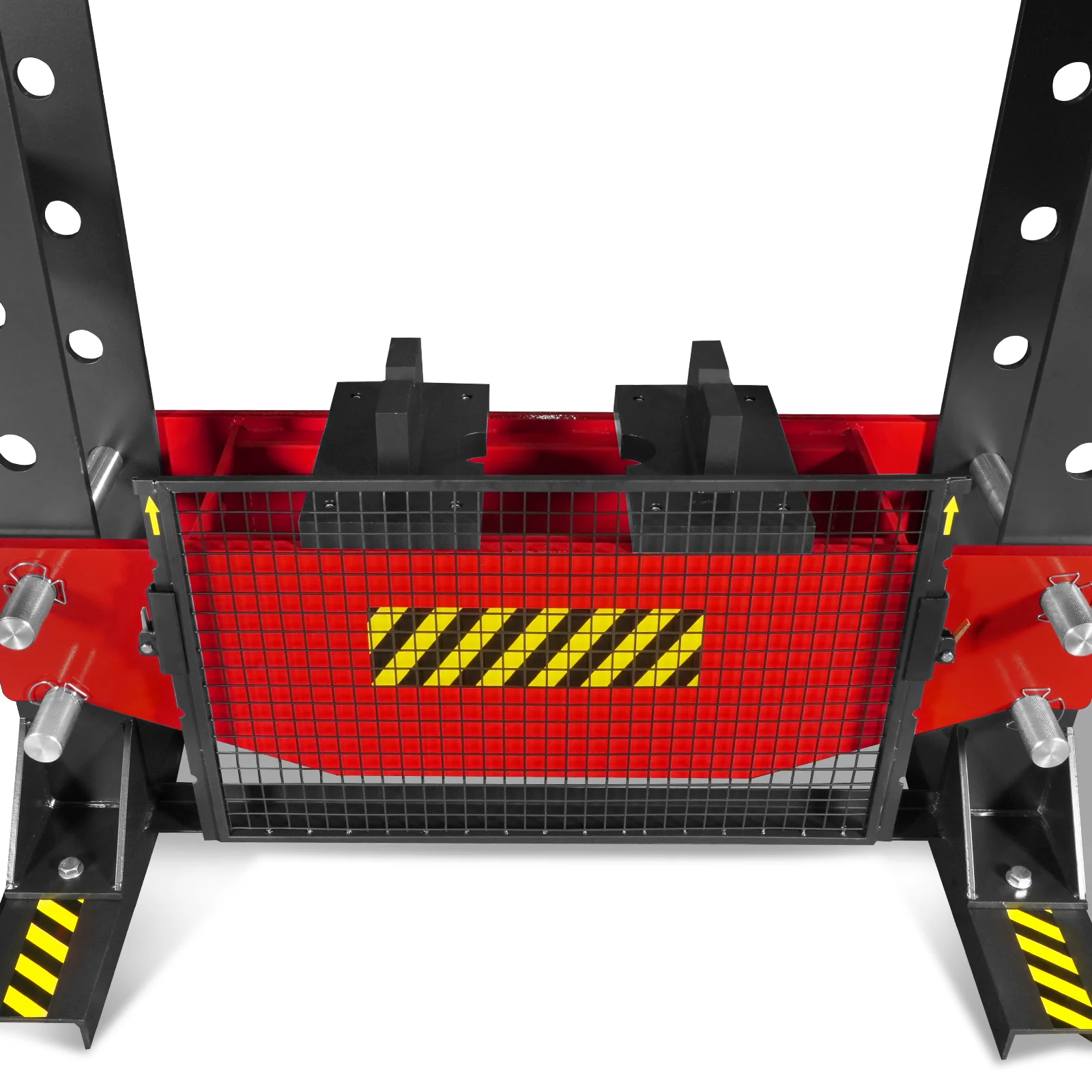

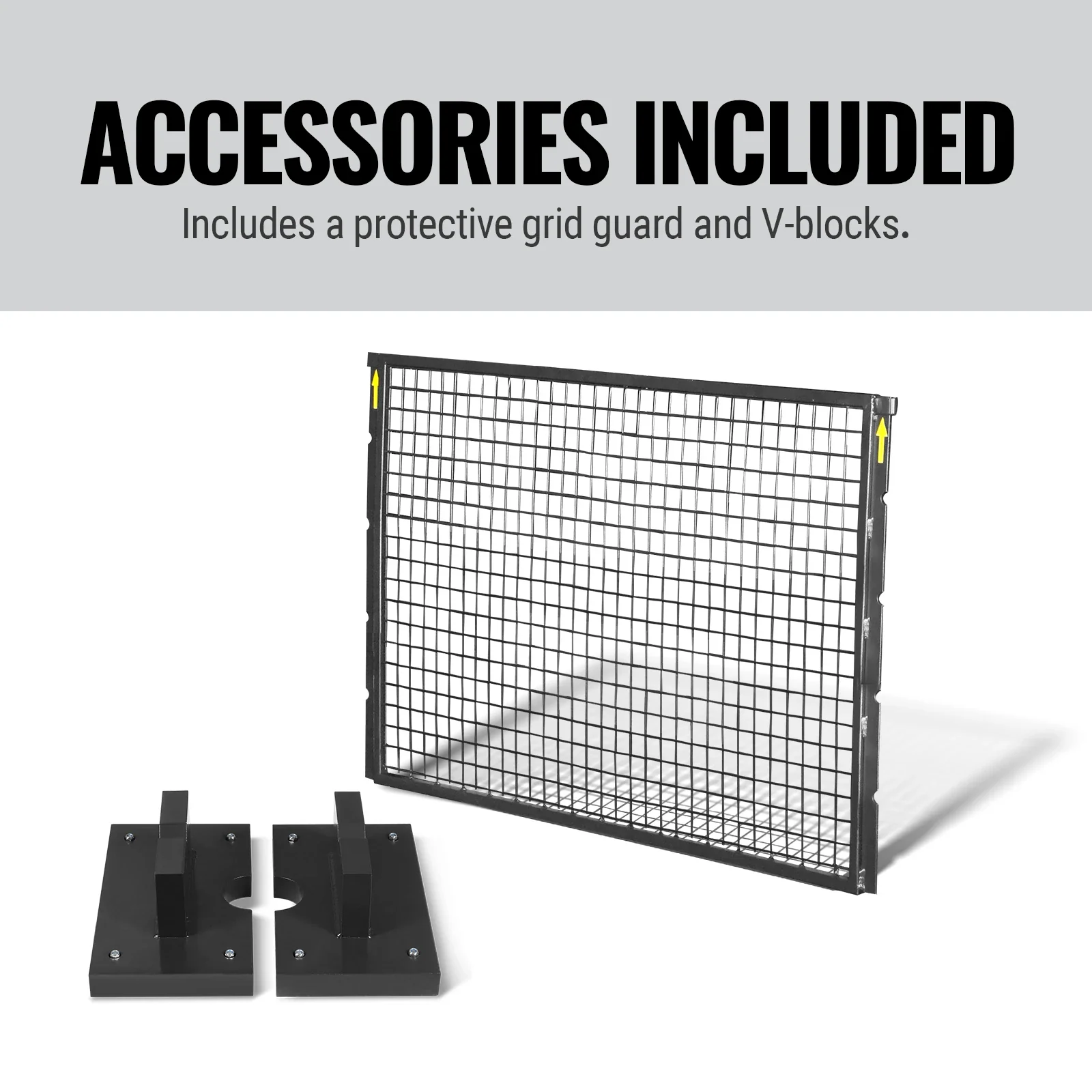

Assembled Size (H x D x W)	87 x 41.4 x 71.7 in	Included Accessories	Protective Grid Guard, V-Blocks
Internal Frame Width	45.3 in	Packing Size (LxWxH)	89.0 x 60.6 x 31.5 in

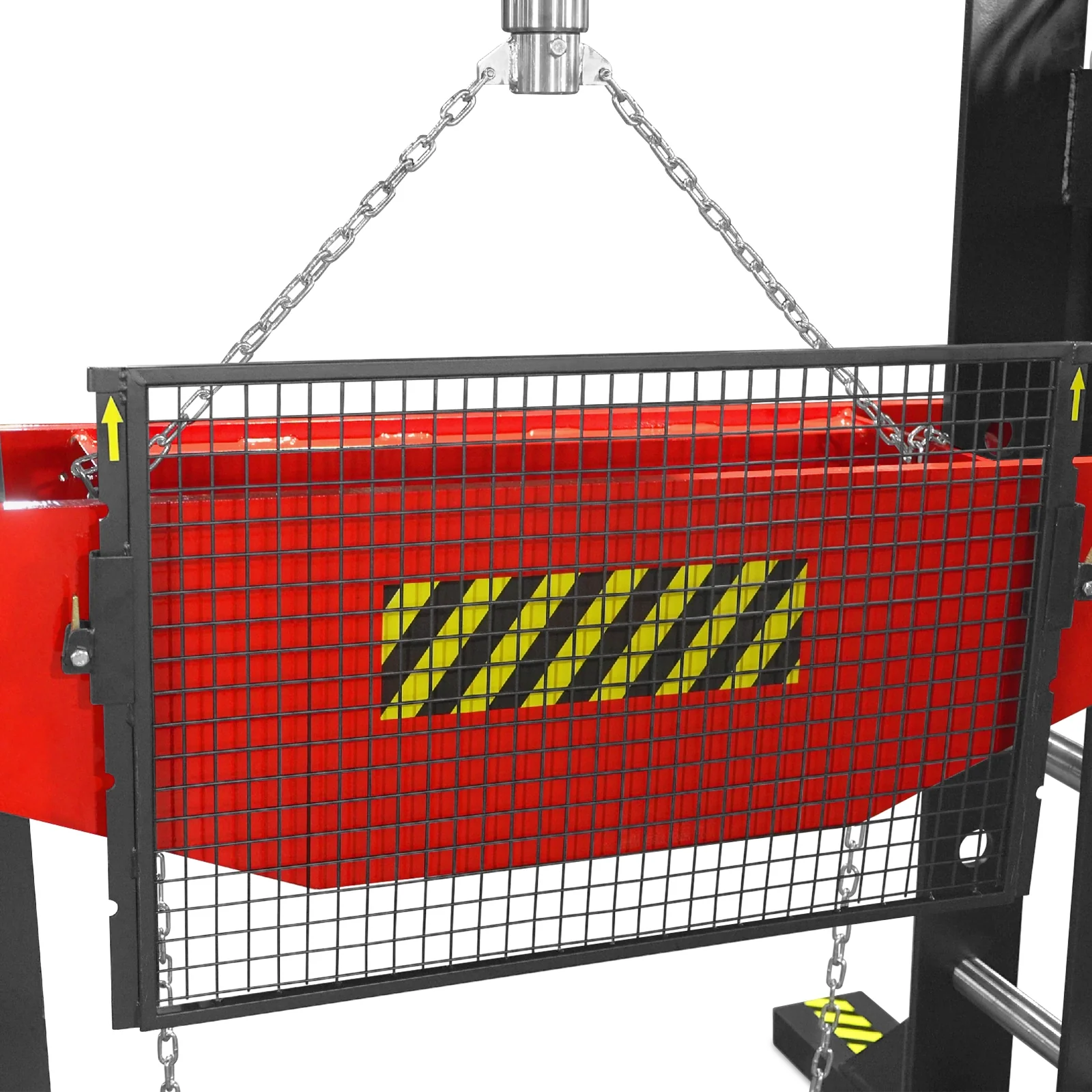

Protective Grid Guard Size	39 x 24 in	Weight (N.W/G.W.)	2264.1 lbs / 2623.5 lbs
Ram Retraction	Twin Springs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
