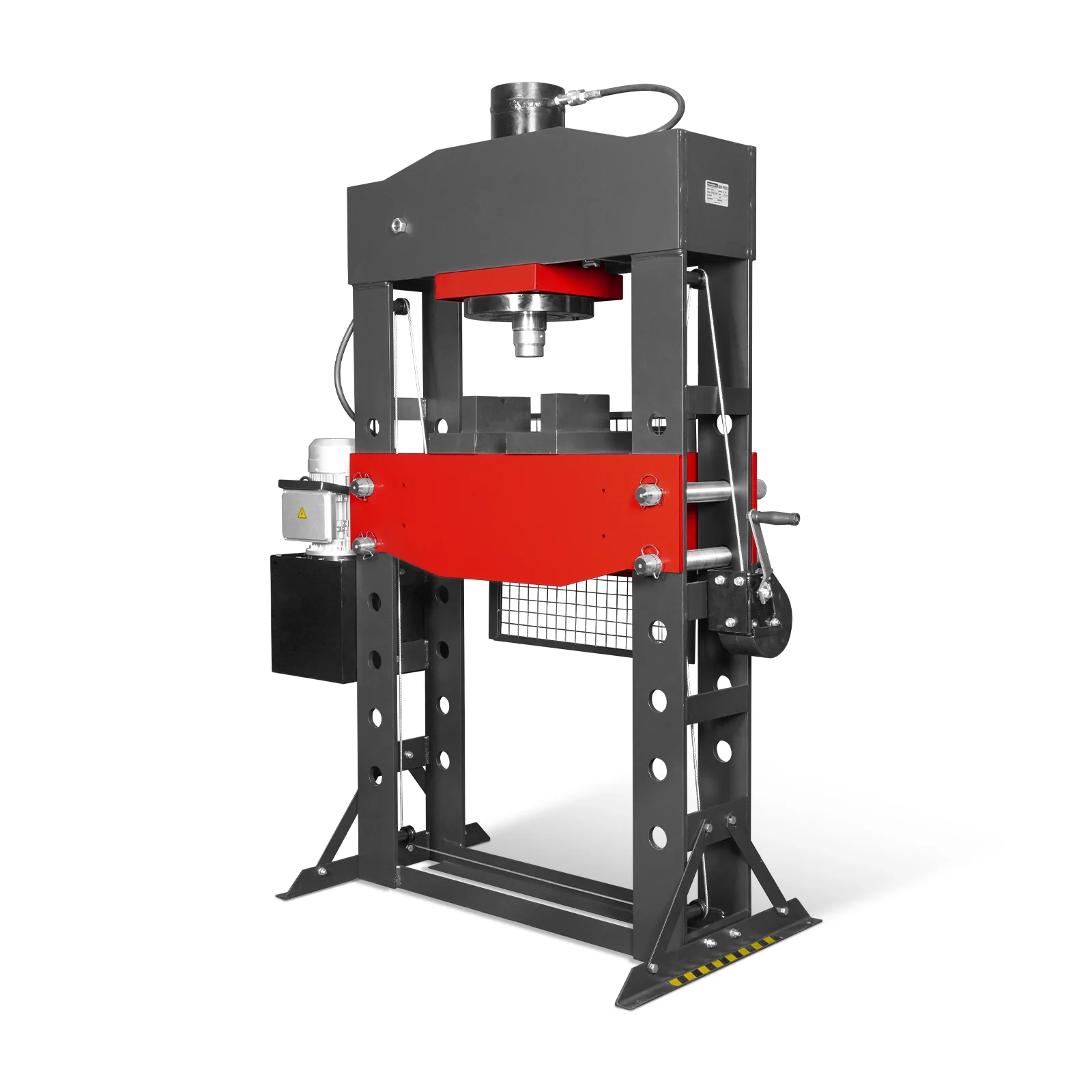

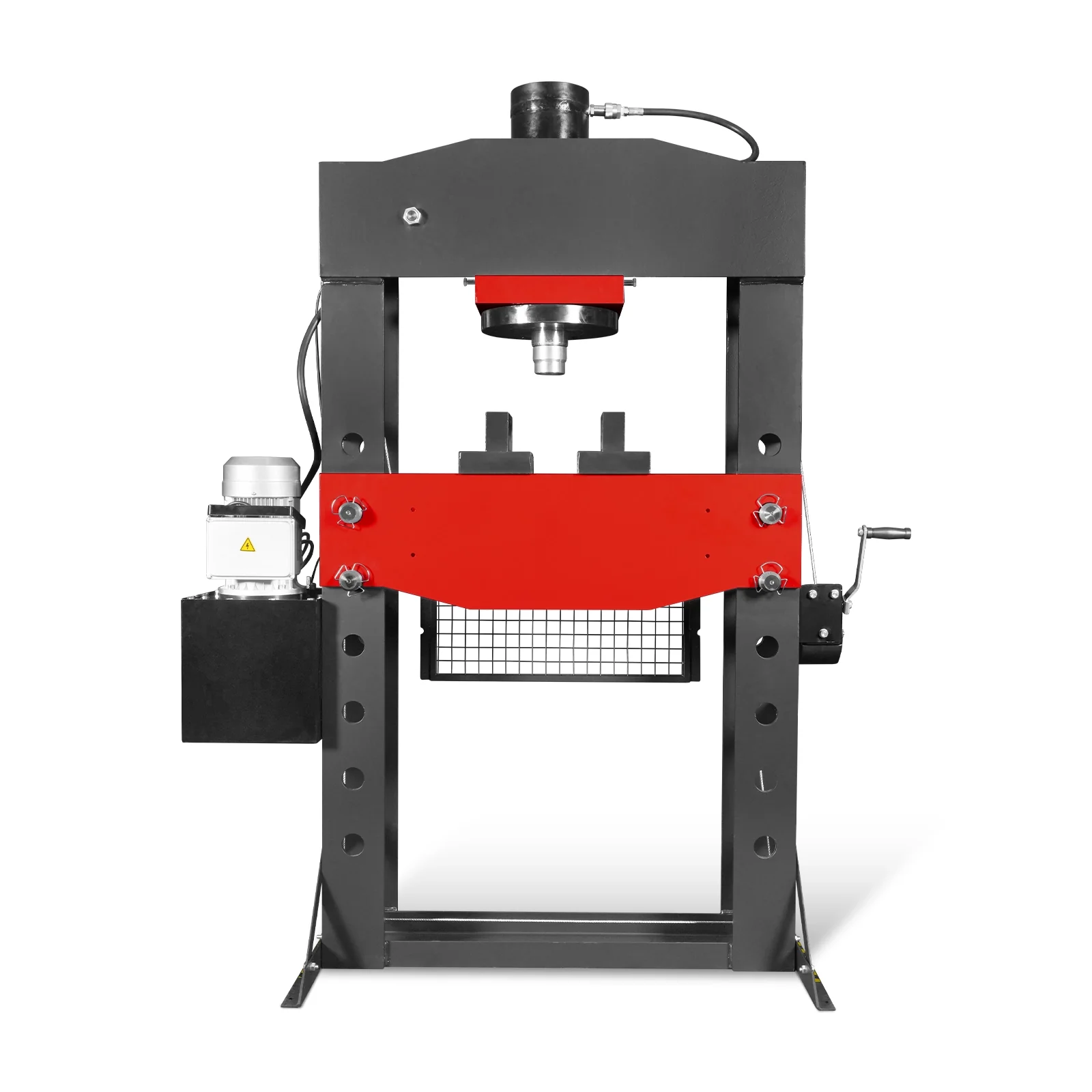

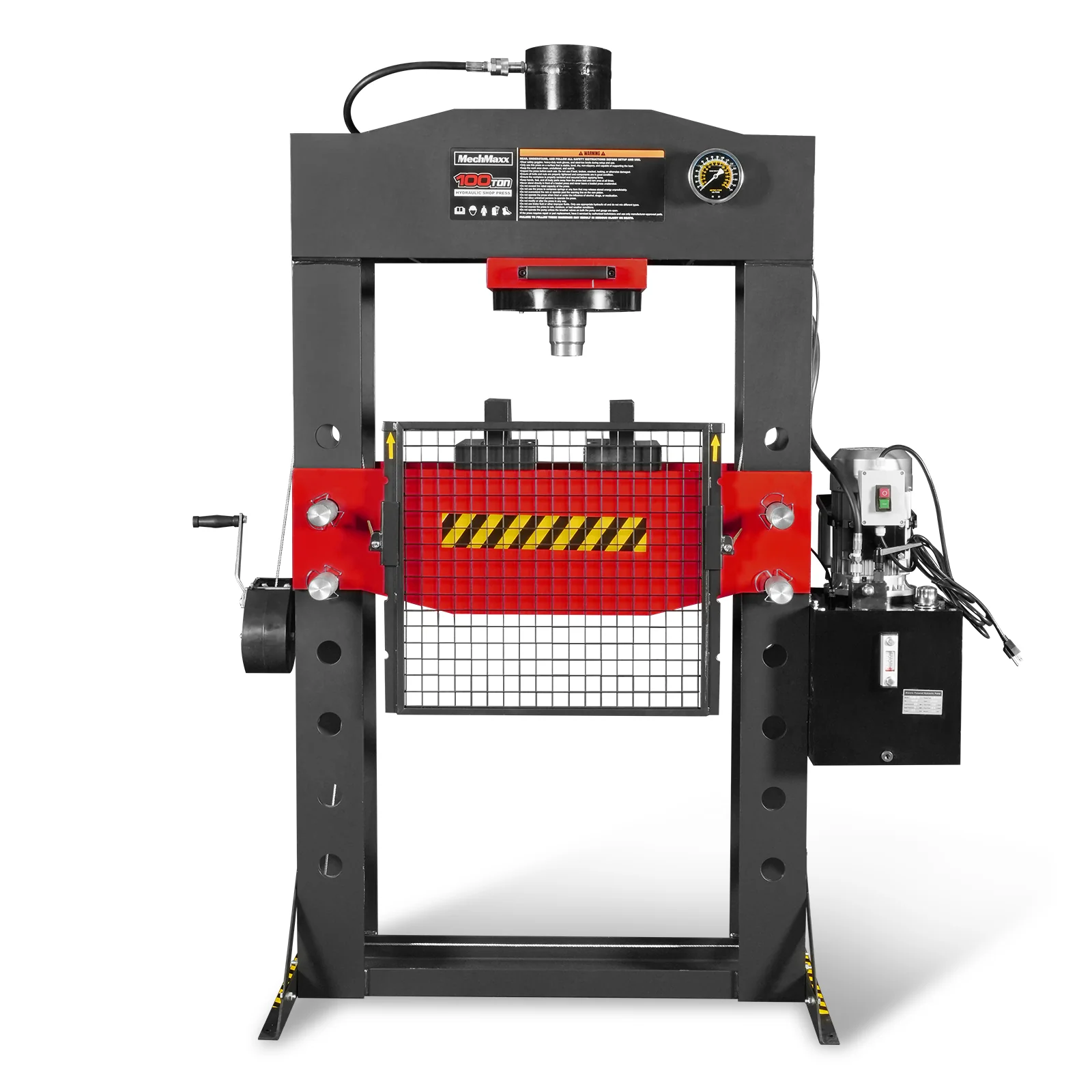

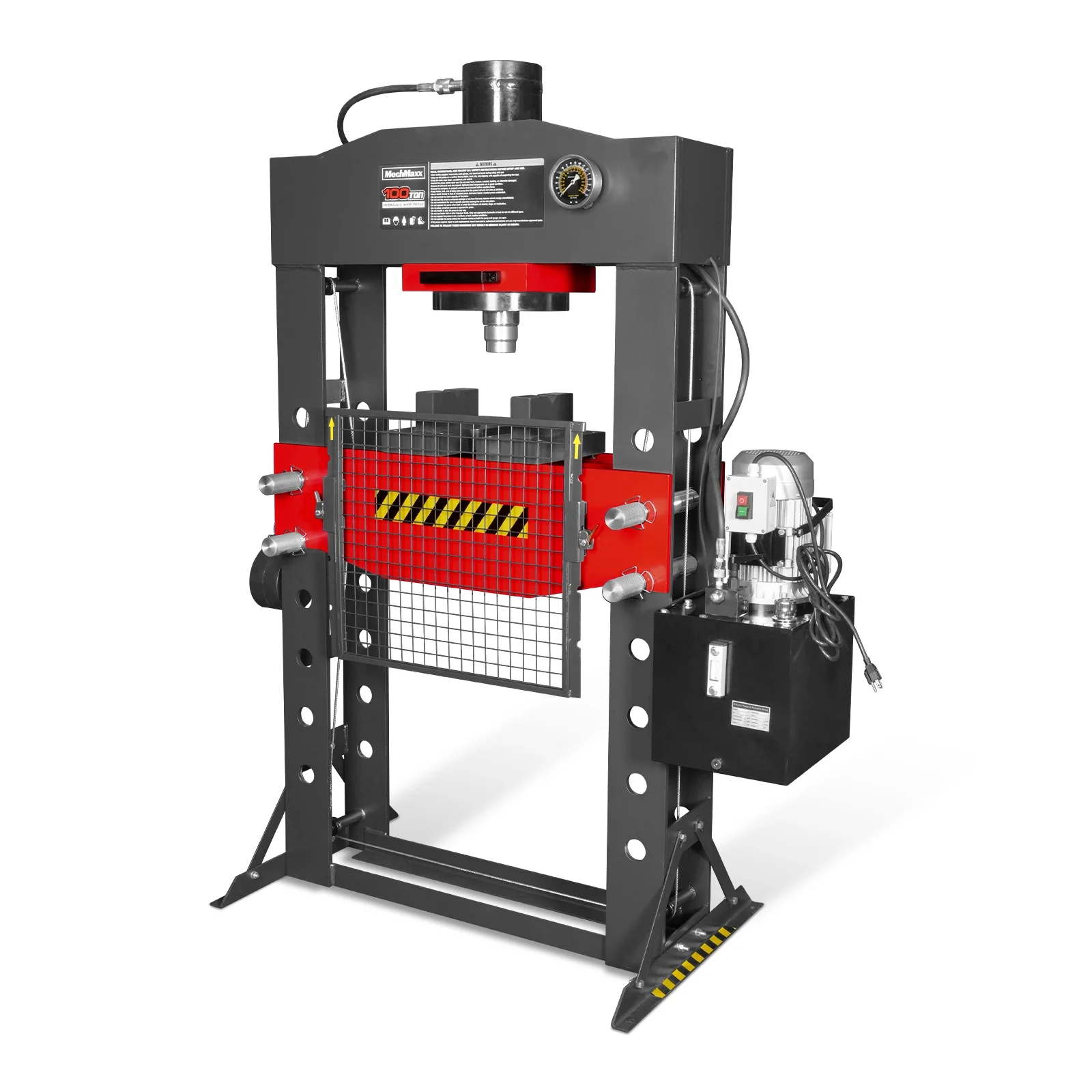

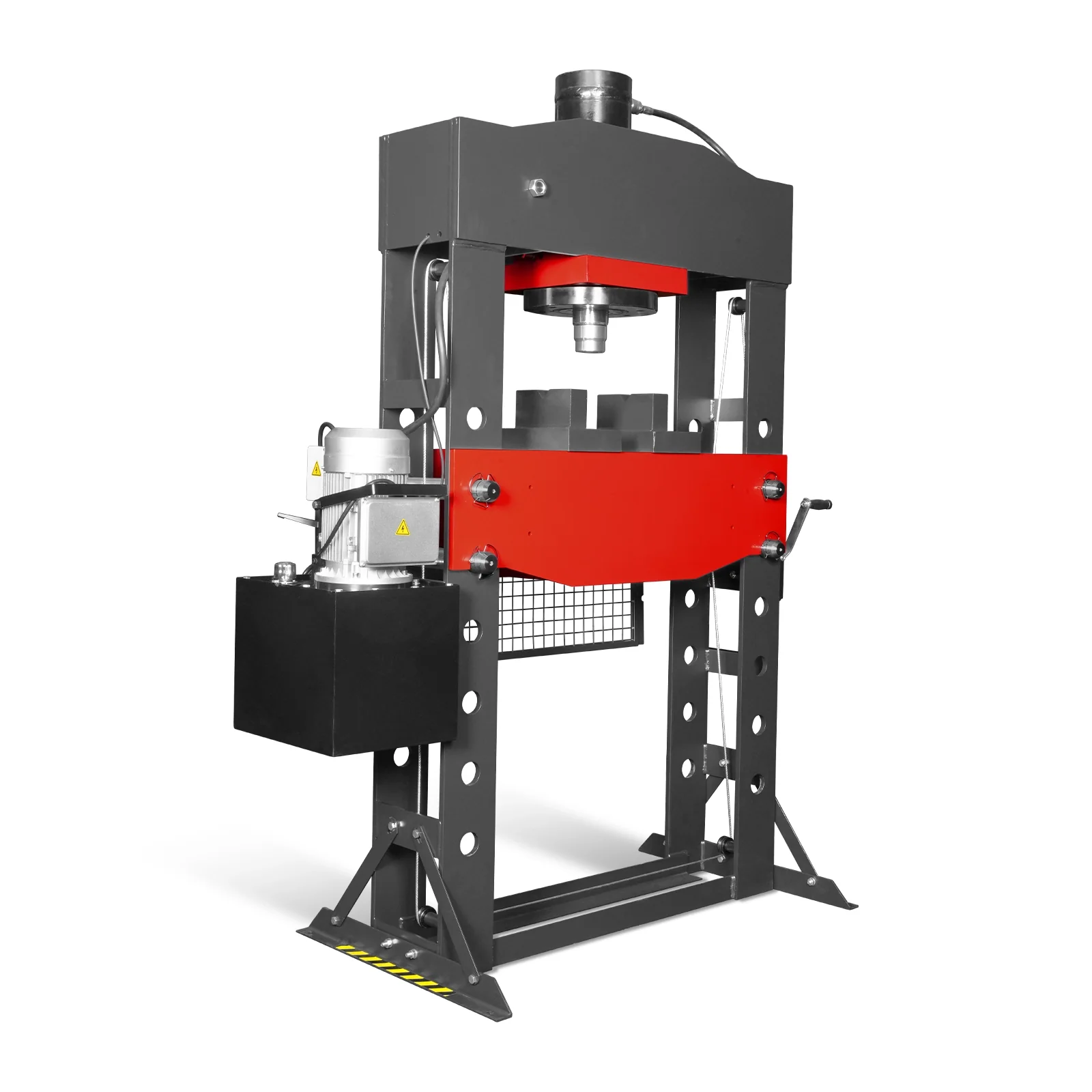

100 Ton H-Frame Electric Hydraulic Shop Press with Hand Winch, 110V Motor, Fully Welded Steel Frame, Safety Guard, Foot Pedal Control, HSP100E
100 Ton H-Frame Electric Hydraulic Shop Press with Hand Winch, 110V Motor, Fully Welded Steel Frame, Safety Guard, Foot Pedal Control, HSP100E
| Rated Capacity | 100 Tons | Pump Type | Single-acting |

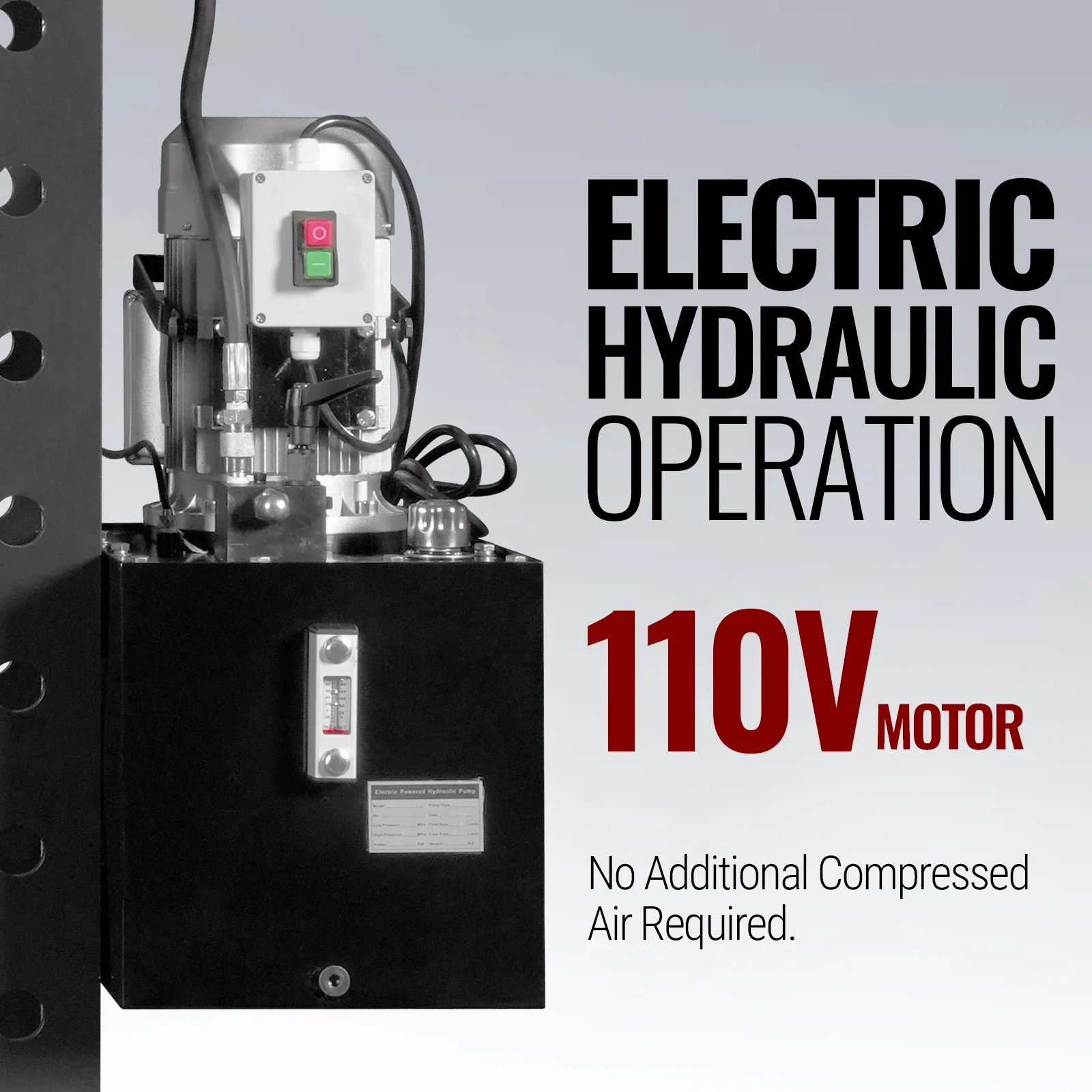

| Operation Type | Electric Hydraulic Operation | Voltage | 110V / 60Hz |
| Ram Stroke | 11.8 in | Power | 2 HP（1.5 kW） |
| Ram Diameter | 3.4 in | Revolutions Per Minute | 1800 RPM |
| Cylinder Bore | 5.5 in | Working Pressure – Low Pressure Stage | 725 PSI |

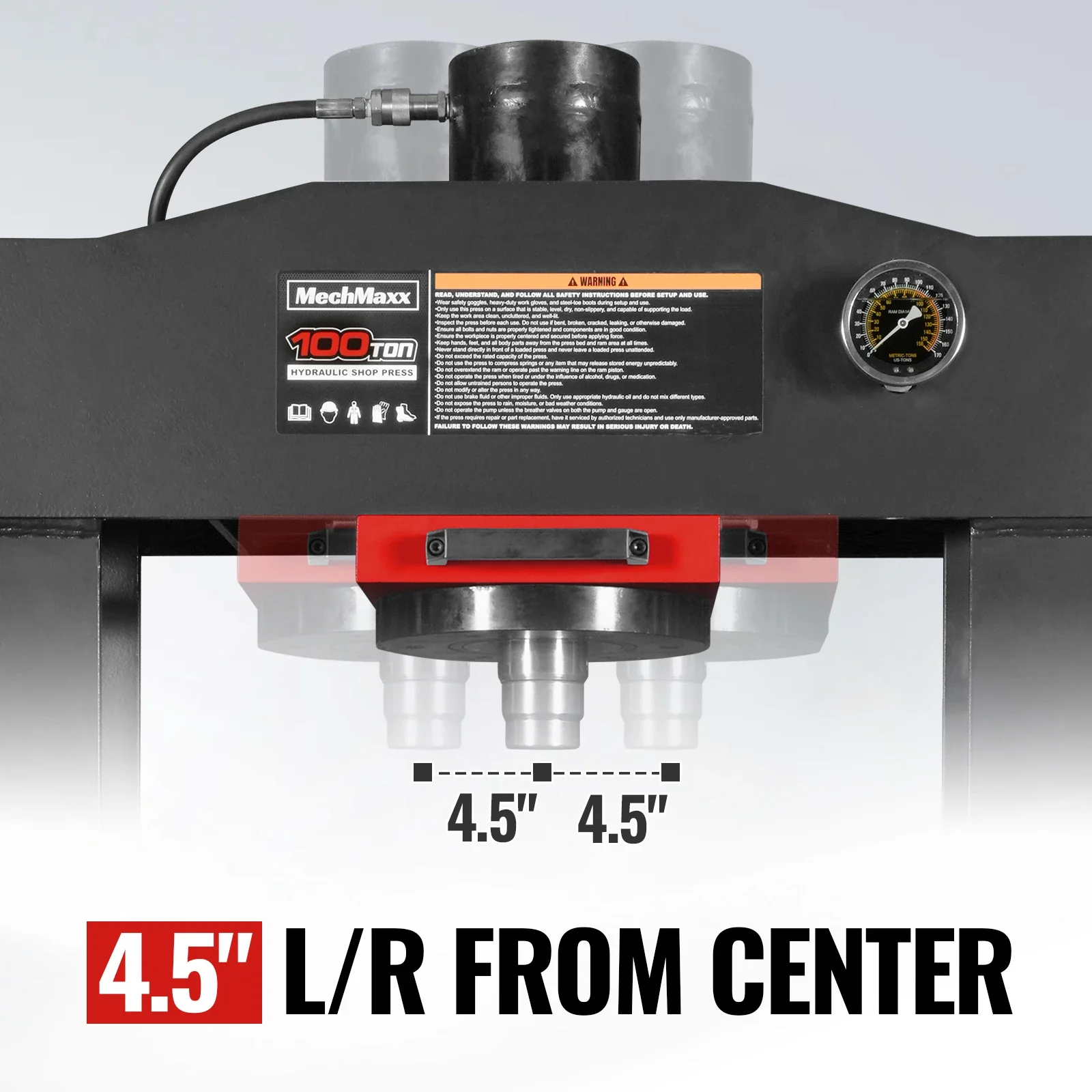

| Ram Range of Movement | 4.5 in Left / Right from Center | Working Pressure – High Pressure Stage | 9135 PSI |
| Bed Depth | 8 in | Flow Rate – Low Pressure Stage | 1.74 GPM |
| Bed Height | 11.8 in | Flow Rate – High Pressure Stage | 0.48 GPM |
| Minimum Ram to Bed | 3.5 in | Usable Oil Capacity | 7.9 US Gallons |
| Maximum Ram to Bed | 33.1 in | Oil Tank Capacity | 10 US Gallons |

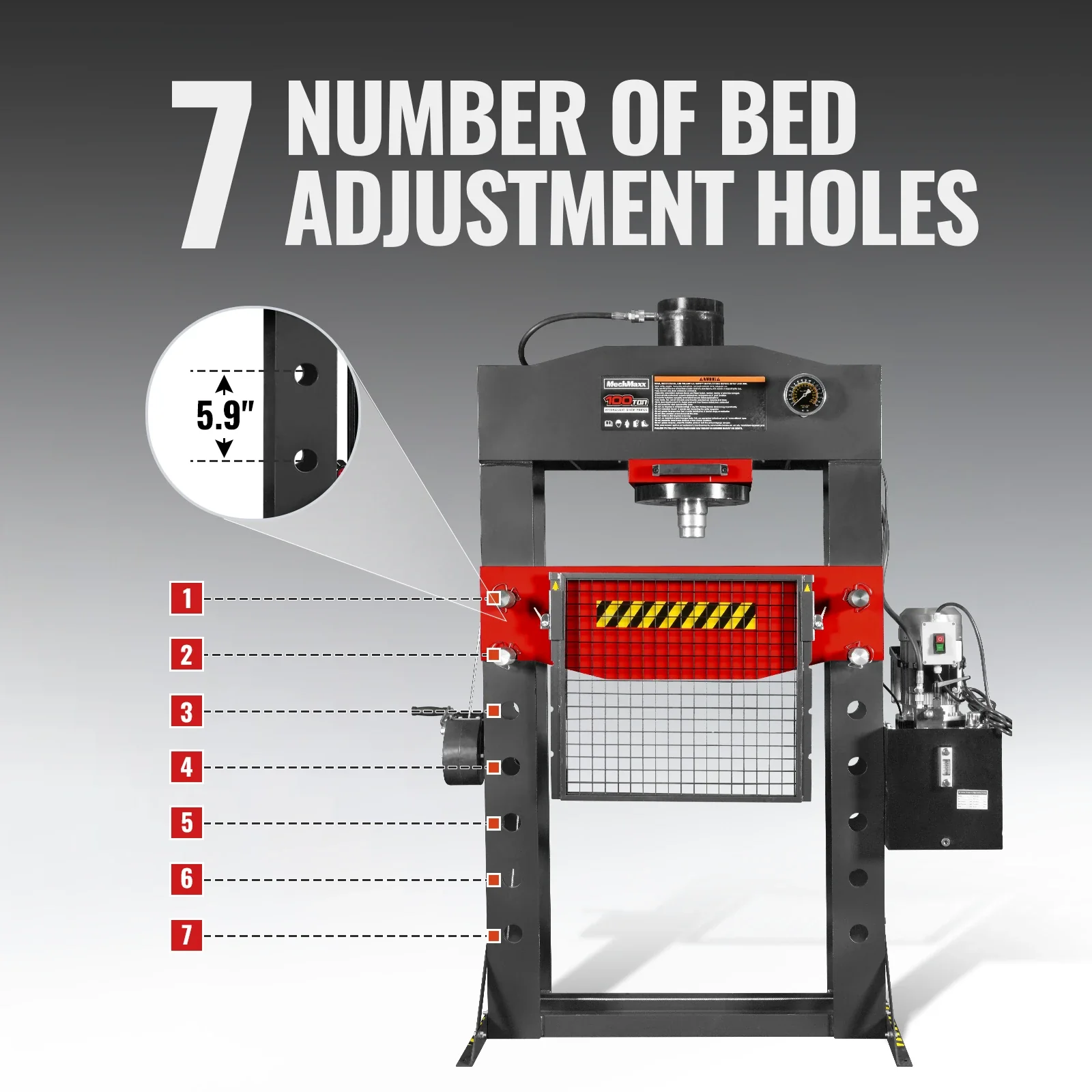

| Number of Bed Adjustment Holes | 7 | Recommended Hydraulic Oil | AW32 Hydraulic Oil |
| Bed Adjustment Hole Spacing | 5.9 in | Pump Size | 25.5 x 16 x 12 in |

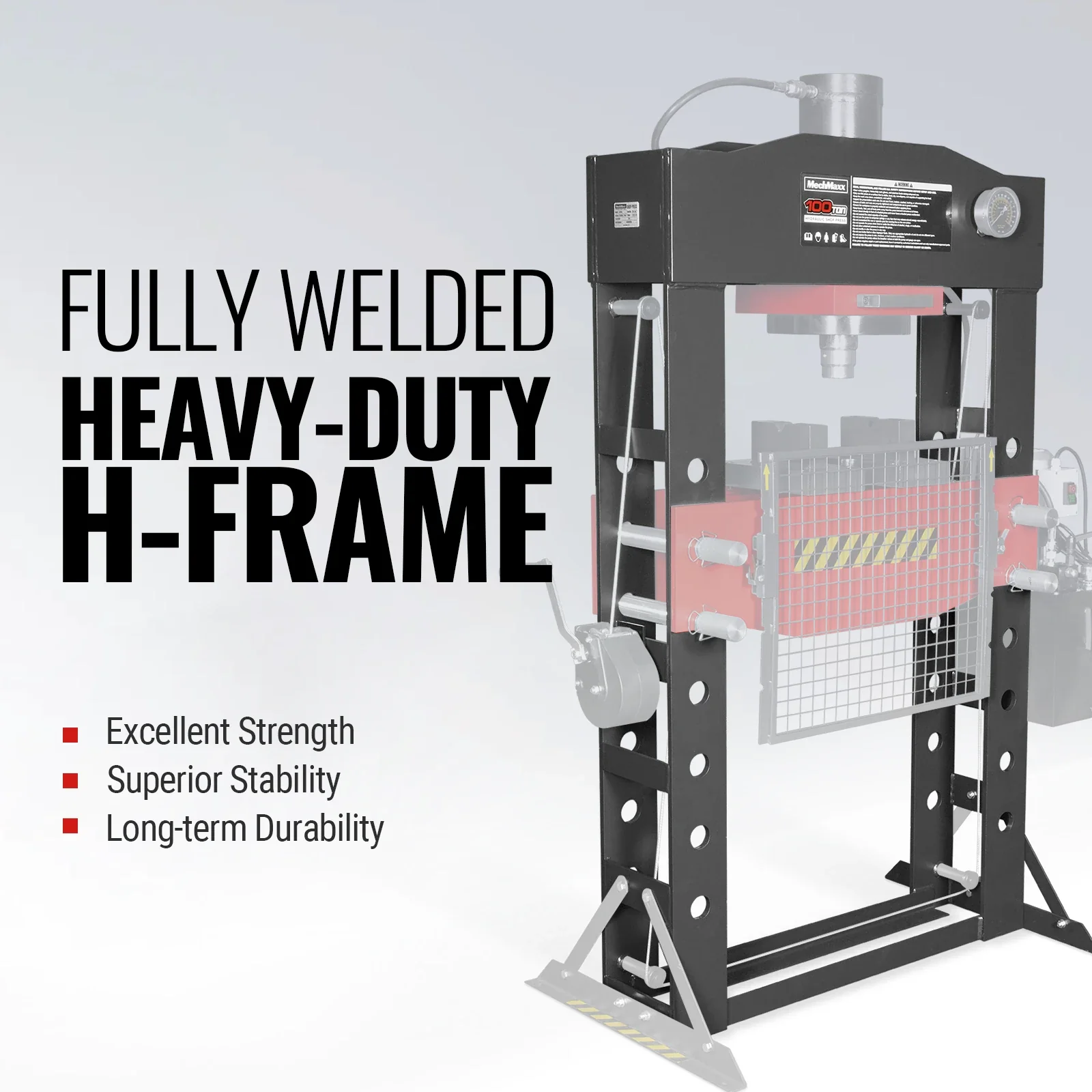

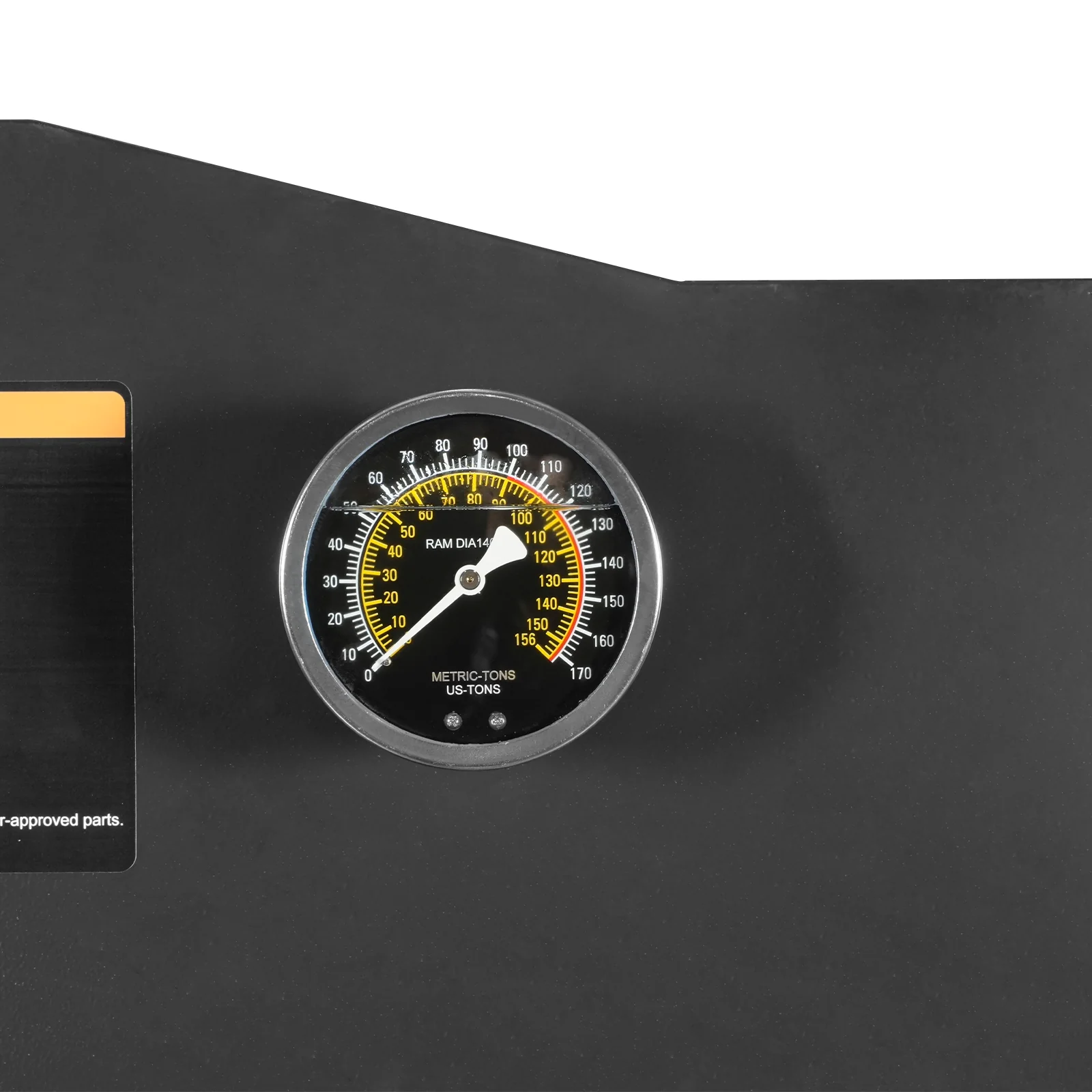

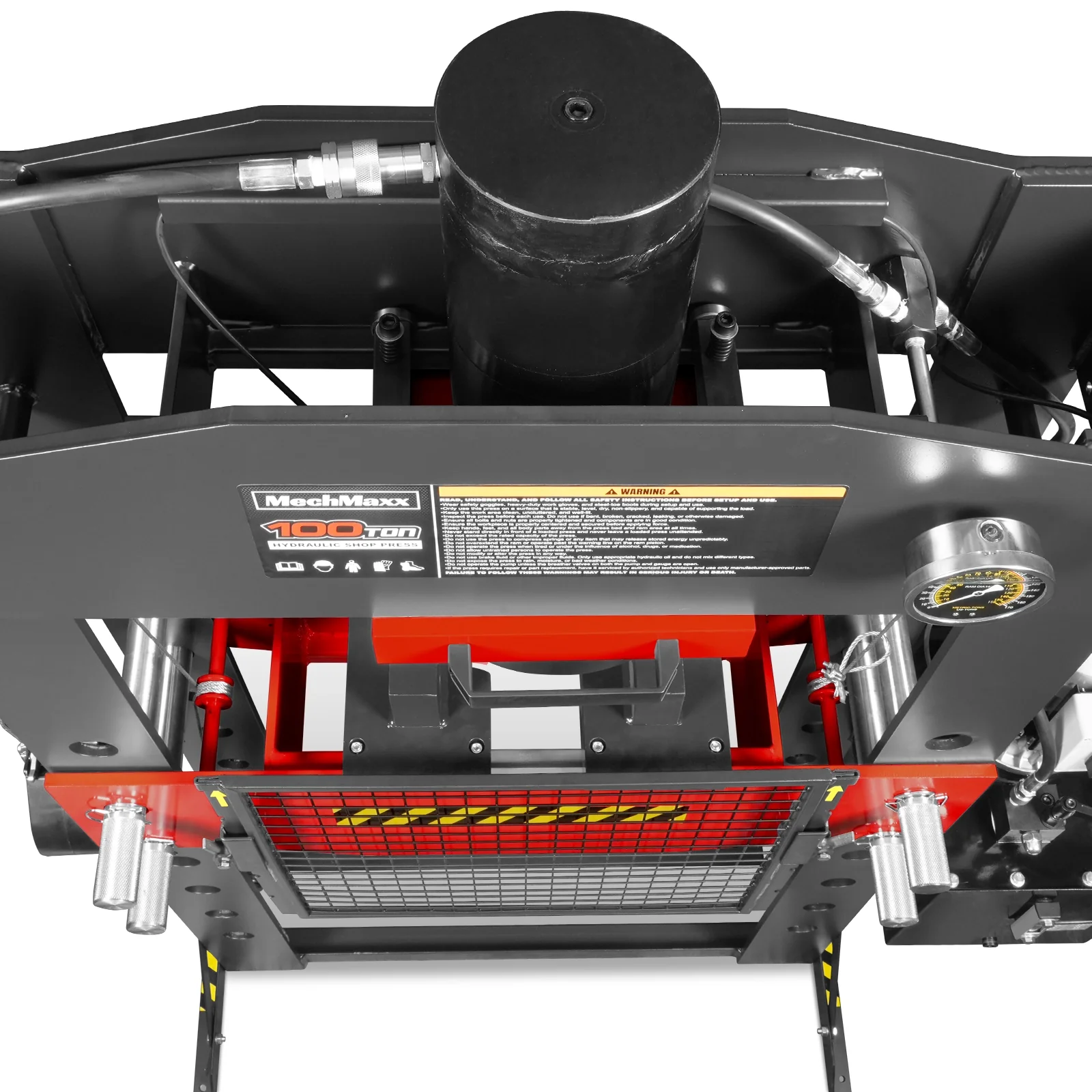

| Frame Construction | Fully Welded Heavy-Duty H-Frame | Gauge Type | 4 in Oil-Filled Pressure Gauge |

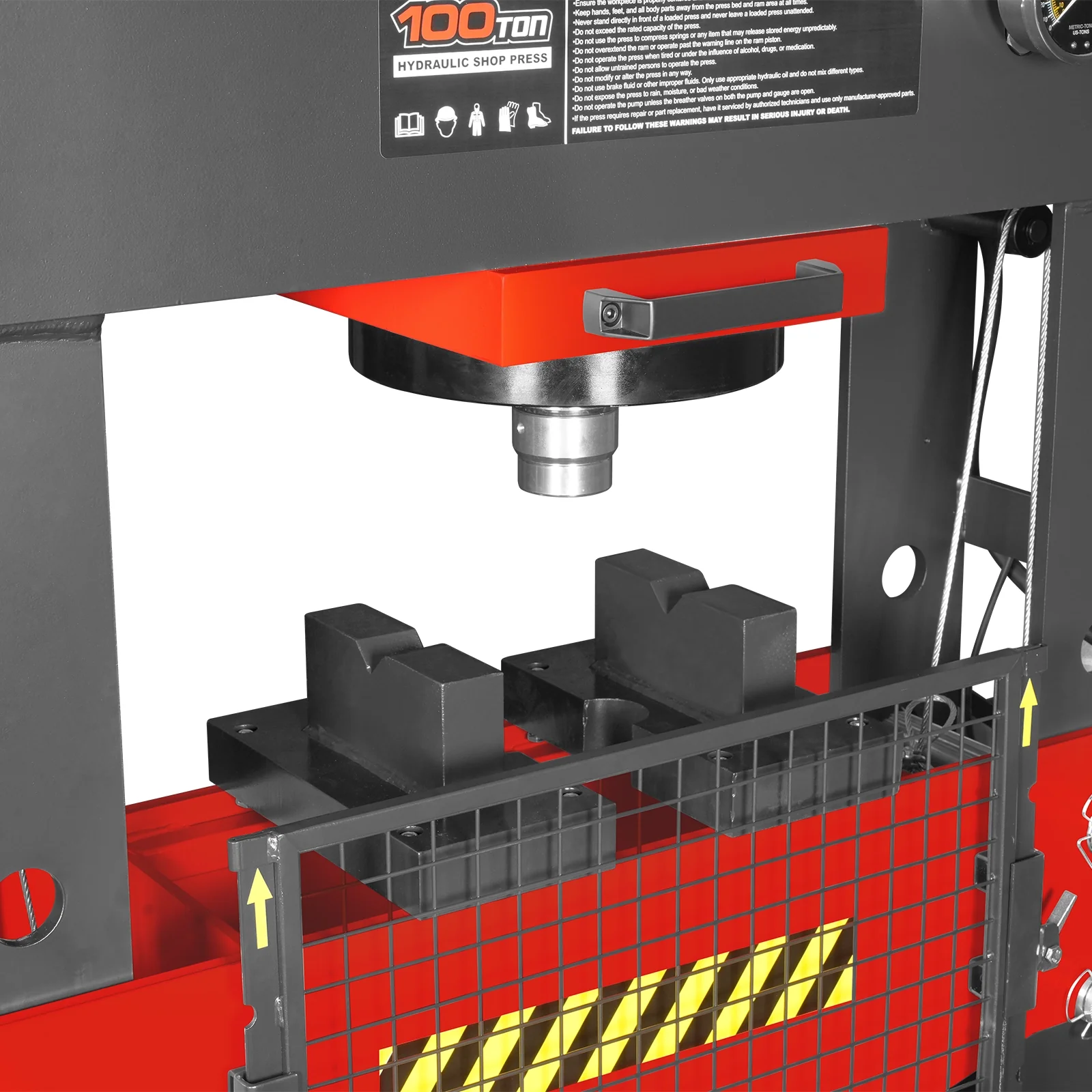

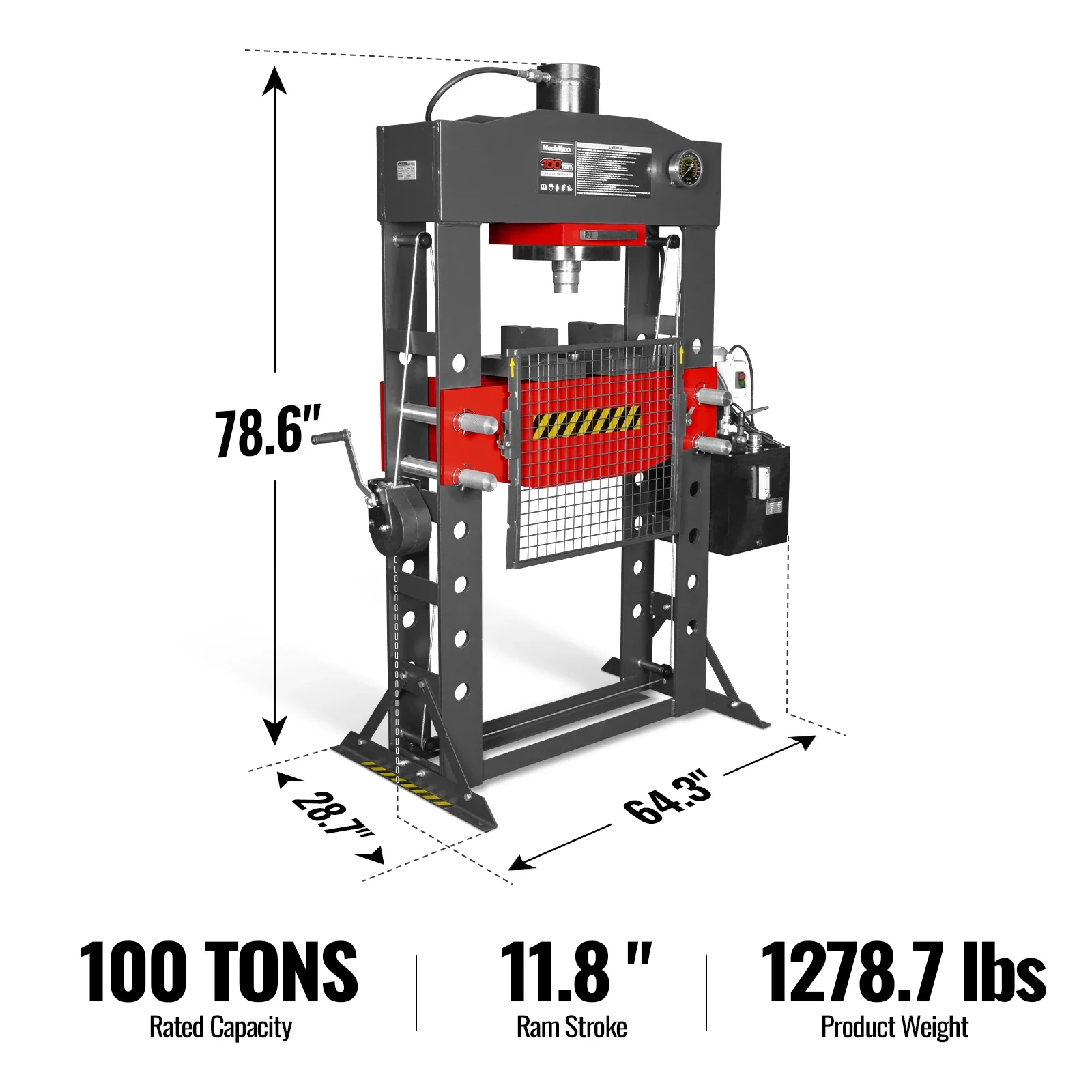

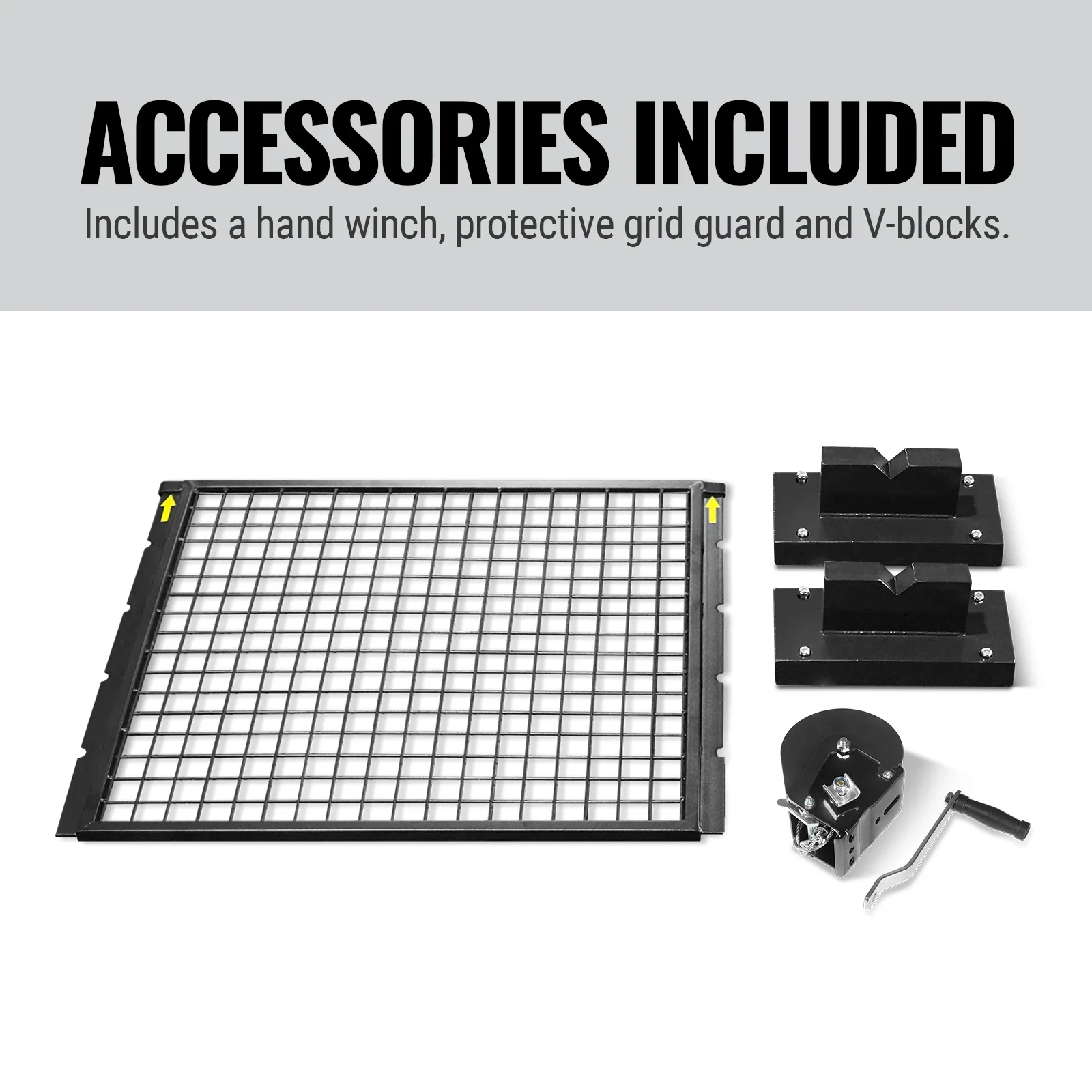

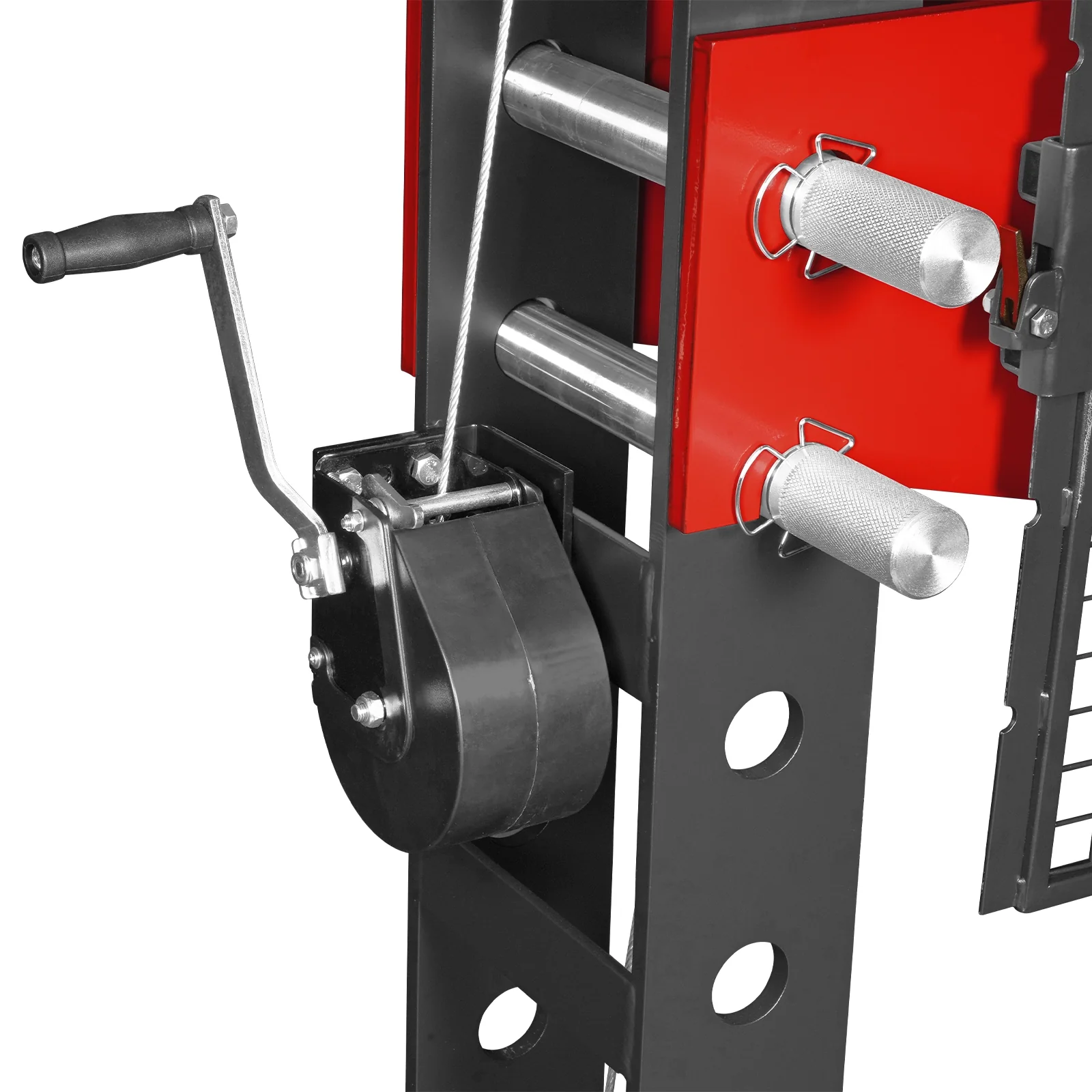

| Assembled Size (H x D x W) | 78.6 x 28.7 x 64.3 in | Included Accessories | Protective Grid Guard, Hand Winch, V-Blocks |
| Internal Frame Width | 30.9 in | Packing Size (LxWxH) | 81.1 x 44.5 x 17.3 in |

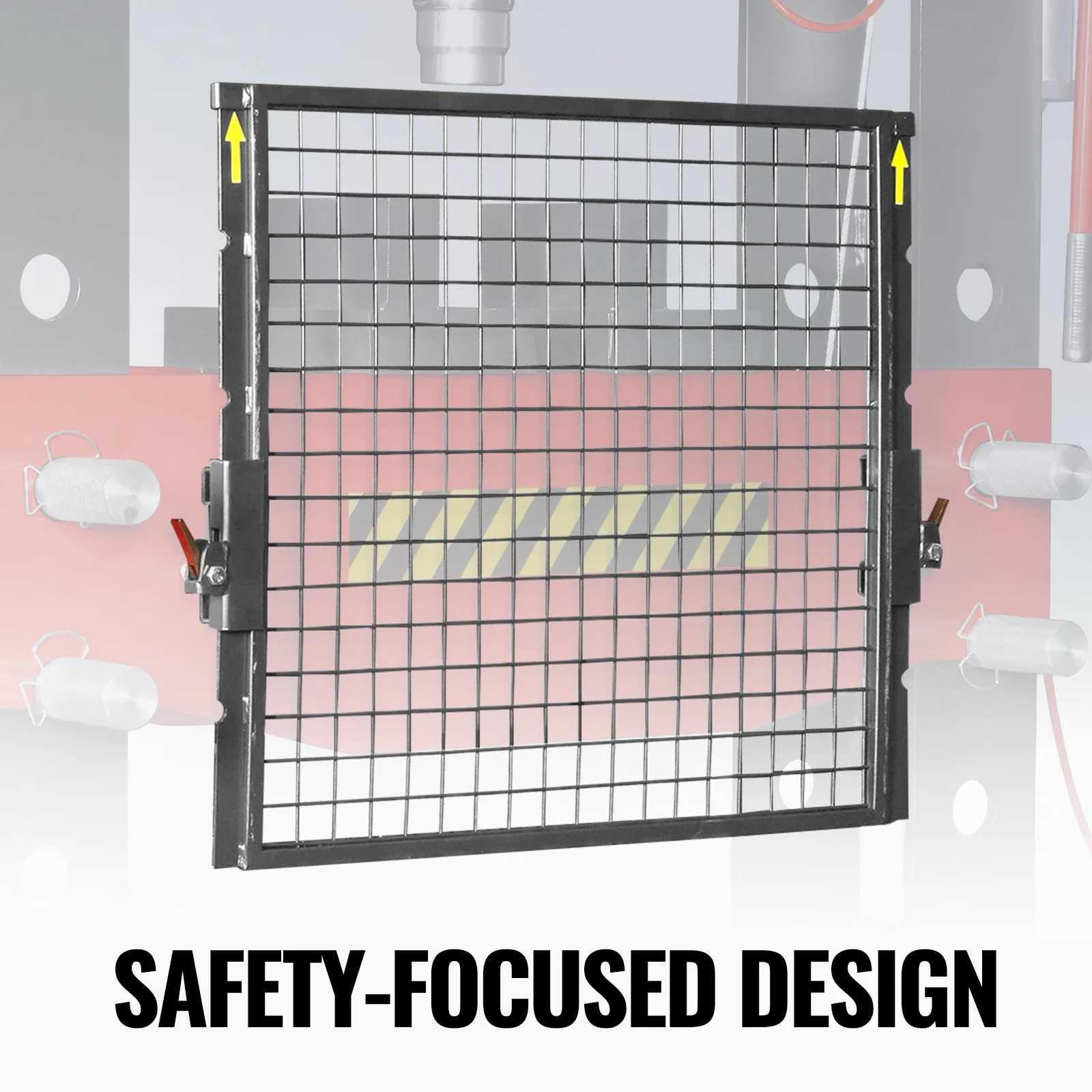

| Protective Grid Guard Size | 27 x 24 in | Weight (N.W/G.W.) | 1278.7 lbs / 1391.1 lbs |
| Ram Retraction | Twin Springs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
