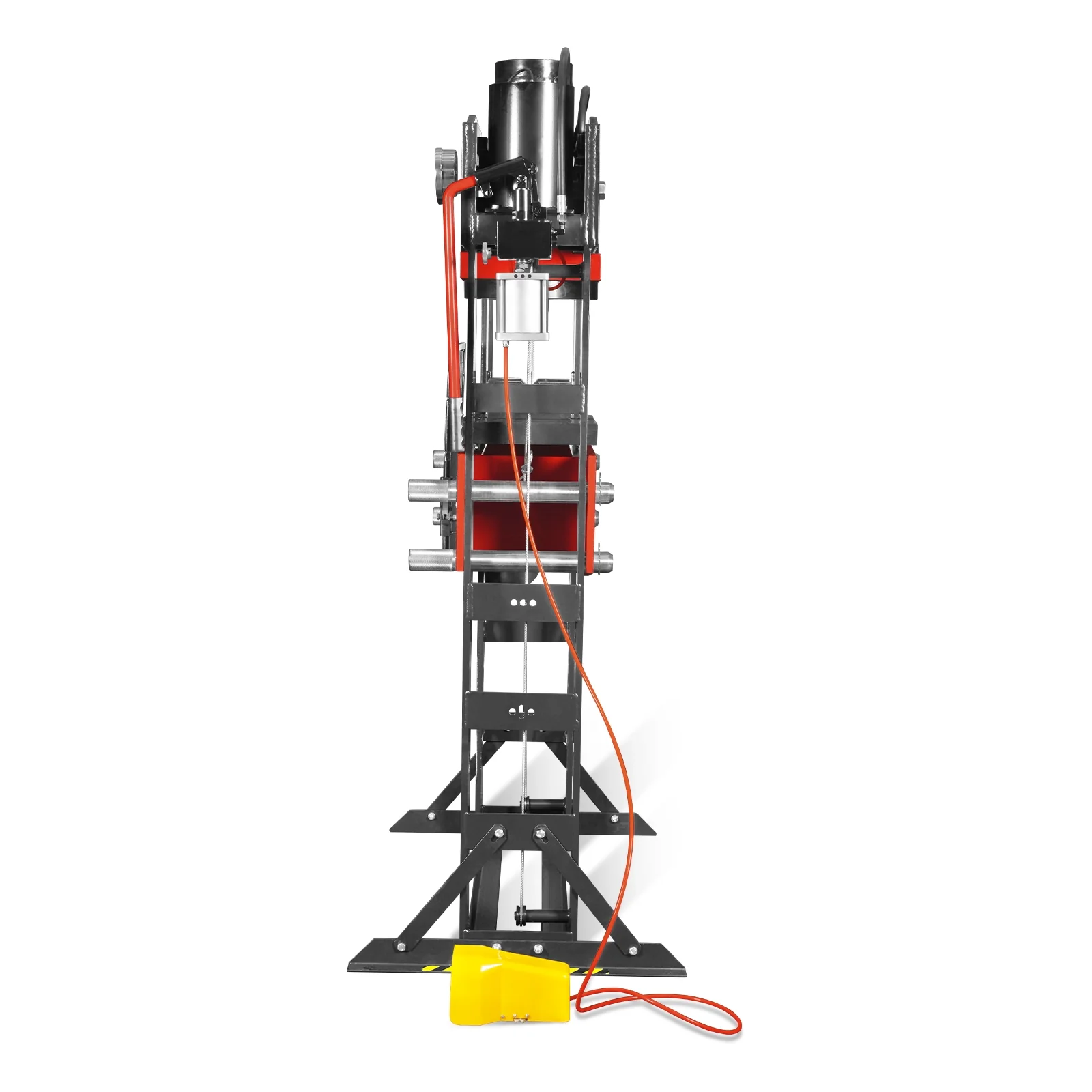

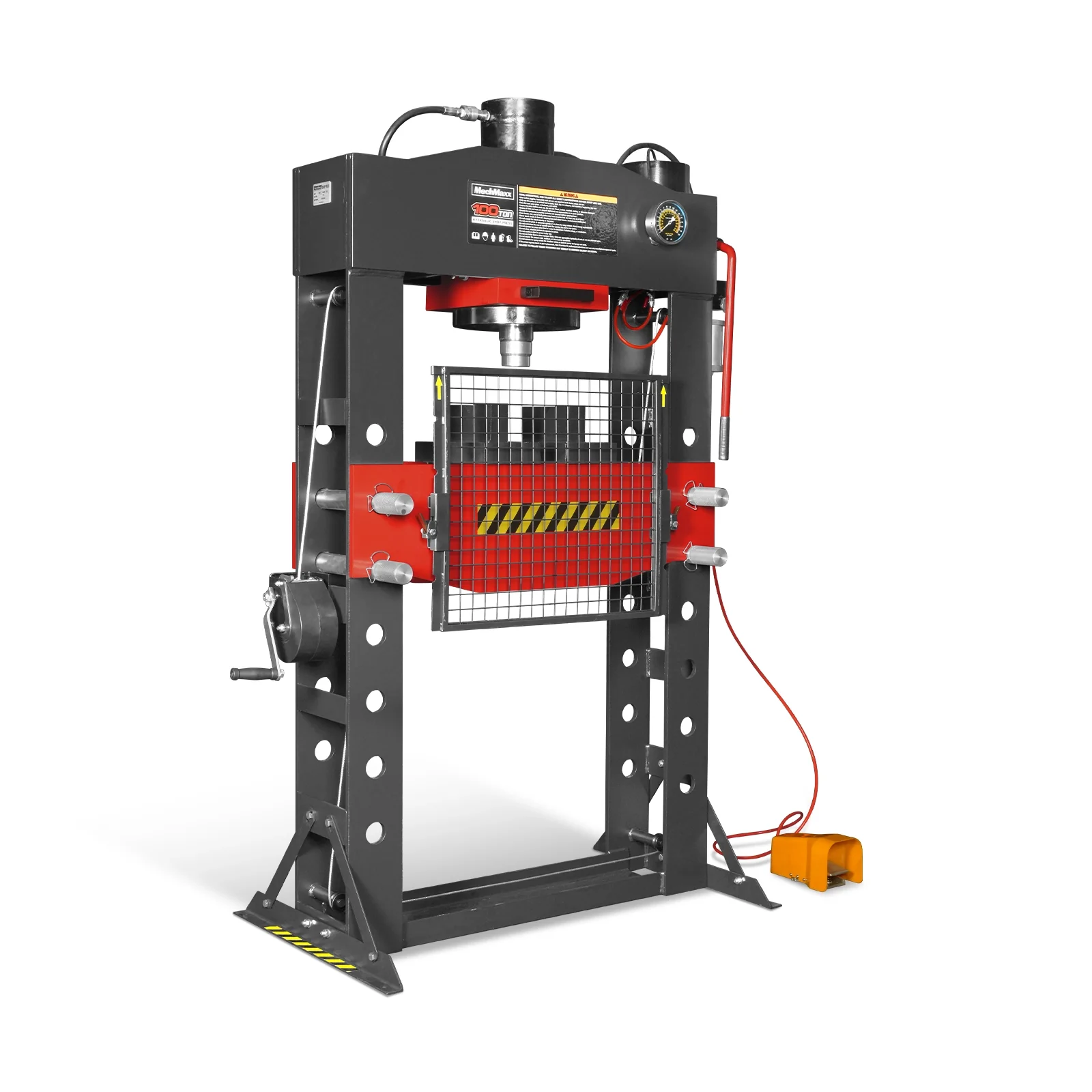

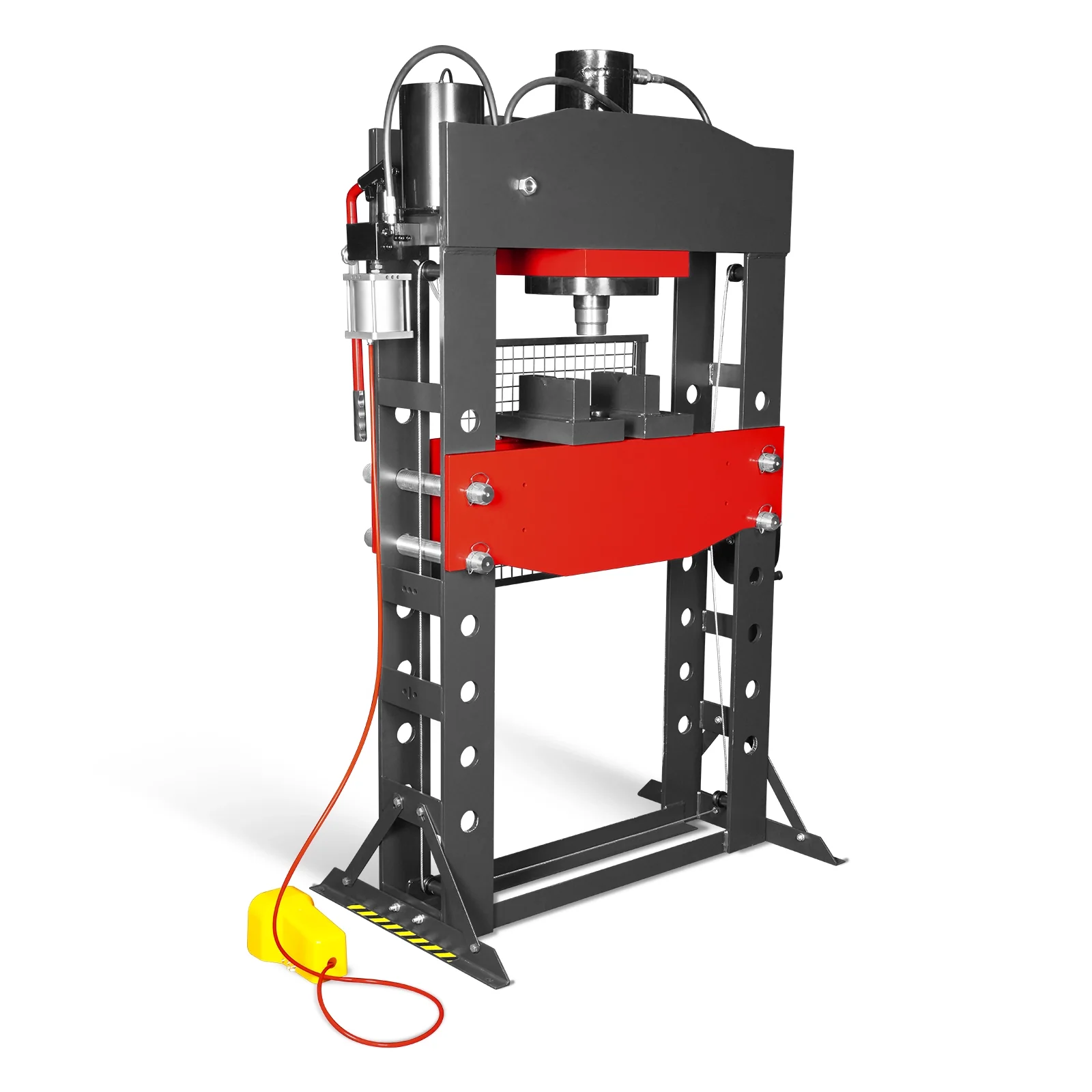

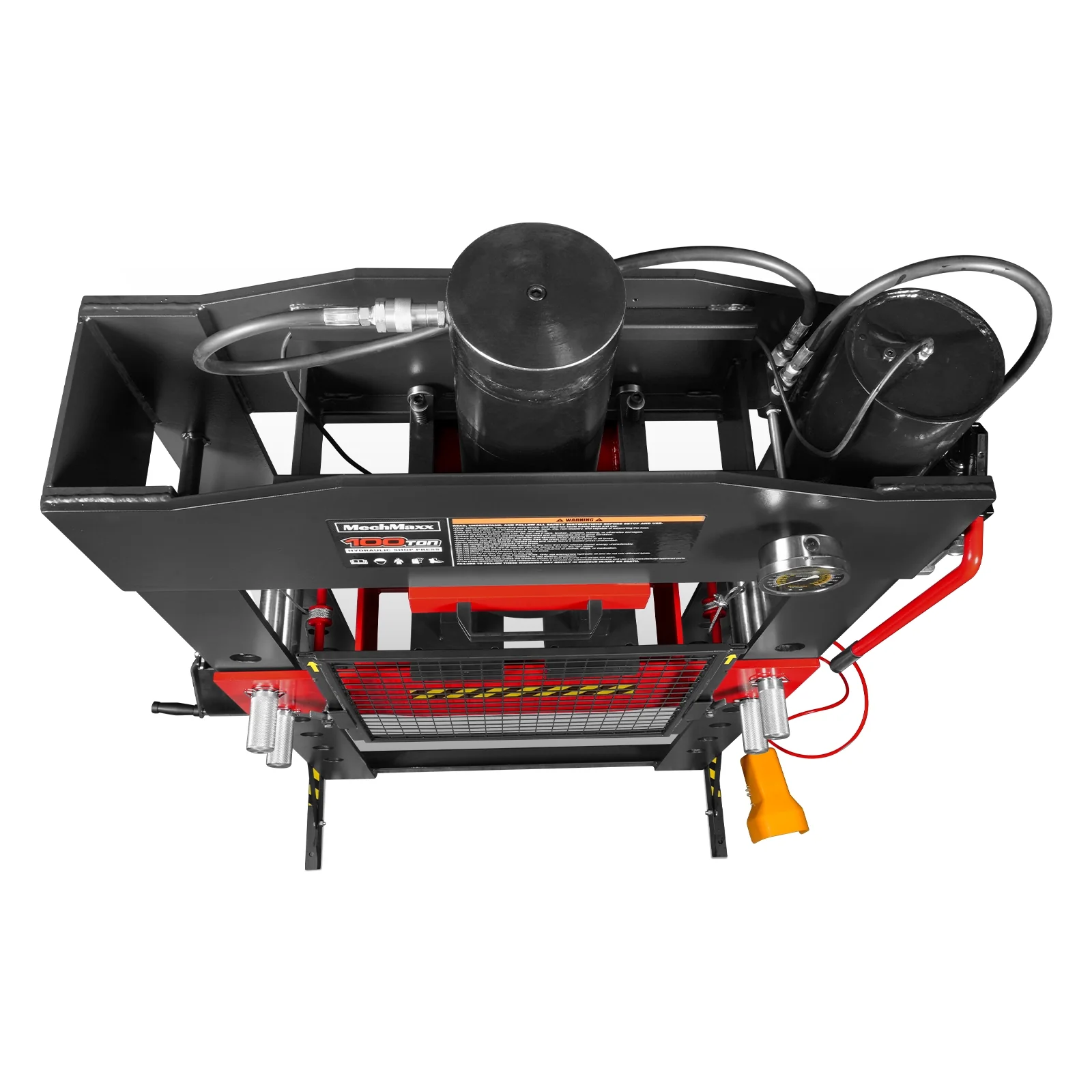

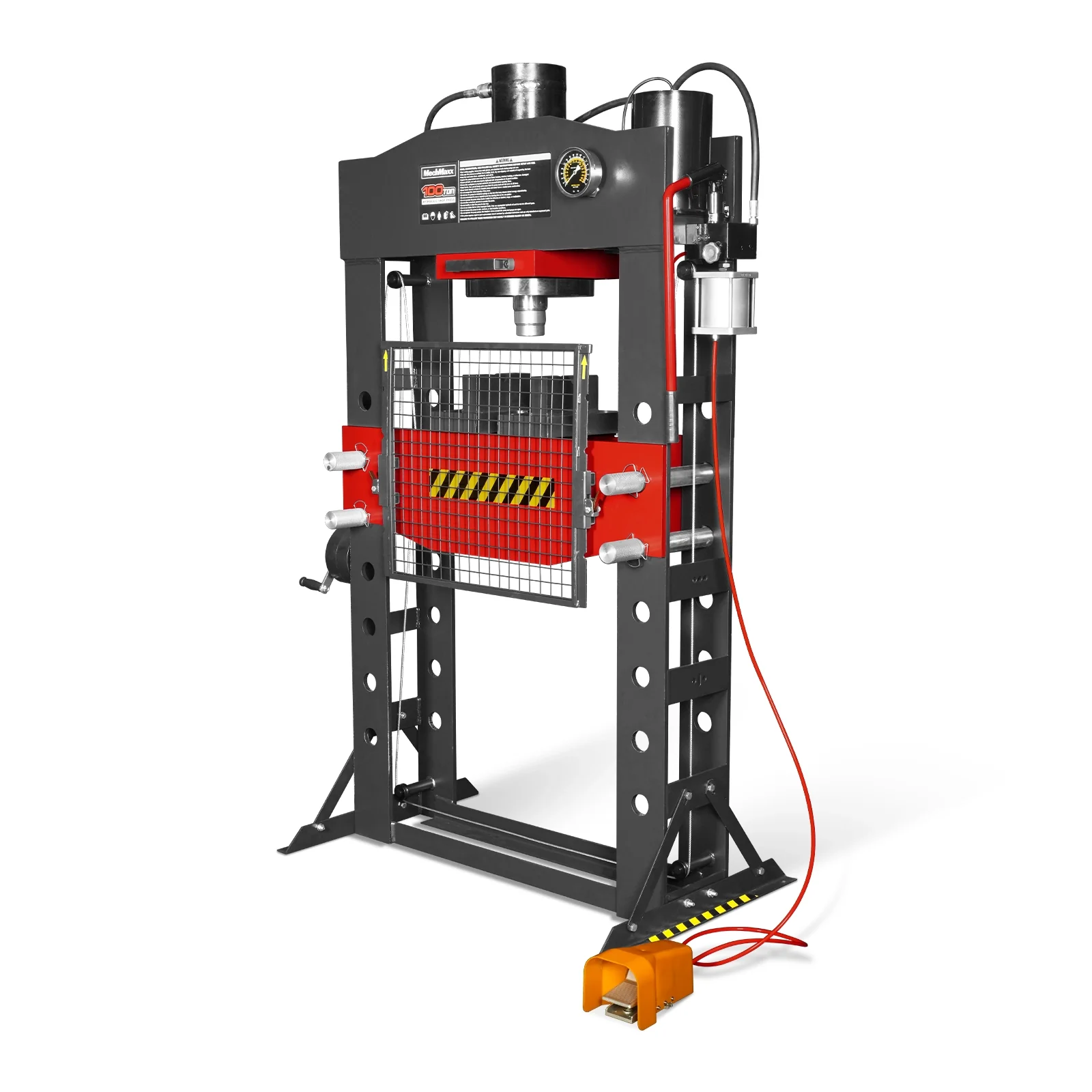

100 Ton H-Frame Air/Hydraulic Shop Press with Hand Winch, Fully Welded Steel Frame, Safety Guard, Foot Pedal Control, HSP100

Rated Capacity	100 Tons	Number of Bed Adjustment Holes	7
Operation Type	Air & Manual Dual Operation	Bed Adjustment Hole Spacing	5.9 in
Air Pressure	110-125 PSI	Frame Construction	Fully Welded Heavy-Duty H-Frame
Ram Stroke	11.8 in	Assembled Size (H x D x W)	75.6 x 29.6 x 40.6 in
Ram Diameter	3.4 in	Internal Frame Width	30.9 in
Cylinder Bore	5.5 in	Protective Grid Guard Size	27 x 24 in
Ram Range of Movement	4.5 in Left / Right from Center	Recommended Hydraulic Oil	AW32 Hydraulic Oil
Bed Depth	8 in	Gauge Type	4 in Oil-Filled Pressure Gauge

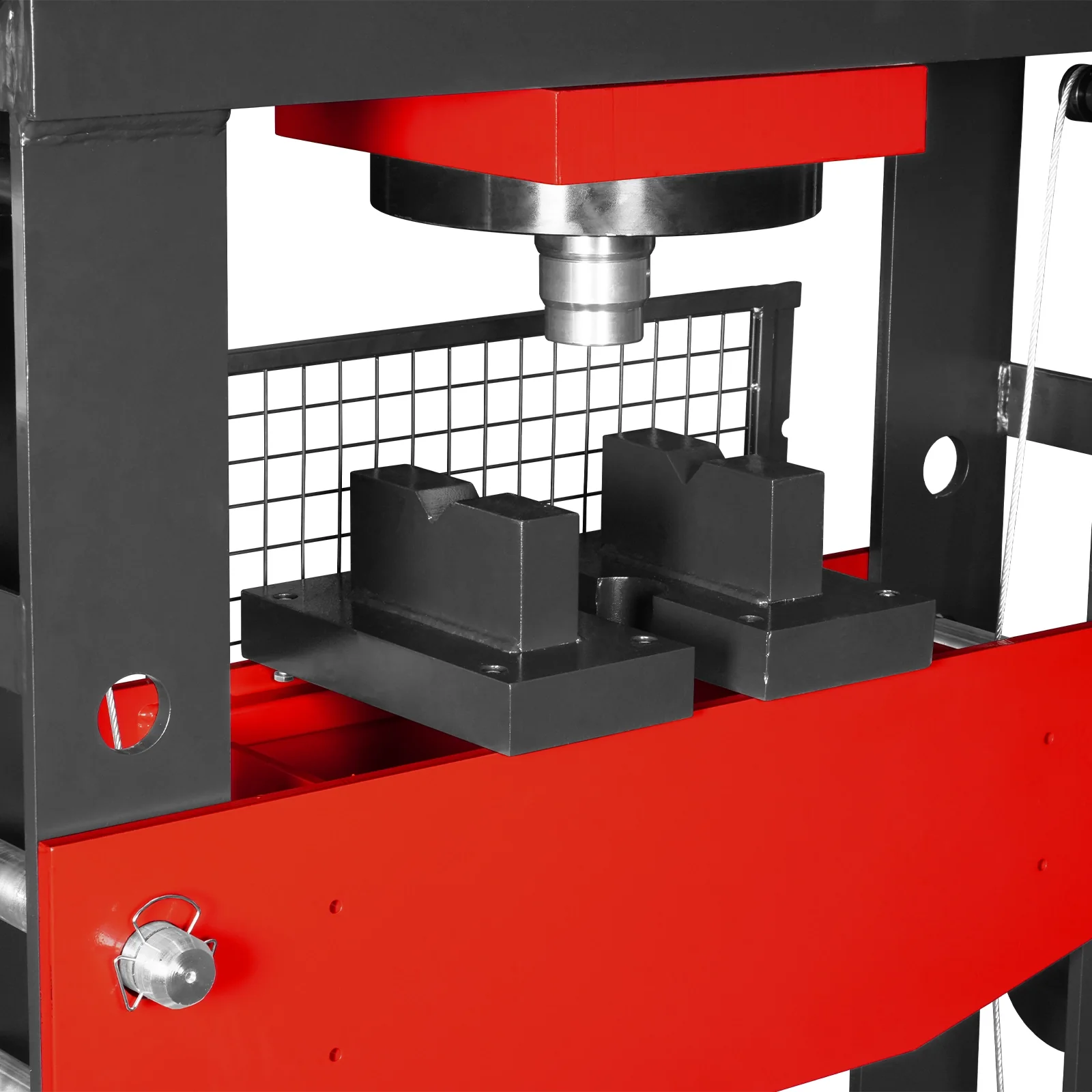

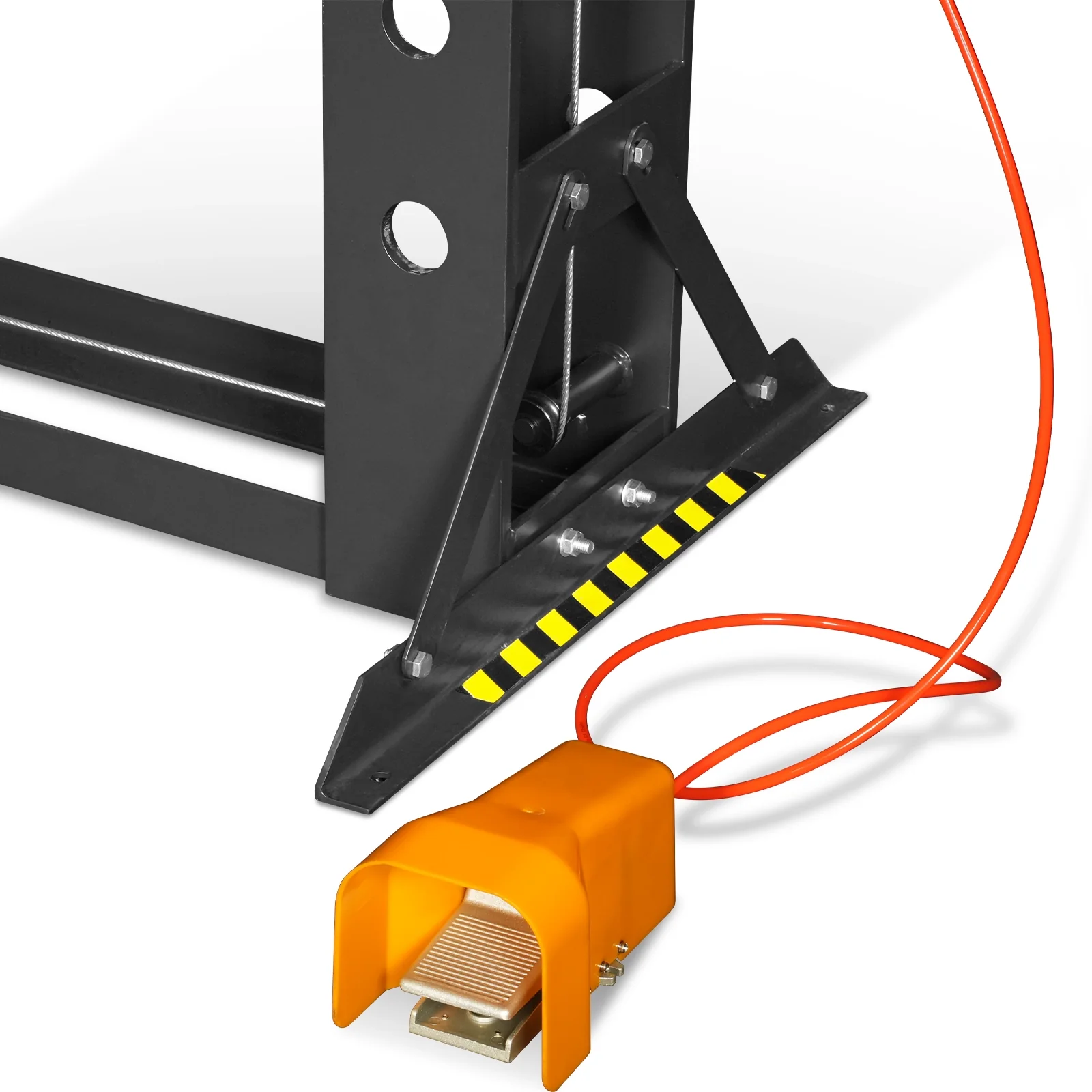

Bed Height	11.8 in	Included Accessories	Protective Grid Guard, Hand Winch, Foot Pedal Valve, V-Blocks
Minimum Ram to Bed	3.5 in	Packing Size (LxWxH)	81.1 x 44.5 x 17.3 in
Maximum Ram to Bed	33.1 in	Weight (N.W/G.W.)	1223.6 lbs / 1333.8 lbs
Ram Retraction	Twin Springs
